49UH7F-H

What the LG 49UH7F-H is and why it has been discontinued

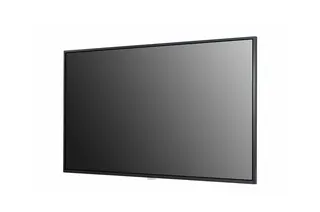

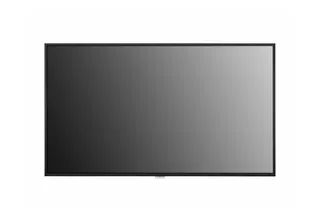

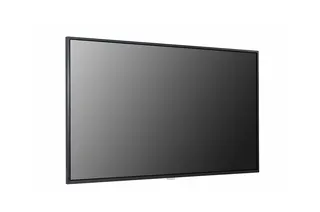

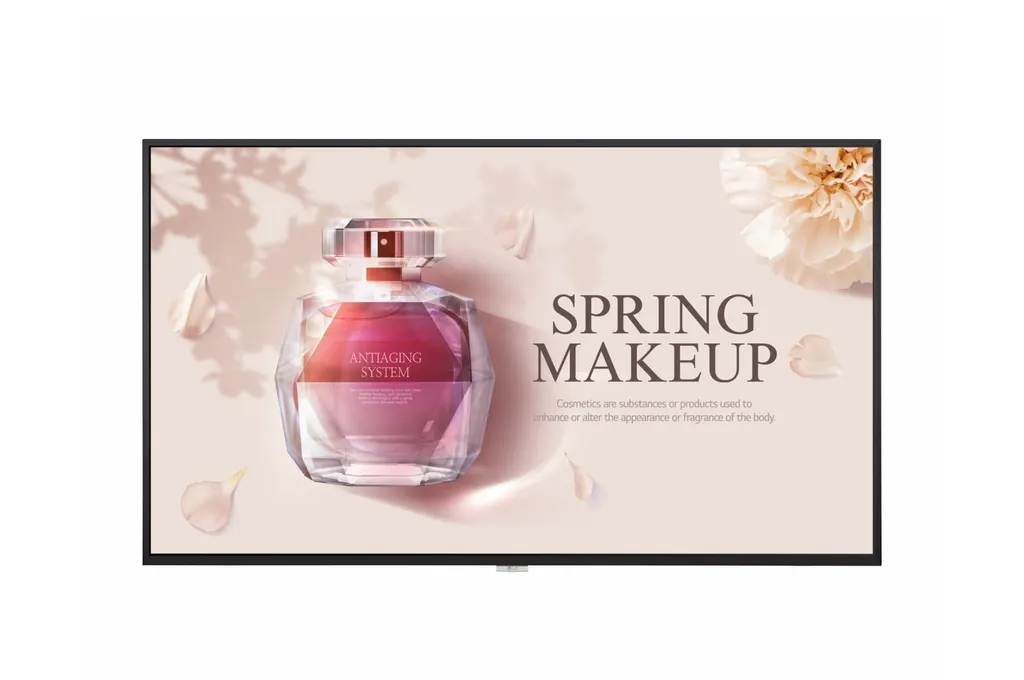

The LG 49UH7F-H is a 49-inch standard-type signage display from the UH7F series, built around a 3840 x 2160 IPS panel with a black bezel. LG has discontinued this model. It remains relevant for organisations that already run it, for buyers comparing it with newer models, and for anyone looking for a replacement. SmartRooms Qatar can quote for a current equivalent or a compatible replacement.

Brightness, haze and colour for busy public spaces

Rated at 700 nit typical brightness, the panel suits lobbies, corridors and reception desks where daylight or overhead lighting washes out ordinary screens. The 28% surface haze softens reflections so text stays readable from an angle. The IPS panel offers a 178 x 178 viewing angle and a 1,000:1 contrast ratio, with 10-bit colour, BT709 95% gamut coverage and an 8 ms response time (G to G).

The display is rated for 24/7 operation. It supports portrait and landscape use and detects its orientation during first setup, so the on-screen menu and background content are already correct when it is first switched on.

Built-in player, sensors and meeting room integration

With 8 GB of internal memory, built-in Wi-Fi and webOS 4.1, the display can run content without a separate media player. Its embedded content management covers local scheduling, group management, multi-screen layouts and gapless playback. A temperature sensor, auto brightness sensor and gyro sensor are built in, and external sensors can be connected through USB as described by the manufacturer.

For meeting rooms, the model is listed as compatible with Crestron Connected for AV control and with Cisco systems for video conference control. RS232C, LAN and IR inputs give control teams several ways to manage it.

Connections, power and mounting details

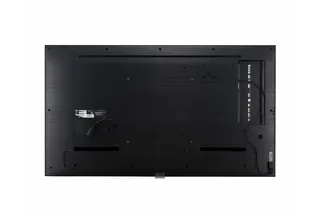

• Inputs: two HDMI ports with HDCP 2.2/1.4, one HDMI with HDCP 1.4, one DisplayPort, one DVI-D, audio and a USB 2.0 Type A port.
• Output: DisplayPort and audio.
• Power: built-in supply rated 100-240V, 50/60Hz, typically 100W and up to 145W maximum.

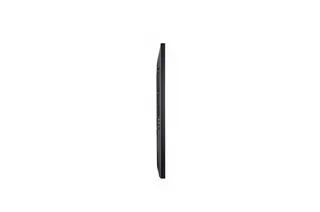

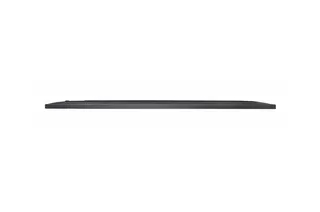

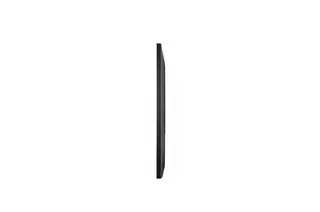

• Size: 1098.6 x 644.5 x 39.9 mm without stand; head weight 15.4 kg; VESA 300 x 300 mount.
• Bezel: 9.9 mm at the top, left and right, and 14.4 mm at the bottom.

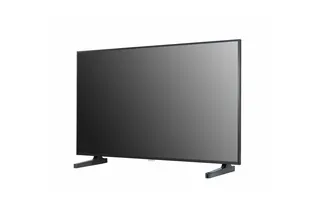

• Optional accessories: ST-653T stand, LSW350B wall bracket, AM-B330S VESA adapter and KT-OPSF OPS kit.

The OPS compatibility is listed, but OPS power is not built in, so plan a separate power arrangement for any OPS module. The 100-240V input range covers Qatar's 240 V supply.

Where it fits in Qatar and what to plan for

• Hotel reception: a serviced apartment or hotel in West Bay or The Pearl can use it for guest information and wayfinding.
• Government visitor area: a ministry or authority in Doha can show visitor information and directions in an air-conditioned lobby.
• Corporate meeting space: an office in Lusail or Msheireb can use it for schedules and meeting information.

• Heat: the operating range is 0 to 40 °C, so install it in an air-conditioned space rather than an open entrance or sun-facing corridor. Summer temperatures in Qatar can exceed 45 °C.
• Tilt: up to 30 degrees of tilt is supported, a figure the manufacturer gives for conditions within 30 °C and 50% humidity.
• Wall load: plan anchors for the 15.4 kg head plus bracket, and book a free site survey before mounting above a reception desk or on a glass wall.

Every order is handled by quotation, usually returned within one working day. SmartRooms Qatar supports purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Because this model is discontinued, request a quote with your unit count and room details, and the team will recommend a current equivalent or compatible replacement.
