Name: LG 49UH7N-E 49-inch UHD Signage Display
Brand: LG
SKU: lg-49uh7n-e
Availability: Discontinued

Overview

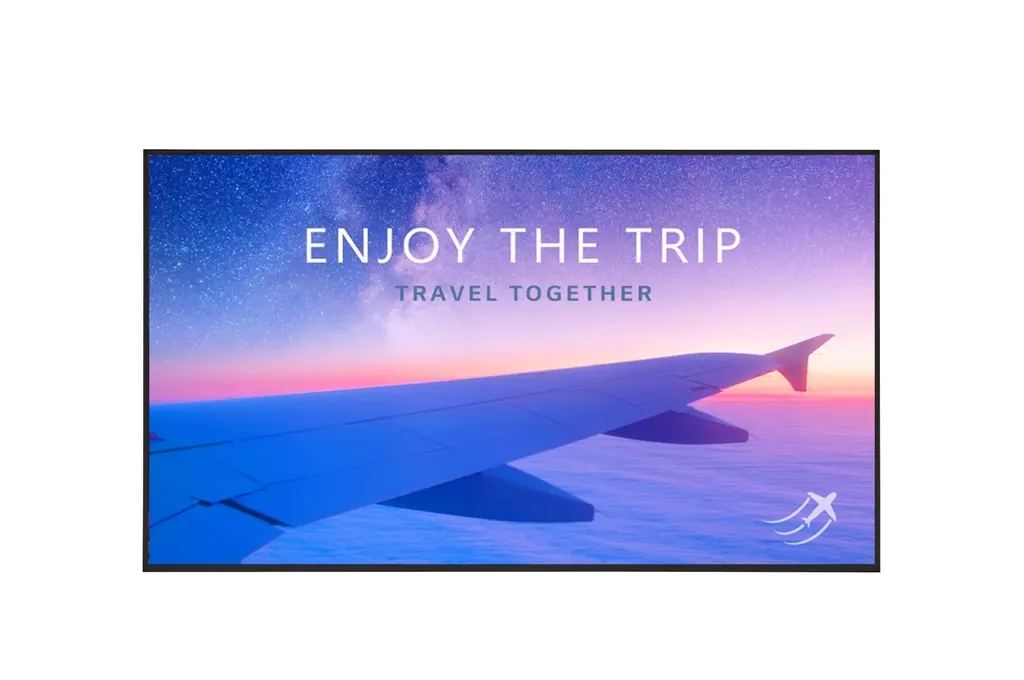

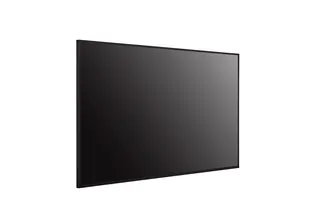

The LG 49UH7N-E is a 49-inch UHD (3840 x 2160) signage display with an IPS panel, 700 nit typical brightness and built-in webOS 6.0, designed for near-continuous 24/7 use. LG has discontinued this model. SmartRooms Qatar can quote a current equivalent or a compatible replacement for lobbies, retail floors and corridors across Qatar. Request a quote for your site.

What the 49UH7N-E offers as a signage display

The LG 49UH7N-E is a 49-inch UHD signage display from the UH7N series, built for organisations that show information on a screen for most of the day. It pairs an IPS panel with a 3840 x 2160 native resolution, a 16:9 aspect ratio and a 60Hz refresh rate, and the manufacturer rates it for 24/7 operation in landscape or portrait orientation.

LG has discontinued this model. If you are adding screens to an existing network or replacing a unit, SmartRooms Qatar can quote a current equivalent or a compatible replacement that suits your mounting space, content platform and power setup.

Picture quality and visibility in bright spaces

The panel shows 10-bit colour, which the manufacturer rates at 1.07 billion colours, and covers 95% of the BT709 gamut. Typical brightness is 700 nit, and the anti-glare coating, with a haze value of 0.28, reduces reflections from windows and overhead lights. Native contrast is 1,100:1 and dynamic contrast is listed at 1,000,000:1. The viewing angle is 178 degrees both horizontally and vertically, and response time is 8ms grey to grey. The 50,000-hour minimum life suits continuous use.

Connectivity, content and control

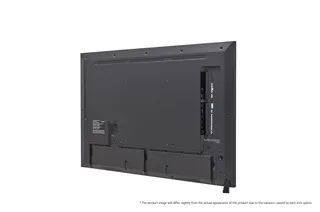

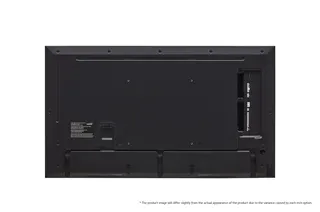

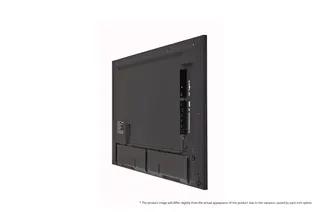

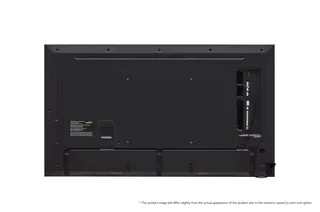

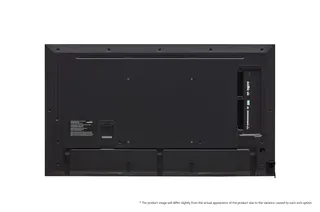

The display offers two HDMI inputs and one DisplayPort input, each supporting 3840 x 2160 at 60Hz, plus a DisplayPort output for daisy-chaining, a USB 2.0 Type A port, a USB 2.0 Type C port without power delivery, LAN, RS232C in and out, IR input and an audio output. Its webOS 6.0 platform, with 16GB of internal memory, Wi-Fi and Bluetooth, runs scheduled content without a separate media player. Compatible software includes SuperSign CMS, SuperSign Control+, SuperSign Cloud and Mobile CMS. Tile mode can be set up to 15x15 for a multi-panel video wall.

Durability, power and installation planning

The IP5X rating and the conformal-coated power board protect against salt, dust, iron powder and humidity. The operating range is 0 to 40 degrees Celsius and 10 to 80 percent humidity, so the screen belongs in an air-conditioned indoor space. The built-in power supply accepts 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical draw is 90W, maximum 130W, and 0.5W when powered off. Plan the installation around these specifics:

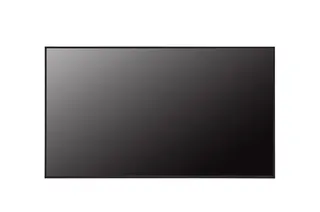

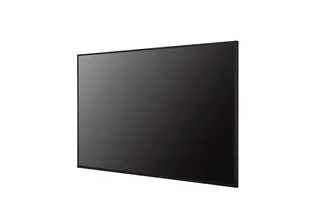

Bezels measure 8.9 mm on the sides and top and 12.9 mm at the bottom
The head weighs 13.6 kg, or 16.1 kg packed, so plan a rigid wall or suitable bracket
VESA 300 x 300 mounting pattern
About 13 mm wall gap with the slim bracket and hidden power inlets
Optional slim wall mount WB21LMA/B, wall mount OLW480A/B and adapter AM-B330S

Where it fits in Qatar

Hotel reception and lift lobbies in West Bay or The Pearl, showing directions and event listings
Clinic and hospital waiting areas in Al Sadd or Msheireb, displaying queue numbers and health information
University and school corridors in Education City or Al Rayyan, running timetables and announcements

Book a site survey before ordering. SmartRooms Qatar offers free site surveys to confirm wall construction, cable routes, socket positions and spacing for several screens. For a government body or school ordering more than one unit, quotations can be issued for a purchase order (LPO), and we support government tenders including Monaqasat. Send us your locations, screen count and content plan, and request a quote for a current replacement that fits your site.

Highlights

49-inch IPS panel with 3840 x 2160 native resolution
700 nit typical brightness with anti-glare coating
Built-in webOS 6.0 and 16GB internal memory
IP5X rating and conformal-coated power board
Operating range 0 to 40 °C, 10 to 80% humidity
Discontinued by LG; quotes for current replacements

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

106 specifications · Source: manufacturer · checked Oct 2026

INFO3

Product: Standard (UHD)
Year: Y23
Month: M09(TBD)

PANEL17

Screen Size (Inch): 49"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness: 700nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 1,000,000:1
Color Gamut: BT709 95%
Viewing Angle (H x V): 178 x 178
Color Depth (Number of Colors): 10bit(D), 1.07Billion colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): 0.28
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: Yes / Yes

Connectivity (Jack Interface)10

HDMI IN: Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
DP Out: Yes(1), 3840x2160@60Hz, Input : HDMI1/2/DP/USB-C
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
Daisy Chain: Yes(Input HDMI, DP, USB C / Output DP)

MECHANICAL7

Bezel Color: Black
Bezel Width: T/R/L: 8.9mm, B: 12.9mm
Weight (Head): 13.6 kg
Packed Weight: 16.1 kg

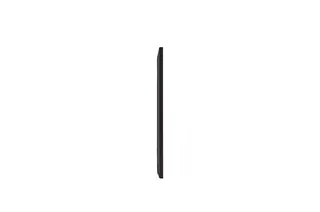

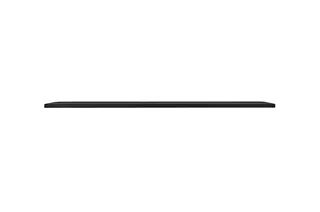

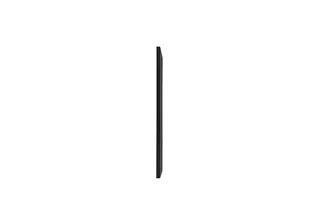

Monitor Dimensions (W x H x D): 1095.6 x 630.8 x 29.7mm (without IR)
Carton Dimensions (W x H x D): 1215.0 x 736.0 x 152.0mm
VESATM Standard Mount Interface: 300 x 300

HW FEATURE6

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes

SW FEATURE35

OS Ver. (webOS): webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: (TBD)
Crestron Connected: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION7

Typ.: 90W
Max.: 130W
IEC62087 (Typ): 84W
BTU (British Thermal Unit): 0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
Smart Enegy Saving (70%): 63
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker (Built-in): Yes (10W X 2)

CERTIFICATION4

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: Yes(NewErP)/Yes
ePEAT(US only): Yes

SOFTWARE COMPATIBILITY6

SuperSign CMS: Yes
SuperSign Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek,Türkiye, Arabic

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE3

Tilt (Face Down): Yes(Max 30˚ degree, 40℃ temperature)
IP Rating: IP5X
Conformal Coating (Power Board): Yes

Downloads

6 files from the manufacturer

PDF Datasheets UH7N-E_Datasheet(low)_LG UHD Signage_250210_20250213_102612_.pdf 1.1 MB PDF Manuals & guides · Opens on manufacturer site 43495565UH5N_7N-EP_ARA.pdf 2.7 MB PDF Manuals & guides · Opens on manufacturer site ENG.pdf 696 KB PDF Manuals & guides · Opens on manufacturer site MFL72000301_02_Q.pdf 1.3 MB PDF Manuals & guides · Opens on manufacturer site OM_ENG.pdf 856 KB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 49UH7N-E

Is the LG 49UH7N-E still sold new by LG?

No. LG has discontinued the 49UH7N-E, so it is no longer in the manufacturer's current range. SmartRooms Qatar can quote a suitable current replacement or a compatible equivalent that fits your mounting space, content platform and power setup. Send us the existing model and your site details, and we will reply with a quotation, usually within one working day.

What is the 49UH7N-E designed to do?

It is a 49-inch UHD signage display for showing information, menus, directions or advertising on a screen that runs continuously. The manufacturer lists 24/7 operation, landscape and portrait orientation, and a 700 nit typical brightness. It suits lobbies, reception areas, corridors and retail floors where a single wall-mounted screen needs to stay clear and dependable all day.

Does the built-in power supply work with Qatar's 240 V mains?

Yes. The built-in power supply is rated AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 90W and the maximum is 130W, dropping to 0.5W in power-off mode. Ask your electrical contractor to confirm the outlet position and socket arrangement for your site before installation.

Can it play content without an external media player?

It can. The built-in webOS 6.0 platform, with 16GB of internal eMMC storage, handles multiple tasks without a separate media player. Local content scheduling, group management, fail-over and screen rotation are listed in the specification. The unit is compatible with SuperSign CMS, SuperSign Control+, SuperSign Cloud and Mobile CMS for managing playlists across several screens.

What inputs and outputs does the 49UH7N-E provide?

The unit provides two HDMI inputs and one DisplayPort input, each supporting 3840 x 2160 at 60Hz, plus a DisplayPort output, a USB 2.0 Type A port, a USB 2.0 Type C port without power delivery, LAN, RS232C input and output, an IR input and an audio output. Check which source devices you will connect, such as media players or laptops, before ordering cables.

Can several 49UH7N-E screens be daisy-chained into a video wall?

The display supports daisy-chaining, accepting input from HDMI, DisplayPort or USB-C and passing it on through its DisplayPort output. Tile mode settings go up to 15x15 for multi-panel layouts. For a wall in a Doha hotel lobby or a Lusail mall atrium, the bezel alignment and mounting positions should be surveyed on site before the order is placed.

Can it be placed in a sunny, unshaded area during Qatar's summer?

Not without reviewing conditions first. The operating range is 0 to 40 degrees Celsius and 10 to 80 percent humidity, while Qatar summer temperatures often exceed 45 degrees. Install it in an air-conditioned indoor space, away from direct sunlight on glass. If your entrance is semi-open or faces a sun-exposed window, ask the SmartRooms Qatar team to review the location before we quote.

How well does the screen handle bright lobbies and window light?

The screen has an anti-glare coating with a haze value of 0.28 and a typical brightness of 700 nit, which helps reduce reflections and keep content readable in brighter rooms. The viewing angle is 178 degrees horizontally and vertically. For a glass-fronted lobby or a reception facing windows in Doha, test the position at the busiest time of day before fixing it in place.

How much wall space and mounting support does it need?

Side and top bezels measure 8.9 mm and the bottom bezel 12.9 mm. The depth is 29.7 mm without the IR unit, and with the slim bracket the display sits about 13 mm from the wall. The head weighs 13.6 kg and follows a 300 x 300 VESA pattern. Optional mounts include the slim WB21LMA/B and the OLW480A/B. A site survey helps confirm the wall can carry the load.

Does the on-screen menu support Arabic?

Yes. The on-screen display language list includes Arabic alongside English and many other languages. This suits Qatari offices and schools where staff work in Arabic and English side by side. Confirm the language you need at the time of ordering so the installer can set the menu language and default content before handover.

What security features does this model include?

The 49UH7N-E includes LG's Enhanced Kernel Protection technology, which the manufacturer describes as guarding data against external access and attacks. The manufacturer also states that this model is ISO/IEC 15408 Common Criteria EAL2 certified. For an IT team in a government or healthcare setting, share your network policy so we can review connection settings, including LAN, Wi-Fi and Bluetooth, before installation.

How do we order several units for a school or government department?

Send the model, quantity and locations, and SmartRooms Qatar will prepare a quotation, usually within one working day. We accept purchase orders (LPOs), and payment can be made by bank transfer, cheque or purchase order. We also support government tenders, including Monaqasat. Because this model is discontinued, the quotation will cover a current equivalent or compatible replacement, so please confirm the number of units needed for each site.
