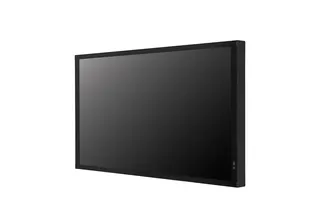

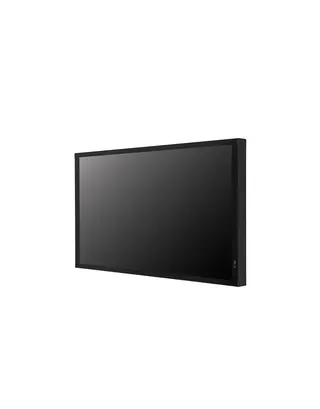

LG 49XE4P 49-inch High-Brightness Outdoor Display

Overview

The LG 49XE4P is a 49-inch display built for outdoor digital signage. It is rated at 4,000 nit typical brightness for visibility in strong daylight, carries an IP56 sealed housing and IK10 tempered glass, and runs 24/7. Built-in Wi-Fi, Bluetooth and webOS 6.1 let operators schedule and update content remotely. It suits malls, hotel forecourts and transport hubs in Doha, where sun, dust and summer heat are daily concerns.

Brightness and build for Qatar's outdoor conditions

The LG 49XE4P is a 49-inch display from LG's XE4P outdoor series, made for signage that must stay visible in strong daylight, dust and heat. Its 1920 x 1080 IPS panel with M+ technology is rated at 4,000 nit typical brightness and 3,200 nit minimum, with a contrast ratio of 1,300:1. The unit is specified for 24/7 operation with a typical panel life of 50,000 hours, so it suits content that runs all day rather than during opening hours only.

Dust, impact and summer heat tolerance

The housing carries an IP56 rating, meaning it is designed to keep out dust and water. The front is 5 mm tempered protective glass with an IK10 impact rating, anti-reflective treatment and shatter-proof construction. The power board has conformal coating against dust, iron powder, humidity and other contaminants. The rated operating range is -30°C to 50°C. LG's test allows 50°C without direct sunlight, or with direct sunlight when the cooling system is running, and lists 40°C for direct sunlight without it. Humidity is rated 5% to 100%. For a west-facing frontage in Doha, plan around the 40°C figure and confirm shading and airflow during the site survey.

Where it fits in Qatar

Mall and hotel frontages: a storefront in West Bay or a hotel forecourt in Lusail that needs promotions or wayfinding visible from the walkway in daylight.
Industrial gates: a logistics or energy site in the Industrial Area or Mesaieed showing queue, safety or visitor information, where dust is a constant condition.
Event venues: a concourse or fan zone near Al Rayyan where a row of displays shows schedules and sponsor content, with backlight values synchronised so colour matches across the set.

Connectivity, power and remote management

Inputs include two HDMI ports with HDCP 2.2, a DisplayPort input with HDCP 2.2, RS232C in and out, LAN in and out, two USB 2.0 Type A ports and an external speaker output. Built-in Wi-Fi and Bluetooth, 16GB internal memory and a beacon feature add wireless options. Fail over keeps the last active content on screen if the media player disconnects. The LG Control Manager provides web monitoring over a wired LAN connection. The display is listed as compatible with SuperSign CMS, SuperSign Control+ and SuperSign Cloud. LG ConnectedCare, the energy dashboard, is sold separately.

The built-in power supply accepts AC 100-240V at 50/60 Hz. Typical draw is 190 W and maximum is 400 W, with heat output of 1024 BTU/Hr typical and 1194 BTU/Hr maximum, so air-conditioning and enclosure ventilation should be sized to the maximum figure. Standby draw is 0.5 W or less.

Planning the mount and the quotation

The head weighs 31.2 kg and 36.2 kg packed, measuring 1153.0 x 656.2 x 88.0 mm, so the wall, bracket or existing casing must be checked for load before fitting. The display can be tilted face-down up to 15 degrees, and an internal sensor sends an alert to the administrator if it takes a strong impact or changes installation angle. A self-leveller tool helps check horizontal and vertical alignment. The model is designed to fit existing legacy casings, which makes it a practical replacement option. SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. To request a quote, send your site location, wall or casing type and the direction the screen faces. We will confirm the configuration and an estimated lead time based on stock, with the quotation usually issued within one working day.

Highlights

4,000 nit typical brightness with 3,200 nit minimum
IP56 sealed housing against dust and water
5 mm tempered glass rated IK10 for impact
Operating range -30°C to 50°C, without direct sunlight
Built-in Wi-Fi, Bluetooth and webOS 6.1
Built-in power supply rated AC 100-240V, 50/60Hz

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

105 specifications · Source: manufacturer · checked Oct 2026

PANEL18

Screen Size (Inch): 49
Panel Technology: IPS / M+
Back Light Type: Direct
Aspect Ratio: 16:9
Native Resolution: 1920 x 1080 (FHD)
Refresh Rate: 60Hz
Brightness: 4,000 nit (Typ), 3,200 nit (Min)
Contrast Ratio: 1,300:1
Dynamic CR: 500,000:1
Color Gamut: 67%
Viewing Angle (H x V): 178º x 178º
Color Depth (Number of Colors): 1.07 Billion colors
Response Time: Typ. 8ms (G to G BW)
Surface Treatment (Haze): 3%
Life time: 50,000Hrs (Typ.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: YES / YES
QWP (Quarter Wave Plate): YES

CONNECTIVITY9

HDMI In: YES (2ea)
HDMI In (HDCP Ver.): 2.2
DP In: YES (HDCP 2.2)
RS232C In: YES
RJ45(LAN) In: YES (1ea)
USB In: USB2.0 Type A (2ea)
External Speaker Out: YES
RS232C Out: YES
RJ45(LAN) Out: YES

MECHANICAL SPECIFICATION6

Bezel Color: Black
Bezel Width: 38.4/26/26/38.4mm
Weight (Head): 31.2kg
Packed Weight: 36.2kg
Monitor Dimensions (W x H x D): 1153.0 x 656.2 x 88.0mm
Carton Dimensions (W x H x D): 1287 x 797 x 207mm

PROTECTION GLASS6

Thickness: 5mm
Degree of Protection: YES (IK10)
Tempered / Chemical strengthening: Tempered strengthening
Anti-Reflective: YES
Infrared - Resistance (IR): YES
Shatter-Proof: YES

FEATURE - HARDWARE11

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): YES
Temperature Sensor: YES
Auto Brightness Sensor: YES
Pixel Sensor: YES
Current Sensor: YES
BLU Sensor: YES
Humidity Sensor: YES
Acceleration(Gyro) Sensor: YES
Power Indicator: YES
FAN (Built-in): YES

FEATURE - SOFTWARE33

OS Ver. (webOS): webOS 6.0 (webOS6.1)
Local Contents Scheduling: YES
Group Manager: YES
USB Plug & Play: YES
Fail over: YES
Booting Logo Image: YES
No Signal Image: YES
RS232C Sync: YES
Local Network Sync: YES
Backlight Sync: YES
PIP: YES
PBP: YES (2PBP)
Video Tag: YES (4 Video Tag)
Play via URL: YES
Screen Rotation: YES
External Input Rotation: YES
Gapless Playback: YES
Tile Mode Setting: YES
Setting Data Cloning: YES
SNMP: YES
ISM Method: YES
Auto Set ID: YES
Status Mailing: YES
Control Manager: YES
Smart Energy Saving: YES
PM mode: YES
Wake on LAN: YES
Network Ready: YES
Beacon: YES
HDMI-CEC: YES
SI Server Setting: YES
webRTC: YES
Pro:Idiom: YES

ENVIRONMENT CONDITIONS2

Operation Temperature: -30°C to 50 °C
Operation Humidity: 5% to 100%

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

POWER CONSUMPTION5

Typ.: 190W (IEC 62087, 148W)
Max.: 400W
BTU (British Thermal Unit): 1024 BTU/Hr(Typ.), 1194 BTU/Hr(Max)
DPM: 0.5W↓
Power off: 0.5W↓

CERTIFICATION3

Safety: CB / NRTL
EMC: FCC Class "A" / CE / KC / VCCI
ERP / Energy Star: YES / NO

SOFTWARE COMPATIBILITY4

SuperSign CMS: YES
SuperSign Control+: YES
SuperSign Cloud: YES
Connected Care: YES

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab

ACCESSORY1

Basic: Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws

SPECIAL FEATURE4

Tilt (Face down): 15˚
IP Rating: IP56
Conformal Coating (Power Board): YES
Direct Sunlight: YES

Downloads

4 files from the manufacturer

PDF Datasheets 55-49XE4P_Datasheet(low)_LG High-Brightness IP-Rated Outdoor Display_20260318_210941_.pdf 3.1 MB PDF Manuals & guides MFL05783801_01_251028.pdf 4.0 MB PDF Manuals & guides OM_ENG.pdf 12.7 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 4.9 MB

Questions about 49XE4P

What is the LG 49XE4P used for?

The LG 49XE4P is a 49-inch display for outdoor and semi-exposed digital signage, such as storefront menus, promotional screens, wayfinding and public information. It combines a panel rated at 4,000 nit typical brightness with an IP56 sealed housing and IK10 tempered glass. It suits marketing and facilities teams in Qatar who need a screen that works outside an air-conditioned lobby, rather than an indoor panel placed in a sheltered position.

Will the 49XE4P stay readable on a west-facing storefront in Doha in the afternoon?

With a typical brightness of 4,000 nit and a minimum of 3,200 nit, the 49XE4P is designed to remain visible where indoor displays would wash out. Its ambient light sensor raises output in daylight. Afternoon sun on a west-facing glass front in Doha is intense, so a site survey should check glare, shading and the angle of the panel before the unit is fixed in position.

Can the display run outdoors through a Doha summer when temperatures pass 45°C?

The rated operating range is -30°C to 50°C. LG's test allows 50°C without direct sunlight, or with direct sunlight when the cooling system is running, and lists 40°C for direct sunlight without it. A shaded, ventilated position is the most straightforward case. A fully exposed rooftop position in summer should be reviewed with SmartRooms Qatar before the order is confirmed.

What do the IP56 and IK10 ratings mean for this model?

IP56 means the housing is designed to keep out dust and water, which matters for a screen exposed to sand-laden wind and rain. IK10 is the highest impact rating on the IK scale and applies to the 5 mm tempered front glass, helping it resist knocks and vandalism. The power board also has conformal coating against dust and humidity. Together these features can reduce the need for LCD module replacements after impact or dust damage.

Does the 49XE4P connect to Qatar's 240 V mains supply?

Yes. The built-in power supply is rated AC 100-240V at 50/60 Hz, which covers the 240 V supply used in Qatar. The unit has a built-in power supply rather than an external adaptor, and a power cable is included in the accessory list. An electrician should still confirm the socket and cable route against the site drawing, and use a dedicated circuit where the display forms part of a multi-screen wall.

How much power and heat should we plan for per display?

Plan for the maximum draw of 400 W, although typical consumption is 190 W and standby draw is 0.5 W or less. Heat output is 1024 BTU/Hr typical and 1194 BTU/Hr maximum. For several units in a lobby or gallery, add these figures to the room heat load before sizing the air-conditioning, and confirm ventilation around each enclosure. Actual consumption depends on the brightness profile you choose.

Which inputs and network ports are on the 49XE4P?

The display has two HDMI inputs with HDCP 2.2, one DisplayPort input with HDCP 2.2, RS232C in and out, LAN in and out, two USB 2.0 Type A ports and an external speaker output. Built-in Wi-Fi and Bluetooth allow wireless content transfer. Web monitoring through LG Control Manager requires a wired LAN connection, so plan a network point at each mounting position.

Can we manage several 49XE4P displays from one place?

Yes, through a compatible platform. The source data lists SuperSign CMS, SuperSign Control+ and SuperSign Cloud as compatible. LG Control Manager allows real-time remote monitoring and control over the network, while Group Manager, Local Contents Scheduling and Fail over help run a set of screens together. LG ConnectedCare, which tracks energy use, is sold separately. SmartRooms Qatar can confirm the combination that suits your number of screens.

Can the 49XE4P replace an older outdoor display in an existing casing?

The manufacturer states that the 49XE4P is designed to fit existing legacy casings, which makes it a practical replacement option in a refit. Before ordering, measure the aperture and compare the 1153.0 x 656.2 x 88.0 mm head dimensions and 31.2 kg weight with the current casing and fixings. A free site survey from SmartRooms Qatar confirms fit, power route and mounting before the quotation is finalised.

We are fitting a mall frontage in West Bay. What should we check first?

Start with the orientation of the glass and the cooling plan, since the rated range reaches 50°C and LG lists 40°C when the panel takes direct sunlight. Confirm the mounting height, the viewing position and the network point needed for web monitoring. Because the head weighs 31.2 kg, the survey should check the wall or frame load. SmartRooms Qatar provides free site surveys and professional installation, and quotations are usually issued within one working day.

Is this display suitable for a logistics gate in the Industrial Area?

It is a reasonable fit for a gate or weighbridge display showing queue, safety or visitor information. The IP56 seal guards against dust, and the IK10 glass resists impacts from nearby equipment. Check the operating range against the gatehouse position, and set brightness profiles so the screen is not overpowering at night. Network connectivity lets site staff update messages from the office over LAN.

Can it be used in an event concourse in Al Rayyan with several screens showing the same schedule?

Yes. Backlight Sync lets operators align backlight values across a multi-display setup so colour looks consistent, and the Tile Mode setting supports tiled layouts. Two-picture-by-picture mode can show two sources side by side. The 1920 x 1080 resolution and 178 degree horizontal and vertical viewing angles help visitors read schedules from different positions. Confirm the layout with SmartRooms Qatar before ordering.
