LG 86XF3CK 86-inch High-Brightness Open-Frame Display

Overview

The LG 86XF3CK is an 86-inch open-frame display rated at 3,300 nits typical brightness, with a 3,840 x 2,160 IPS panel and double-sided viewing. It suits storefront windows, bus stops, sidewalk advertising and sunlit lobbies in Doha and beyond, where a standard indoor screen would wash out. SmartRooms Qatar supplies it with installation and a free site survey. Request a quote today.

What the LG 86XF3CK is designed to do

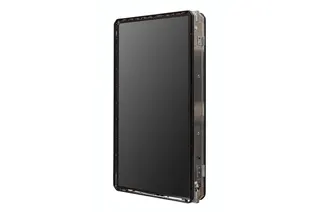

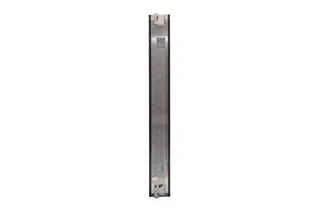

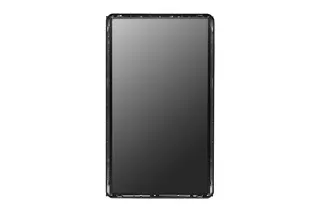

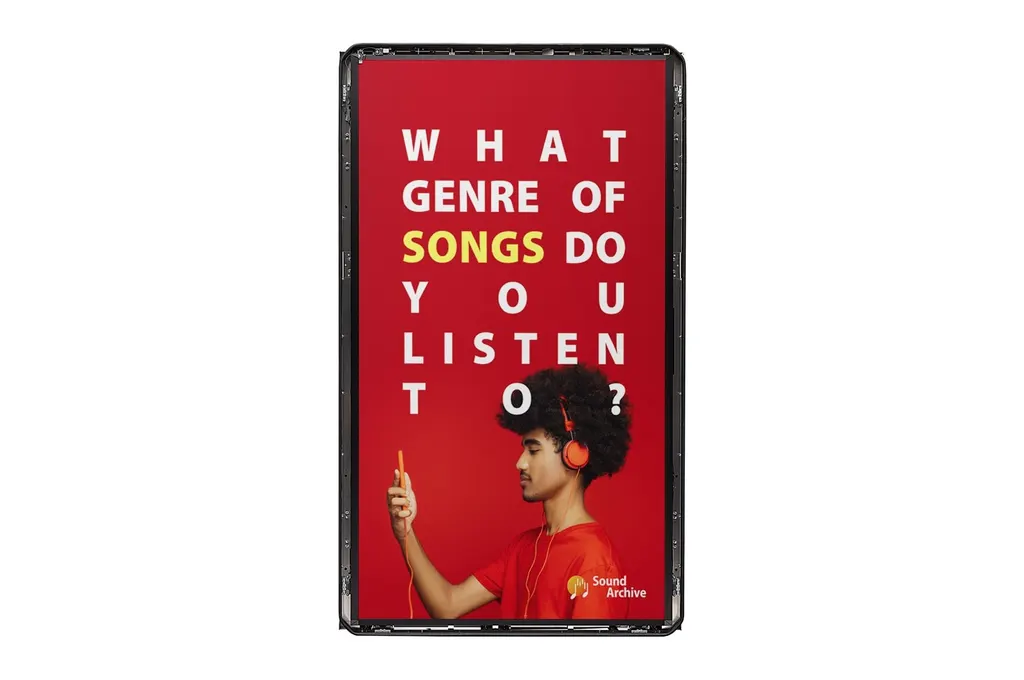

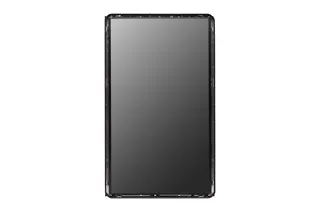

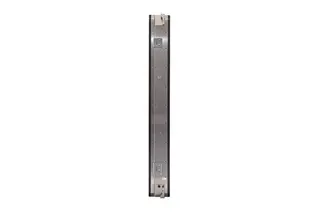

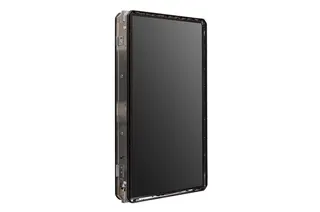

The LG 86XF3CK is an 86-inch open-frame display from the XF3C series, built for signage that has to stay readable in bright daylight. Because the unit ships without a finished outer casing, the housing, colour and mounting arrangement can be designed around the site. That flexibility is why it is specified for storefront glazing, street-level screens and outdoor-facing entrances.

Brightness, panel and sensor facts that matter

The panel is rated at 3,300 nits typical brightness and runs at a native 3,840 x 2,160 UHD resolution on an IPS panel with a 178 x 178 degree viewing angle. Typical contrast is 1,100:1, and the dynamic contrast figure is 500,000:1. A 120Hz refresh rate, an 8ms grey-to-grey response time and 10-bit colour depth (1.07 billion colours) keep motion and gradients smooth. The surface treatment is specified at 3% haze, and a quarter wave plate is listed, which the manufacturer links to visibility for viewers wearing polarised sunglasses.

Built-in sensors handle much of the day-to-day work. An ambient light sensor raises brightness on bright days and lowers it in darkness, while a backlight sensor measures output and compensates for reduced brightness during operation. Temperature, humidity and current sensors, a built-in fan and a circuit breaker that cuts power on abnormal current add protection. The specification lists a minimum lifetime of 50,000 hours and 24/7 operation.

Where it fits in Qatar

Shopfronts in West Bay or Al Sadd: a window-facing 86-inch screen that keeps its image visible in midday glare, where a standard indoor display would wash out.
Bus stops and narrow sidewalks: double-sided viewing reaches pedestrians on either side of a narrow footpath, so one unit replaces the second sign a single-sided set-up would need.
Hotel and mall entrances in Lusail or The Pearl: one unit carries content that would otherwise need two signs, with both faces controlled together.

Connectivity and control

The 86XF3CK has one HDMI input with HDCP 2.2, one DisplayPort input with HDCP 1.4, one RJ45 LAN input and four RJ45 outputs. It also provides RS-232C input and output, an IR input, an IR output shared with the RS-232C output, and two USB 2.0 Type A ports. It runs webOS 6.0 with 8GB of internal memory and supports local content scheduling, playback via URL and Wake on LAN. It is listed as compatible with SuperSign CMS, SuperSign Control+ and Connected Care, and Control Manager provides web-based monitoring so staff can check units from a phone or PC over the network.

Planning a Qatar installation

Weight is the first planning point: the head weighs 201.8 kg and the packed unit weighs 262.6 kg, and the monitor measures 1,202.8 x 2,003 x 229.18 mm. Book a free site survey so the wall or frame, access route and lifting equipment are checked before delivery. Power is AC 100-240V, 50/60Hz, which covers Qatar's 240 V supply. Typical draw at full white from the front is 1,450 W, falling to 710 W with Smart Energy Saving on.

Temperature needs care in Qatar. The rated operating range is 0 °C to 40 °C with solar load and 0 °C to 50 °C without, and summer temperatures can pass 45 °C. For any unit in direct sun or behind a glazed frontage, confirm the enclosure and cooling design with the SmartRooms Qatar team during the survey rather than relying on the rating alone.

Send your site photos and intended mounting height to SmartRooms Qatar with a request for a quote. We usually respond within one working day with a quotation covering the variant, installation and delivery to any of Qatar's eight municipalities.

Highlights

3,300 nits typical brightness for daylight readability
86-inch IPS panel with 3,840 x 2,160 UHD resolution
Double-sided viewing for audiences on opposite sides
Operating range 0 °C to 40 °C with solar load
UL-verified anti-discoloration characteristics
RJ45 and RS-232C control for multi-display management

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

95 specifications · Source: manufacturer · checked Oct 2026

Info3

Product: Outdoor
Year: Y23
Month: M05

Panel18

Screen Size (Inch): 86"
Panel Technology: IPS, RGB
Back Light Type: Direct
Aspect Ratio: 16:9
Native Resolution: 3840x2160 (UHD)
Refresh Rate: 120Hz
Brightness (Typ.): 3,300nit
Contrast Ratio: 1,100:1 (Typ)
Dynamic CR: 500,000:1
Color gamut: NTSC 68%
Viewing Angle(H x V): 178 X 178
Color Depth: 10bit, 1.07Billion colors
Response Time: 8ms (G to G)
Surface Treatment(Haze): 3%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portrait / Landscape: Yes / No
QWP(Quarter Wave Plate): Yes

Connectivity(Jack Interface)9

HDMI IN: Yes(1), HDCP2.2*2
DP IN: Yes(1), HDCP1.4*2
RS232C IN: Yes(1) (4pin phone jack)*2
RJ45(LAN) IN: Yes(1)
IR IN: Yes(1)
USB IN: USB2.0 Type A (1)*2
RS232C Out: Yes(1)
RJ45(LAN) Out: Yes(4)
IR Out: Sharing RS232C Out

Mechanical6

Bezel Color: Black
Bezel Width: L/R: 66.4mm, T: 51.95, B: 51.95mm
Weight (Head): 201.8Kg
Packed Weight: 262.6Kg
Monitor Dimensions (W x H x D): 1,202.8 x 2,003 x 229.18mm
Carton Dimensions (W x H x D): 1,425 x 2,312 x 1,046 mm

HW Feature9

Internal Memory: 8GB
Temperature Sensor: Yes
Auto Brightness sensor: Yes
Pixel sensor: Yes
Current Sensor: Yes
BLU Sensor: Yes
Humidity Sensor: Yes
Acceleration(Gyro) Sensor: Yes
FAN (Built-in): Yes

SW Feature30

OS ver.: webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS-232C Sync: Yes
Local Network Sync: Yes
Backlight Sync: Yes
Video Tag: Yes(4, Max One HDMI input)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes
Brightness Compensation: Yes

Environment Conditions2

Operation Temperature: 0 °C to 40 °C (with Solar) 0 °C to 50 °C (without Solar)
Operation Humidity: 10 % to 80 %

Power8

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power
Power Consumption (Typ.): 1450W (Front) (Full White) / 1500 W (Back) 383W (IEC 62087)
Power Consumption (Max.): 1950 W (Front) / 1700W (Back)
Power Consumption (British Thermal Unit): TBD
Power Consumption (Smart Energy Saving, ~70%): 710W
Power Consumption (DPM): 0.5W↓
Power Consumption (Power Off): 0.5W↓

Certification3

Safety: CB / NRTL
EMC: FCC Class "A"/ CE / KC / VCCI
ErP / Energy Star: Yes / No

Software Compatibility3

SuperSign CMS: Yes
SuperSign Control+: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Arabic, Türkiye, Polish

Accessory1

Basic: Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea) Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea)

Special Feature2

Power protection: Yes (Circuit Breaker)
Direct Sunlight: Yes

Downloads

1 file from the manufacturer

PDF Datasheets 86XF3CK_Datasheet(low)_LG High-brightness Open-frame Display_240806_20240806_112432_.pdf 2.3 MB

Questions about 86XF3CK

What is the LG 86XF3CK designed for?

The LG 86XF3CK is an 86-inch open-frame display for signage that must stay readable in daylight, such as storefront windows and screens facing the street. Because it ships without a finished outer casing, the housing can be designed to suit the site. Buyers in Doha usually consider it when a standard indoor panel would lose clarity behind glass or at a sunlit entrance.

Is the 86XF3CK readable in direct sunlight?

The panel is rated at 3,300 nits typical brightness, and the built-in ambient light sensor raises output on bright days. The spec sheet also lists a quarter wave plate, which the manufacturer links to visibility for viewers wearing polarised sunglasses. Because 3,300 nits is a typical value, ask SmartRooms Qatar to check the screen orientation against your frontage before the enclosure is finalised.

Can the 86XF3CK cope with Qatar's summer heat?

The rated operating range is 0 °C to 40 °C with solar load and 0 °C to 50 °C without solar, with operating humidity from 10% to 80%. Summer temperatures in Qatar can exceed 45 °C, so a unit in direct sunlight needs a suitable enclosure and cooling plan. SmartRooms Qatar will confirm the exact mounting position during a free site survey before the quotation is issued.

Does the 86XF3CK show content on both sides?

Yes. The 86XF3CK has a double-sided screen with a 3,840 x 2,160 UHD resolution, so one unit can carry the same message to people on either side. The IPS panel offers a 178 x 178 degree viewing angle. Both faces can be controlled together through multi display control, which avoids running two separate signs at a bus stop or narrow walkway.

What connections does the 86XF3CK have?

It provides one HDMI input with HDCP 2.2, one DisplayPort input with HDCP 1.4, one RJ45 LAN input and four RJ45 outputs. It also has RS-232C input and output, an IR input, and two USB 2.0 Type A ports. Confirm that your media player or source device uses one of these inputs before ordering.

Will the 86XF3CK work on Qatar's 240 V power?

Yes. The power supply is rated AC 100-240V at 50/60Hz with built-in power, which covers Qatar's 240 V, 50 Hz mains. Typical draw at full white from the front is 1,450 W and the maximum is 1,950 W from the front. Your electrician should size the circuit for the maximum figure and confirm the socket outlet during the site survey.

How heavy is the 86XF3CK and what does a mall installation need?

The head weighs 201.8 kg and the packed unit weighs 262.6 kg, with a carton measuring 1,425 x 2,312 x 1,046 mm. In a shopping mall in Lusail or The Pearl, plan the delivery route, lifting equipment and the wall or frame structure. Book a free site survey before fixing so the load and access are confirmed in advance.

Can several 86XF3CK units be monitored from one place?

Yes. Control Manager provides web-based monitoring, so staff can check and control displays in real time from a phone or PC on the network. The unit is listed as compatible with SuperSign CMS, SuperSign Control+ and Connected Care, and supports Wake on LAN, SNMP and local content scheduling. For a group of units, review the network plan with SmartRooms Qatar during the survey.

Is the 86XF3CK suitable for a bus stop or narrow sidewalk in Doha?

It suits this use because the double-sided screen reaches pedestrians on opposite sides of a narrow path, and the 3,300 nits typical brightness helps during daytime hours. However, the source data does not state an ingress rating for dust or water. Ask SmartRooms Qatar to confirm the anchoring method and how the housing should be protected from sand before approving the design.

Can the 86XF3CK be used in a bilingual office lobby?

The on-screen menu language list includes Arabic alongside English, so facilities teams in bilingual ministries or companies can set the display to either language. Content can come from an HDMI or DisplayPort source, or be played from USB or the internal 8GB memory. SmartRooms Qatar can advise on layout and text direction during the design stage.

Can we buy the 86XF3CK through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supports government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Quote the model code 86XF3CK and the variant you need, and we will usually issue a quotation within one working day, covering delivery to any of Qatar's eight municipalities. Products are covered by the manufacturer's warranty.
