Peerless ESF675 · Price in Qatar

Name: Peerless-AV ESF675 Outdoor Wall Mount for 75-inch XHB754 Display
Brand: Peerless
SKU: peerless-esf675
Availability: InStock

Overview

The Peerless-AV ESF675 is a powder-coated steel wall mount built for the 75-inch XHB754 outdoor display. It supports up to 90.72 kg and turns the screen between landscape and portrait using telescoping adaptors. Stainless steel hardware, security fasteners and an open wall plate suit exposed sites such as restaurant patios, stadium concourses and hotel entrances across Qatar. Request a quote for installation planning and delivery to all eight municipalities.

What the ESF675 mount does for the XHB754

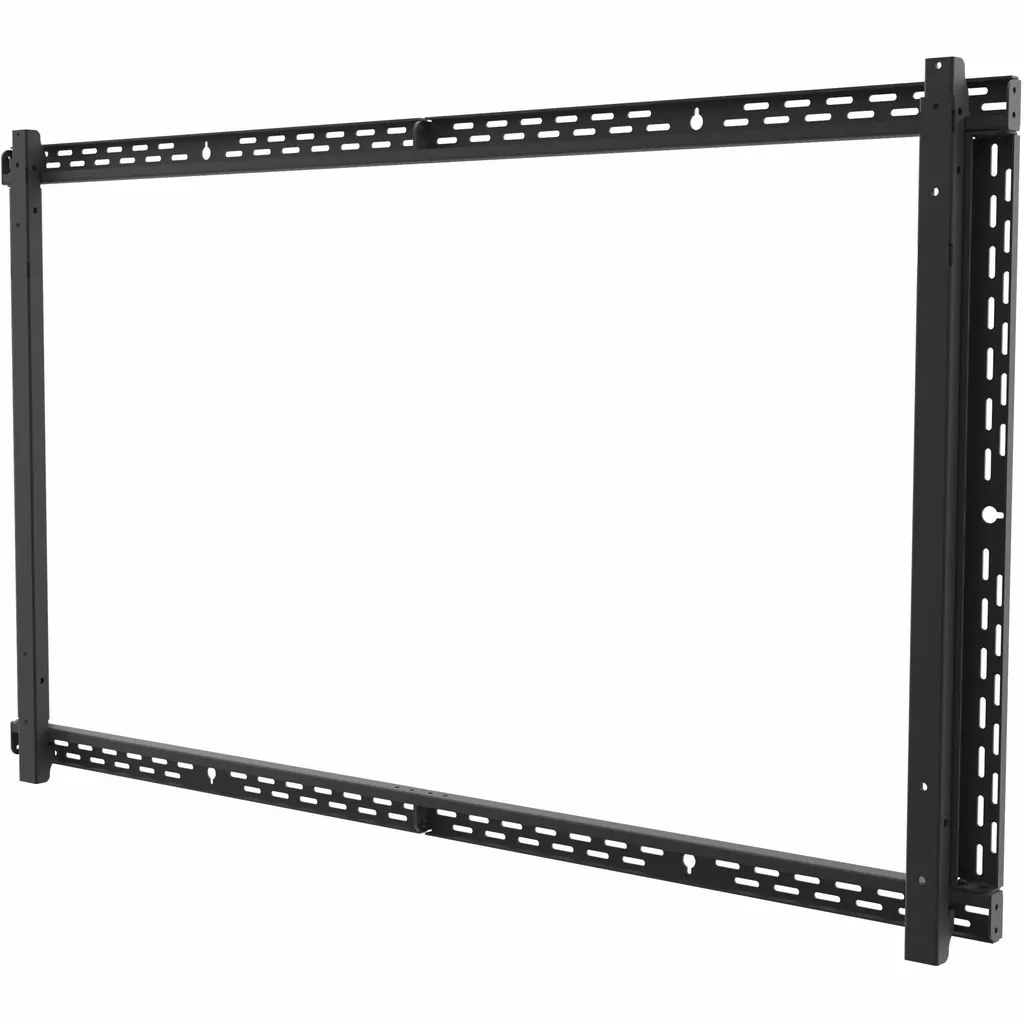

The Peerless-AV ESF675 is an outdoor wall mount designed only for the 75-inch XHB754 outdoor display. It holds the screen 55 mm off the wall, which keeps the display clear of the mounting surface and gives installers room to route cables. The steel frame is powder coated in black and paired with stainless steel hardware, so the assembly is built to resist weather and corrosion over time.

Because the mount is matched to one display, the specification is narrow and clear. The manufacturer lists a maximum screen size of 75 inches (190.50 cm) and a maximum load of 90.72 kg. The mount itself weighs approximately 14.51 kg and measures 91.44 cm high, 153.06 cm wide and 5.46 cm deep.

Portrait or landscape from one bracket

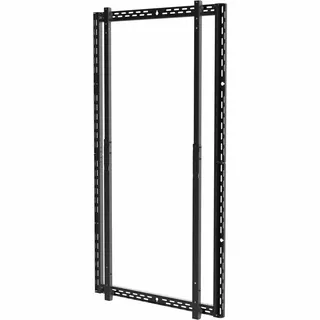

Telescoping adaptors let the same wall plate hold the XHB754 in either landscape or portrait orientation. A restaurant that wants a tall menu panel beside a doorway can use portrait, while a patio screen showing sport can run landscape from the same mount. The mounting pattern is 1400 x 600 mm, with a minimum pattern of 200 x 100 mm, so installers should check the rear of the display against these figures before ordering.

Wall types and fixing options

The kit includes hardware for wood, concrete and cinder block walls, and the mount supports double stud placements at 16, 20, 24 and 32 inches. An open wall plate gives full access to the wall behind the display, which helps with electrical boxes and conduit routing.

Surfaces: wood, concrete, cinder block and studs
Stud spacing: 16, 20, 24 and 32 inches
Security: fasteners that can only be opened with a special tool

Where it fits in Qatar

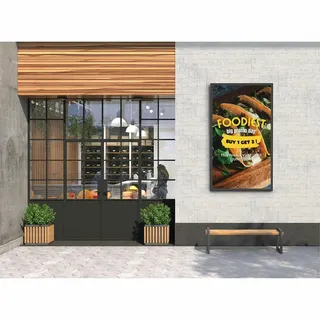

In Doha, a café or restaurant on a shaded patio in West Bay or The Pearl can use the mount for a promotional screen facing the seating area. A stadium or event venue in Lusail might fix the display at a concourse entrance to show schedules and wayfinding. A hotel entrance in Msheireb or a retail frontage in Al Sadd can use the mount for arrival messages, where the open wall plate simplifies power supply and the theft-resistant fixings reduce the risk of tampering.

Qatar summers and dust storms place heavy demands on exposed equipment. The manufacturer describes the mount as weatherproof and corrosion resistant, but the source data gives no operating temperature range for the mount or the display. Confirm sun exposure, shade and ventilation with the SmartRooms Qatar team before fixing the unit to a west-facing wall.

What to plan before installation

Confirm the display is the XHB754, since this bracket is designed only for it
Check wall type and stud positions, and confirm the structure can carry the display and the mount together
Plan cable routing through the open wall plate before the display is hung
Allow for the 55 mm projection and 153.06 cm width when setting out the wall

Assembly is required, so the mount is not a plug-and-play bracket. SmartRooms Qatar supplies the ESF675 and can arrange professional installation after a free site survey. Products are covered by the manufacturer's 5-year limited warranty. Request a quote for the ESF675 and tell us your wall type, mounting location and number of units, and we will confirm estimated lead times with your quotation.

Highlights

Designed exclusively for the 75-inch XHB754 outdoor display
Telescoping adaptors for landscape or portrait mounting
Maximum load capacity of 90.72 kg
Powder-coated steel with stainless steel hardware
Security fasteners that need a special tool
5-year limited manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: ESF675
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: ESF675
Product Model: ESF675
Product Name: Outdoor Flat Wall Mount for the 75" Xtreme™ High Bright Outdoor Display (XHB754)
Packaged Quantity: 1 Unit
Product Type: Wall Mount

Product Information8

Device Supported: Display
Maximum Load Capacity: 90.72 kg
Maximum Screen Size Supported: 75" (190.50 cm)
Features: Telescoping
Orientation: Landscape/Portrait
Mount Function: Cable Management
Mount Surface: Wall
Durability: Corrosion Resistant; Theft Resistant; Weather Proof

Physical Characteristics13

Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 1400 x 600
Minimum Mounting Pattern: 200 x 100
Product Material: Steel
Material Details: Stainless Steel - Hardware
Form Factor: Wall Mountable
Height: 91.44 cm (36")
Width: 153.06 cm (60.26")
Depth: 5.46 cm (2.15")
Weight (Approximate): 14.51 kg

Miscellaneous9

Package Contents: Outdoor Flat Wall Mount for the 75" Xtreme High Bright Outdoor Display (XHB754); Hardware; Security Fasteners
Application/Usage: Bar; Cinder Block; Concrete; Entryway; Patio; Restaurant; Retail; Stadium; Stud; Wood
Indoor/Outdoor: Outdoor
Compatibility: Peerless-AV - XHB754 75" Xtreme High Bright Outdoor Display
Certifications & Standards: RoHS, TAA, VESA
Manufacturer Product Class: Flat
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

4 files from the manufacturer

PDF Datasheets ESF675_Product-Datasheet.pdf 470 KB PDF Manuals & guides ESF675_Assembly-Instructions.pdf 5.6 MB DWG Drawings & CAD · Opens on manufacturer site ESF675_CAD DRAWING.dwg URL Other documents · Opens on manufacturer site BIMobject

Questions about ESF675

Which display does the Peerless-AV ESF675 fit?

The ESF675 is designed exclusively for the Peerless-AV 75-inch Xtreme High Bright Outdoor Display, model XHB754, and the manufacturer lists it as the compatible display. It is an outdoor wall mount rather than a universal bracket, so it should not be used with other screen models. If you are specifying a 75-inch outdoor screen for a patio, entrance or stadium concourse in Qatar, order the XHB754 and this mount together and confirm the pairing with the SmartRooms Qatar team when you request a quote.

Can the XHB754 be mounted in portrait orientation with this bracket?

Yes. Telescoping adaptors allow the XHB754 to be installed in either landscape or portrait orientation using the same mount. This suits a restaurant that wants a tall menu or promotional panel beside a doorway, or a shopping area walkway where content runs vertically. Installers should check the adaptor setting and wall clearance for the chosen orientation before the display is hung, ideally during the site survey.

What is the maximum load and size of the mount?

The ESF675 has a maximum load capacity of 90.72 kg, and the mount itself weighs approximately 14.51 kg. Its frame measures 91.44 cm high, 153.06 cm wide and 5.46 cm deep. Because the wall must carry the display as well as the bracket, an engineer should check the fixings and substrate before installation at busy sites such as a hotel entrance in Msheireb or a sports venue in Lusail.

Which wall types and stud spacings does the mount support?

The kit includes mounting hardware for wood, concrete and cinder block walls, and the bracket supports double stud placements at 16, 20, 24 and 32 inches. The mounting pattern is 1400 x 600 mm, with a minimum pattern of 200 x 100 mm. If your wall is made of a material not listed here, ask the SmartRooms Qatar team to confirm suitability during the site survey before you finalise the order.

Is the ESF675 suitable for Qatar's summer heat and dust?

The manufacturer describes the mount as designed for outdoor use and constructed from weatherproof materials, with a corrosion-resistant powder-coated steel frame and stainless steel hardware. The source data does not give an operating temperature range for the mount or the XHB754, so this page cannot state one. For a site where temperatures regularly exceed 45°C or dust storms are common, ask the team to review sun exposure, shade and ventilation before fixing the unit.

Will the mount work for a restaurant patio in West Bay or The Pearl?

Yes. The mount is listed for restaurant and patio applications and suits a 75-inch XHB754 facing outdoor seating. A patio in West Bay or The Pearl usually needs a screen that stays readable in daylight, so the display should be placed away from direct sun where possible. Ask for a site survey to check wall type, shade, cable route and screen visibility before you request the quote.

Is the mount secure enough for a public entrance or stadium concourse?

The ESF675 includes theft-resistant hardware and security fasteners that can only be opened with a proper tool, which reduces tampering at public entrances. The source data lists theft resistance among the mount's durability features. For a stadium or event venue in Lusail, or a government entrance with a formal specification, the bracket can be included in your quotation and purchase order, and SmartRooms Qatar can advise on the fixing plan.

Does the open wall plate help with cabling?

Yes. The manufacturer describes an open wall plate that allows total wall access, which increases electrical and cable management options. This makes it easier to bring power and signal cables out of a wall box before the display is attached. That is useful in hotel lobbies in Doha or retail frontages where the power point and data route sit on the same side. Cable routes should still be planned with a licensed electrician.

How much clearance does the mount need on the wall?

The mount holds the display 55 mm (2.15 inches) off the wall, and the overall frame measures 153.06 cm wide and 91.44 cm high. Plan a clear area on the wall at least this size, and check for light fittings, signage or door swings that could get in the way. A site survey will confirm clearance and stud layout before the bracket is fixed.

Who installs the ESF675, and is assembly required?

Assembly is required, so the mount is not a plug-and-play bracket. SmartRooms Qatar supplies the mount and can arrange professional installation after a free site survey. For a school, ministry or company ordering several units, the team can prepare one quotation to cover them under a single purchase order. Lead times are estimates based on stock and are confirmed in the quotation.

Are the ESF675 and its hardware RoHS and TAA compliant for government tenders?

The source data lists RoHS and TAA compliance for the ESF675, along with VESA certification. These details can be included in a bid for a government tender, including submissions made through Monaqasat, where compliance statements may be required. SmartRooms Qatar can provide the quotation together with the manufacturer's product data to support your tender file.

What warranty applies to the ESF675?

The manufacturer provides a 5-year limited warranty on the ESF675. Products supplied by SmartRooms Qatar are covered by the manufacturer warranty. The written warranty terms are set by the manufacturer, so ask the team to include them with your quotation before you place a purchase order.
