EWL-49XE4F
Peerless-AV EWL-49XE4F Outdoor Tilt Wall Mount for 49-inch LG XE4F-M Displays
- Screen size
- 49" (124.46 cm)
The Peerless-AV EWL-49XE4F is a landscape outdoor wall mount made for the LG 49-inch XE4F-M Series High Brightness Outdoor Display. It takes screens up to 49 inches, carries up to 34.02 kg and offers a 0° to 8° IncreLok tilt with locking positions at 0°, 3° and 8°. Its weatherproof, tamper resistant build suits retail frontages and transit areas across Qatar. Request a quote to confirm fit, with a site survey recommended before fixing.
What the Peerless-AV EWL-49XE4F does

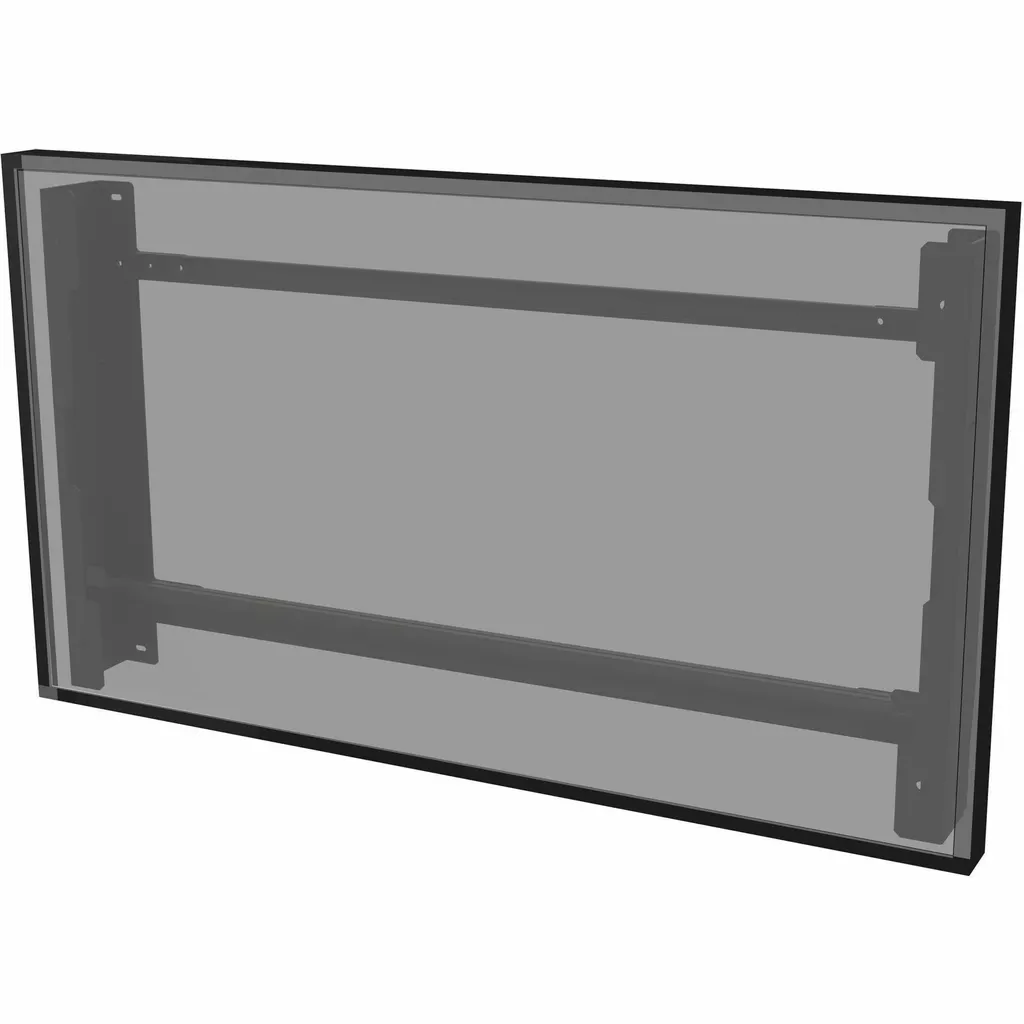

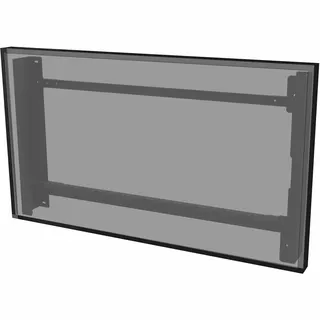

The Peerless-AV EWL-49XE4F is a landscape outdoor wall mount built for the LG 49-inch XE4F-M Series High Brightness Outdoor Display. It supports screens up to 49 inches (124.46 cm) and carries a maximum load of 34.02 kg. The tilt range runs from 0° to 8°, and the IncreLok mechanism locks the display at 0°, 3° or 8°, so the angle set during installation stays fixed. Because the mount is a dedicated fit for this display family, it is best specified together with the display rather than as a generic bracket.
Weatherproof build and security
The mount has a black powder-coated finish and is made from weatherproof, corrosion resistant materials, which is what an outdoor fixing needs. Its hardware is tamper resistant and theft resistant, an important detail where a public-facing screen can be reached by passers-by. Adaptor plates hook onto the wall plate, which simplifies the fitting. Cables and hardware are routed inside an enclosed wall plate, keeping the wall face clear. Air baffles separate exhaust air from intake air so the display receives proper airflow.
Where it fits in Qatar
Three situations suit a landscape outdoor mount like this one. A retail frontage in West Bay or Msheireb can place a street-facing screen on an exterior wall, as retail is one of the listed applications for this mount. A transit or waiting area, such as a station forecourt near the Hamad International Airport area, can use a wall-mounted screen for travel information. A shopping centre in Lusail or The Pearl may want a promotional screen on an outdoor wall. Each location needs a planned fixing point and a clear view of the screen.
Planning the installation
Plan the job around the wall and the display before ordering:
- Load: the mount weighs about 11.34 kg and is rated for 34.02 kg, so check the wall can take the combined weight of mount and display.
- Size: the mount measures 109.96 cm wide, 49 cm high and 10.95 cm deep.
- Tilt: choose the 0°, 3° or 8° position before fixing, based on where people will view the screen.
- Assembly: assembly is required, so allow time for it in the installation schedule.
- Environment: no operating temperature is listed for the mount itself. Confirm the display's rated operating range and the site's sun and dust exposure before fixing.
SmartRooms Qatar provides free site surveys, which we recommend before fixing a display of this size to an outdoor wall. We can supply the mount, deliver it to all eight municipalities of Qatar and arrange professional installation. The package includes adaptor plates, wall plates, air baffles and outdoor rated mounting hardware. The mount is RoHS and TAA compliant and carries a 5-year limited manufacturer warranty.
Request a quote for your site
To confirm fit with your LG 49-inch XE4F-M display, request a quote from SmartRooms Qatar. Send the display model, the quantity and the site location. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order.
Highlights
- Landscape orientation for LG 49-inch XE4F-M Series outdoor displays
- Supports up to 34.02 kg and screens up to 49 inches
- IncreLok tilt locks at 0°, 3° or 8°
- Weatherproof, corrosion resistant, powder-coated black finish
- Tamper and theft resistant mounting hardware
- Air baffles separate exhaust air from intake air
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General Information9
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Part Number
- EWL49XE4F
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- Peerless-AV®
- Product Series
- EWL-49XE4F
- Product Model
- EWL-49XE4F
- Product Name
- EWL-49XE4F Wall Mount
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount
Product Information11
- Device Supported
- Display
- Maximum Load Capacity
- 34.02 kg
- Maximum Screen Size Supported
- 49" (124.46 cm)
- Features
- Hook; Increlock
- Orientation
- Landscape
- Mount Pattern Compatibility Type
- Dedicated
- Minimum Tilt Angle
- 0°
- Maximum Tilt Angle
- 8°
- Mount Function
- Lockable; Tilt
- Mount Surface
- Wall
- Durability
- Corrosion Resistant; Tamper Resistant; Theft Resistant; Weather Proof
Physical Characteristics9
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated
- VESA Mount Compatible
- Yes
- Form Factor
- Wall Mountable
- Height
- 49 cm (19.29")
- Width
- 109.96 cm (43.29")
- Depth
- 10.95 cm (4.31")
- Weight (Approximate)
- 11.34 kg
Miscellaneous9
- Package Contents
- EWL-49XE4F Wall Mount; Adaptor Plates; Wall Plates; Air Baffles; Outdoor Rated Mounting Hardware
- Application/Usage
- Retail; Wall
- Indoor/Outdoor
- Outdoor
- Compatibility

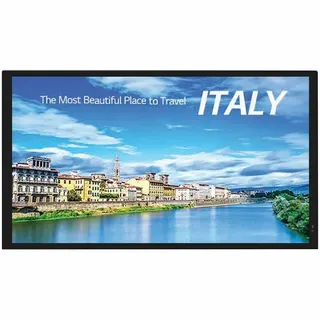

- LG 49" XE4F-M Series Outdoor Display
- Certifications & Standards
- RoHS, TAA
- Manufacturer Product Class
- Wall Mount
- Assembly Required
- Yes
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
Warranty1
- Limited Warranty
- 5 Year
