Peerless EWMU · Price in Qatar

Name: Peerless-AV EWMU Outdoor Tilt Wall Mount for 32-65 Inch Displays
Brand: Peerless
SKU: peerless-ewmu
Availability: InStock

Overview

The Peerless-AV EWMU is a black steel wall mount for outdoor panels from 32 to 65 inches, with a 90.72 kg load rating. It tilts from -5 to 15 degrees, adjusts up to 8 inches horizontally and is wind rated up to 110 mph. Stainless steel tamper-resistant hardware and a hook-and-hang design suit entryways, patios, restaurants and stadiums in Qatar. Ask SmartRooms Qatar for a quote.

What the EWMU is built to do

The Peerless-AV EWMU is a fixed wall bracket for outdoor flat panels between 32 and 65 inches. It carries up to 90.72 kg and is made from heavy steel with a corrosion-resistant electro-coated finish under a powder coat. The mount is UL listed, TAA compliant and RoHS compliant, and it is intended for outdoor use in entryways, patios, restaurants, retail frontages and stadiums.

Specifications that shape the installation

Screen range: 32 to 65 inches (81.28 to 165.10 cm)
Load capacity: 90.72 kg
Tilt: -5 degrees back to 15 degrees forward
Horizontal adjustment: up to 8 inches
VESA: 721 x 449 mm mounting pattern, listed for patterns up to 600 x 400 mm
Wind rating: up to 110 mph, Category D, elevation up to 200 ft (60 m)
Size and weight: 78.23 cm wide, 47.83 cm high, 9.50 cm deep, 7.71 kg

The hook-and-hang design is meant to simplify installation: the panel is hung on the bracket and then secured in place. The horizontal adjustment of up to 8 inches helps centre the panel between fixed points on the wall, which matters when the bracket must line up with existing fixing positions or an architectural feature.

Where it fits in Qatar

Outdoor screens in Qatar face strong sun, summer temperatures above 45°C and dust storms, so placement and environmental checks matter as much as the bracket itself. Three realistic settings suit the EWMU:

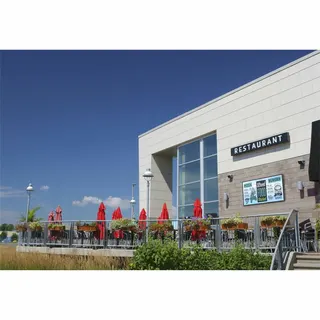

A restaurant terrace in The Pearl: a 55-inch display showing menus and event listings, mounted high enough to clear seating.
A retail frontage in Al Sadd: a 65-inch screen beside the entrance, with the tilt set to angle it toward people walking past.
An event venue in Lusail: screens along a stadium concourse or spectator walkway showing schedules and wayfinding.

Planning the installation

Check the panel's size, weight and VESA pattern against the bracket before ordering, and confirm the display is rated for outdoor use. The package includes the mount, hardware and security fasteners, and the hardware is stainless steel and tamper resistant. The data lists fixing to wood studs, concrete and cinder block, so confirm the wall type on site. Assembly is required, and the bracket includes cable management. A free site survey is useful before fixing a 65-inch panel to a block wall or a building facade. Public bodies can order against purchase orders (LPOs) or government tenders, including Monaqasat, and pay by bank transfer, cheque or purchase order.

Request a quote

Send SmartRooms Qatar the panel model, its weight, the wall type and the mounting height, and the team will return a quotation, usually within one working day. Delivery covers all 8 municipalities of Qatar, and the EWMU is covered by the manufacturer's 5-year limited warranty. Request a quote today to confirm the fit before you order.

Highlights

Supports screens from 32 to 65 inches
Load capacity of 90.72 kg
Tilt from -5 to 15 degrees with fixed settings
Up to 8 inches of horizontal adjustment
Wind rated up to 110 mph, Category D
Steel with corrosion-resistant electro-coating

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

43 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: EWMU
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: EWMU
Product Model: EWMU
Product Name: Wind Rated Universal Tilt Wall Mount For 32" to 65" Outdoor Flat Panel Displays
Packaged Quantity: 1 Unit
Product Type: Wall Mount

Product Information11

Device Supported: Display; Flat Panel Display; TV
Maximum Load Capacity: 90.72 kg
Minimum Screen Size Supported: 32" (81.28 cm)
Maximum Screen Size Supported: 65" (165.10 cm)
Features: -5° Back Tilt; 15° Forward Tilt; Hook-and-Hang Design; Horizontal Adjustment; Increlock
Mount Profile: Fixed
Minimum Tilt Angle: -5°
Maximum Tilt Angle: 15°
Mount Function: Cable Management; Tilt
Mount Surface: Wall
Durability: Corrosion Resistant; Theft Resistant; Weather Proof

Physical Characteristics13

Color Family: Black
Product Color: Black
Finishing: Electro Coating; Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 721 x 449
Minimum Mounting Pattern: 200 x 100
Product Material: Steel
Material Details: Stainless Steel - Hardware
Form Factor: Wall Mountable
Height: 47.83 cm (18.83")
Width: 78.23 cm (30.80")
Depth: 9.50 cm (3.74")
Weight (Approximate): 7.71 kg

Miscellaneous9

Package Contents: Wind Rated Universal Tilt Wall Mount For 32" to 65" Outdoor Flat Panel Displays; Hardware; Security Fasteners
Application/Usage: Entryway; Patio; Restaurant; Retail; Stadium
Indoor/Outdoor: Outdoor
Compatibility: UltraViewTM UHD Outdoor TV; XtremeTM High Bright Outdoor Display
Manufacturer Product Class: Tilt
Assembly Required: Yes
TAA Compliant: Yes
UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

4 files from the manufacturer

PDF Datasheets EWMU_Product-Datasheet.pdf 339 KB PDF Manuals & guides EWMU_Assembly-Instructions.pdf 3.4 MB DWG Drawings & CAD · Opens on manufacturer site EWMU_CAD DRAWING.dwg URL Other documents · Opens on manufacturer site BIMobject

Questions about EWMU

What screen sizes does the EWMU support?

The EWMU is designed for flat panels from 32 inches (81.28 cm) to 65 inches (165.10 cm). Its load capacity is 90.72 kg, so check the weight of your display as well as its diagonal size. The mount is listed for VESA patterns up to 600 x 400 mm, so check the rear fixing holes on your panel before ordering.

Can the EWMU handle Qatar's heat and dust?

The EWMU is an outdoor mount, with a corrosion-resistant electro-coated finish, powder coating and a weather-proof design. Summer temperatures in Qatar can exceed 45°C and dust storms are common, so the bracket is only part of the decision. The data does not give an operating temperature range for displays, so confirm the panel's own environmental rating with the SmartRooms Qatar team before installing a screen in a sunny, exposed position.

What wind rating does the mount have?

Peerless-AV rates the EWMU for wind up to 110 mph, at elevations up to 200 ft (60 m), in Category D. That makes it relevant for exposed sites such as open patios, stadium concourses and entrances without overhead cover. Ask the SmartRooms Qatar team to check your site against this rating during the survey, and confirm the limits of the display itself before you order.

How does the tilt adjustment work?

The EWMU has a fixed tilt profile rather than a motorised or continuously adjustable one. Its listed range runs from -5 degrees back to 15 degrees forward, with fixed incremental settings at 0, 2, 5, 10 and 15 degrees. Choose the angle that suits the viewing height and pedestrian position, then set it during installation. Agree the angle with your installer before the bracket is fixed to the wall.

How much horizontal adjustment does the mount allow?

The EWMU allows up to 8 inches of horizontal adjustment. This lets the installer centre the panel between fixed points on the wall, or align it with a door frame, column or existing bracket position. Because the bracket is 78.23 cm wide, plan the wall space with the adjustment range in mind and mark the centre line before drilling. A free site survey from SmartRooms Qatar can help with that layout.

What is in the box and how is the mount fixed to the wall?

The package contains the wind rated mount, hardware and security fasteners. The hardware is stainless steel and tamper resistant, and the data lists fixing to wood studs, concrete or cinder block. Assembly is required, and the bracket includes cable management. Because the mount carries up to 90.72 kg, confirm the wall type before drilling and check that the supplied fixings suit the wall material.

Which displays is the EWMU compatible with?

The EWMU is listed as compatible with the UltraViewTM UHD Outdoor TV and the XtremeTM High Bright Outdoor Display from Peerless-AV. Displays outside this list should be checked against the mount's size, weight and VESA limits before ordering. Send SmartRooms Qatar the exact model number of your display, and the team will confirm the fit as part of the quotation.

Is the EWMU suitable for a restaurant terrace in The Pearl?

Restaurant is one of the listed application areas. A 55-inch outdoor display on the EWMU can show menus, promotions or event listings above seating height. Keep the screen clear of direct spray from cleaning and check the display's rating for sun and heat before installation. A site survey will also confirm the fixing points on the building wall.

Would a retail frontage in Al Sadd benefit from this mount?

Retail is a listed application, so a shopfront in Al Sadd is a realistic use. A 65-inch display at the top of the mount's range can show promotions to people passing on the pavement. Check the frontage for dust and sun exposure, and plan cable routing so power and data run inside the wall or behind the cable management. Request a quote once you know the panel size and weight.

Is a stadium or event venue in Lusail a good fit?

Stadium is a listed application. Event venues in Lusail often use outdoor screens along concourses, entrances and fan areas to show schedules and guide visitors. Because wind exposure and crowds can be significant at these sites, the 110 mph wind rating and tamper-resistant hardware are directly relevant. Plan the mounting height, cable route and maintenance access, then request a quote with the wall type and site photos.

Can a government entity buy the EWMU through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Send the panel size, the number of EWMU mounts and the site locations, and the SmartRooms Qatar team will return a quotation, usually within one working day. Delivery covers all 8 municipalities of Qatar.
