XHB754-EUK

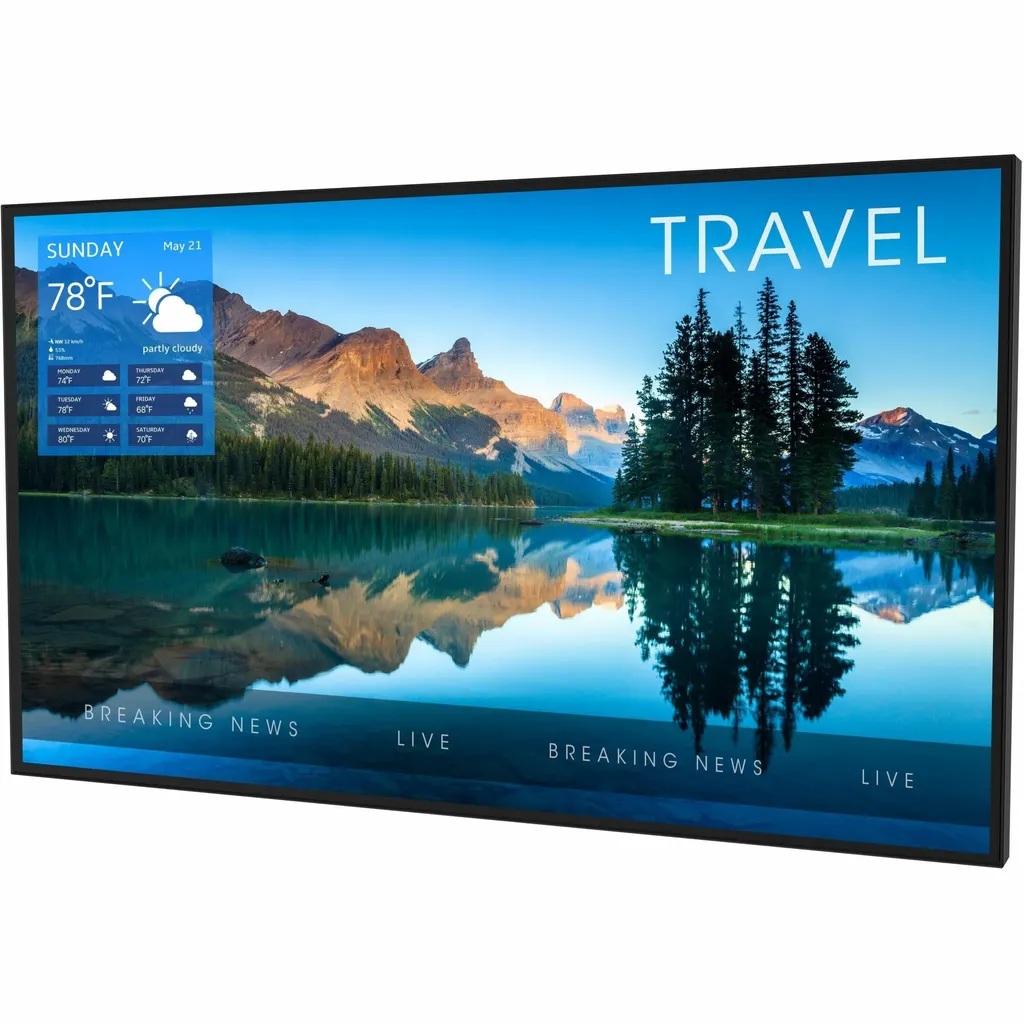

A 75-inch display built for direct sunlight

The XHB754-EUK is a 75-inch class LED-LCD display with a direct LED backlight rated at 3,000 cd/m². That output is the figure to compare when a screen must stay readable under open sky, where indoor panels wash out. The cover glass is optically bonded and anti-reflective, which the manufacturer states increases perceived contrast and reduces glare. The panel offers a native resolution of 3840 x 2160, 10-bit colour with 1.07 billion colours, and viewing angles of 178° horizontally and vertically. Native contrast is 4,000:1 and dynamic contrast is 1,200:1.

An ambient light sensor adjusts brightness to match the surrounding light, which the manufacturer links to lower power consumption. An optional ALS extender accessory is available for installations where the sensor needs to sit elsewhere, but it is not part of the standard package.

Sealed construction for Qatar's heat and dust

The enclosure is fully sealed and rated IP66, which keeps out water, dust, moisture and insects. The tempered cover glass is IK10 rated for impact resistance against vandalism and debris. The operating temperature range of -35°C to 60°C matters in Qatar, where summer temperatures can exceed 45°C. A patented Dynamic Thermal Transfer system is designed to keep internal components cool in extreme heat, and the display is specified for 24/7 operation.

Connectivity, control and monitoring

• Two HDMI inputs, one DisplayPort, one composite video input and USB 2.0
• One RJ-45 Ethernet port with IP control and email alerting
• Analogue audio output, digital optical audio output and Audio Return Channel support
• IR repeater connector with an IR extender included
• Brightness scheduling, power scheduling and pixel shift
• IP-addressable monitoring of temperature, humidity and power draw

These features let a facilities team manage a remote screen without visiting the site for routine adjustments, which is useful for displays mounted high on a façade or at a gate.

Where it fits in Qatar

• A hotel or retail frontage in West Bay or The Pearl, running content through daylight hours with brightness and power schedules set by the building team.
• A logistics or industrial site in Mesaieed or the Industrial Area, showing safety and gate instructions where the portrait orientation suits a vertical sign.

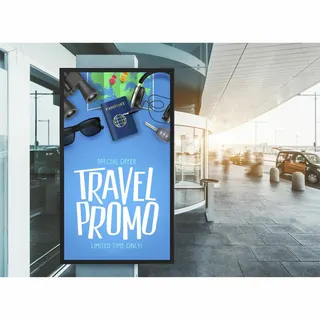

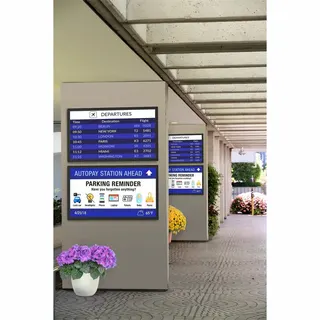

• A forecourt or transport drop-off area near Hamad International Airport, where a screen must remain visible during the hottest part of the day.

What to plan before ordering

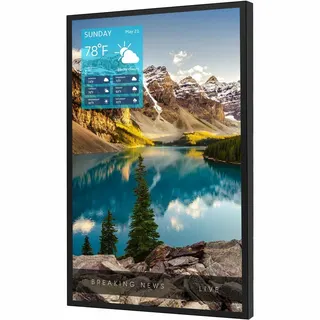

The display weighs approximately 86 kg, and approximately 102 kg in shipping packaging. It measures 172.36 cm wide, 100.20 cm high and 13.61 cm deep. It mounts on a wall using a VESA 1400 x 600 pattern and can be set in landscape or portrait orientation. Maximum operating power is 600 W, and standby power is below 0.5 W. The input range of 100 V to 240 V AC at 50 to 60 Hz covers Qatar's 240 V supply. The package includes a waterproof IR learning remote control, a user's guide, cable ties, a 3 mm hex wrench, a power cord and an IR extender. The manufacturer provides a 2-year limited warranty, and the product carries FCC Class A, cULus, CE, UKCA and RoHS compliance.

Because of the weight, we recommend a free site survey to check the wall or frame, the fixing points and the cable route before the bracket goes up. Send the SmartRooms Qatar team the mounting location, the orientation and the number of units, and we will prepare a quotation for your review, usually within one working day.
