OH46B
Samsung OH46B 46-inch Outdoor Signage Display
- Screen size
- 46"
- Resolution
- 1,920 x 1,080
- Brightness
- 3,500 (Peak 4,000 )
- Operation
- 24/7
The Samsung OH46B is a 46-inch Full HD outdoor digital signage display with 3,500 nits typical brightness, a 6,000:1 contrast ratio and IP56 dust and water protection. Its anti-reflection Magic Protection Glass reduces glare in daylight, and its rated operating range of -30°C to 50°C supports round-the-clock use. It suits building entrances, forecourts and drive-through lanes across Qatar where indoor screens would wash out.
Brightness and glass designed for daylight viewing
The OH46B pairs a 46-inch VA panel with 1,920 x 1,080 Full HD resolution and a 0.53 mm pixel pitch. Typical brightness is 3,500 nits with a 4,000 nits peak, and a built-in auto brightness sensor adjusts output to the surrounding light. The Magic Protection Glass uses anti-reflection coatings and carries a 0% haze rating, which helps text stay clear when sunlight falls on the screen.
A 6,000:1 contrast ratio, 178/178 degree viewing angles and a 6 ms response time keep moving content and side-on viewers well served. Colour coverage is rated at NTSC 72%.
Sealed enclosure and cooling for outdoor sites

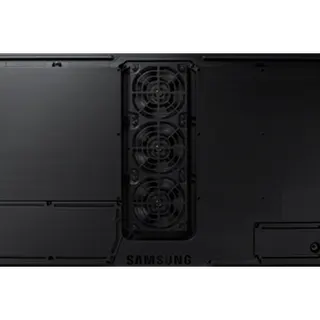

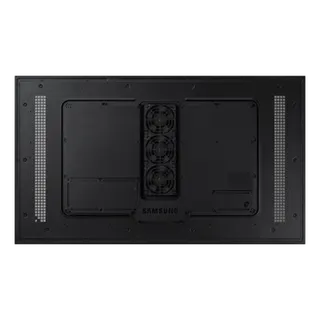

The enclosure is IP56 rated against dust and water, and the glass is IK10 rated for impact resistance. Four hidden fans on the underside work against condensation, which can form when humid air meets a cooler screen. The rated operating temperature runs from -30°C to 50°C, with humidity from 10 to 80 per cent, non-condensing. Qatar summers can make a sun-facing panel run hotter than the surrounding air, so check shade and orientation during a site survey before fixing the screen.
Connectivity, software and power details

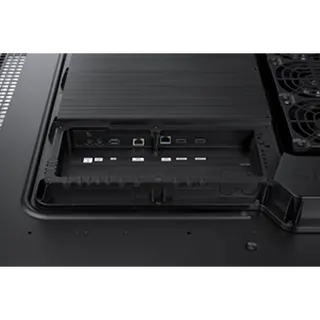

Connections include two HDMI version 2 inputs with HDCP 2.2, one USB port, an HDBaseT input, RS232 and RJ45 ports for control and network links, and a stereo mini-jack audio output. The display runs Tizen 5.0 with 8 GB of flash memory and an embedded MagicINFO Player S7 for scheduled playback; a MagicINFO license is purchased separately. It draws 430 W in on mode and 0.5 W in sleep mode, on AC 100-240 V at 50/60 Hz, a range that covers Qatar's 240 V, 50 Hz supply. The energy efficiency class is D.
Where the OH46B fits in Qatar
- Building entrances and forecourts: a mall or office frontage in West Bay or Lusail carrying wayfinding and event messages that must be read in bright sun.
- Drive-through and car park lanes: a bank branch in Al Sadd or a service station in Al Rayyan showing directional and service information to drivers.
- Covered walkways and hotel arrivals: a hotel porte cochere in The Pearl or a campus walkway in Education City, where the screen sits in shade but still faces daylight.
Planning a 46-inch outdoor installation
The panel measures 1,069 x 623.6 x 85 mm and weighs 36 kg, so the wall or post must be checked for load before fixing. Mounts are sold separately, and the rated VESA pattern is 995 x 500 mm, so confirm your bracket matches before ordering. SmartRooms Qatar offers free site surveys covering wall structure, cable routes, orientation and sun exposure, followed by professional installation across all eight municipalities of Qatar. Quotations are usually issued within one working day, and organisations buying through a purchase order or a government tender can request one on that basis. Request a quote for the OH46B and we will confirm the mount, cabling and installation scope for your site.
Highlights
- 46-inch Full HD VA panel at 1,920 x 1,080 resolution
- 3,500 nits typical brightness and 4,000 nits peak
- IP56 dust and water protection with IK10 impact-rated glass
- Four hidden fans that help reduce condensation
- Rated for -30°C to 50°C and 24/7 operation
- Embedded MagicINFO Player S7 on Tizen 5.0
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display15
- Diagonal Size
- 46"
- Panel Type
- VA
- Resolution
- 1,920 x 1,080
- Pixel Pitch (HxV, mm)
- 0.53 x 0.53
- Brightness (Typ)
- 3,500 (Peak 4,000 )
- Contrast Ratio
- 6,000:1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 6ms
- Color Gamut
- NTSC 72%
- Glass Haze
- 0%
- H-Scanning Frequency
- 30~136kHz(HDMI)
- Maximum Pixel Frequency
- 594MHz(HDMI)
- V-Scanning Frequency
- 24~75Hz(HDMI)
- Contrast Ratio (Dynamic)
- Mega
- Operation Time Support
- 24/7
Connectivity11
- HDMI In
- 2
- Version of HDMI
- 2
- Version of HDCP
- 2.2
- USB
- 1
- HDBaseT In
- Yes
- Audio Out
- Stereo Mini Jack
- Power Out
- No
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
- RJ45 Out
- Yes
Power3
- Power Supply
- AC100-240V 50/60Hz
- Power Consumption (On Mode, W)
- 430
- Power Consumption (Sleep Mode, W)
- 0.5
Dimension2
- Set Dimension (WxHxD, mm)
- 1069 x 623.6 x 85
- Package Dimension (WxHxD, mm)
- 1156 x 713 x 200
Weight2
- Set Weight (kg)
- 36
- Package Weight
- 40.5
Operation Conditions2
- Temperature
- -30℃~ 50
- Humidity
- 10 ~ 80%, non-condensing
Mechanical Specification4
- VESA Mount (mm)
- 995 x 500
- Bezel Width (mm)
- 24.9mm (T/B/L/R)
- Glass Thickness
- 5T
- Glass Film
- AG, AR, 4/λ
Optional Feature2
- Protection Glass
- Yes
- Mount
- Sold Separately
SoC2
- OS Version
- Tizen 5.0
- Flash Memory Size
- 8GB
Eco1
- Energy Efficiency Class
- D
Certification and Compliance2
- EMC
- Class A
- Safety
- 60950-1
