QH55B

What the QH55B is built for

The QH55B is a 55-inch display from Samsung's QHB signage range, made for reception areas, corridors, meeting rooms and information points where a screen runs for long hours and must stay readable. It combines a 3,840 x 2,160 UHD VA panel, a 4,000:1 contrast ratio and a typical brightness of 700 nit. The manufacturer's data lists support for 24/7 operation, so it suits content loops that run continuously.

Picture quality and brightness that matter

A 700 nit typical rating gives the picture enough presence in lobbies and corridors that receive daylight through glass. The non-glossy frame and non-glare panel reduce distracting reflections for people walking past at an angle, and 178/178 degree viewing angles keep the image readable from the side. The Quantum Processor 4K upscales lower-resolution video towards UHD quality, so older clips and legacy feeds still look clean on a large screen. The 92% DCI-P3 colour gamut and 8ms response time help brand colours and moving content hold up.

• Panel: VA, 55 inches, 0.315 mm pixel pitch
• Brightness: 700 nit typical, 4,000:1 contrast ratio
• Colour: 92% DCI-P3 (CIE 1976)
• Response time: 8ms

Connectivity, control and screen sharing

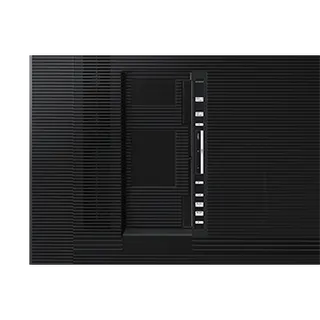

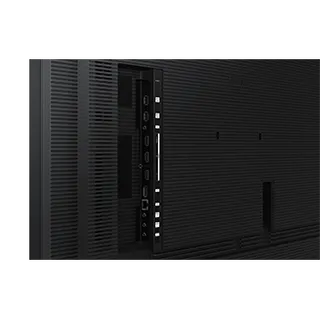

The QH55B gives IT teams several ways to feed and control the screen. Its ports include:

• Three HDMI inputs (HDMI version 2) with HDCP 2.2 support
• One DisplayPort 1.2 input
• Two USB ports, RJ45, IR input and RS232 in and out for control
• Stereo mini jack audio output, with no audio input
• Built-in Wi-Fi and Bluetooth

SmartView+ lets a presenter share a Windows screen wirelessly, without a cable. The manufacturer notes that Android and iOS support depends on firmware. A USB webcam can turn the display into a video conferencing screen; the manufacturer lists nine supported cameras, including the Logitech C920 and C922, and the camera is sold separately.

Where it fits in Qatar

In a government building in Msheireb, the QH55B suits a lobby wayfinding screen that shows directories and announcements, mounted in an air-conditioned area. A private school in Al Wakrah can place one in a corridor or staff room to share timetables and notices, connected to a standard 240 V supply within its rated input range. In a West Bay hotel, a meeting room can use Custom Home to lock settings between sessions, while video calls with teams abroad run through a USB webcam.

Planning the installation

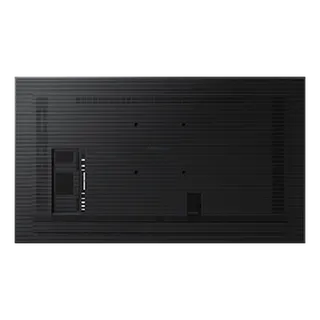

The set measures 1,235.1 x 707.9 x 46.3 mm and weighs 19.2 kg, with a 200 x 200 mm VESA pattern. Samsung lists a WMN4070SG wall mount and an STN-L4355G stand as optional accessories. Bezels are 9.2 mm on the top, left and right and 11.2 mm at the bottom, and the terminals face outwards so the panel can sit flush against the wall. Power draw is 160 W in on mode and 0.5 W in sleep mode, with an energy efficiency class B rating. The operating range is 0 to 40 degrees Celsius, so keep the screen in air-conditioned rooms rather than unshaded outdoor frontages or hot store rooms during summer.

Before mounting a panel on a glazed lobby wall or a heavy partition, SmartRooms Qatar offers a free site survey to check wall type, viewing height and cable routing. We supply, deliver to all eight municipalities of Qatar and install professionally, and we accept purchase orders and government tenders, including Monaqasat. Request a quote from SmartRooms Qatar with the number of units, the mounting locations and the content sources you plan to connect. We usually return a quotation within one working day.
