Samsung Digital Signage Current

QH55C

Samsung QH55C 55-inch High Brightness UHD Signage Display

Screen size: 55"
Resolution: 3,840 x 2,160
Brightness: 700 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The Samsung QH55C is a 55-inch UHD 4K display for digital signage, built on a VA panel with 700 nit typical brightness and a 28.5 mm depth. Its even 11.5 mm bezel and centred VESA mounting points keep portrait installations neat and stable. Three HDMI inputs, one DisplayPort input and RJ45, RS232 and Wi-Fi connectivity suit lobbies and corridors that run content around the clock.

What the QH55C is built for

The Samsung QH55C is a 55-inch UHD 4K signage display from the Crystal UHD Signage QHC series, designed for businesses that show content for long hours in fixed locations. It uses a VA panel at 3,840 x 2,160 resolution with 700 nit typical brightness and a 4,000:1 contrast ratio, so text, logos and video stay readable in bright reception areas.

Slim body, even bezel and centred mounting

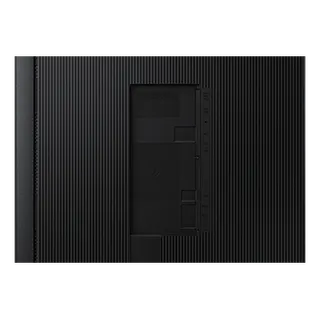

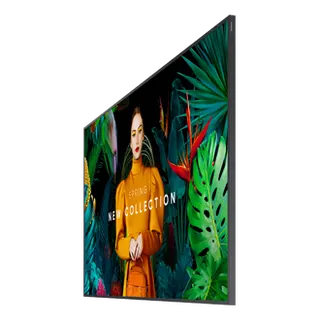

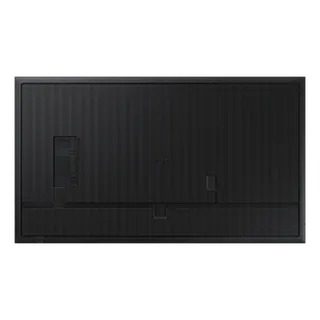

At 28.5 mm deep, with a set weight of 16.9 kg, the QH55C sits close to the wall. The bezel measures 11.5 mm on all four sides, so the frame looks the same in landscape and when the screen is rotated to portrait. The VESA pattern is 200 x 200 mm and its mounting holes are centred on the back, which spreads the load evenly and keeps the display from tilting when it is turned for portrait use.

A Slim Fit wall mount is compatible with the display but must be purchased separately. The WMN-B50SC wall mount and STN-L4355C stand are listed as optional accessories for this model.

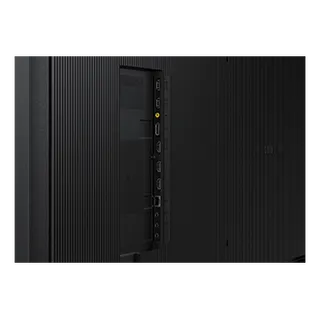

Connectivity and control for managed networks

Video inputs: three HDMI inputs (HDMI version 2) and one DisplayPort 1.2 input, with HDCP 2.2 support.
Control: RS232 in and out, an IR input and an RJ45 network port.
Wireless: built-in Wi-Fi and Bluetooth, with the SmartView+ feature for wireless screen sharing.
Other: two USB ports and a stereo mini-jack audio output, with no audio input listed.

The display runs Tizen 7.0 with 16GB of flash memory. Samsung VXT CMS, a cloud-based content and remote device management service, is available for the model and must be purchased separately. Smart Calibration, managed through the Samsung mobile app, helps keep brand colours consistent when several units show the same logo.

Where it fits in Qatar

A hotel reception in West Bay could use a 55-inch panel to show wayfinding and event listings around the clock, a use that the 24/7 operation rating supports. A private school in Al Wakrah fitting out corridors could mount several units at a consistent height, with the even bezel keeping them visually matched. A medical clinic in Msheireb could place the QH55C in a waiting room, where its 178/178 viewing angles let patients read the content from the side of the room.

What to plan for before you order

The operating range is 0 to 40°C with 10 to 80% humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so the display should be installed in an air-conditioned space that stays within this range, and the room's cooling should be checked during the site survey. Power draw is 187 W in on mode and 0.5 W in sleep mode, and the power supply is rated AC 100-240 V at 50/60 Hz. The manufacturer lists energy efficiency class A and reports ENERGY STAR 8.0 and EPEAT certification for the QHC series.

SmartRooms Qatar offers free site surveys to check wall construction, mount height and cable routing before units arrive. Quotations usually follow within one working day, and orders can be placed by purchase order (LPO) or through government tenders, with payment by bank transfer, cheque or purchase order.

Send us your room sizes, mount type and number of units, and ask for a quotation that includes the accessories your site needs.

Highlights

55-inch VA panel with 3,840 x 2,160 UHD resolution
700 nit typical brightness and 4,000:1 contrast ratio
28.5 mm depth with an even 11.5 mm bezel
Centred 200 x 200 mm VESA mounting holes
Three HDMI, one DisplayPort, RJ45, RS232 and Wi-Fi
Rated 0 to 40°C with 24/7 operation support

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Display15

Diagonal Size: 55"
Panel Type: VA
Resolution: 3,840 x 2,160
Pixel Pitch (HxV, mm): 0.315x0.315‎
Brightness (Typ): 700 nit
Contrast Ratio: 4,000:1
Viewing Angle (H/V): 178/178
Response Time: 8ms
Color Gamut: 72% (NTSC)
Glass Haze: 25%
H-Scanning Frequency: 30~81kHz
Maximum Pixel Frequency: 594MHz
V-Scanning Frequency: 48~75Hz
Contrast Ratio (Dynamic): Mega
Operation Time Support: 24/7

Connectivity14

HDMI In: 3
DP In: 1
Version of HDMI: 2
Version of DP: 1.2
Version of HDCP: 2.2
USB: 2
IR In: Yes
Audio In: No
Audio Out: Stereo Mini Jack
RS232 In: Yes
RS232 Out: Yes
RJ45 In: Yes
WiFi: Yes
Bluetooth: Yes

Power4

Power Supply: AC100-240V 50/60Hz
Power Consumption (Off Mode, W): -
Power Consumption (On Mode, W): 187
Power Consumption (Sleep Mode, W): 0.5

Dimension2

Set Dimension (WxHxD, mm): 1237.9 x 708.8 x 28.5
Package Dimension (WxHxD, mm): 1403 x 835 x 148

Weight2

Set Weight (kg): 16.9
Package Weight: 21.1 kg

Operation Conditions2

Temperature: 0 ~ 40 ℃
Humidity: 10 ~ 80%, non-condensing

Mechanical Specification3

VESA Mount (mm): 200 x 200
Bezel Width (mm): 11.5mm (even)
Frame Material: Non-Glossy

Optional Feature2

Mount: WMN-B50SC
Stand: STN-L4355C

SoC2

OS Version: Tizen 7.0
Flash Memory Size: 16GB

Eco1

Energy Efficiency Class: A

Certification and Compliance2

EMC: Class B
Safety: 60950-1, 62368-1

Downloads

9 files from the manufacturer

XLSX Datasheets QH55C_Specifications_ae.xlsx 5 KB PDF Manuals & guides BN68-16545C-01_QSG_QHC_ASIA MENA AFRICA_L06_230816.0.pdf 812 KB PDF Manuals & guides BN81-24537B-13_WEB_QBC QBC-N QBC-T QHC QMC SHC_ASIA MENA AFRICA_ARA_260918.0.pdf 3.2 MB PDF Manuals & guides BN81-24537B-13_WEB_QBC QBC-N QBC-T QHC QMC SHC_ASIA MENA AFRICA_ENG_260918.0.pdf 3.1 MB MSI Software & firmware · Opens on manufacturer site 1689320178917_A-MDC9GDSP-1243-20230628.msi MSI Software & firmware · Opens on manufacturer site A-CESNGDSP-1150_20240522.msi ZIP Software & firmware · Opens on manufacturer site BN81-24537B-13_WEB_QBC QBC-N QBC-T QHC QMC SHC_ASIA MENA AFRICA_L06_260918.0.zip ZIP Software & firmware · Opens on manufacturer site S-PTMLWWC_1210.9_BEM.zip ZIP Software & firmware · Opens on manufacturer site S-PTMLWWC_1210.9_USB_Common.zip

Questions about QH55C

Who is the Samsung QH55C designed for?

The QH55C suits organisations that run digital signage in a fixed location for long hours, such as a bank branch in Doha showing queue and service information, or a corporate lobby in Lusail displaying visitor directions. Its 55-inch 4K panel, 700 nit typical brightness and 24/7 operation support make it a practical choice for reception areas, corridors and waiting rooms where a 55-inch screen is the right size.

Is the QH55C suitable for a meeting room or lecture hall?

It is primarily a signage display, so it suits a small meeting room or shared work area where a 55-inch screen is enough. A boardroom or lecture hall with a larger audience will usually need a bigger panel. For meetings, SmartView+ lets a presenter share a screen wirelessly at the start of a session, and the three HDMI inputs cover laptops and media players.

How does it perform in a bright reception area in Doha?

The panel has 700 nit typical brightness and a non-glare finish, which helps content stay readable in a bright reception area. Its 178/178 viewing angles let people read the screen from the side of a room. The data does not rate the unit for direct sunlight or outdoor use, so for a window-facing lobby in Doha or Al Sadd, check sun exposure during the site survey before choosing the position.

What is the operating temperature range, and can it go in a hot room?

The operating range is 0 to 40°C with 10 to 80% humidity, non-condensing. Qatar summer temperatures can exceed 45°C, so install the QH55C in an air-conditioned room that stays within this range, not in an unconditioned corridor, store or outdoor area. SmartRooms Qatar can review the room's cooling during the site survey before you place an order.

Which inputs and control ports does the QH55C have?

The QH55C has three HDMI inputs (HDMI version 2), one DisplayPort 1.2 input, two USB ports, an IR input, RS232 in and out, and an RJ45 network port. A media player or laptop connects over HDMI, while RJ45 links the display to your network. Built-in Wi-Fi and Bluetooth add wireless options, and the supported HDCP version is 2.2.

Does the display have audio, and can I connect external speakers?

It has a stereo mini-jack audio output, but the source data lists no audio input. To play sound through the display, connect that output to external speakers or an amplifier. Plan the cable route during the site survey, particularly in school corridors or large waiting areas where speakers may sit far from the screen.

Can the QH55C be mounted in portrait orientation?

Yes. The VESA holes sit at the centre of the back, so the display does not tilt unintentionally when rotated to portrait, and the 11.5 mm bezel stays even on all four sides. The VESA pattern is 200 x 200 mm. Portrait mounting suits corridor directories and digital menus in Doha cafes; confirm the bracket and the position of the power point on site.

What are the dimensions and wall requirements?

The set measures 1237.9 x 708.8 x 28.5 mm and weighs 16.9 kg, with a packed weight of 21.1 kg. At this weight, the wall and bracket must be rated for the load, so a site survey before installation is recommended. SmartRooms Qatar offers free site surveys to check wall construction, mount height and cable routing. A Slim Fit wall mount is compatible but sold separately.

Which mounting accessories are available for this model?

The manufacturer lists the WMN-B50SC wall mount and the STN-L4355C stand as optional features for this model. A stand suits a free-standing spot such as a reception desk where wall fixing is not possible, while a wall mount suits corridors and feature walls. The Slim Fit wall mount is also compatible but sold separately. Ask for a quotation that includes the accessory you need.

How can I manage several QH55C displays across different sites?

Samsung VXT CMS is a cloud-based solution for content management and remote device management, and it must be purchased separately. It lets you adjust hardware settings and troubleshoot displays remotely, and create and deploy content without prior training. Smart Calibration, using the Samsung mobile app, helps keep brand logos and colours consistent across sites. For a multi-site rollout in Lusail or Al Khor, request one quotation covering the displays and software.

How much power does the QH55C use, and what is its efficiency rating?

The QH55C draws 187 W in on mode and 0.5 W in sleep mode, and the manufacturer lists energy efficiency class A. Samsung also reports that the QHC series holds ENERGY STAR 8.0 and EPEAT certifications. The supply is rated AC 100-240 V at 50/60 Hz. For schools or ministries comparing running costs over long opening hours, these figures make side-by-side comparison straightforward.

Is the QH55C covered by warranty, and how do I order?

SmartRooms Qatar supplies the QH55C by quotation, and it is covered by the manufacturer's warranty. The warranty terms are set by Samsung and are not repeated here, so we confirm them with your quotation. Orders can be placed by LPO or through a government tender, payment is by bank transfer, cheque or purchase order, and a free site survey can be booked before delivery.
