SDM Slot-In PC Midrange (ADL)

What the SDM Midrange module is

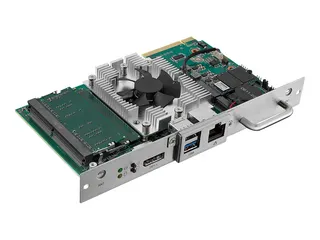

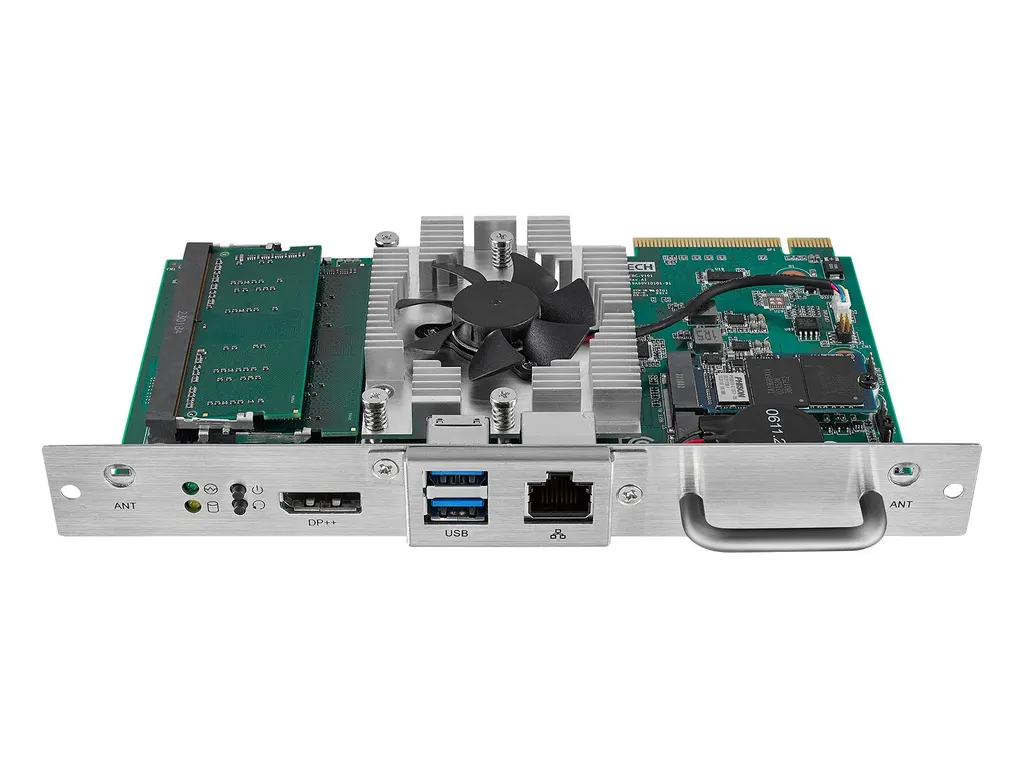

The Sharp SDM Midrange is a slot-in computer that follows the Intel Smart Display Module (SDM) format. It is designed to be fitted inside a compatible Sharp large format display, so the panel itself can drive signage, information or kiosk content without an external media player. The manufacturer positions it for flight and passenger information, retail and corporate signage, and interactive and kiosk applications, aimed at budget-conscious organisations that still need dependable performance.

Processor, memory and storage

The module is built around an Intel Pentium Gold 8505 processor with five cores: one performance core and four efficient cores, with a maximum clock speed of 4.4 GHz. It carries 8GB of dual-channel RAM and 128GB of storage. Graphics are provided by Intel UHD Graphics for 12th Gen Intel processors, which supports Direct3D 12.1, OpenGL 4.6 and OpenCL 3.0 for software that depends on those interfaces.

Hardware decoding covers H.265/HEVC, VP8, VP9, MPEG2, JPEG and AVC, with VC-1 and AV1 decode as well. For a content team, that list works as a checklist: export playlists in supported formats and the graphics hardware handles the decoding work. The 128GB capacity suits current playlists, so archived footage can be kept elsewhere.

Software and operating system

The module runs Windows 10 IoT Enterprise LTSC 2021. IoT Enterprise is the edition Microsoft offers for dedicated devices, which suits a display that runs one signage or kiosk application. Your content management software and any custom kiosk application should be confirmed against this operating system before the order is placed.

Compatibility with Sharp displays

The module is designed for Sharp large format displays that support the SDM slot. The manufacturer lists twelve compatible models: PN-P556, PN-M862, PN-M552, PN-M652, PN-P656, PN-P506, PN-P436, PN-M982, PN-M752, PN-M432, PN-M502 and PN-P756. Check your exact panel model against this list before ordering, because the module will only fit a display with a supported slot.

Where it fits in Qatar

• Transport hubs: flight and passenger information in terminal areas and the surrounding Hamad International Airport district, where a single display needs to show live updates reliably.
• Shopping and retail: promotional loops played from a panel already mounted on the wall in a mall in Lusail or a shop on a busy Doha shopping street.
• Schools and offices: a reception display in an Al Wakrah school or a corporate lobby in West Bay for announcements, wayfinding and visitor information, with the quiet operation the manufacturer describes.

What to plan before you order

Start with the panel. Confirm its model, whether it has a free SDM slot, and whether the display is already installed or still being specified. SmartRooms Qatar offers free site surveys, which help when a large panel is already wall-mounted in a busy lobby and the team needs to check access to the slot and cabling. Professional installation is also available. The source data does not publish a power draw, operating temperature range or noise level for this module, so ask the team to confirm these for your environment before installation, especially for a sun-facing lobby where summer temperatures can exceed 45°C.

Plan the content side too: decide which codecs your files use, how much local storage your playlists need and who will update the software. Government bodies can issue a purchase order (LPO) or respond to a Monaqasat tender, and the module is covered by the manufacturer's warranty.

To request a quote, send the Sharp panel model, the number of modules, the site location and the intended content type. SmartRooms Qatar will respond with a quotation, usually within one working day, and will confirm any lead time against stock at that point. Request a quote now and the team will check compatibility before you commit.
