Sony Digital Signage Current

FW-55BZ40P

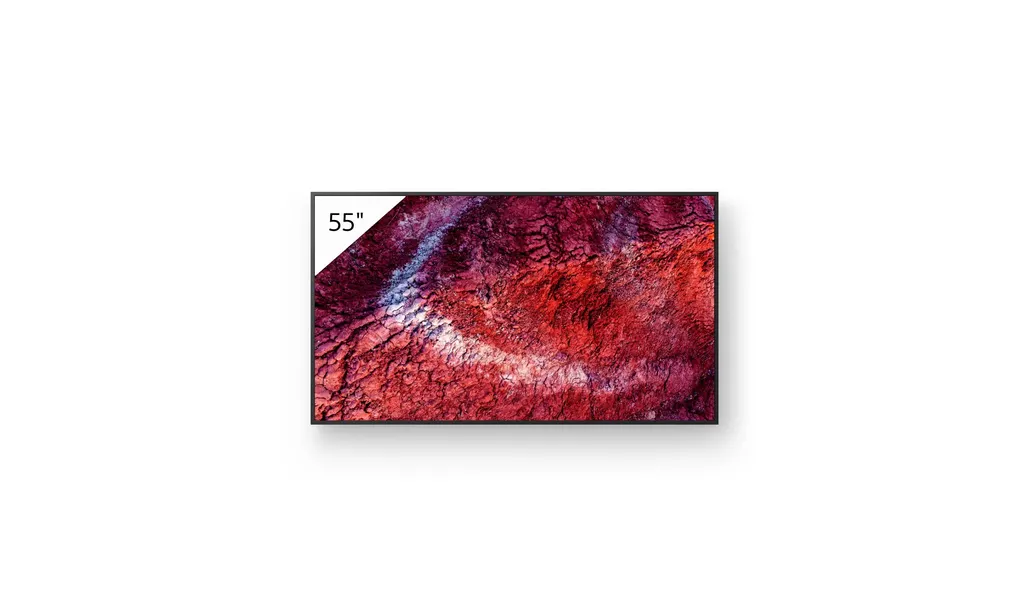

Sony FW-55BZ40P 55-inch 4K HDR Professional Display

Screen size: 55"
Resolution: 3840 x 2160
Brightness: 700 nit
Operation: 24 / 7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-55BZ40P is a 55-inch 4K professional display built for digital signage and corporate rooms. Its 700 cd/m² brightness and low-reflection screen coating keep content clear in bright spaces, while the 3840 x 2160 IPS panel supports HDR10 and HLG. An IP5X dust-resistant chassis and built-in Android platform suit retail floors, reception areas and classrooms that run around the clock. Request a quote from SmartRooms Qatar.

What the FW-55BZ40P is built to do

The Sony FW-55BZ40P is a 55-inch professional display from the Pro BRAVIA BZ40P range, designed for shops, offices, schools and public areas where a screen runs for long hours and must still look right. It pairs a 3840 x 2160 IPS panel with HDR10 and HLG support, so high-resolution signage and presentation content shows consistent detail. The specification sheet lists operation at 24/7.

Picture quality in bright rooms

Rated at 700 cd/m² with a 1200:1 contrast ratio, the display suits rooms with windows, glass frontages and strong overhead lighting. Its Deep Black Non-Glare Premium screen combines a haze and low-reflection coating with the XR Processor's contrast handling, which reduces glare and keeps dark areas deep. The listed haze value is 47 percent and DCI-P3 colour gamut coverage is 92 percent. The viewing angle is 178 degrees horizontally and vertically, so people seated at the side of a room still see the picture clearly.

Running signage without a set-top box

Android operating system with 32GB on-board storage
Built-in SoC platform that runs smart signage operation without an external media player
Real-Time Clock keeps content schedules running when display power is switched off
Wi-Fi and Apple AirPlay for wireless mirroring from handheld devices
HDMI-CEC, HDMI Auto Wake-Up and Pro Mode for simpler day-to-day operation

Removing the external player means fewer boxes and less cabling behind the screen. Physical buttons, the remote, inputs and selected functions can be restricted, which helps prevent tampering in stores and public areas. IP Control and RS-232C allow integration with control systems, and remote management applications are supported in some sales regions.

Where it fits in Qatar

A 55-inch panel suits a retail unit or mall shopfront, a bank or government service counter where visitors wait, a corporate reception, or a classroom corridor. In an office in Msheireb or West Bay that works in Arabic and English side by side, it can show bilingual wayfinding, visitor information and meeting schedules. The IP5X dust-resistant chassis is useful in lobbies and entrances where fine dust is carried in on busy days.

Planning the installation

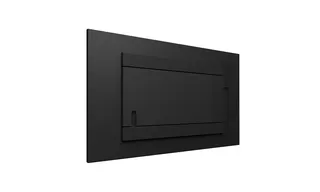

The unit weighs approximately 17.6 kg without stand and the carton about 23 kg, so plan for two people when mounting. Dimensions without stand are approximately 124.0 x 71.1 x 4.7 cm. The VESA pattern is 300 x 300 mm, and the panel supports portrait and tilt orientation. Rated power consumption is 138 W, standby is 0.5 W and the listed on-mode energy use is 56 kWh per 1000 hours. The data does not list an operating temperature range, so confirm the environment with the SmartRooms Qatar team before mounting near windows, in entrances exposed to heat or in spaces without air conditioning. SmartRooms Qatar offers free site surveys to check walls, brackets and cable routes before installation.

Request a quote from SmartRooms Qatar with your wall plan, number of units and content type. Our team usually returns quotations within one working day, and we accept purchase orders and tender documents.

Highlights

55-inch 4K UHD (3840 x 2160) IPS panel with HDR10 and HLG
700 cd/m² brightness with low-reflection Deep Black Non-Glare Premium screen
IP5X dust-resistant chassis for busy, dusty entrances
Signage runs without a set-top box, with Real-Time Clock scheduling
Integrated Wi-Fi, Apple AirPlay and 32GB on-board storage
VESA 300 x 300 mm mounting, portrait and tilt compatible

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

58 specifications · Source: manufacturer · checked Oct 2026

General Features8

Screen Size: 55"
Brightness (cd/m²): 700
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 600000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG)
Portrait/Tilt Compatibility: Yes

Display Features10

Dimming Type: Frame Dimming
Panel Type: IPS
Backlight Type: Edge LED
Colour Gamut (DCI-P3): 92%
Picture Processor: XR Processor
Operation Time: 24 / 7
Deep Black Non-Glare: Premium
Haze (%): 47%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification1

HDMI Signal: 4096x2160p(24,50,60Hz), 3840x2160p(24,25,30,50,60Hz), 1080p(24,30,50,60Hz), 1080i(50,60Hz), 720p(24,30,50,60Hz), 576p, 480p

Audio Specification1

Audio Power Output: 20W

Professional Features8

IP Rating (Dust resistant): IP5X
Real-Time Clock: Yes
Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: TBD
Operating System: Android
On-board Storage (GB): 32GB

Network Specification1

Wireless LAN: Integrated

Convenience Features5

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS(HDV,AVCHD):MPEG2,AVC / MP4(XAVCS):AVC,MPEG4,HEVC / AVI,MotionJpeg / MOV:AVC,MPEG4,MotionJpeg / MKV,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF(WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs4

HDCP: HDCP2.3(for HDMI1/2/3/4)
HDMI Inputs Total: 4 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features1

VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 56 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 138 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates2

EPEAT: TBD
EMC: TBD

Measurements2

Dimension of TV without Stand (W x H x D): Approx. 124.0 x 71.1 x 4.7 cm
Dimension of Package Carton (W x H x D): Approx. 135.7 x 83.8 x 14.3 cm

Weight2

Weight of TV without Stand: Approx. 17.6 kg
Weight of Package Carton (Gross): Approx. 23 kg

Downloads

21 files from the manufacturer

Questions about FW-55BZ40P

What is the Sony FW-55BZ40P best used for?

It suits digital signage and corporate displays such as retail floors, reception areas, waiting areas, meeting rooms and classrooms. The 55-inch 4K panel, 700 cd/m² brightness and 24/7 operation listing make it a fit for content that runs all day. For a large lecture hall or boardroom with many seats, compare a larger screen size before requesting a quote.

Will the screen stay readable near windows in a bright Doha office?

The panel is rated at 700 cd/m² and uses a low-reflection coating designed to reduce glare in brightly lit rooms. Placement still matters. For a window-facing reception in West Bay, a site survey can check sightlines, sun direction and the viewing angle of the seating area, which is rated at 178 degrees horizontally and vertically.

Do I need a media player to run signage on this display?

No external set-top box is required, because the built-in SoC platform runs smart digital signage operation directly. Content management app schedules are kept by the Real-Time Clock, even when display power is switched off. This removes extra hardware and cabling behind the screen, which simplifies installation in shops and offices.

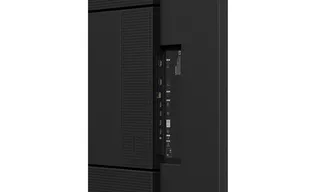

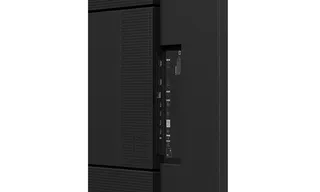

What inputs and ports does the unit have?

There are four HDMI inputs, two USB ports and one Ethernet input, all on the side of the unit. HDCP 2.3 is supported on HDMI 1 to 4. HDMI-CEC and HDMI Auto Wake-Up mean a connected laptop or player can switch the display on and select its input, which saves time in meetings and reduces remote handling in public areas.

Which video formats and HDR standards does it support?

HDMI signals include 3840 x 2160p at 24, 25, 30, 50 and 60 Hz, 4096 x 2160p at 24, 50 and 60 Hz, and 1080p, 1080i and 720p at common frame rates. HDR10 and HLG are supported. Lower resolution content is upscaled to near-4K quality, so older media still displays cleanly on the panel.

Can the display be mounted in portrait orientation, and how heavy is it?

Yes. The data lists portrait and tilt compatibility and a VESA hole pattern of 300 x 300 mm. The unit weighs approximately 17.6 kg without stand, and the carton weighs about 23 kg. Dimensions without stand are approximately 124.0 x 71.1 x 4.7 cm. Two people are advisable for wall mounting, and a site survey helps confirm the bracket and wall suitability.

Can it be managed remotely across several screens?

The display supports IP Control and RS-232C, and remote management applications by Sony and other developers are supported in some sales regions. Zero touch provisioning reduces setup time across large multi-screen deployments. Tilt angle and temperature sensors are available for integration with third-party remote management systems through an API.

How does its power use compare for a facilities team?

Rated power consumption is 138 W, standby power is 0.5 W and the listed on-mode energy use is 56 kWh per 1000 hours. Sony states that power consumption is reduced by up to 31 percent compared with previous models. A power saving mode and dynamic backlight control further limit energy use during long-term operation.

Is the FW-55BZ40P suitable for dusty sites in Qatar?

The chassis meets IP5X standards for dust resistance, which suits entrances, back-of-house areas and lobbies where fine dust is common. IP5X covers dust protection only. The data does not list an operating temperature range, so confirm the site conditions with the SmartRooms Qatar team before installing near windows or in spaces without air conditioning.

Would it suit classrooms and corridors in a school in Al Wakrah or Lusail?

A 55-inch panel suits a smaller classroom, a corridor notice screen or a library entrance. Locking physical buttons, the remote and selected inputs helps stop students from changing settings. Ask for a quote covering the number of units, mounting brackets and cable routes, and SmartRooms Qatar can arrange a free site survey first.

Is it suitable for a retail unit or hotel lobby on a busy Doha street?

For a shopfront or hotel lobby, the 700 cd/m² brightness helps content stay visible, and the low-reflection screen reduces glare from daylight. Built-in Wi-Fi, Apple AirPlay and a restricted interface suit staff-managed promotions. Confirm the mounting position and environment during the quotation stage.

Can we order several units through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Send the quantity, intended locations and mount type, and the team usually returns a quotation within one working day. Delivery and installation timing are confirmed with the quotation, based on stock.
