Sony Digital Signage Current

FW-65BZ40L

Sony FW-65BZ40L 65-inch 4K HDR Professional Display

Screen size: 65"
Resolution: 3840 x 2160
Brightness: 700 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-65BZ40L is a 65-inch 4K HDR professional display from the Pro BRAVIA BZ40L series, built for corporate, retail and education use. Its 700 cd/m² panel, 1,200:1 contrast ratio and Deep Black Non-Glare coating keep images readable in brighter rooms. It is rated for 24/7 operation, offers 32GB of on-board storage and supports HDMI, USB and Ethernet connections. Well suited to Doha offices, shopping centres and schools that need a dependable signage or presentation screen.

What the FW-65BZ40L brings to a room

The Sony FW-65BZ40L is a 65-inch professional LCD display from the Pro BRAVIA BZ40L series. It uses an IPS panel with a 3840 x 2160 resolution, direct LED backlighting with frame dimming, and a 4K HDR Processor X1 for picture processing. It is rated for continuous operation, which matters in lobbies, control rooms and busy classrooms where a screen is rarely switched off.

Brightness, contrast and the Deep Black Non-Glare coating

Rated at 700 cd/m² with a 1,200:1 contrast ratio and a dynamic contrast ratio of 600,000:1, the panel suits rooms that receive daylight. The Deep Black Non-Glare coating combines anti-glare and low-reflection properties, which reduces reflections from windows and ceiling lights. A 178-degree viewing angle on both axes keeps the picture clear for people seated at the edges of a room.

HDR10, HLG and Dolby Vision are supported, and TRILUMINOS PRO covers 92% of the DCI-P3 colour gamut, which helps brand artwork and video look accurate. Motionflow XR at 200/240Hz (native 50/60Hz) keeps fast motion smoother, while 4K X-Reality PRO sharpens lower-resolution sources so they look closer to 4K.

Connections, signage and meetings without extra hardware

Four HDMI inputs with HDCP 2.3 on HDMI 1 to 4, plus HDMI-CEC and HDMI auto wake-up
Two USB ports for media playback and for storing display settings
Ethernet, Wi-Fi and Wi-Fi Direct for networked content and wireless sharing
RS-232C and IP control for integration with room and building control systems

The display runs Android TV with 32GB of on-board storage. Built-in HTML5 support and the BRAVIA Signage Free software let it play HTML pages, video and photos from a USB stick, so a simple wayfinding or lobby screen can run without a separate media player. AirPlay and Chromecast are built in for sharing from phones and laptops, and Google Meet can be installed from the Google Play Store and paired with a compatible webcam.

Where it fits in Qatar

A 65-inch screen suits a smaller meeting room or client room, such as a room in Msheireb or West Bay where staff join calls with colleagues abroad. In a school classroom in Al Wakrah or Al Rayyan, it works well for lessons and visual materials, and Pro Mode can lock settings so students cannot change them. In a shopping centre in Al Sadd or Lusail, an indoor unit can guide visitors and show store information, provided the position avoids direct sunlight.

What to plan before you order

Check the wall before ordering. The display weighs 21.4 kg without its stand and 22.3 kg with it, so the bracket and fixing should be chosen for that load. The VESA hole pattern is 300 x 300 mm, and the dimensions without stand are 1462 x 842 x 71 mm. Rated power consumption is 229 W. SmartRooms Qatar offers free site surveys, where we can confirm the operating environment, ventilation and power arrangements for your location.

Request a quote from SmartRooms Qatar for the FW-65BZ40L. Your quotation can cover supply, delivery to all eight municipalities of Qatar, professional installation and paperwork for purchase orders or government tenders. Quotations are usually issued within one working day.

Highlights

65-inch 4K panel with 3840 x 2160 resolution
700 cd/m² brightness with Deep Black Non-Glare coating
HDR10, HLG and Dolby Vision support
Rated for 24/7 operation with Pro Mode controls
32GB on-board storage on Android TV
Portrait, landscape and tilt installation options

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

74 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 65"
Brightness (cd/m²): 700
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 600,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG,Dolby Vision)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features12

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: IPS
Backlight Type: Direct LED
TRILUMINOS Display: TRILUMINOS PRO
Colour Gamut (DCI-P3): 92%
Picture Processor: 4K HDR Processor X1
Operation Time: 24/7
Deep Black Non-Glare: Yes
Haze (%): 47%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features6

Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: Yes
Operating System: Android TV
On-board Storage (GB): 32GB

Network Specification3

Wi-Fi Direct: Yes
Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD):MPEG2,AVC / MP4 (XAVCS):AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3(for HDMI1/2/3/4)
Composite Video Input (s): 1(Side, Mini jack)
HDMI Inputs Total: 4 (4Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features3

Frame Colour: Black
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 84 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 229 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates1

EMC: Class-B

Measurements3

Dimension of TV without Stand (W x H x D): 1462 x 842 x 71 mm / 57 5/8 x 33 1/4 x 2 7/8 inch
Dimension of TV with Stand (W x H x D): 1462 x 912 x 338 mm / 57 5/8 x 36 x 13 3/8 inch
Dimension of Package Carton (W x H x D): 1588 x 965 x 184 mm / 62 5/8 x 38 x 7 1/4 inch

Weight3

Weight of TV without Stand: 21.4 kg / 47.2 lb
Weight of TV with Stand: 22.3 kg / 49.2 lb
Weight of Package Carton (Gross): 31 kg / 68.3lb.

Accessories2

Wall-Mount Adjuster (Bundled): Yes (Depending on Region)

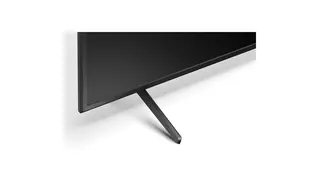

Table-Top Stand (Optional): Yes (Depending on Region)

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/qr/1393021

Downloads

23 files from the manufacturer

Questions about FW-65BZ40L

Who is the FW-65BZ40L designed for?

It is designed for organisations that need a dependable professional screen in corporate, retail and education settings. A 65-inch size suits a boardroom, a client meeting room or a classroom in a private school in Al Wakrah, while the 24/7 operating rating supports reception and lobby screens. Because it is a commercial display rather than a consumer TV, its Pro Mode and signage features are the main reasons to choose it.

Will the screen stay readable if it faces a window in a Doha office?

The panel is rated at 700 cd/m² and uses Deep Black Non-Glare coating, which reduces reflections and boosts contrast, so it holds up better than an uncoated screen in daylit rooms. The 178-degree viewing angle keeps images clear from the side of the room. Direct sunlight can still wash out content, so ask the SmartRooms Qatar team to review the position during a free site survey before fixing it.

Which HDR formats and colour standards does it support?

The FW-65BZ40L supports HDR10, HLG and Dolby Vision. Its 4K HDR Processor X1 and TRILUMINOS PRO technology cover 92% of the DCI-P3 colour gamut, which helps video and brand artwork appear accurate. The IPS panel provides wide viewing angles, and the manufacturer data lists a 1,200:1 contrast ratio and a dynamic contrast ratio of 600,000:1.

Can it play digital signage without a media player or PC?

Yes. The display has built-in HTML5 support and on-board BRAVIA Signage Free software. When a USB stick holding HTML content, video or photos is inserted, the display plays it automatically. For a reception or wayfinding screen in a hospital or government building, this removes the need for a separate player for simple content.

What connections are on the display?

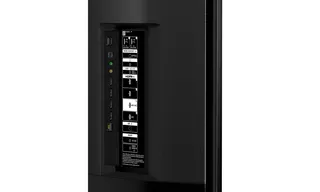

The side panel carries four HDMI inputs with HDCP 2.3 on HDMI 1 to 4, one composite video input, one analogue audio input, one digital audio output, two USB ports and one Ethernet port. Control is available through RS-232C and IP control, and HDMI-CEC is supported. Confirm your source devices and cable routes with your AV contractor before ordering, since the side placement affects where cables run.

Can several units be tiled into a video wall?

Yes. The Multi Display Setting app is intended for building video walls from several BRAVIA displays tiled together. The panel has a VESA hole pitch of 300 x 300 mm, so it works with compatible wall and video wall mounts. For a mall in Lusail or a showroom at The Pearl, plan the layout and wall structure with the SmartRooms Qatar team, because the source data does not list the bezel width.

Can it be mounted in portrait orientation?

Yes. The display can be installed in portrait or landscape and tilted at an angle. Signal connections, networking and interfaces are side mounted, so they stay accessible in portrait. A Wall-Mount Adjuster is bundled depending on region, giving flexibility for central mounting. The weight is 21.4 kg without the stand and 22.3 kg with it, so check the bracket and wall structure before installation.

How do meetings and wireless sharing work?

The display supports Apple AirPlay and Chromecast built in, plus Wi-Fi Direct and Wi-Fi certified wireless LAN, so people can mirror content from phones and laptops without cables. Google Meet can be downloaded from the Google Play Store, and a compatible webcam can be paired for video calls. This suits a Doha office where staff join calls with teams abroad from a shared room.

How much power does it use?

Rated power consumption is 229 W, and standby power is listed at 0.5 W. The manufacturer data gives on-mode power consumption of 84 kWh/1000h under EPREL testing. The networked standby figures in the data are labelled for Saudi Arabia only. Ask SmartRooms Qatar to confirm the power arrangements and socket type for your site before installation.

Is it suitable for areas that get very hot in summer?

The source data does not list an operating temperature range, so this page does not state one. Summer temperatures in Qatar often exceed 45°C, so the safest approach is an air-conditioned indoor space with airflow around the display. Avoid direct sunlight and heat sources, and ask the SmartRooms Qatar team to confirm the environment and ventilation for your location before you approve a quotation.

Can settings be locked for a public area in a university or hospital?

Yes. Pro Mode lets administrators disable input and remote control functions, block buttons and remove labels to prevent tampering. You can schedule on and off times so the display powers down after hours. Settings can be stored and copied to other displays using USB flash memory, which helps a university campus or hospital keep screens consistent across several floors.

How do we request a quote for several units under an LPO or tender?

Send your requirements to SmartRooms Qatar, including the quantity, locations, mounting type and whether you need the optional table-top stand, which depends on region. Quotations usually arrive within one working day. SmartRooms Qatar works with purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order, with delivery to all eight municipalities of Qatar.
