Sony Digital Signage Current

FW-75BZ35P

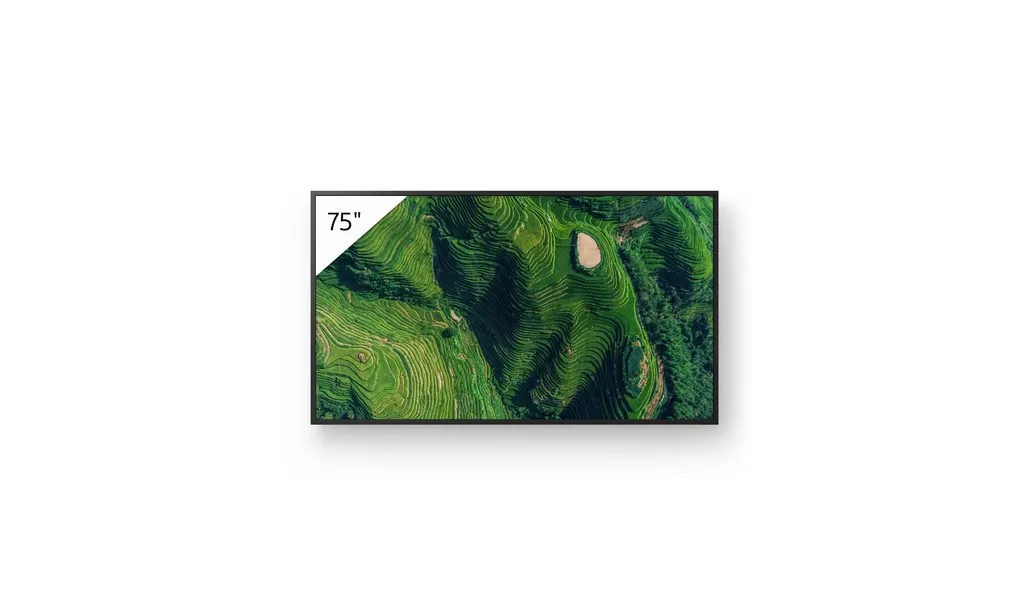

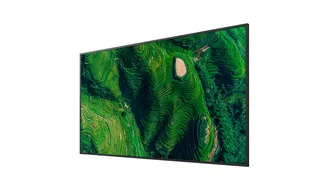

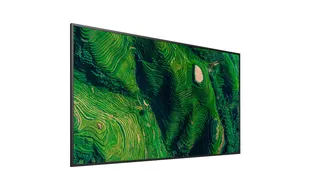

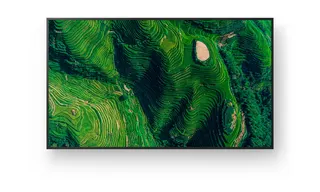

Sony FW-75BZ35P 75-inch 4K HDR Professional Display

Screen size: 75"
Resolution: 3840 x 2160
Brightness: 500 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-75BZ35P is a 75-inch 4K HDR professional display rated at 500 nit, built for signage, retail and corporate rooms in Qatar. Its 3840 x 2160 IPS panel uses a Deep Black Non-Glare coating to limit reflections in bright lobbies, while an integrated SoC runs signage content without an external set-top box. IP5X dust resistance and 24/7 operation suit showrooms, schools and meeting rooms. Request a quote from SmartRooms Qatar.

A 75-inch 4K signage screen that runs without a media box

The Sony FW-75BZ35P is a 75-inch professional display from the Pro BRAVIA BZ35P series, with a 3840 x 2160 IPS panel, 500 cd/m² brightness and HDR10 and HLG support. It is built for digital signage, wayfinding and information screens in shops, offices and schools, where a large display is the main way to reach people. SmartRooms Qatar supplies it across Qatar with professional installation.

Picture performance for brightly lit rooms

Deep Black Non-Glare Standard is a high-haze coating that reduces reflections, and it works with the XR Processor's contrast handling. The specification lists 25% haze, a 1,200:1 contrast ratio and a 400,000:1 dynamic contrast ratio. The panel covers 92% of the DCI-P3 colour space, responds in 8 ms typical grey-to-grey, and is rated at a 178 degree viewing angle both horizontally and vertically, so people seated off-centre still see clear content.

Digital signage without an external set-top box

The display runs Android with 32GB of on-board storage on an SoC platform, so smart signage plays without a set-top box or extra cabling behind the screen. The Real-Time Clock keeps content-management schedules running when the display is switched off. Remote management applications from Sony and other developers are supported, depending on sales region, and integration with third-party systems is possible through an API.

Connectivity and control for meeting rooms and public spaces

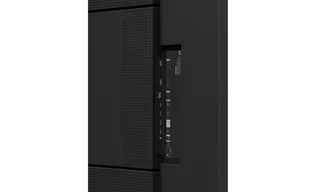

Four HDMI inputs on the side, with HDCP 2.3 on HDMI 1 to 4
Two USB ports and one Ethernet port on the side
Integrated wireless LAN and Apple AirPlay screen mirroring
RS-232C and IP control, plus HDMI-CEC
HDMI auto wake-up and Pro Mode, which can restrict buttons, remote and inputs

When a laptop or HDMI source is connected, the display powers on and selects the right input. One-step settings cover Signage Dynamic, Signage Standard and Meeting Room use.

Planning the installation: weight, mounting and power

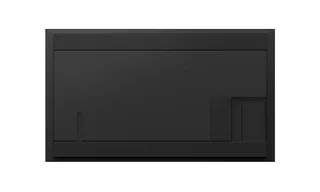

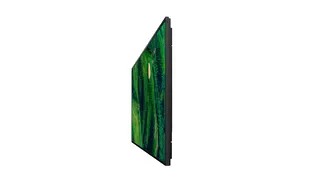

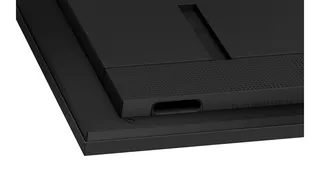

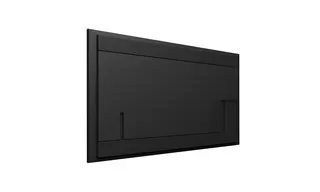

The panel weighs approximately 29.2 kg without its stand and measures approximately 168.4 x 96.2 x 7.2 cm. Its 300 x 300 mm VESA pattern sits centrally, and it can be mounted horizontally or vertically, with integral carry handles for lifting. Because a 75-inch panel puts real load on a wall, a free site survey before fixing checks the wall structure, the bracket and cable routing. Rated power consumption is 191 W, standby draw is 0.5 W, and the on-mode figure listed for EPREL is 94 kWh per 1,000 hours. The data we hold does not give an operating temperature range, so confirm the environment with the SmartRooms Qatar team before fitting the panel in a sunlit lobby or an area without air conditioning.

Where it fits in Qatar

A private school in Al Wakrah could place one in a corridor or library to show announcements and timetables. A hotel lobby in West Bay could use it for event listings and wayfinding, with Pro Mode limiting what guests can change. A bank branch in Msheireb could show product information to customers waiting in queue. A restaurant in Al Rayyan could rotate the panel to portrait for its menu.

For a single screen or a set for several sites, request a quote from SmartRooms Qatar. We usually reply within one working day, and we accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order.

Highlights

75-inch 3840 x 2160 IPS panel with HDR10 and HLG support
500 cd/m² brightness with Deep Black Non-Glare Standard coating
1,200:1 contrast ratio and 400,000:1 dynamic contrast ratio
Android platform with 32GB storage and no set-top box needed
IP5X dust resistance for 24/7 operation
Four HDMI, two USB and one Ethernet port on the side

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

58 specifications · Source: manufacturer · checked Oct 2026

General Features8

Screen Size: 75"
Brightness (cd/m²): 500
Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 400,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG)
Portrait/Tilt Compatibility: Yes

Display Features10

Dimming Type: Frame Dimming
Panel Type: IPS
Backlight Type: Direct LED
Colour Gamut (DCI-P3): 92%
Picture Processor: XR Processor
Operation Time: 24/7
Deep Black Non-Glare: Standard
Haze (%): 25%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification1

HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification1

Audio Power Output: 20W

Professional Features8

IP Rating (Dust resistant): IP5X
Real-Time Clock: Yes
Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: TBD
Operating System: Android
On-board Storage (GB): 32GB

Network Specification1

Wireless LAN: Integrated

Convenience Features5

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS(HDV,AVCHD):MPEG2,AVC / MP4(XAVCS):AVC,MPEG4,HEVC / AVI,MotionJpeg / MOV:AVC,MPEG4,MotionJpeg / MKV,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF(WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs4

HDCP: HDCP2.3 (for HDMI1/2/3/4)
HDMI Inputs Total: 4 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features1

VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 94 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 191 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates2

EPEAT: TBD
EMC: TBD

Measurements2

Dimension of TV without Stand (W x H x D): Approx. 168.4 x 96.2 x 7.2 cm
Dimension of Package Carton (W x H x D): TBD

Weight2

Weight of TV without Stand: Approx. 29.2 kg
Weight of Package Carton (Gross): TBD

Downloads

24 files from the manufacturer

Questions about FW-75BZ35P

What is the FW-75BZ35P designed for?

It is a 75-inch 4K professional display for digital signage, wayfinding, menu boards and corporate or education screens. It suits organisations that want a large screen with a built-in player, so there is no separate media box to install. In Qatar, a retail store in Al Sadd or a clinic reception area in Doha could use it for timed content. Its 500 cd/m² brightness and 3840 x 2160 resolution help text and images stay clear in lit spaces.

Do I need a set-top box or media player?

No. The display has an SoC platform that runs smart digital signage without an external set-top box, so there is no extra hardware or exposed cabling behind the screen. It runs Android with 32GB of on-board storage. The Real-Time Clock keeps content-management schedules running when the display is switched off. For a single screen in a lobby or corridor, the installation then covers the panel, its mounting and a network connection.

Will the screen stay readable in bright rooms?

The panel is rated at 500 cd/m² and uses Deep Black Non-Glare Standard, a high-haze coating that reduces reflections. The specification lists 25% haze and a 1,200:1 contrast ratio. Shops with large windows, atriums and open-plan offices in West Bay or Lusail often receive strong daylight, so ask our team to review the screen position and glare before you choose a mounting location.

What does IP5X dust resistance mean during Qatar's dust storms?

IP5X is an international rating for dust protection. It limits dust entering the enclosure rather than sealing it fully. Sony's data lists IP5X for this chassis, which helps in the dusty conditions that come with Qatar's dust storms. It does not make the panel weatherproof or suitable for outdoor use, so keep it indoors and treat the dust rating as one factor when choosing a location in the Industrial Area or Mesaieed.

What is the operating temperature range?

The source data we hold does not list an operating temperature range for the FW-75BZ35P, so we cannot quote one. Because summer temperatures in Qatar can exceed 45°C, confirm cooling and airflow with the SmartRooms Qatar team before fitting it in a warehouse, a semi-open entrance or any space that is not air-conditioned. Rated power consumption of 191 W is useful information for the installer's cooling planning.

How heavy is it, and how should it be mounted?

The panel weighs approximately 29.2 kg without its stand and measures approximately 168.4 x 96.2 x 7.2 cm. It has a centrally positioned 300 x 300 mm VESA pattern and integral carry handles. It can be mounted horizontally or vertically. Because the wall, bracket and fixings must carry the load, SmartRooms Qatar offers a free site survey before a wall-mounted install in a Doha office or a school corridor.

Can it be used in portrait orientation for menus or directories?

Yes. The data lists portrait and tilt compatibility, so the panel can be rotated for vertical content such as restaurant menus in Al Rayyan, building directories in a Doha shopping centre, or queue information. Check the bracket and the rotation setup before installation, and confirm that the chosen mount is rated for a 75-inch panel weighing approximately 29.2 kg.

What connections does it have?

On the side, the panel offers four HDMI inputs, two USB ports and one Ethernet port. HDCP 2.3 is supported on HDMI 1 to 4. The HDMI signal list covers 3840 x 2160 at 24, 25, 30, 50 and 60Hz, plus 1080p and 720p. Integrated wireless LAN and Apple AirPlay are also available. For a university or training room, these ports cover a laptop, a media player and a PC at the same time.

Is it suitable as a meeting-room display?

It can be. When a laptop or HDMI device is connected, the display powers on automatically and selects the input, which saves time at the start of a meeting. One-step settings include a Meeting Room preset, and Pro Mode can restrict buttons and remote functions. Confirm the room's conferencing codec and camera with the SmartRooms Qatar team, because a video conferencing system is a separate product.

How is it managed across several sites or screens?

Remote management applications from Sony and other developers can handle setup, control, monitoring and maintenance. Zero touch provisioning reduces setup effort in large multi-screen deployments, and the display supports API integration with third-party systems. Application support varies by sales region, so confirm which remote management tools are available in Qatar before specifying them for a multi-site retail or hospital rollout.

How much power does it use?

Rated power consumption is 191 W. Standby draw is listed as 0.5 W, and the on-mode consumption listed for EPREL is 94 kWh per 1,000 hours. Power saving mode and dynamic backlight control reduce consumption further, and Sony states power use is reduced by up to 31% compared with previous models. For a school or hotel running screens for long hours, these figures help estimate running costs.

Can a school or government entity order several units with an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. For a school fitting out several classrooms with 75-inch signage screens, send the quantity and mounting locations so the quote reflects the installation needs of each site.
