Sony Digital Signage Current

FW-75BZ40L

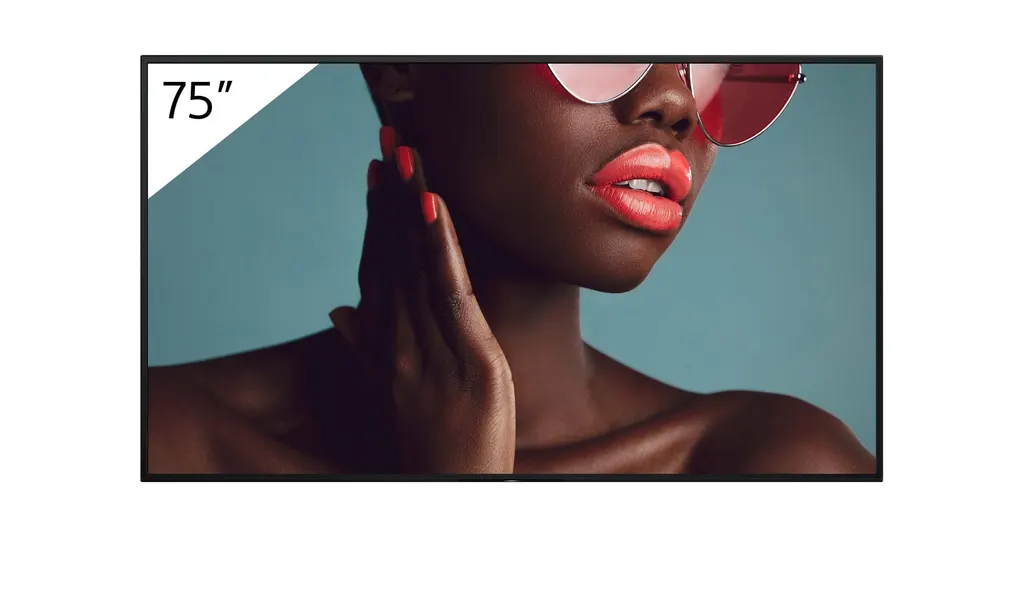

Sony FW-75BZ40L 75-inch 4K HDR Professional Display

Screen size: 75"
Resolution: 3840 x 2160
Brightness: 700 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-75BZ40L is a 75-inch 4K HDR professional display built for corporate, retail and education use in Qatar. Its Deep Black Non-Glare coating reduces reflections in bright rooms, and the 700 cd/m² panel keeps content readable. It runs Android TV with 32GB of onboard storage, plays digital signage from USB, and can be mounted in portrait or landscape. Suited to boardrooms, campus classrooms and shopfronts. Request a quote from SmartRooms Qatar.

What the FW-75BZ40L is built for

The FW-75BZ40L is a 75-inch professional display from Sony's Pro BRAVIA BZ40L series, designed for rooms that run for hours every day and for audiences who sit at different angles. It combines a 4K IPS LCD panel, a direct LED backlight and frame dimming with Android TV, so one screen can host meetings, lessons, signage and video content without an external media player.

The specifications that matter on the job

Brightness is rated at 700 cd/m². The Deep Black Non-Glare coating cuts reflections and lifts contrast, with a listed haze of 47%. The contrast ratio is 1,200:1 and the dynamic contrast ratio is listed at 600,000:1. Colour coverage is 92% of DCI-P3, handled by the 4K HDR Processor X1 and TRILUMINOS PRO. The panel supports HDR10, HLG and Dolby Vision, and its 178-degree viewing angle keeps images readable from side seats.

Resolution: 3840 x 2160 pixels, with 4K X-Reality PRO upscaling for lower-resolution sources.
Motion: Motionflow XR 200/240Hz (native 50/60Hz) with an 8 ms typical gray-to-gray response time.
Storage and software: 32GB internal storage, Android TV and HTML5 support.
Audio: 10W + 10W down-firing speakers.

Where it fits in Qatar

In a mid-sized boardroom in West Bay, a 75-inch screen gives everyone in the room a readable shared view while colleagues in Doha and abroad join by video. Pairing it with a compatible webcam and Google Meet from the Play Store, or casting from a laptop or phone through Chromecast Built-In or Apple AirPlay, keeps the setup simple.

In a school or training centre in Education City or Al Rayyan, the panel suits larger classrooms and lecture spaces where students at the back still need to read lesson material. In a shopfront at The Pearl or a mall in Msheireb, BRAVIA Signage Free can play HTML, video and photo content from a USB stick, while Pro Mode can schedule on and off times and block buttons and remote control to limit tampering.

Planning the installation

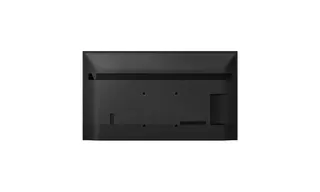

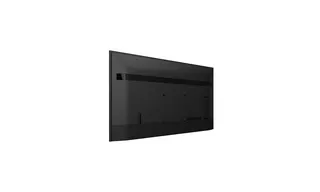

The panel weighs 31.5 kg without a stand and measures 1686 x 969 x 72 mm. It uses a 300 x 300 mm VESA pattern and comes with a wall-mount adjuster in some regions, so check the supplied parts against your site. The source data does not list a table-top stand for this model, so confirm floor or wall options with the team before you order. Rated power consumption is 299 W and standby draw is 0.5 W.

Check wall construction and load capacity before mounting, and request a free site survey.

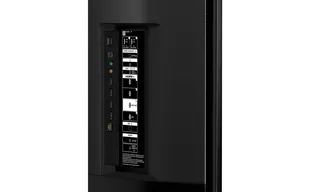

Plan side access for HDMI, USB and Ethernet, which sit on the side of the panel and are easier to reach in portrait.
If the panel will sit near windows, a lobby entrance or an outdoor-facing area, confirm the environment with the SmartRooms Qatar team. The operating temperature range is not published in the data for this model, and summer heat above 45°C and dust storms are common in Qatar.

Request a quotation

Tell us the room, the mounting height and whether you need one panel or several. SmartRooms Qatar usually returns quotations within one working day, and we can supply the panel, deliver to all eight municipalities of Qatar and arrange professional installation. Request a quote for the Sony FW-75BZ40L today.

Highlights

75-inch 4K (3840 x 2160) IPS LCD panel with direct LED backlight
700 cd/m² brightness with Deep Black Non-Glare coating
HDR10, HLG and Dolby Vision compatibility
Android TV with 32GB internal storage and HTML5 support
Four HDMI inputs, two USB ports, Ethernet and RS-232C control
Portrait, landscape and tilt installation; wall-mount adjuster in some regions

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

72 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 75"
Brightness (cd/m²): 700
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 600,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG,Dolby Vision)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features12

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: IPS
Backlight Type: Direct LED
TRILUMINOS Display: TRILUMINOS PRO
Colour Gamut (DCI-P3): 92%
Picture Processor: 4K HDR Processor X1
Operation Time: 24/7
Deep Black Non-Glare: Yes
Haze (%): 47%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features6

Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: Yes
Operating System: Android TV
On-board Storage (GB): 32GB

Network Specification3

Wi-Fi Direct: Yes
Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD):MPEG2,AVC / MP4 (XAVCS):AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3 (for HDMI1/2/3/4)
Composite Video Input (s): 1 (Side, Mini jack)
HDMI Inputs Total: 4 (4 Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features3

Frame Colour: Black
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 106 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 299 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates1

EMC: Class-B

Measurements2

Dimension of TV without Stand (W x H x D): 1686 x 969 x 72 mm / 66 1/2 x 38 1/4 x 2 7/8 inch
Dimension of Package Carton (W x H x D): 1824 x 1114 x 187 mm / 71 7/8 x 43 7/8 x 7 3/8 inch

Weight2

Weight of TV without Stand: 31.5 kg / 69.4 lb
Weight of Package Carton (Gross): 43 kg / 94.8lb.

Accessories2

Wall-Mount Adjuster (Bundled): Yes (Depending on Region)
Table-Top Stand (Optional): No

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/qr/1393028

Downloads

23 files from the manufacturer

Questions about FW-75BZ40L

Who is the Sony FW-75BZ40L best suited for in Qatar?

The FW-75BZ40L suits organisations that need one large, reliable screen for shared viewing, such as corporate boardrooms, university lecture spaces, retail floors and reception areas. Its 75-inch 4K panel, 700 cd/m² brightness and 24/7 operation rating make it practical for a meeting room in West Bay or a campus classroom in Education City. For a smaller meeting room a smaller screen may be enough, so we confirm the size against seating distance before quoting.

Will the screen stay readable in a room with ceiling lights or daylight?

The panel is rated at 700 cd/m², and its Deep Black Non-Glare coating reduces reflections, with a listed haze of 47%. The 178-degree viewing angle lets people in side seats read the content. Because rooms with large glass areas vary widely, request a free site survey so the mounting position and light levels are checked before installation.

What ports and inputs does the FW-75BZ40L have?

The side of the panel carries four HDMI inputs, two USB ports, one Ethernet input, one composite video input through a mini jack, one analogue audio input and one digital audio output. It also supports RS-232C control, IP control and HDMI-CEC, and HDCP2.3 is available on HDMI 1 to 4. Side access makes cable runs easier when the panel is mounted in portrait orientation.

Can it play digital signage without a media player or PC?

Yes. Built-in HTML5 support and the BRAVIA Signage Free software let the display play HTML content, video and photos. Content can be loaded from a USB stick, and playback starts automatically when the stick is inserted. Pro Mode can also schedule on and off times, disable the remote control and block buttons, which suits shopfronts and wayfinding screens in public areas.

Can it be mounted in portrait orientation for a corridor or wayfinding display?

Yes, the manufacturer data lists portrait and tilt compatibility, and a wall-mount adjuster is supplied in some regions to centre the panel in portrait or landscape. Portrait mounting suits a narrow hospital corridor or a hotel lift lobby at The Pearl. When requesting a quote, confirm whether the adjuster is included for your region, and plan a site survey to check the wall and cable routing.

How heavy is the panel and what mounting pattern does it use?

The panel weighs 31.5 kg without a stand and measures 1686 x 969 x 72 mm. It uses a 300 x 300 mm VESA hole pattern. A qualified installer should check the wall, bracket and fixings before fitting. SmartRooms Qatar offers a free site survey and professional installation, so the wall can be assessed before you confirm the order.

Does it work for video conferencing?

Yes. The data notes that Google Meet can be installed from the Google Play Store and paired with a compatible webcam. Chromecast Built-In, Apple AirPlay, Wi-Fi Direct and integrated Wi-Fi let presenters share content from laptops and phones without cables. For a boardroom in West Bay connecting to colleagues in Doha and abroad, confirm the camera and audio setup with our team before ordering.

Can it connect to building automation and control systems?

It supports IP control, RS-232C control and HDMI-CEC, and the platform offers open APIs for integration with other vendors' solutions. This helps facilities teams in government buildings, hospitals or banks switch screens on and off from a central system. Share the name of your control platform when requesting a quote so compatibility can be reviewed.

We are a school in Al Rayyan buying several units. How do we order?

Send your room list and quantities, and SmartRooms Qatar usually returns a quotation within one working day. Purchase orders (LPOs) are accepted, and payment can be made by bank transfer, cheque or purchase order. For government and school tenders, including Monaqasat, the quotation can be aligned with your tender documents. Each unit carries the manufacturer's warranty, and lead times are estimates confirmed with the quote.

Is it suitable for a hotel lobby near the entrance at The Pearl?

Rated power consumption is 299 W, standby draw is 0.5 W and the on-mode energy figure is 106 kWh/1000h, which helps with running-cost planning. The data does not list an operating temperature range for this model. Near an open entrance or a glass frontage, where summer heat can exceed 45°C and dust storms occur, confirm the exact location with the SmartRooms Qatar team before the quotation is finalised.
