FW-75BZ40P

What the FW-75BZ40P is built for

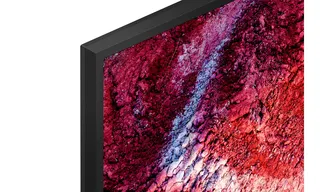

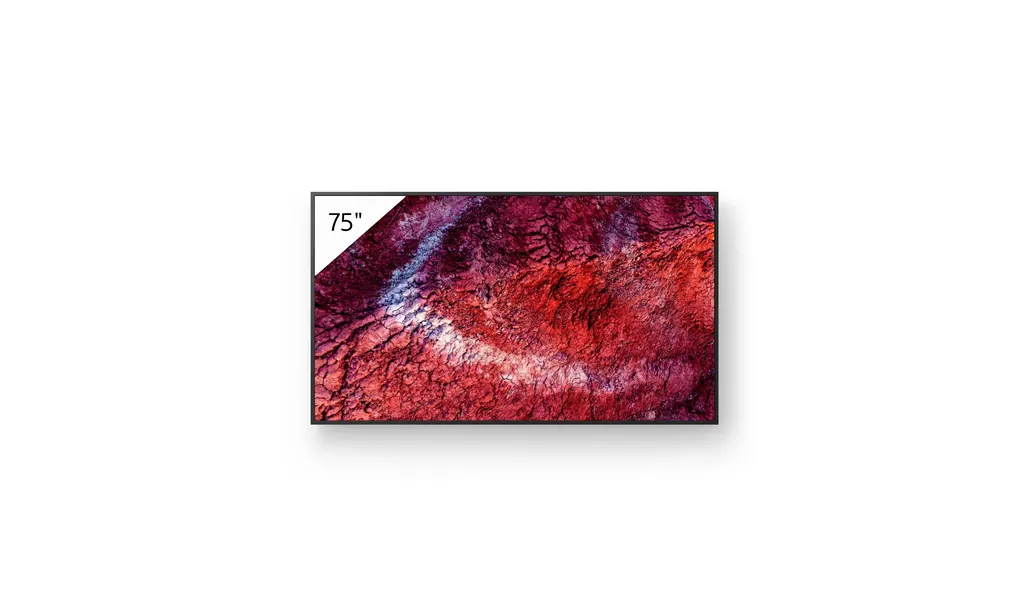

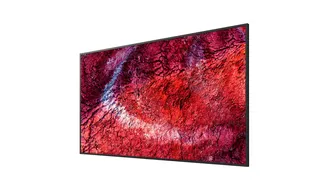

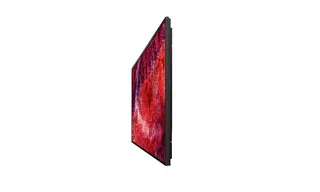

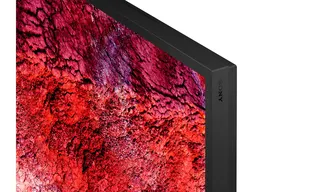

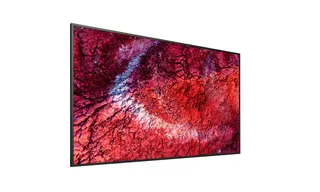

The Sony FW-75BZ40P is a 75-inch display from the Pro BRAVIA BZ40P series, designed for digital signage, corporate communication and screens facing visitors. It pairs a 3840 x 2160 IPS panel with a 700 cd/m² brightness rating, so content stays readable in rooms with daylight or strong overhead lighting. Its slim chassis and narrow, evenly sized bezels suit lobbies, retail floors and boardrooms where the screen is a visible part of the interior.

Screen performance in bright rooms

Glare is the most common reason signage loses impact in a sunlit showroom. The panel uses Deep Black Non-Glare Premium, a screen treatment with a 47% haze rating and a low-reflection coating, working with the XR Processor, which analyses colour, contrast, focal points and motion in each frame. The specification lists a 1,200:1 contrast ratio, 92% DCI-P3 colour coverage and HDR10 and HLG compatibility. Lower-resolution material is automatically upscaled to near-4K quality.

• Viewing angle: rated at 178 degrees horizontally and vertically, so people seated at the sides still see the picture.
• Frame dimming: a direct LED backlight with frame dimming supports the panel's contrast performance.
• Response time: 8 ms typical grey-to-grey, suited to moving content and video.

Signage without a media player

The FW-75BZ40P runs an Android-based system-on-chip platform with 32GB of onboard storage, so smart signage playback does not need an external set-top box. Removing that box removes its cabling, its power point and a separate point of failure, which matters across a multi-branch network. A Real-Time Clock keeps content schedules running when the display is switched off. Pro Mode and one-step presets for signage and meeting room use speed up setup, and remote management is supported through Sony and third-party applications, with zero touch provisioning for large deployments.

Where it fits in Qatar

• Retail and malls: a store unit in The Pearl or West Bay running promotions and product information through the working day.
• Government and corporate reception: a lobby in Msheireb or central Doha showing wayfinding and meeting-room information, with physical buttons and inputs restricted to prevent tampering.
• Schools and training centres: a campus in Education City or Al Rayyan using a bright screen for announcements and timetables, connected over Wi-Fi or Ethernet.

Planning the mount, power and environment

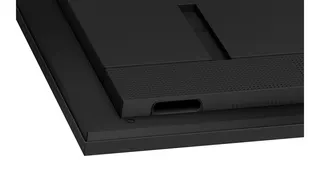

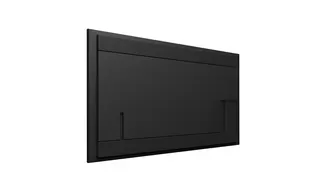

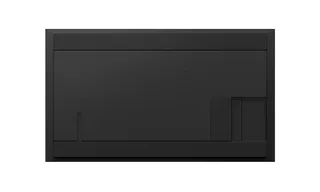

At approximately 29.2 kg without stand and a footprint of 168.4 x 96.2 x 7.2 cm, the panel needs a VESA-compatible bracket with 300 x 300 mm hole spacing, rated for its weight, on a wall that can carry it. Integral carry handles help during lifting, but two people should handle the panel. The source data does not give an operating temperature range, so confirm the mounting location with the SmartRooms Qatar team before installation, particularly for positions near windows, glass fronts or semi-outdoor areas exposed to summer heat and dust. Rated power consumption is 258 W with standby at 0.5 W, which helps when planning circuits and running costs for 24/7 operation. Have your electrical contractor confirm the power supply at the installation point.

Ordering from SmartRooms Qatar

Organisations ordering one panel or a batch for several sites can request a quote from SmartRooms Qatar. We supply and deliver to all eight municipalities of Qatar, offer professional installation and free site surveys, and usually issue quotations within one working day. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. The unit is covered by the manufacturer's warranty. Tell us the room, the wall and the quantity, and we will return a quotation.
