Sony Digital Signage Current

FW-85BZ35L

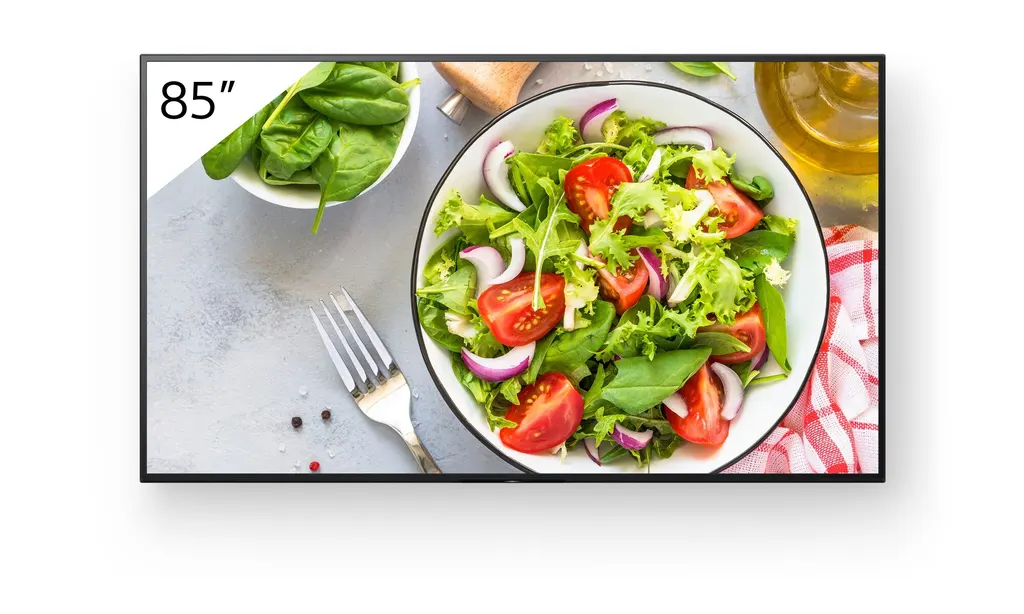

Sony FW-85BZ35L 85-inch 4K HDR Professional Display

Screen size: 85"
Resolution: 3840 x 2160
Brightness: 550 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-85BZ35L is an 85-inch 4K HDR display from the Pro BRAVIA BZ35L series, built for continuous signage and information content. It offers 3840 x 2160 resolution, 550 cd/m² brightness and 32GB of on-board storage, with a 24/7 operation rating. Its HTML5 support, USB playback and Android TV platform suit retail frontages, corporate lobbies and campus common areas in Qatar. Request a quote from SmartRooms Qatar.

What the FW-85BZ35L is built to do

The Sony FW-85BZ35L is an 85-inch professional LCD display from the Pro BRAVIA BZ35L series, aimed at organisations that need one screen to run for long hours and keep its content sharp. A VA panel with direct LED backlight produces a 3840 x 2160 image with a 6000:1 contrast ratio, while the 4K HDR Processor X1 handles colour and detail. The manufacturer rates this model for 24/7 operation, which matters in lobbies, shopfronts and corridors where a screen is switched on at opening time and rarely off.

The specifications that shape the buying decision

Brightness is 550 cd/m², and the manufacturer lists a 178-degree viewing angle both horizontally and vertically, so people standing at the side of a room still see the content clearly. The panel covers 92% of the DCI-P3 colour space and supports HDR10, HLG and Dolby Vision. Motion is handled by Motionflow XR, rated at 200/240Hz on a native 50/60Hz panel, with a typical grey-to-grey response time of 8 ms.

Storage, connectivity and content control

The 32GB of on-board storage lets the display hold apps and signage files without an external media player. Built-in HTML5 support and USB playback cover common file formats, and the Android TV platform provides Google Chromecast and Apple AirPlay for wireless mirroring. For wired setups there are four HDMI inputs on the side, one Ethernet port, two USB ports, a composite input, an analogue audio input and a digital audio output. Control options include IP control, RS-232C and HDMI-CEC.

Pro Settings can disable inputs or remote functions, schedule on and off times and block buttons in public areas.
One Step Setting offers presets for meeting rooms, vivid signage, natural signage and graphics.
Multi Display Setting app supports tiling several BRAVIA displays into one video wall.

Where it fits in Qatar

In a West Bay office tower, the panel in portrait orientation can show wayfinding and staff announcements at the reception, and the 85-inch size keeps text readable from across the lobby. On a retail frontage in Msheireb or Al Sadd, the high brightness and wide viewing angle help promotions hold attention on a street-facing wall, with schedules managed through Pro Settings. At a university or school in Education City or Al Wakrah, the display suits an information board in a teaching corridor or a large meeting space where a team presents to a room of people.

What to plan before ordering

Without its stand the FW-85BZ35L measures 1899 x 1089 x 71 mm and weighs 44.5 kg, so the mounting wall or structure must be able to carry that load. The VESA hole spacing is 400 x 400 mm, and the bundled wall-mount adjuster (supplied depending on region) allows central mounting in portrait or landscape. A site survey before installation checks the wall type, bracket fit and cable routing, and SmartRooms Qatar offers free site surveys. The source data does not list an operating temperature range for this model, so confirm the intended environment with our team, especially for spaces that are not fully air-conditioned, where summer heat above 45°C and dust storms are realistic risks. The EPREL on-mode consumption is 135 kWh per 1000 hours, with 0.5 W standby.

Ordering from SmartRooms Qatar

Quotations are usually provided within one working day. We deliver to all eight municipalities of Qatar, arrange professional installation, and accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Request a quote for the Sony FW-85BZ35L with your mounting location, number of units and any video wall plans, and our team will confirm the lead time with the quotation.

Highlights

85-inch panel with 3840 x 2160 resolution and 550 cd/m² brightness
24/7 operation rating listed in the manufacturer data
32GB on-board storage for apps and signage files
HTML5 support and USB playback without an external media player
Portrait, landscape and tilt mounting with wall-mount adjuster (depending on region)
Pro Settings lock controls and schedule on and off times in public areas

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

66 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 85"
Brightness (cd/m²): 550
Contrast Ratio: 6000:1
Dynamic Contrast Ratio: 400,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG,Dolby Vision)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features12

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: VA
Backlight Type: Direct LED
TRILUMINOS Display: TRILUMINOS PRO
Colour Gamut (DCI-P3): 92%
Picture Processor: 4K HDR Processor X1
Operation Time: 24/7
Deep Black Non-Glare: No
Haze (%): 2%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features6

Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: Yes
Operating System: Android TV
On-board Storage (GB): 32GB

Network Specification3

Wi-Fi Direct: Yes
Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD):MPEG2,AVC / MP4 (XAVCS):AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3(for HDMI1/2/3/4)
Composite Video Input (s): 1 (Side, Mini jack)
HDMI Inputs Total: 4(4Side)
Analog Audio Input (s) (Total): 1(Side Analog Conversion)
Digital Audio Output (s): 1(Side)
USB Ports: 2(Side)
Ethernet Inputs: 1(Side)

Design Features3

Frame Colour: Black
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 400 x 400 mm / 15 3/4 x 15 3/4 inch

Environment Specifications4

On-Mode Power Consumption (EPREL): 135 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes

Certificates1

EMC: Class-B

Measurements2

Dimension of TV without Stand (W x H x D): 1899 x 1089 x 71 mm / 74 7/8 x 42 7/8 x 2 7/8 inch
Dimension of Package Carton (W x H x D): 2036 x 1239 x 258 mm / 80 1/4 x 48 7/8 x 10 1/4 inch

Weight2

Weight of TV without Stand: 44.5 kg / 98.1 lb
Weight of Package Carton (Gross): 62 kg / 136.6lb.

Accessories2

Wall-Mount Adjuster (Bundled): Yes (Depending on Region)
Table-Top Stand (Optional): No

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/qr/1393008

Downloads

19 files from the manufacturer

Questions about FW-85BZ35L

Who is the Sony FW-85BZ35L designed for in Qatar?

It suits organisations that need one large screen running for long hours, such as corporate offices, schools, universities and retail stores. The manufacturer rates this model for 24/7 operation, and its 85-inch size and 550 cd/m² brightness make announcements, wayfinding and information content readable in busy shared spaces. It is a practical choice for public-facing areas where the screen must stay on through the working day.

Can it run a continuous advertising loop in a Doha retail frontage?

The manufacturer lists 24/7 operation for this model, and you can schedule on and off times with the timer and Pro Settings, which can also block buttons and remote functions to prevent tampering. The 550 cd/m² brightness helps content stay visible in daylight. The source data does not give an outdoor or window-facing rating, so confirm the exact position with SmartRooms Qatar before you decide on a shopfront installation.

Is an 85-inch panel right for a boardroom or lecture hall?

Yes, for larger rooms. The 16:9 panel with 3840 x 2160 resolution shows tables, charts and text clearly to people seated some distance away, which suits a boardroom in a West Bay office or a seminar room on an Education City campus. Check the room length and seating layout before ordering, and ask for a site survey so the mounting height suits the audience.

What picture quality does the panel deliver?

It has a 3840 x 2160 display with a 6000:1 contrast ratio and a dynamic contrast figure of 400,000:1. It covers 92% of DCI-P3 colour and supports HDR10, HLG and Dolby Vision. The 4K X-Reality PRO processing sharpens lower-resolution sources in real time and moves them closer to 4K quality, which helps when older HD material is shown on a large screen.

Can I mount it in portrait orientation in a lobby or corridor?

Yes. The source data lists portrait and tilt compatibility, and the wall-mount adjuster is bundled depending on region, allowing central mounting in portrait or landscape. Side-mounted interfaces are easier to reach when the panel is in portrait position. A portrait layout suits a tall corridor or a lobby directory board, so confirm that the adjuster is included for your region when you request a quote.

Do I need a separate media player for digital signage?

Not for files stored on the display or on a USB stick. The model has built-in HTML5 support, USB playback for a range of video, audio and image codecs, and 32GB of internal storage for apps and signage files. Content can start automatically when a USB stick is inserted. For a clinic waiting area in Msheireb, this keeps the setup simpler, with fewer external boxes and cables to manage.

Can several units be combined into a video wall?

Yes. The Multi Display Setting app is listed for creating video walls from multiple BRAVIA displays tiled together. The VESA hole spacing is 400 x 400 mm, which the bracket design must match. The number of screens, bezel gaps and mounting method depend on the actual wall, so SmartRooms Qatar offers a free site survey to plan the layout before installation.

How does it support wireless sharing and video meetings?

It has Apple AirPlay and Google Chromecast built in, along with Wi-Fi Direct and integrated wireless LAN listed as Wi-Fi Certified. Google Meet can be installed from the Google Play Store, and a compatible webcam can be paired for video calls. This suits a meeting that links a Doha team with colleagues abroad, where a presenter shares a laptop screen wirelessly. Confirm webcam compatibility before purchase.

Can it be controlled from a room automation system?

It supports IP control, RS-232C control and HDMI-CEC, so it can be linked to room control and automation systems. The manufacturer also lists open APIs for integration with other vendors' solutions. In a meeting room in Lusail, for example, the display could be switched on and off with the room system. Let us know which control platform you use so the connection method can be confirmed.

What are the dimensions and weight, and what should I check before mounting?

Without its stand the display measures 1899 x 1089 x 71 mm and weighs 44.5 kg, and the packaged carton weighs 62 kg. Check that the wall or structure can carry this load and that the bracket matches the 400 x 400 mm VESA pattern. A free site survey can check wall type and cable routes before the mounting is installed.

Will it cope with Qatar's summer heat and dust?

The source data does not list an operating temperature range or dust rating for this model, so its tolerance for harsh conditions cannot be confirmed here. Summer temperatures in Qatar can exceed 45°C, so the safest choice is a fully air-conditioned space. Confirm the actual installation environment with the SmartRooms Qatar team before you place an order.

Can a government entity or school buy it through a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. A school equipping several classrooms or a ministry fitting out a reception area can request one quotation covering multiple units, mounting options and installation. Products are covered by the manufacturer's warranty. Request a quote with the number of units and the locations.
