Sony Digital Signage Current

FW-85BZ40L

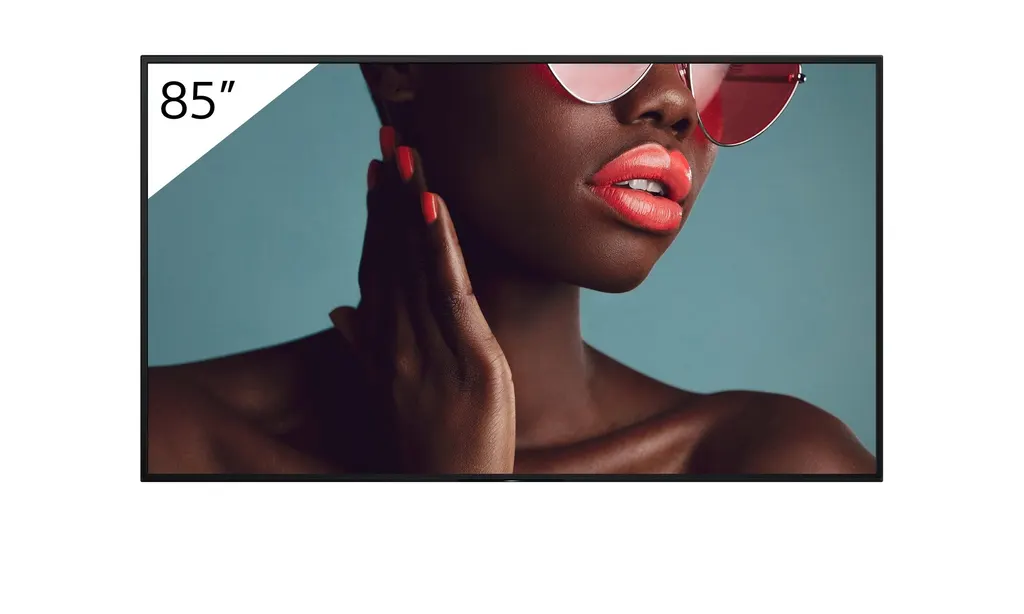

Sony FW-85BZ40L 85-inch 4K HDR Professional Display

Screen size: 85"
Resolution: 3840 x 2160
Brightness: 650 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-85BZ40L is an 85-inch 4K HDR LCD display rated at 650 cd/m² and fitted with Deep Black Non-Glare coating to limit reflections in lit rooms. It suits boardrooms, lecture halls and retail floors where a large, sharp image must stay readable. It supports HDR10, HLG and Dolby Vision, has four HDMI inputs and 32GB on-board storage, and can run 24/7. Request a quote from SmartRooms Qatar.

What the FW-85BZ40L is and where it performs

The Sony FW-85BZ40L is an 85-inch LCD display from the Pro BRAVIA BZ40L series, built for corporate, education and retail spaces where a large image has to stay clear under office lighting. It uses a 16:9 panel with 3840 x 2160 resolution, a VA panel and direct LED backlighting, and it is designed for continuous operation.

Brightness, contrast and reflection control

Rated at 650 cd/m², the screen holds its image in rooms with overhead lights or a window. The specification lists a 6000:1 contrast ratio and a 500,000:1 dynamic contrast ratio. The Deep Black Non-Glare coating combines anti-glare and low-reflection technologies, and the data lists a haze value of 58%, so reflections from ceiling fittings and windows are reduced. Colour coverage is 92% of DCI-P3, handled by a 4K HDR Processor X1 and TRILUMINOS PRO display technology.

Where it fits in Qatar

Boardroom or executive meeting room: a corporate office in West Bay or Msheireb linking staff in Doha with teams abroad, using Google Meet from the Google Play Store with a compatible webcam.
Lecture hall or classroom: a university or private school in Education City or Al Wakrah fitting out a larger teaching space, where the 85-inch screen can be read from the back row.
Retail or hotel lobby signage: a shopping mall in The Pearl or a serviced apartment in Lusail showing promotions and wayfinding, with HTML5 content and BRAVIA Signage Free software playing files from a USB drive without an extra media player.

Connectivity, control and content

The panel has four HDMI inputs on the side, HDCP2.3 on HDMI 1 to 4, two USB ports, one Ethernet input, RS-232C control, IP control and HDMI-CEC. Integrated Wi-Fi supports Wi-Fi Direct, Apple AirPlay and Chromecast, so content can be shared from a laptop or phone. Pro Mode lets administrators schedule on and off times, disable remote or input functions and block buttons in public areas. The 32GB on-board storage holds apps and media, and the MDS app helps configure video walls built from several panels.

What to plan before ordering

The panel weighs 44.5 kg without a stand, and the gross carton weighs 62 kg, so plan safe handling and a wall or bracket rated for the load.
Dimensions without stand are 1899 x 1089 x 71 mm, with 400 x 400 mm VESA hole spacing.
A wall-mount adjuster is listed as bundled, depending on region, and a table-top stand is optional and not included.
Rated power consumption is 373 W, with 0.5 W in standby.
The source data does not list an operating temperature range, so confirm the environment before installing near glazing or in spaces without air conditioning.

SmartRooms Qatar offers a free site survey before wall mounting, which is worth booking for an 85-inch panel in a lobby or lecture hall. Products are covered by the manufacturer's warranty, and we deliver to all 8 municipalities of Qatar with professional installation available. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders including Monaqasat, bank transfer, cheque or purchase order payment.

Request a quote for your FW-85BZ40L

Send us your room dimensions, mounting wall, intended content and number of units, and we will prepare a quotation for the FW-85BZ40L with installation options.

Highlights

85-inch 4K panel at 3840 x 2160 resolution
650 cd/m² brightness and 6000:1 contrast ratio
Deep Black Non-Glare coating reduces reflections in lit rooms
HDR10, HLG and Dolby Vision compatibility
Integrated Wi-Fi with AirPlay and Chromecast mirroring
Four HDMI inputs, two USB ports and one Ethernet input
32GB on-board storage for HTML5 and USB content playback

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

72 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 85"
Brightness (cd/m²): 650
Contrast Ratio: 6000:1
Dynamic Contrast Ratio: 500,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG,Dolby Vision)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features12

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: VA
Backlight Type: Direct LED
TRILUMINOS Display: TRILUMINOS PRO
Colour Gamut (DCI-P3): 92%
Picture Processor: 4K HDR Processor X1
Operation Time: 24/7
Deep Black Non-Glare: Yes
Haze (%): 58%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features6

Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: Yes
Operating System: Android TV
On-board Storage (GB): 32GB

Network Specification3

Wi-Fi Direct: Yes
Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2- / MPEG2TS (HDV,AVCHD):MPEG2,AVC / MP4 (XAVCS):AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3 (for HDMI1/2/3/4)
Composite Video Input (s): 1 (Side, Mini jack)
HDMI Inputs Total: 4 (4 Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features3

Frame Colour: Black
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 400 x 400 mm / 15 3/4 x 15 3/4 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 151 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 373 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates1

EMC: Class-B

Measurements2

Dimension of TV without Stand (W x H x D): 1899 x 1089 x 71 mm / 74 7/8 x 42 7/8 x 2 7/8 inch
Dimension of Package Carton (W x H x D): 2036 x 1239 x 258 mm / 80 1/4 x 48 7/8 x 10 1/4 inch

Weight2

Weight of TV without Stand: 44.5 kg / 98.1 lb
Weight of Package Carton (Gross): 62 kg / 136.6lb.

Accessories2

Wall-Mount Adjuster (Bundled): Yes (Depending on Region)
Table-Top Stand (Optional): No stand

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/qr/1393029

Downloads

22 files from the manufacturer

Questions about FW-85BZ40L

Who is the Sony FW-85BZ40L built for?

It suits organisations that need a large, bright screen readable across a room, such as corporate boardrooms, university lecture halls and retail floors. The 85-inch 4K panel at 3840 x 2160 resolution with 650 cd/m² brightness suits a boardroom in West Bay or a teaching space in Education City. Before ordering, confirm the room layout so the picture reaches the furthest seat clearly.

How does Deep Black Non-Glare help in rooms with windows or ceiling lights?

The coating combines anti-glare and low-reflection technologies, which reduces reflections and helps contrast. The data lists a haze value of 58% and a 6000:1 contrast ratio. In a Doha meeting room with a window facing the afternoon sun, this reduces glare from light sources behind the viewers. Check sightlines in the room during your site survey, because glare depends on where the window sits.

Can digital signage run without a media player or PC?

Yes. The panel supports HTML5 content and includes BRAVIA Signage Free software, which plays HTML content, video and photos from a USB memory stick when it is inserted. It has 32GB of on-board storage for apps and media. A shopping mall in The Pearl or a hotel lobby in Lusail could use it for wayfinding or promotions without an extra box. Discuss your content workflow with SmartRooms Qatar before ordering.

Which HDR formats does it support?

The specification lists HDR10, HLG and Dolby Vision compatibility. The panel also includes a 4K HDR Processor X1 and TRILUMINOS PRO display technology with 92% DCI-P3 colour coverage. For a marketing team in Doha producing promotional video for a retail brand, these formats let HDR material appear as its creator intended, provided the source device and playback chain support the same format.

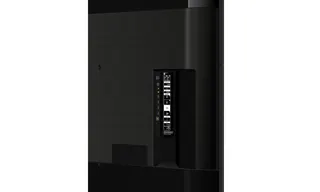

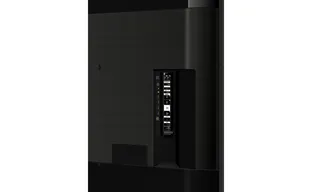

What inputs and ports are on the side of the display?

The data lists four HDMI inputs on the side, with HDCP2.3 on HDMI 1 to 4. There are also two USB ports, one Ethernet input, one composite video input on a mini jack, one analogue audio input and one digital audio output. Side-mounted connections keep cable access simple when the panel is used in portrait orientation. Plan cable routing and the nearest power outlet before installation.

Can it be wall mounted in portrait orientation?

Yes. The panel supports portrait, landscape and tilt installation, with VESA hole spacing of 400 x 400 mm. A wall-mount adjuster is listed as bundled, though this depends on region, so confirm it in your quotation. At 44.5 kg without a stand, the wall and bracket must carry that load. SmartRooms Qatar provides a free site survey before mounting an 85-inch panel.

Does it come with a stand?

No. The data lists a table-top stand as optional and shows no stand for this model. Dimensions without stand are 1899 x 1089 x 71 mm, which helps when measuring a reception desk or wall recess. If you need the panel on a desk or floor base, include stand options in your quotation request.

How can facilities or IT teams control it remotely?

The data lists IP control, RS-232C control and HDMI-CEC, so the display can be integrated with building or room control systems. The manufacturer also states open APIs for integration with other vendor solutions. Pro Mode lets administrators schedule on and off times, disable input or remote functions and block buttons in public spaces. Confirm your control platform and protocol with SmartRooms Qatar before ordering.

Is it suitable for areas with high summer temperatures in Qatar?

The source data does not list an operating temperature range for this model, so suitability for high-heat conditions cannot be confirmed from the data. Summer temperatures in Qatar can exceed 45°C, so lobbies with glass frontages or spaces without air conditioning need a careful check. Describe the room, its windows and its cooling to the SmartRooms Qatar team, who will confirm suitability before installation.

How much power does it use?

Rated power consumption is 373 W, and standby power is 0.5 W. The specification also lists on-mode energy use of 151 kWh per 1,000 hours under EPREL. Dynamic backlight control and a power saving mode are included. For a school running several units through the school day, these figures help estimate running costs, though actual use depends on content and settings. Ask us to help estimate the load.

Can it run 24 hours a day in a hospital or near an airport?

The data lists 24/7 operation, and the product is described for dependable use in demanding commercial environments. A wayfinding screen in a hospital lobby or a flight information display near Hamad International Airport would suit this model. Continuous operation still depends on the environment, mounting and content schedule, so confirm the conditions of your space with the SmartRooms Qatar team.

Can I share content from a laptop or phone, or join video calls from it?

Yes. The panel has integrated Wi-Fi with Wi-Fi Direct, plus Chromecast and Apple AirPlay support for wireless mirroring. Google Meet is available from the Google Play Store and can be paired with a compatible webcam. For a Doha team that meets colleagues abroad, the screen becomes a meeting display, although the webcam and microphone should be specified separately in the quotation.
