Trend TC-24A-i510G · Price in Qatar

Name: Trend TC-24A-i510G 10th Gen i5 Digital Signage Media Player
Brand: Trend
SKU: trend-tc-24a-i510g
Availability: InStock

Overview

The Trend TC-24A-i510G is a media player for digital signage, with a 10th generation i5 processor, 3840x2160 output through HDMI and DisplayPort, and an active cooling fan for 24/7 running. It has two gigabit LAN ports, VESA mounting support and a two-year warranty. It suits Qatar organisations running menu boards, wayfinding screens or lobby information displays. Request a quote to specify memory, storage and OS.

What the TC-24A-i510G is for

The TC-24A-i510G is a media player that drives content on a separate screen rather than a display in its own right. It pairs a 10th generation i5 processor with HDMI and DisplayPort graphic outputs, and the manufacturer classes it for industrial use and continuous operation. It suits menu boards, wayfinding displays and information screens in offices, malls and hotels where the screen is supplied separately from the player.

Specifications that matter for round-the-clock playback

The output resolution is 3840x2160, so 4K content can be played on a compatible screen. Continuous running depends on heat management, and this model uses active cooling with a fan. Memory can be configured from 2GB up to 32GB, and storage supports mSATA and SATA drives, so you can size the unit to your content library and software.

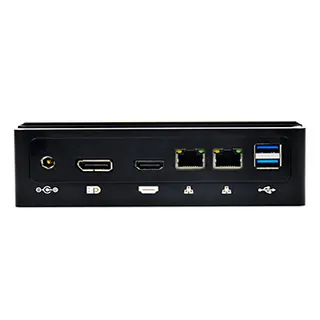

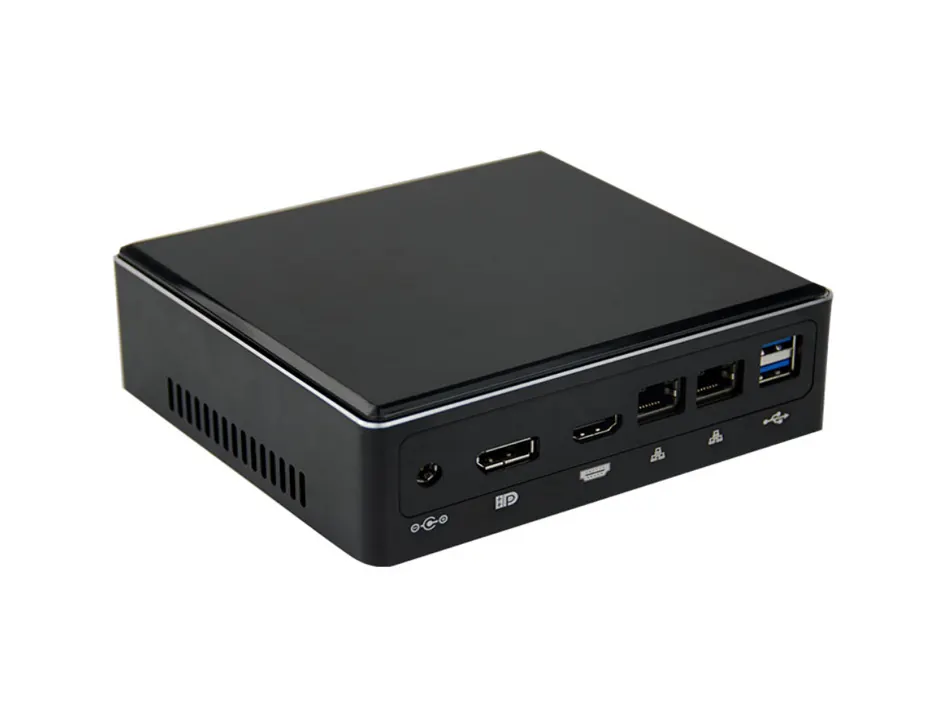

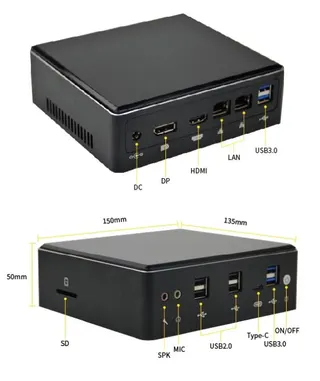

Connectivity: two RJ45 ports with 10/100/1000Mbps auto-adaptive LAN, four USB 3.0, four USB 2.0, one USB Type-C, plus HDMI, DisplayPort and a DC input.
Wireless: Wi-Fi and Bluetooth are optional and must be specified when you order.
Mounting: VESA mounting is supported, and the chassis measures 135mm x 150mm x 50mm.
Power: the data lists 12V DC ratings of 36W and 60W, so confirm which adapter applies to your configuration.
Warranty: two years from the manufacturer.

Operating system and configuration choices

The base build includes a Windows 10 Pro trial. Licensed Windows 7, Windows 10 or Windows 10 Pro, as well as Linux or DOS, can be specified instead. A digital signage software option with 1GB of cloud server storage is also available. Settle the operating system and memory at quotation stage, because they change the build being supplied.

Where it fits in Qatar

In a hotel in West Bay, a player like this can run arrival information and event schedules on a 4K screen in the lobby, from early morning through the evening check-in peak. In a shopping mall in Lusail, it can drive wayfinding and store-directory screens in a corridor with long opening hours. A clinic in Al Sadd displaying queue numbers, or a school in Al Rayyan showing announcements in an entrance foyer, are other realistic uses.

Planning the installation

Before ordering, confirm three things: the screen input (HDMI or DisplayPort), the mounting position and the power point behind the display. The source does not state an operating temperature range, so ask the SmartRooms Qatar team to review the location if the player will sit in a hot, enclosed cabinet or a dusty entrance. Where several units go into one building, a free site survey helps plan cable routes and network points before installation. Organisations buying through an LPO or a government tender can request one quotation covering all units.

Request a quote from SmartRooms Qatar for the TC-24A-i510G with the memory, storage and operating system you need. The team will confirm the configuration and an estimated lead time with your quotation.

Highlights

10th generation i5 processor for signage playback
3840x2160 output via HDMI and DisplayPort
Active cooling fan for 24/7 operation
Two LAN ports rated 10/100/1000Mbps, auto-adaptive
Memory up to 32GB; mSATA and SATA storage options
VESA mount support and two-year warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

23 specifications · Source: manufacturer · checked Oct 2026

Quick Details5

Brand Name: TC-24A-i510G
Model Number: TC-24A-i510G
Resolution: 3840x2160
Warranty: 2 Years
Use: Industrial

Technical18

Boot: Support call boot, network start

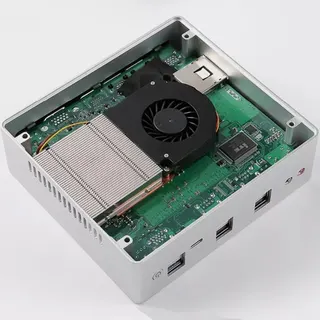

Cooling system: Active Cooling With Fan
I/O Ports: DC*1, HDMI*1, DP*1, RJ45*2, USB3.0*4, USB2.0*4, Typec*1, AUDIO SD*1
VESA: Support
WIFI: Optional
Operating system: Windows 10 Pro Trial (Optional: Licenced Win7 / Win10 / Win10 Pro/ Linux / Dos)
Storage: Support MSATA(64G/128G/256G/512G optional)+SATA(500G/1T/2T optional)
CPU: i5 10th Generation
Graphic Ports: HDMI & DP
Integrated LAN: 10/100/1000Mbps auto adaptive
Integrated Bluetooth: Optional
Integrated Audio: Yes
Power Consumption: DC 12V 5A / 60W
Ideal Usage for: 24/7 Usage
Memory: Support RAM (2GB/4GB/8GB/16GB/32GB)

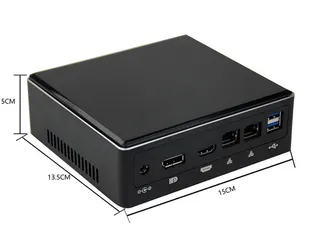

Chassis Dimension: 135MM*150MM*50MM
Chassis Material: Aluminum alloy /Plastic
Power: DC 12V 3A / 36W

Downloads

1 file from the manufacturer

PDF Datasheets TC-24A-i510G_Datasheet.pdf 392 KB

Questions about TC-24A-i510G

What is the Trend TC-24A-i510G used for?

It is a media player that runs digital signage content on a separate screen. The data describes it as a 24/7 signage player with a 10th generation i5 processor and HDMI and DisplayPort graphic outputs. Typical uses include menu boards, wayfinding displays and information screens in offices, malls and hotels across Qatar, where the screen is bought separately and the player stays out of sight.

Does this product include a display screen?

No. The TC-24A-i510G is a player, not a monitor, so you connect it to a separate screen through its HDMI or DisplayPort output. The output resolution is 3840x2160, so choose a screen that accepts 4K over the connector you plan to use. Before ordering, confirm your screen's input type so the quotation matches your setup.

What resolution does it output?

The source lists a resolution of 3840x2160, which is 4K UHD. The unit has one HDMI port and one DisplayPort as graphic outputs. Playback quality also depends on the screen and the content format, so check that the screen supports 4K on the connector you choose and that your content files are prepared at that resolution.

Can it run 24/7 in a busy building?

The manufacturer rates it for 24/7 usage and fits an active cooling fan, and it is classed for industrial use. The data does not give an operating temperature range, so we cannot state one. For a lobby with strong afternoon sun in Doha's summer, or a cabinet with limited airflow, ask the SmartRooms Qatar team to review the location before installation.

Which operating systems can I choose?

The base build includes a Windows 10 Pro trial. The manufacturer lists licensed Windows 7, Windows 10 and Windows 10 Pro as options, and Linux and DOS are also available. Choose the operating system at quotation stage, because the selection changes the build that is supplied and the software you can install on it.

How much memory and storage can I specify?

Memory can be configured from 2GB up to 32GB, with 2GB, 4GB, 8GB, 16GB and 32GB listed. Storage supports mSATA drives of 64GB, 128GB, 256GB or 512GB, and SATA drives of 500GB, 1TB or 2TB. Size the storage by how much video and how many playlists you keep on the player locally, and by how often content changes.

Does it support Wi-Fi and Bluetooth?

Both are optional, so they must be specified when you order rather than added later. The unit also has two RJ45 LAN ports rated 10/100/1000Mbps with auto-adaptive speed. For fixed screens in a mall, hospital or government building, a wired connection to the building network is usually the first choice for reliable scheduled content updates.

Can it be mounted behind a screen?

Yes. The source lists VESA mounting support, and the chassis measures 135mm by 150mm by 50mm, a small footprint for a rear mount. Plan the bracket and cable route before installation, and confirm that the bracket suits both the player and your screen. Free site surveys from SmartRooms Qatar can check the mounting position on site.

What power does it need?

The data lists two DC 12V ratings: 3A (36W) and 5A (60W). Confirm with the SmartRooms Qatar team which adapter applies to your configuration before ordering. Qatar mains supply is 240 V, 50 Hz, so the team should also confirm the adapter arrangement and the socket position for your installation.

How could a hotel in West Bay use it?

A hotel lobby or meeting-room corridor can use the player to show arrival information, event schedules and promotional loops on a 4K screen. Because the unit is rated for 24/7 usage, the display can keep running through the evening check-in peak and overnight. Ask for a site survey to plan the wall cable route before installation.

Is it suitable for a shopping mall in Lusail?

In a mall corridor with long opening hours, the player can drive wayfinding and store-directory screens. Its two wired LAN ports allow it to connect to a building network for scheduled content updates, provided the network permits it. Specify memory and storage for the content library, and use the same build for every screen so the mall's displays behave consistently.

Can a school in Al Rayyan use it?

A school can install the player in a reception area or assembly hall foyer to show announcements, timetables and achievements. Schools buying several units can issue one LPO and request a single quotation covering all of them. Specify the same memory and operating system across units so that every screen runs an identical build.
