Trend TC-24FA-i75G · Price in Qatar

Name: Trend TC-24FA-i75G Fanless i7 Digital Signage Media Player
Brand: Trend
SKU: trend-tc-24fa-i75g
Availability: InStock

Overview

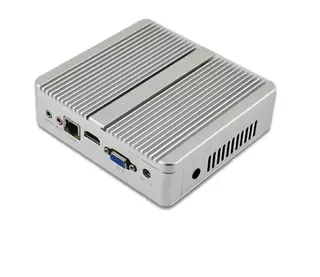

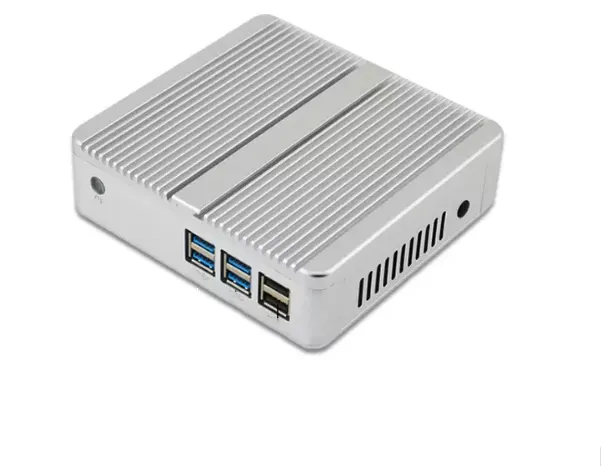

The Trend TC-24FA-i75G is a fanless digital signage media player with an i7 5th Generation processor and an aluminium chassis measuring 140x135x35 mm. It drives two screens through its HDMI and VGA outputs at 1920x1080, and its passive cooling is designed for continuous 24/7 operation. Its compact footprint suits menu boards, lobby displays and meeting-room screens in Doha, West Bay and Lusail. Request a quote from our team.

What the TC-24FA-i75G does in a signage network

The TC-24FA-i75G is a media player, not a display. It is a compact computer that stores your playlists, runs them on a schedule and sends the output to one or two screens. Trend builds it with a 5th Generation i7 processor and a fanless aluminium chassis, aimed at signage that runs around the clock.

Because it has no screen of its own, the panel you choose for size and brightness is a separate decision. This unit is the part that keeps the content running reliably on that panel.

Specifications that affect your buying decision

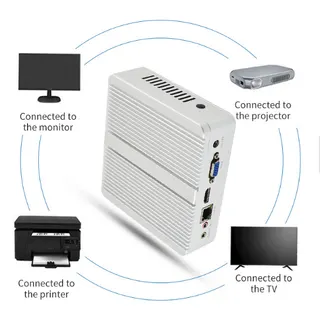

Video output: one HDMI and one VGA port, with dual Full HD (1920x1080) graphics for two screens.
Cooling: passive, fanless design rated for 24/7 use, so there is no fan noise in quiet areas.
Chassis: aluminium, 140x135x35 mm, weighing 0.55 kg net and 1.4 kg gross.
Connectivity: one RJ45 port (10/100/1000 Mbps), 802.11n dual-band Wi-Fi (2.4/5.0 GHz) and optional Bluetooth.

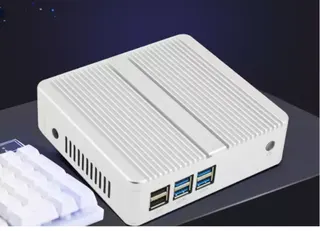

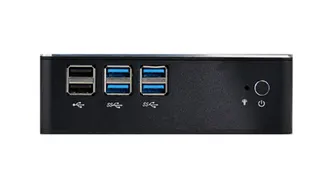

Ports: four USB 3.0 and two USB 2.0 for keyboards, controllers and storage.
Memory and storage: RAM from 2GB to 32GB; mSATA (64GB to 512GB) and SATA (500GB to 2TB) options.
Remote start: PXE boot, auto power-on and Wake on LAN support.
Power: 15W rating.
Software: Windows 10 Pro Trial installed, with licensed Windows 7, Windows 10, Windows 10 Pro, Linux or DOS as options, and a signage software option with 1GB of cloud storage.

Where it fits in Qatar

A clinic in Al Rayyan could use one unit to loop queue numbers, health awareness messages and department directions on a wall screen in its waiting area. Because it runs continuously, the content stays current through the day without a staff member at the desk.

A hotel lobby in West Bay can drive a reception screen and a second display for dining or event schedules. The fanless design suits quiet guest areas, and the small chassis can sit behind the panel or in a joinery cabinet. A school in Al Wakrah could place one unit per corridor to show timetables and announcements, with the language set by the files and software you choose.

Planning the installation

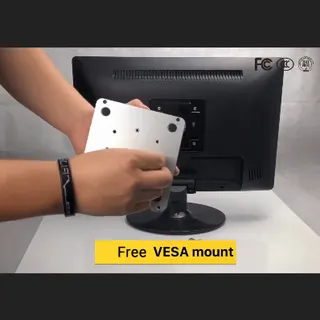

VESA mounting is available, so the unit can be fixed to the back of a compatible panel. Measure the mounting pattern and leave room for cables and airflow. Because cooling is passive, do not enclose the unit in a sealed cabinet without first checking the location. The manufacturer data does not publish an operating temperature range, so confirm the site with the SmartRooms Qatar team before installing in a hot or unventilated space, particularly where summer temperatures exceed 45°C.

Decide on the configuration before you request the quote. Memory, storage, operating system and signage software are selectable options that affect the final specification. A wired RJ45 connection is the steadier choice for pushing content updates, with dual-band Wi-Fi as an alternative where cabling is not possible.

SmartRooms Qatar offers a free site survey, which helps when several units feed a video wall in a Lusail shopping mall. We supply to all eight municipalities of Qatar, and we work with LPOs and government tenders, including Monaqasat.

Request a quotation for your signage player

Tell us how many screens you need, the content type, the mounting location and any operating system requirement. Our team will return a quotation for the TC-24FA-i75G, usually within one working day. Request a quote today and include your tender or LPO reference if you have one.

Highlights

Fanless, passive cooling designed for continuous 24/7 operation
i7 5th Generation processor with dual Full HD (1920x1080) graphics
HDMI and VGA outputs for driving two screens
Aluminium chassis measuring 140x135x35 mm with 15W power rating
Four USB 3.0, two USB 2.0 and gigabit RJ45 LAN
2-year manufacturer warranty and VESA mounting available

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

22 specifications · Source: manufacturer · checked Oct 2026

Quick Details4

Brand Name: Trend Displays
Model Number: TC-24FA-i75G
Resolution: 1920x1080
Warranty: 2 Years

Technical18

Boot: Support PXE boot and auto power on boot Support Wake on LAN boot

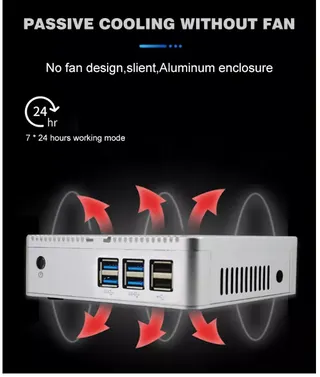

Cooling system: Passive cooling without fan

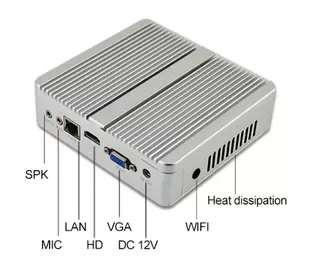

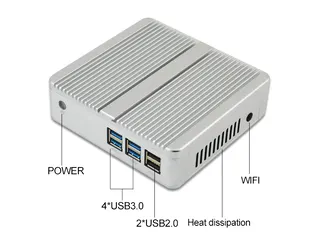

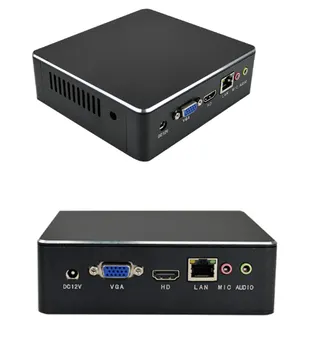

I/O Ports: USB2.0 port 2 USB3.0 port 4 HDMI port 1 VGA port 1 RJ45 port 1
VESA: Available
WIFI: Supports 802.11n dual band 2.4/5.0ghz
Operating system: Windows 10 Pro Trial (Optional: Licenced Win7 / Win10 / Win10 Pro/ Linux / Dos)
Storage: Support MSATA(64G/128G/256G/512G optional)+SATA(500G/1T/2T optional)
CPU: i7 5th Generation
Graphic Ports: HDMI & VGA
Integrated LAN: 10/100/1000Mbps auto adaptive
Integrated Bluetooth: Optional
Integrated Audio: Yes
Ideal Usage for: 24/7 Usage
Memory: Support RAM (2GB/4GB/8GB/16GB/32GB)
Chassis Dimension: 140x135x35mm
Chassis Material: Aluminum
Weight: Weight (KGS) N.W 0.55KG, G.W 1.4KG
Power: 15W

Downloads

1 file from the manufacturer

PDF Datasheets TC-24FA-i75G_Datasheet.pdf 401 KB

Questions about TC-24FA-i75G

What is the TC-24FA-i75G and who is it for?

It is a fanless media player that runs digital signage playlists and sends them to one or two screens, so it is not a display itself. It suits organisations that already have panels or video walls and need a continuous playback source, such as a bank branch in Al Sadd or a clinic reception in Al Rayyan. Its i7 5th Generation processor and aluminium chassis are built for 24/7 operation.

How many screens can one unit drive?

The unit has one HDMI port and one VGA port, and Trend describes dual Full HD graphics for two screens at 1920x1080. Check the inputs on each display before ordering, because a video wall that needs more outputs requires a different configuration. Our team can review your layout during the quotation.

Can it run 24/7 in a hot cabinet or an outdoor location in Qatar?

The data rates it for 24/7 use with passive cooling, but it does not publish an operating temperature range. Where summer temperatures exceed 45°C, install it in an air-conditioned, well-ventilated space rather than a sealed outdoor enclosure, and confirm the location with the SmartRooms Qatar team before installation.

Will it make noise in a hotel lobby or meeting room?

No fan is fitted, because cooling is passive, so the unit adds no fan noise to a quiet lobby or boardroom. The aluminium chassis measures 140x135x35 mm, small enough to hide behind a display in a West Bay hotel lobby or a meeting room credenza.

Which operating systems can I choose?

Windows 10 Pro Trial is the standard installation. You can select licensed Windows 7, Windows 10, Windows 10 Pro, Linux or DOS as configuration options when requesting a quote. Choose the operating system before ordering and confirm that your signage software supports it, because changing it later affects the configuration.

How much memory and storage does it support?

RAM options run from 2GB to 32GB. Storage supports mSATA drives of 64GB, 128GB, 256GB or 512GB, and SATA drives of 500GB, 1TB or 2TB. A larger SATA drive suits playlists built from long video files, while a smaller mSATA drive may be enough for playlists made mostly of images and text.

How does it connect to the network?

It has one RJ45 port with 10/100/1000 Mbps auto-adaptive LAN and 802.11n dual-band Wi-Fi on 2.4 and 5.0 GHz. A wired connection is the steadier choice for pushing content updates in a hospital or bank. Bluetooth is an optional extra, and four USB 3.0 and two USB 2.0 ports take keyboards, controllers or storage.

Can it be managed remotely and restart after a power cut?

The specification lists PXE boot, automatic power-on and Wake on LAN support. These let IT staff start the unit remotely, and automatic power-on helps the player resume its loop when mains power returns. Confirm which remote management tools your signage software supports before you order.

Does it support VESA mounting, and should we survey the site first?

Yes, VESA mounting is available. Before fixing the unit behind a display, measure the panel's rear mounting pattern and leave room for cables and airflow. SmartRooms Qatar offers a free site survey, which is useful when several units feed a video wall in a Lusail shopping mall or a multi-screen entrance.

Is it suitable for a clinic waiting area in Al Rayyan?

Yes, provided the waiting area is air-conditioned and ventilated. One unit can drive a single wall screen showing queue numbers, department directions and health messages at 1920x1080 during opening hours. Send the clinic's floor plan with your request so we can check the mounting position and cable route before installation.

Can we buy it through an LPO or a government tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. The unit is covered by the manufacturer's 2-year warranty. Include the tender reference in your request so the quotation matches the specification you were given.

How heavy is the unit, and can you deliver it to schools across Qatar?

The net weight is 0.55 kg and the gross weight with packaging is 1.4 kg. Delivery covers all 8 municipalities of Qatar, so a school in Al Wakrah, an office in Doha or a site in Mesaieed can be supplied through the same quotation process.
