EasyConnect USB3-15-CC
Biamp EasyConnect USB3-15-CC 5 m USB-C to USB-C Cable
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

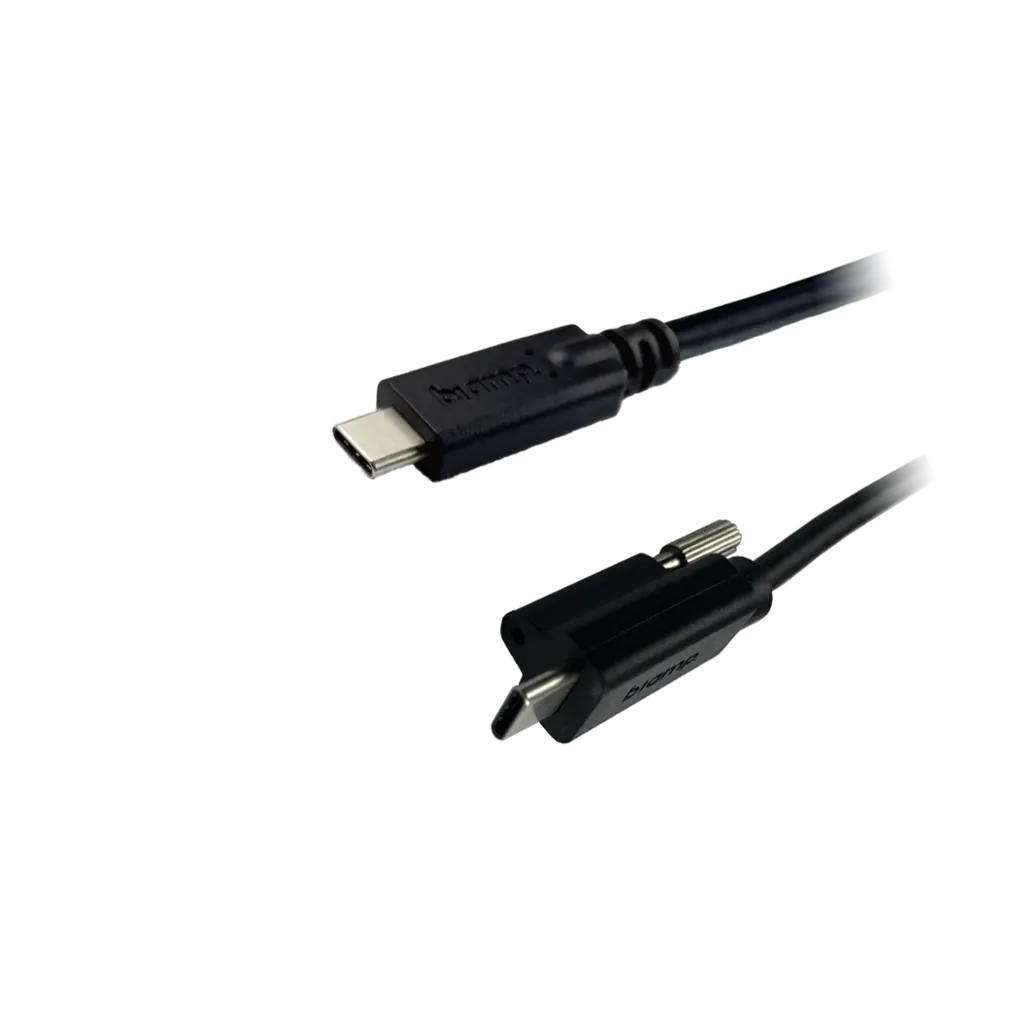

The Biamp EasyConnect USB3-15-CC is a 5 m (15 ft) USB 3.2 Gen 1 cable with Type-C connectors at both ends. It carries data at up to 5 Gbps, passes DisplayPort video up to 3840 x 2160 at 60 Hz through alternate mode, and carries audio. Gold-plated contacts, tinned copper conductors and double shielding suit meeting rooms and conference systems in Doha, Lusail and West Bay.
What the USB3-15-CC does in a meeting room
The Biamp EasyConnect USB3-15-CC is a 5 m (15 ft) cable with Type-C connectors at both ends, built for USB 3.2 Gen 1 links. Its signal type is passive, and both connectors are male, so it joins two Type-C ports directly. In a conference room it carries data, display and audio between a presenter's laptop or conferencing device and a Type-C port on the table, rack or wall, which is the point of a single Type-C link.
Speed, video and power figures
Data moves at up to 5 Gbps. Through DisplayPort alternate mode the cable is rated for 3840 x 2160 pixels at 60 Hz, with 4:4:4 chroma sampling and 8-bit colour per channel. The specification also lists DisplayPort 1.4 support, HDMI through DisplayPort alternate mode, and audio carried over USB or DisplayPort. Power flows in both directions, and the detailed specification gives a maximum of 45 W that depends on the Type-C port, with PD 2.0 and 3.0 support. The feature summary quotes 60 W, so confirm the figure your laptop or dock needs before ordering. The cable also includes an E-Marker configuration chip and reports its capabilities through Billboard device support.
Construction and mechanical limits
Conductors are 30 AWG tinned copper, the contacts are gold plated, and the shielding is double, combining a foil layer with a braid. The PVC jacket gives an outer diameter of 5 mm. Plan for a minimum static bend radius of 50 mm, a maximum tensile strength of 100 N, a maximum pull strength of 50 N and a maximum compression load of 500 N. Route the cable clear of chair legs, cabinets and floor boxes, and keep bends gentle at the connector ends.
Where it fits across Qatar
- Boardroom in West Bay or Msheireb: a presenter's laptop on a conference table connects to a wall-mounted display about 5 m away, with the run hidden in a table grommet and trunking to the screen.
- Seminar room at Education City: a lecturer's laptop feeds a large display and room audio system through one Type-C link that handles video, audio and data.
- Government meeting room in Doha: staff working in Arabic and English share documents from their laptops during a video call with colleagues abroad, and the team needs a cable that can be replaced quickly if a connector wears.
Planning the installation and the environment
Rated operating temperature is 0 to 50 °C, storage -20 to 70 °C, and humidity 10 to 80% RH non-condensing. Qatar summer ambient temperatures can exceed 45 °C, so keep cable runs away from direct sunlight, windows and hot equipment cabinets. Check that the host device runs Windows 8 or later, macOS 10.9 or later, or Linux 3.x or later, and that its Type-C port supports USB 3.0. Older Type-A or Type-B devices can connect through Type-C adapters. The product carries RoHS and REACH compliance and a VW-1 safety rating, with a 3-year warranty.
Before ordering, measure every route including bends, because 5 m is the fixed length. SmartRooms Qatar offers free site surveys, which help confirm cable paths before a fit-out. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar, with payment by bank transfer, cheque or purchase order. Request a quote for the USB3-15-CC and send your device list and room layout so we can confirm the right quantity.
Highlights
- Type-C to Type-C male-male cable, 5 m (15 ft) long
- USB 3.2 Gen 1 data transfer at up to 5 Gbps
- DisplayPort alt mode up to 3840 x 2160 at 60 Hz
- Tinned copper conductors with gold-plated contacts
- Double shielded with foil and braid, 5 mm outer diameter
- 3-year warranty, RoHS and REACH compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
37 specifications · Source: manufacturer · checked Oct 2026
OTHER18
- Jacket Material
- PVC
- Conductor Material
- Tinned Copper
- Wire Gauge
- 30 AWG
- Shield Type
- Double Shielded (foil + braid)
- Contact Plating
- Gold
- Cable Outer Diameter
- 5 mm
- Min. Static Bend Radius
- 50 mm
- Max. Tensile Strength
- 100 N
- Max. Compression Load
- 500 N
- Max. Pull Strength
- 50 N
- Billboard Device
- Yes (capability reporting)
- E-Marker
- Yes (configuration chip)
- Power Direction
- Bi-directional
- Signal Type
- Passive
- Length
- 15 feet (5 m)
- Display Port
- Yes (DP1.4)
- HDMI
- Yes (through DP Alt Mode)
- Audio
- Yes (through USB/DP)
COMPATIBILITY2
- Operating System(s)
- Windows 8+, macOS 10.9+, Linux 3.x+ (USB 3.0 support required)
- Legacy Support
- With type C to A/B adapters
DATA5
- Max. Data Rate
- 5 Gbps (SuperSpeed)
- Max. Built-in USB Hubs
- 2 (USB 3.0 lanes)
- Connector Type
- Type C to Type C (male-male)
- USB Specification
- USB 3.2 Gen.2 (USB 2.0, 1.1 compatible)
- USB Standard
- 3.2 Gen. 1 (formerly USB 3.0)
POWER4
- Operating Voltage
- 5-20 V
- Max. Current
- 3 A
- Max. Power Delivery
- 45 W (type-C port dependent)
- PD Version Support
- 2.0/3.0
COMPLIANCE2
- Compliance
- RoHS, REACH
- Safety Rating(s)
- VW-1
ENVIRONMENTAL3
- Operating Temperature
- 0 to 50 °C
- Storage Temperature
- -20 to 70 °C
- Humidity
- 10 to 80% RH (non-condensing)
VIDEO3
- Chroma Sampling
- 4:4:4
- Color Bit Depth
- 8 bit (per color)
- Max. Resolution
- 3840 x 2160 pixels (at 60Hz)
Downloads
2 files from the manufacturerQuestions about EasyConnect USB3-15-CC
What is the Biamp USB3-15-CC used for?
It is a 5 m USB 3.2 Gen 1 cable with Type-C connectors at both ends, used to link a laptop, conferencing device or dock to a Type-C port on a display or room system. It suits meeting and conference AV setups in offices, schools and government buildings across Qatar, where one cable has to carry data, video and audio between devices.
How fast does the cable transfer data?
The cable supports data transfer rates up to 5 Gbps under USB 3.2 Gen 1 (SuperSpeed). Plan around that rate when moving files or passing a USB device through the link. Actual speed also depends on the host and the peripheral, so check the specifications of both ends before ordering.
Can it carry 4K video to a display?
Yes, through DisplayPort alternate mode the cable is rated for 3840 x 2160 pixels at 60 Hz, with 4:4:4 chroma sampling and 8-bit colour per channel. Your laptop or dock port and the display must support DisplayPort alternate mode for this to work, so confirm the port type on each device before ordering.
How much power can it deliver?
The detailed specification lists a maximum power delivery of 45 W, which depends on the Type-C port, with PD 2.0 and 3.0 support and bi-directional power flow. The feature summary gives 60 W. Because the two figures differ, ask the SmartRooms Qatar team to confirm the rating against your device's charging requirement before you buy.
Which operating systems and devices are supported?
The compatibility data lists Windows 8 or later, macOS 10.9 or later and Linux 3.x or later. The host port must support USB 3.0. Older Type-A or Type-B devices can connect through Type-C to A or B adapters, so check your legacy peripherals before planning the connection.
Is 5 m long enough from a boardroom table to a wall screen?
The length is fixed at 5 m (15 ft). In a typical Doha boardroom, measure the route from the table port, along the trunking or floor path, to the screen, and add allowance for bends. The minimum static bend radius is 50 mm, so a free site survey can confirm the route before installation.
Can I run it under a table or through trunking in a West Bay office?
Yes, with care. The PVC jacket has an outer diameter of 5 mm, the minimum static bend radius is 50 mm, and the maximum pull strength is 50 N. Avoid pinching it under chair bases or cabinet edges, and use grommets or trunking where the cable passes through furniture.
How does it handle Qatar's summer heat?
The operating temperature range is 0 to 50 °C, storage is -20 to 70 °C, and humidity is 10 to 80% RH non-condensing. Summer ambient temperatures in Qatar can exceed 45 °C, so keep the cable out of direct sunlight, away from windows and off hot equipment racks, especially in spaces that are not air-conditioned.
We are equipping several classrooms at a private school in Al Wakrah. Can we order by LPO?
Yes. SmartRooms Qatar supplies against purchase orders (LPOs), and payment can be made by bank transfer, cheque or purchase order. Send the room count and device list, and quotations are usually issued within one working day. Using one part number across identical classrooms keeps spares simple to manage.
Can a government entity buy this cable through a tender?
SmartRooms Qatar works with government tenders, including those issued through Monaqasat. For a tender, list the USB3-15-CC by its model number and the quantity required, and state the cable length of 5 m so the quotation matches the specification your evaluation committee reviews.
Which compliance and safety ratings does it carry?
The product lists RoHS and REACH compliance and a VW-1 safety rating. The specification also reports a passive signal type and an E-Marker configuration chip. These details are useful when a procurement team needs to document the cable for an audit or a tender file.
What warranty applies to the USB3-15-CC?
The product data lists a 3-year warranty, and SmartRooms Qatar supplies it under the manufacturer's warranty. Keep your purchase order and quotation with the asset record, and check the warranty terms with the SmartRooms Qatar team when you request a quote.
What should I check before ordering this cable for a fit-out?
Confirm the Type-C port on the laptop, dock and display supports USB 3.0 and DisplayPort alternate mode, and check the power delivery need against the 45 W port-dependent rating. Measure the cable route including bends, and confirm the 0 to 50 °C operating range suits the room.
