Dahua LDH22-SAI200L · Price in Qatar

Name: Dahua LDH22-SAI200L 21.5-inch Wall-mounted LCD Digital Signage
Brand: Dahua
SKU: dahua-ldh22-sai200l
Availability: InStock

Overview

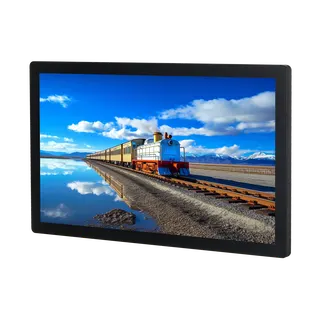

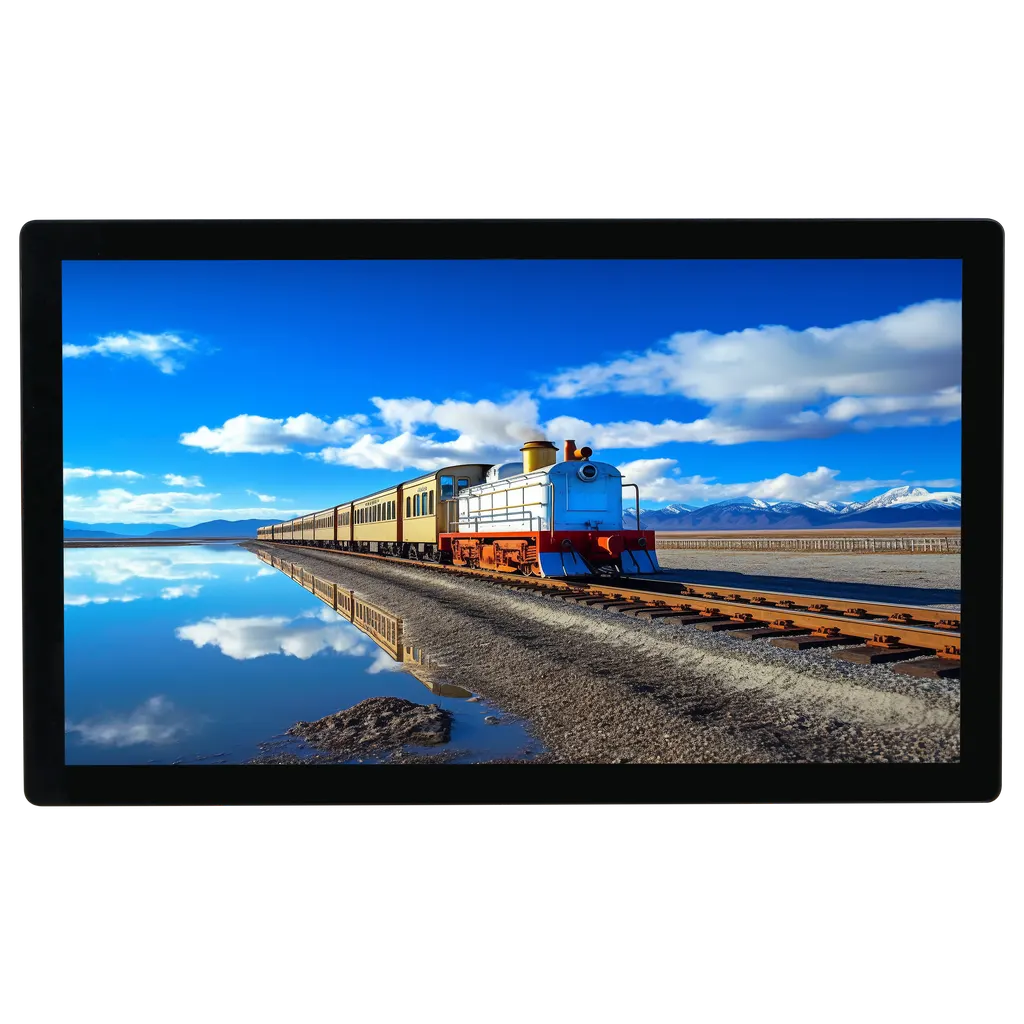

The Dahua LDH22-SAI200L is a 21.5-inch wall-mounted LCD signage display with a built-in Android 11 player, quad-core processor, 4 GB RAM and 32 GB storage. Its IPS panel runs at 1920 × 1080 with 178° viewing angles and can be used in landscape or portrait. Rated for up to 24 hours a day, it suits reception areas, clinic waiting rooms and mall corridors across Doha and Lusail. Request a quote from SmartRooms Qatar.

What the LDH22-SAI200L does for a wall-mounted screen

The Dahua LDH22-SAI200L is a 21.5-inch wall-mounted LCD display built for information and advertising content. Its Android 11 media player sits inside the unit, so the screen plays its own schedules without a separate media box behind it. The Standard Series model is rated for continuous daily operation and can be turned from landscape to portrait, which suits wayfinding in tall corridors as well as menu and promotional content.

Panel and processing: the figures that matter

The IPS panel has a 1920 × 1080 resolution and a 16:9 aspect ratio, with typical brightness of 250 cd/m² and a typical contrast ratio of 1000:1. Viewing angles are 178° horizontally and vertically, so content stays readable for people standing to the side of the screen. The 25% haze surface treatment softens reflections from overhead lights and windows, which helps in lobbies with large glazing.

Quad-core A55 processor at 1.92 GHz with 4 GB RAM
32 GB internal storage and a TF card slot up to 128 GB
Decodes H.265 and H.264 video up to 2160p
Built-in 2 × 2 W speakers and a 3.5 mm audio output

Connectivity and remote management

Wired networking uses a 10/100/1000 Mbps RJ-45 Ethernet port, and Wi-Fi is available through an optional external module. The single HDMI 2.1 input accepts a 1080p signal at 60 Hz from a laptop or media player, but the unit has no video output, so it cannot pass the signal on to a second screen. Two USB ports (USB 2.0 and USB 3.0, both type A) and an IR receiver for the included remote complete the port list. Bluetooth is not fitted.

Scheduling is handled by a browser/server (B/S) platform. Programmes can be assigned by time and location, the platform generates operation reports, and each terminal can be controlled remotely from the platform. Data transmission is encrypted, programme releases pass through multi-level permission review, and every terminal can be protected with a password. For a multi-site buyer in Qatar, one team can manage screens in Doha and Al Khor from a single place.

Where it fits in Qatar

Three typical settings suit this model. In a clinic waiting room in Al Sadd, a 21.5-inch screen can show queue information, opening hours and health awareness messages prepared by the facility team. In a bank branch in West Bay, a unit beside the teller queue can rotate product offers on a schedule. In a shopping mall in Lusail, a portrait-mounted version beside a lift lobby can display a store directory. Keep the screen in an air-conditioned indoor space: the operating range is 0 °C to +40 °C and direct sunlight should be avoided, which matters when summer temperatures in Qatar can exceed 45 °C.

What to plan before ordering

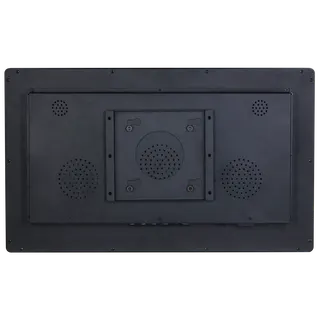

Start with the wall. The unit weighs 5.1 kg net without its bracket, measures 519.14 mm × 310.6 mm × 48.1 mm, and uses a 100 mm × 100 mm VESA pattern, with a wall-mount bracket supplied. Power input is 100–240 VAC at 50/60 Hz, with 20 W typical and 25 W maximum consumption, so plan the position of the power point as well as the cable route. A free site survey from SmartRooms Qatar confirms the mounting point, power and network access before installation.

To request a quote for the Dahua LDH22-SAI200L, share the number of screens, their locations and whether you need a Wi-Fi module. SmartRooms Qatar usually returns quotations within one working day.

Highlights

21.5-inch IPS panel at 1920 × 1080 resolution
Android 11 with quad-core A55 processor at 1.92 GHz
4 GB RAM and 32 GB internal storage
Rated for up to 24-hour daily operation
Landscape or portrait display modes
Power input 100–240 VAC, 50/60 Hz

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

LCD Panel11

Panel Dimensions: 21.5 inch
Backlight: ELED
LCD Technology: IPS
Aspect Ratio: 16: 9
Brightness: 250 cd/m² (typ.)
Contrast: 1000:1(typ.)
Display Colors: 8 bit, 16.7M colors
Resolution: 1920 (H) × 1080 (V)
Viewing Angle: 178° (H); 178° (V)
Response Time: 14 ms (typ.)
Surface Treatment: Haze 25%

Built-in System5

Operating System: Android 11.0
CPU: 4 cores A55, 1.92 GHZ
RAM: 4 GB
ROM: 32 GB
Video Decoding: H.265 HEVC MP-10@L5.1 up to 2160p@60 fps H.264 AVC HP@L5.1 up to 2160p@30 fps VP9 Profile 2 up to 2160p@60 fps H.264 MVC up to 1080p@60 fps MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818) WMV/VC-1 SP/MP/AP up to 1080p@60 fps

Function3

Audio Compression: MPEG-3, WMA, WAV
Video Compression: MPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Format: mp4, avi, mov, mkv, wmv

Device Ports8

Network Port: 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port
Wi-Fi: Optional (External Wi-Fi module)
Bluetooth: NO
Data Transmission Ports: 1 × USB 2.0 ports (type A) 1 × USB 3.0 ports (type A) 1 × TF card slot, up to 128 GB
Video Input: 1 × HDMI 2.1 (1080P @60Hz)
Video Output: NO
Audio Port: 1 × 3.5 mm jack output
IR Receiver: Yes

Speaker1

Built-in Speaker: 2 × 2 W

General17

Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 20 W (typ.), 25 W (max)
Standby Power Consumpton: ≤ 0.5 W
Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Operatng Humidity: 10%–85% (RH), non-condensing
Storage Humidity: 10%–90% (RH), non-condensing
Product Material: Metal casing
Casing Color (Frame/Rear): Black
Product Dimensions: 519.14 mm × 310.6 mm × 48.1 mm (20.44" × 12.23" × 1.89") (without bracket)
Packaging Dimensions: 625 mm × 140 mm × 415 mm (24.61" × 5.51" × 16.34")
Net Weight: 5.1 kg (11.24 lb)
Gross Weight: 6.2 kg (13.67 lb)
Installation: Wall mount
Display Mode: Landscape/Portrait
Wall Mount VESA: 100 mm × 100 mm
Accessory: Wall-mount bracket, power cord, legal and regulatory information, user's manual, remote control

Downloads

8 files from the manufacturer

PDF Datasheets LDH22-SAI200L_20241105.pdf 529 KB PDF Manuals & guides Digital Signage_Quick Start Guide_V1.0.0.pdf 896 KB PDF Manuals & guides Digital Signage_User's Manual_V1.0.0.pdf 6.2 MB PDF Manuals & guides LDH22-SAI200L_INSTALLATION_METHOD_EN.pdf 18 KB PDF Drawings & CAD LDH22-SAI200L_DIMENSIONS.pdf 52 KB PDF Drawings & CAD LDH22-SAI200L_PORT.pdf 33 KB 2511 Software & firmware · Opens on manufacturer site DH_LDM-A(T982)_MultiLang_Android_V3.000.0000002.0.R.251126 DOCX Other documents LDH22-SAI200L_A&E_20260908161754.docx 40 KB

Questions about LDH22-SAI200L

What is the Dahua LDH22-SAI200L used for?

It is a 21.5-inch wall-mounted LCD screen for showing information, schedules and promotional content without a separate media box. Typical sites in Qatar include clinic waiting areas in Al Sadd, bank lobbies in West Bay and mall corridors in Lusail. Because the Android 11 player is built in, the screen runs its own playlists once content has been loaded and scheduled. It suits buyers who need a single, wall-fixed display rather than a video wall.

Can it be mounted in portrait orientation?

Yes. The display mode supports both landscape and portrait, so the 21.5-inch panel can be mounted vertically for directory boards or wayfinding in a tall lift lobby or corridor. A wall-mount bracket is included, and the VESA pattern is 100 mm × 100 mm. During the site survey, confirm that the wall can carry 5.1 kg and that the bracket lines up with the power point and network outlet.

Is it rated to run 24 hours a day?

The manufacturer states that the unit works up to 24 hours a day. Typical power draw is 20 W, rising to 25 W at maximum, which helps when you plan for several screens in a hospital reception or hotel lobby in Doha. Keep the unit in a ventilated indoor space, because its operating temperature is limited to 0 °C to +40 °C.

Can I install it outdoors or near a window in summer?

No, not in an unshaded outdoor or hot location. The operating range is 0 °C to +40 °C and direct sunlight should be avoided, while summer temperatures in Qatar can exceed 45 °C and dust storms are common. Choose an air-conditioned indoor wall away from sun falling through glass, and ask the SmartRooms Qatar team to review the exact position during the free site survey.

Which video formats and resolutions can it play?

The processor decodes H.265 HEVC up to 2160p at 60 fps, H.264 AVC up to 2160p at 30 fps, and VP9 Profile 2 up to 2160p at 60 fps, plus older codecs up to 1080p. Supported file formats are mp4, avi, mov, mkv and wmv. The panel itself is 1920 × 1080, so 4K files are shown at the screen's native resolution.

Can I connect a laptop or media player through HDMI?

Yes. The unit has one HDMI 2.1 video input that accepts a 1080p signal at 60 Hz, which suits a presenter laptop or external media player in a meeting room or event venue. It has no video output, so it cannot pass the signal on to another display. When no source is connected, content stored on a USB device or TF card can be played instead.

Does it support Wi-Fi and Bluetooth?

Wi-Fi is available only through an optional external module, while wired networking is built in through a 10/100/1000 Mbps RJ-45 port. Bluetooth is not supported. For fixed screens in a school, office or clinic in Qatar, a wired connection is usually preferred, and the optional Wi-Fi module can be added where cabling is impractical. Confirm the module requirement when you request your quote.

How are several screens managed from one place?

The unit works with a browser/server (B/S) platform for central management. Operators can schedule programmes by time and location, generate operation reports, and remotely control each terminal. Data transmission is encrypted, programme releases pass through multi-level permission review, and each terminal can be password protected. For a retail group with outlets in Lusail, Al Wakrah and Doha, one team can update every screen without visiting each branch.

Does it have built-in speakers?

Yes, it has two 2 W speakers, which suit short announcements or background tones in a small lobby or waiting area. For a larger hall, use the 3.5 mm audio output to connect an external amplifier and speakers. The built-in speakers are not a substitute for a public address system in a stadium or conference hall, so plan audio separately in noisy environments.

Will it work with Qatar mains power and the supplied cord?

The power input is 100–240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The unit ships with a power cord, but the plug type is not specified in the source data, so confirm that the supplied cord matches BS 1363 (Type G) sockets at your site before ordering. Standby consumption is 0.5 W or less.

What wall space and weight do I need to plan for?

The unit measures 519.14 mm × 310.6 mm × 48.1 mm without its bracket and weighs 5.1 kg net, with a gross shipping weight of 6.2 kg. It uses a 100 mm × 100 mm VESA pattern and includes a wall-mount bracket. Plan for a solid wall or suitable fixings, and book a free site survey so SmartRooms Qatar can check mounting height, cable routing and the power point.

Can a school or government office buy several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), payment by bank transfer, cheque or purchase order, and supports government tenders including Monaqasat. A school in Al Rayyan equipping several corridors can request one quotation covering all units, with the bracket, power cord and remote control listed for each screen. Include the number of units and their locations in your request to get an accurate quote.
