LDH65-SAI400L V2

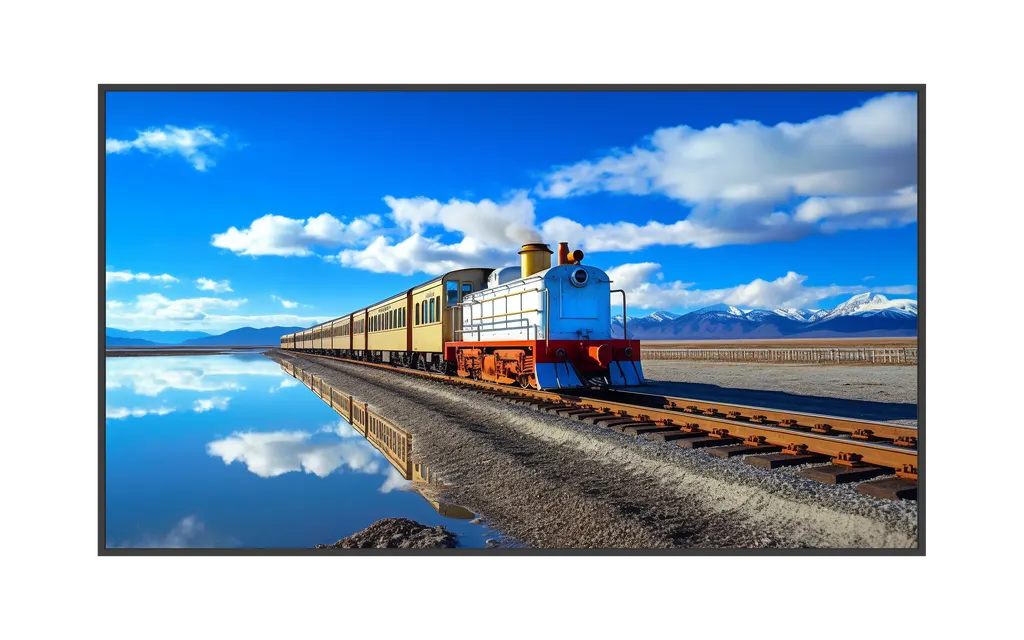

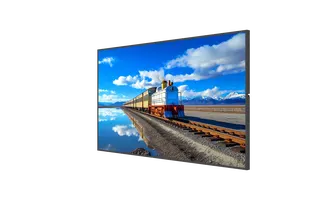

Dahua LDH65-SAI400L V2 65-inch Indoor Wall-mounted LCD Digital Signage
- Screen size
- 65 inch
- Resolution
- 3840 (H) × 2160 (V)
- Brightness
- 500 cd/m² (typ.)
- System
- Android 11.0
The Dahua LDH65-SAI400L V2 is a 65-inch LCD signage display for indoor walls, with a 3840 × 2160 panel and a typical brightness of 500 cd/m². It runs Android 11 on a quad-core processor with 32 GB of storage, and its schedules can be managed remotely from a central platform. Two 5 W speakers and landscape or portrait mounting suit lobbies, schools, offices and hotels across Qatar. Request a quote from SmartRooms Qatar for supply and installation.
What the Dahua LDH65-SAI400L V2 does
The Dahua LDH65-SAI400L V2 is a 65-inch LCD signage display for indoor walls. It combines a 4K panel with an Android 11 media player inside the screen itself, so playlists, announcements and promotional video run without a separate PC beside it. For facilities and IT teams, that means fewer boxes to cable, power and service.
Picture quality and playback
The 3840 × 2160 panel uses a 16:9 aspect ratio and a typical brightness of 500 cd/m², with a 178° viewing angle both horizontally and vertically, so people standing to the side of a corridor can still read the content. The panel is specified as IPS/VA with typical contrast of 1200:1 for IPS and 4000:1 for VA, displays 10-bit colour (8-bit plus FRC), and has a 25% haze surface that softens reflections from lights and glass. A quad-core A55 processor at 1.92 GHz, 4 GB of RAM and 32 GB of storage handle playback, and the unit decodes H.265 and VP9 up to 2160p at 60 fps and H.264 up to 2160p at 30 fps.
Connectivity and remote management
Connections include a gigabit RJ-45 Ethernet port, 802.11 b/g/n/a/ac/ax Wi-Fi, one HDMI 2.1 input at 4K 60 Hz, a 3.5 mm audio output, a USB 2.0 port, a USB 3.0 port and a TF card slot for up to 128 GB. Programs can be scheduled by time and by location, released in several play modes, and managed through a central platform that produces operation reports. The split-screen layout can be adjusted, so one zone might show a video while another shows a clock or text panel. The two 5 W speakers are useful for short announcements but are not a substitute for a public address system in a large hall.
Where it fits in Qatar
A government reception in Doha might use it to show service directories and visitor information, with content updated from the office rather than by staff at the desk. A private school in Al Wakrah could place one in a corridor to display timetables and events across several floors. A shopping centre in Lusail could mount one in portrait orientation beside a store entrance, and a hotel in West Bay could run welcome and dining information in its lobby. Because management is remote, head office teams in Doha can update several sites at once.
Planning the environment and installation
- The operating range is 0 °C to +40 °C, and the product should be kept out of direct sunlight.
- Qatar summers can exceed 45 °C, so mount it indoors in an air-conditioned space.
- Storage range is –20 °C to +60 °C, and operating humidity is 10% to 85%, non-condensing.
The panel weighs 26.5 kg net and 35.4 kg gross, measures 1,451.8 × 826.7 mm, and is 25.0 mm deep without its bracket and 27.5 mm with it. The wall-mount pattern is 400 × 400 mm VESA. It accepts 100–240 VAC at 50/60 Hz, which covers Qatar's 240 V supply, and draws 141 W typically and 172 W at maximum. Standby consumption is 0.5 W or less. Because the unit is heavy and the environment matters, book a free site survey with SmartRooms Qatar before fixing the bracket, and confirm the wall structure, sockets and network point.
Ordering a quote
Send SmartRooms Qatar the number of units, the room conditions and whether you prefer Ethernet or Wi-Fi, and a quotation usually follows within one working day. Purchase orders and LPOs are accepted, and delivery covers all eight municipalities of Qatar, with professional installation available. Request a quote for the Dahua LDH65-SAI400L V2 and we will confirm the package, including the wall-mount bracket and remote control supplied with the unit.
Highlights
- 65-inch 3840 × 2160 LCD panel with 500 cd/m² typical brightness
- Android 11 with quad-core A55 CPU at 1.92 GHz
- 4 GB RAM and 32 GB internal storage
- Decodes H.265 and VP9 up to 2160p at 60 fps
- Gigabit Ethernet, 802.11 b/g/n/a/ac/ax Wi-Fi and HDMI 2.1 input
- Landscape or portrait use with 400 × 400 mm VESA mounting
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
LCD Panel11
- Screen Size
- 65 inch
- Backlight
- ELED
- LCD Technology
- IPS/VA
- Aspect Ratio
- 16:9
- Brightness
- 500 cd/m² (typ.)
- Contrast Ratio
- IPS 1200:1 (typ.) / VA 4000:1 (typ.)
- Display Colors
- 10 bit (8 bit + FRC), 1.07B colors
- Resolution
- 3840 (H) × 2160 (V)
- Viewing Angle
- 178° (H)/178° (V)
- Response Time
- 8 ms
- Surface Treatment
- Haze 25%
Built-in System5
- Operating System
- Android 11.0
- CPU
- 4 cores A55, 1.92 GHz
- RAM
- 4 GB
- ROM
- 32 GB
- Video Decoding
- H.265 HEVC MP-10@L5.1 up to 2160p@60 fps; H.264 AVC HP@L5.1 up to 2160p@30 fps; VP9 Profile 2 up to 2160p@60 fps; H.264 MVC up to 1080p@30 fps; MPEG-4 ASP@L5 up to 1080p@30 fps; WMV/VC-1 SP/MP/AP up to 1080p@30 fps;
Function3
- Audio Compression
- MPEG-3, WMA, WAV
- Video Compression
- MPEG-4, H.264 AVC/MVC, H.265 HEVC
- Video Format
- mp4, avi, mov, mkv, wmv
Device Ports7
- Network Port
- 1 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet port
- Wi-Fi Standard
- 802.11 b/g/n/a/ac/ax
- Wi-Fi Frequency Range
- 2400-2483.5 MHz, 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz
- MAX Power Transmission (Wi-Fi)
- ≤20 dBm@2400-2483.5 MHz; ≤23 dBm@5150-5250 MHz; ≤20 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz
- Data Transmission Ports
- 1 × USB 2.0 (type A); 1 × USB 3.0 (type A) 1 × TF card slot, up to 128 GB
- Video Input
- 1 × HDMI 2.1 (4K@60 Hz)
- Audio Port
- 1 × 3.5 mm jack output
Speaker1
- Built-in Speaker
- 2 × 5 W
General18
- Power Supply
- 100–240 VAC, 50/60 Hz
- Power Consumption
- 141 W (typ.), 172 W (max)
- Standby Power Consumption
- ≤0.5 W
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
- Storage Temperature
- –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity
- 10%–85% (RH), non-condensing
- Storage Humidity
- 10%–90% (RH), non-condensing
- Product Material
- Metal casing
- Casing Color (Frame/Rear)
- Black
- Product Dimensions
- 1,451.8 mm × 826.7 mm × 25.0 mm (57.16" × 32.55" × 0.98") (L × H × W) (without bracket) 1,451.8 mm × 826.7 mm × 27.5 mm (57.16" × 32.55" × 1.08") (L × H × W) (with bracket)
- Frame Size
- 10.3 mm (0.41") (T/L/R/B)
- Packaging Dimensions
- 1,542 mm × 130 mm × 925 mm (64.1" × 10.0" × 39.3") (L × W × H)
- Net Weight
- 26.5 kg (58.42 lb)
- Gross Weight
- 35.4 kg (78.04 lb)
- Wall Mount VESA
- 400 mm × 400 mm (15.75" × 15.75")
- Installation
- Wall mount
- Display Mode
- Landscape/Portrait
- Accessory
- Wall-mount bracket, user manual, legal and regulatory information, energy label, remote control
Certification1
- Certifications
- CE EMC, CE LVD, CE ERP, RED
