Dahua PVM10-SAI100 · Price in Qatar

Name: Dahua PVM10-SAI100 10.1-inch Wall-mounted Digital Signage
Brand: Dahua
SKU: dahua-pvm10-sai100
Availability: InStock

Overview

The Dahua PVM10-SAI100 is a 10.1-inch wall-mounted signage screen with a 1280 x 800 LED display, Linux, PoE or 12V DC power. A built-in 1080P camera, IP video output and a TF card slot for up to 1TB of recording storage add monitoring to the display. It suits reception desks, clinic waiting areas and school corridors in Doha, Lusail and Al Rayyan. Request a quote for this model.

What the PVM10-SAI100 is built to do

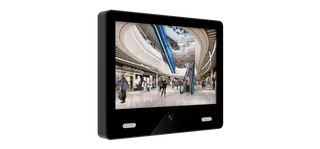

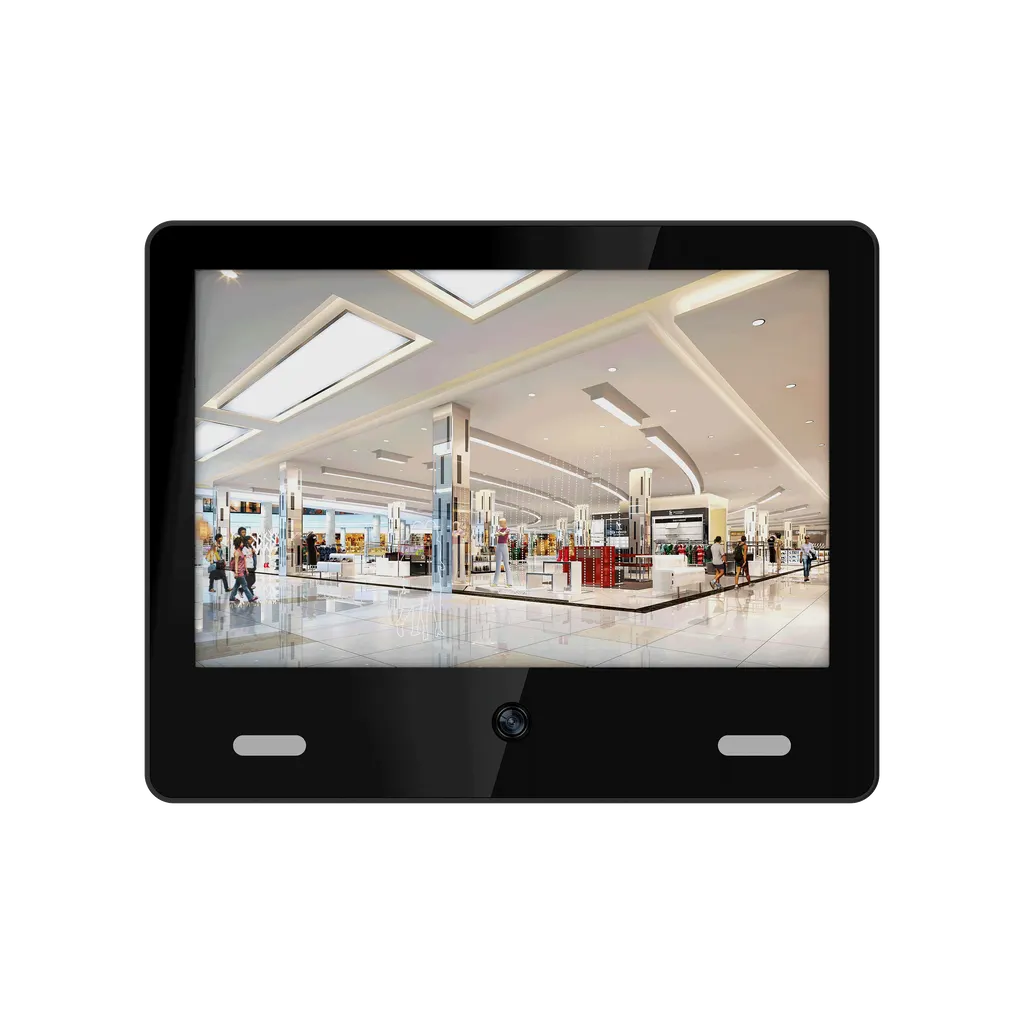

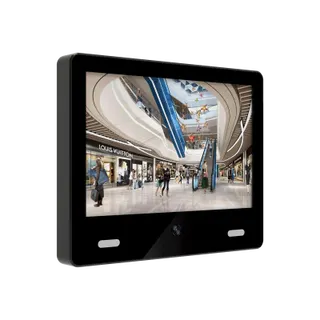

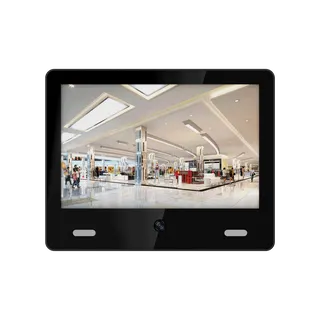

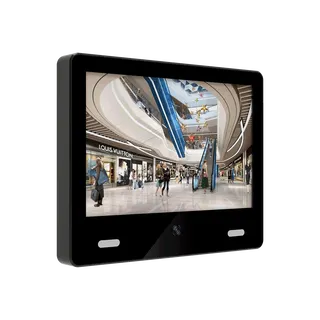

The Dahua PVM10-SAI100 is a 10.1-inch wall-mounted signage unit that combines a screen, a media player and a camera in one black metal casing measuring 252 mm x 200 mm x 26 mm. Instead of running a separate player and a separate camera, a site can show content, watch the area and store recordings from a single device. It is a compact option where a video wall would be excessive, but a networked screen that can be monitored is still needed.

Display, processing and storage

The LED-backlit panel offers 1280 x 800 resolution in a 16:10 aspect ratio, with a typical brightness of 250 cd/m², a 1000:1 contrast ratio and 170° viewing angles both horizontally and vertically. It can be set to landscape or portrait. Inside, a quad-core RV1126 Cortex-A7 processor runs Linux with 1 GB of RAM and 8 GB of ROM. The manufacturer describes the panel as industrial-grade and designed for continuous daily operation. Advertising files under 1GB can be shown full screen or half screen, uploaded through a web page and played back in Chrome, Firefox or Edge.

Camera, recording and network connection

Built-in 2MP 1/2.9-inch CMOS sensor with 1920 x 1080 effective pixels and a 3.3 mm fixed lens
Selectable H.264 or H.265 encoding for IP video output, with ONVIF integration
Recording that can be triggered by motion detection, face detection or alarm input
Wired RJ45 LAN at 10/100 Mbps; no built-in Wi-Fi, which can be customised on request

Recordings are saved to a TF card slot supporting up to 1TB, at 1920 x 1080 and 25 frames per second. Power comes either from PoE at 48V to 56V or from a DC 12V input, with typical consumption of 12W. Alarm input and output interfaces, a relay with normally open, common and normally closed contacts, and an emergency trigger input rated for DC 3V to 48V allow the unit to work with external devices.

Where it fits in Qatar

A PoE-powered unit suits a clinic waiting area in Al Sadd or a government service desk in Msheireb, where one cable can carry both power and data to a discreet wall position. A private school in Al Wakrah could place units at corridor junctions to display notices and monitor foot traffic, while a real estate sales office in Lusail could use the built-in camera to watch its entrance without a separate recorder.

Heat, power and what to plan before installation

Heat is a planning factor in Qatar. The rated operating range is 0°C to +40°C, and the manufacturer advises avoiding direct sunlight. Install the unit inside an air-conditioned space, away from windows that receive afternoon sun, and do not place it in an open lobby or under an outdoor canopy until conditions have been confirmed. The storage range is wider, from -20°C to +60°C.

Confirm the power route: a PoE switch or a 12V DC supply, since no power adapter is listed in the included accessories
Check the wall for the 75 mm x 75 mm VESA pattern and its ability to carry 1.36 kg
Plan the network cable route and any Wi-Fi customisation before ordering
Decide whether alarm wiring or the emergency trigger will be used

The SmartRooms Qatar team offers a free site survey to confirm mounting height, cable routes and sun exposure before you commit. Request a quote, and the team will confirm the expected lead time, which depends on stock, within the quotation, usually within one working day.

Highlights

10.1-inch 1280 x 800 LED display, 16:10, landscape or portrait
PoE 48V to 56V or DC 12V power, 12W typical consumption
Built-in 1080P camera with ONVIF and H.264/H.265 output
TF card slot for recording storage up to 1TB
Quad-core RV1126 processor, Linux, 1 GB RAM, 8 GB ROM
Operating range 0°C to +40°C; avoid direct sunlight

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

66 specifications · Source: manufacturer · checked Oct 2026

Display11

Panel Dimensions: 10.1 inch
Backlight: LED
Resolution: 1280 (H) x 800 (V)
Viewable Size: 216.96mm x 135.6mm
Aspect Ratio: 16:10
Brightness: 250 cd/m² (typ.)
Contrast: 1000:1
Display Colors: 16.7 Million colors
Viewing Angle: 170° (H); 170° (V)
Response Time: 30ms (typ.)
Display Mode: Landscape/Portrait

Built-in System4

Processor: RV1126 Quad-core Cortex-A7
Operating System: Linux
RAM: 1 GB
ROM: 8 GB

Connectivity3

Interface: Micro USB×1; TF card slot×1; LAN in×1
Network Port: RJ45×1 10M/100M
Wi-Fi: No (Can be customized)

Speaker1

Built-in Speaker: 2 × 2 W

Camera8

Sensor: 1/2.9”, 2MP CMOS
Encoding Format: H.264 / H.265
Effective Pixels: 1920×1080
Lens: 3.3mm Fixed Lens
Field of View: H: 78°; V: 48°; D: 85°
Integration Protocol: ONVIF
Recording Resolution: 1920x1080@25FPS
Motion Detection: Support

General14

Power Supply: DC12V±10%/POE 48V-56V±10%
Consumption (Typical): 12W
Operating Temperature: 0°C to +40°C(+32°F to +104°F)(avoid direct sunlight)
Storage Temperature: -20°C to +60°C(-4°F to +140°F)
Operating Humidity: 10%–85% (RH), non-condensing
Storage Humidity: 10%–90% (RH), non-condensing
Product Material: Metal casing
Casing Color (Frame/Rear): Black
Product Dimensions: 252mm × 200mm × 26mm
Packaging Dimensions: 305mm × 240mm × 75mm
Net Weight: 1.36kg
Gross Weight: 2.3kg
VESA: 75mm×75mm
Accessory: Mount bracket, User's manual, legal and regulatory information

Function4

Image Settings: chroma, contrast, brightness, sharpness, saturation, wide dynamics, backlight compensation, strong light suppression, 3D noise reduction
Video: You can choose to record normally and trigger motion detection/face detection/alarm input to record
Advertising: Support full-screen or half-screen image or video ads less than 1GB in size
Warning Information and Logo: The warning information supports warning pictures and warning voices, and the logo picture can set the size and position of the picture

External Ports15

Name: Description
ADB/USB: It is used to download the firmware
TF: TF card slot (max 1TB)
LAN: RJ45, 100MB
ALARM OUT: Alarm output interface. The default state is low level; high level is the trigger state.
ALARM IN: Alarm input interface, two modes of open circuit or short circuit are optional.
GND: GND
NO: Normal open contact point of the relay
COM: Common contact point of the relay
NC: Normal close contact point of the relay
EMERGENCY: Emergency mode trigger interface, external trigger level DC 3-48V
FACE OUT: Face detection alarm output, the default state is low level; high level is the trigger state.
MOTION OUT: Motion detection alarm output, the default state is low level; high level is the trigger state.
GND (2): DC power GND
12V: DC power 12V+

Outlook instructions6

No.: Name Description
A: Indicators white indicators
B: Screen 10.1 inch
C: Sensor 1080P
D: VESA Holes 75mm × 75mm
E: Wiring Duct TF card slot, alarm in and output, power, RJ45 etc.

Downloads

2 files from the manufacturer

PDF Datasheets PVM10-SAI100_20240627.pdf 371 KB PDF Drawings & CAD PW-M10IB6 Dimensions.pdf 27 KB

Questions about PVM10-SAI100

Where does a 10.1-inch signage unit like this suit in Doha?

It suits fixed positions that need one screen and one camera, such as a reception desk, a waiting area or a corridor where a full video wall would be too large. The 1280 x 800 display with 170° viewing angles keeps messages readable from the side as well as from the front. Because it is wall-mounted and powered over one cable, it works well in offices in Msheireb, Doha, or West Bay where wall space is limited. Request a quote to confirm the best position.

Does the PVM10-SAI100 have Wi-Fi?

No. The source data lists no built-in Wi-Fi, so the unit connects through a single wired RJ45 LAN port running at 10/100 Mbps. Wi-Fi is described as available by customisation, so if a wall position has no network cable, ask for that option when you request a quote. Plan the cable route before ordering, because the wired connection is the reliable option for a fixed signage position.

How is the PVM10-SAI100 powered?

It accepts PoE at 48V to 56V (±10%) or a DC 12V input (±10%), and typically draws 12W. A PoE network switch can supply power and data through one cable. The included accessories are a mount bracket, a user manual and regulatory information, and no power adapter is listed, so confirm your power option in the quotation before ordering. SmartRooms Qatar can advise on the best route for your site.

Can it be installed in an outdoor area or in direct sunlight in Qatar?

No. The operating range is 0°C to +40°C, and the manufacturer advises avoiding direct sunlight. Summer temperatures in Qatar can exceed that range well before any outdoor area reaches a comfortable level, so install the unit inside an air-conditioned room, away from windows that receive afternoon sun. Storage is rated from -20°C to +60°C. If the mounting position is a covered entrance or lobby, confirm the conditions with the SmartRooms Qatar team first.

Is it suitable for a clinic waiting area in Al Sadd?

Yes, for a waiting area with stable indoor air conditioning. The screen can show announcements, health awareness messages or promotional content from advertising files under 1GB, displayed full screen or half screen. The typical brightness of 250 cd/m² suits indoor lighting. The 75 mm x 75 mm VESA pattern and included mount bracket make wall fixing straightforward, and a site survey can confirm the wall position and cable route before installation.

Can it record when motion or faces are detected?

Yes. The camera can record continuously or trigger recording on motion detection, face detection or an alarm input. Footage is saved to a TF card slot with a maximum capacity of 1TB, at 1920 x 1080 resolution and 25 frames per second, using H.264 or H.265 encoding. Face detection also has its own alarm output. Before ordering for a school or government building, check your retention requirements and calculate the storage needed for your recording schedule.

Which video standards and protocols does the camera support?

The camera supports ONVIF integration and lets you choose H.264 or H.265 encoding for IP video output. The sensor is a 2MP 1/2.9-inch CMOS with a 3.3 mm fixed lens, giving a field of view of 78° horizontal, 48° vertical and 85° diagonal. Before connecting it to an existing video management system, confirm the software version and ONVIF profile with the SmartRooms Qatar team, because the data sheet does not list specific profiles.

What kind of content can it play?

It plays full-screen or half-screen image and video advertising files under 1GB in size. Content can be uploaded through a web page and played back in Chrome, Firefox or Edge. The screen can be set to landscape or portrait, which suits vertical menus, directional signs or posters. Warning pictures, warning voices and a logo can also be added, with the logo size and position adjustable. The built-in 2 x 2 W speakers support the audio side of the display.

How should I plan wall mounting for a school corridor in Al Wakrah?

Check the wall for the 75 mm x 75 mm VESA holes and confirm it can carry the 1.36 kg net weight, noting the 2.3 kg packed gross weight for transport. The casing measures 252 mm x 200 mm x 26 mm and sits close to the wall. A corridor junction also needs a network drop near the mounting point and a height that suits students. SmartRooms Qatar offers a free site survey to check these points before installation.

Can it trigger alarms or connect to other devices at a government service hall?

Yes. The unit has an alarm input that can be wired as open circuit or short circuit, an alarm output, and a relay with normally open, common and normally closed contacts. An emergency trigger input accepts an external signal in the DC 3V to 48V range to switch the unit into emergency mode. This suits a service hall or hospital entrance that needs a visible alert. Confirm the wiring plan with your electrical contractor before ordering.
