Elo ECMG4 E405488 (Discontinued) · Replacements in Qatar

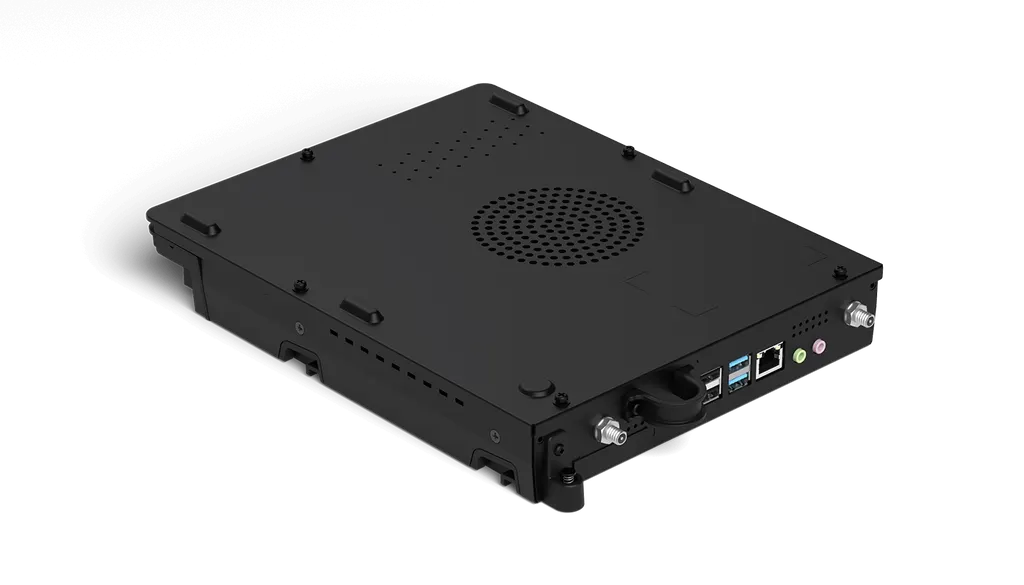

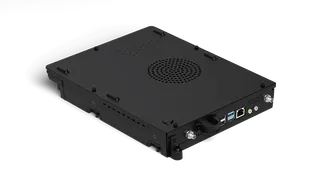

Name: Elo ECMG4 E405488 Computer Module, Intel Core i5 Mini PC
Brand: Elo
SKU: elo-ecmg4-e405488
Availability: Discontinued

Overview

The Elo ECMG4 E405488 is a discontinued computer module that slides into the back of a compatible Elo touch display, turning it into an all-in-one touch computer. It pairs an Intel Core i5-7500T processor with 8 GB DDR4 memory and a 256GB M.2 SSD. The manufacturer has replaced it with the ECMG4 E228087, so organisations in Qatar should request a quote for a current equivalent.

What this discontinued module does

The Elo ECMG4 E405488 is a computer module from the ECMG4 series. It slides into the back of a compatible Elo touch display and connects internally, so the screen itself runs as an all-in-one touch computer. Power comes from the display, so the module has no power supply of its own. For a reception wall, a meeting room or a self-service point, this removes a separate PC from the desk and most of the cabling behind the panel.

Important: Elo has discontinued this model and replaced it with the ECMG4 E228087. This page is for organisations that already own the E405488, buyers comparing it with newer modules, and anyone looking for a replacement. Request a quote for a current equivalent or a compatible replacement.

Specifications that matter for planning

The module is built around an Intel Core i5-7500T processor, rated up to 3.30 GHz with 6 MB of cache, paired with Intel HD Graphics 630 and an Intel H110 chipset. Memory is 8 GB of DDR4-2400 MHz SO-DIMM on one of two slots, and the two slots can be expanded to 64 GB. The manufacturer data also lists a 16 GB configuration for this part number, so confirm the memory fitted when you request a quote. Storage is a 256GB M.2 solid state drive.

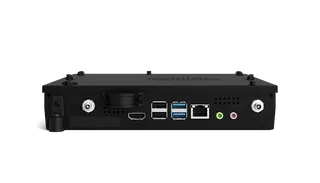

Connectivity covers one HDMI output (UHD capable), one RJ45 LAN port, two USB 3.0 and two USB 2.0 Type A ports, a 3.5 mm line out and a 3.5 mm microphone input. Wireless is IEEE 802.11 a/b/g/n/ac with Bluetooth 5, and two Wi-Fi and Bluetooth antennas are included. The module measures 281.1 mm x 208.2 mm x 43 mm and weighs 2.1 kg without packaging.

Where it fits in Qatar

Corporate lobbies in West Bay or Lusail: a touch display for visitor check-in or wayfinding, with the computer hidden behind the screen rather than on the reception counter.
Meeting rooms in Msheireb or the Industrial Area: the module comes with DisplayNote Launcher, DisplayNote Montage and Qwizdom whiteboarding software, so presenters can share and annotate content from their own devices.
Classrooms in Al Wakrah or Education City: one interactive touch screen with built-in computing for each teaching space, where a separate PC is not wanted.

Planning and compatibility checks

Confirm the display first. The manufacturer data lists this module for the 3203L TouchPro, 4303L TouchPro and IR, 5553L TouchPro and IR and 6553L TouchPro and IR. Because the module docks inside the display, the panel model must match before the order is placed. A SmartRooms Qatar site survey can confirm the panel, rear clearance and where the wall or stand will sit.

Environment matters. The module is rated for 0°C to 40°C and 20% to 80% humidity in operation. Qatar summers can exceed 45°C, and dust is common near windows and entrances, so place it in an air-conditioned indoor room away from direct sun and doorways.

The standard warranty is 3 years, with optional 4-year and 5-year extensions listed by the manufacturer. Organisations buying for several sites can issue a purchase order (LPO) or submit a government tender reference with the quote request. To request a quote for this model or for a current equivalent, send your display model, quantity and site location to the SmartRooms Qatar team.

Highlights

Intel Core i5-7500T processor, up to 3.30 GHz
8 GB DDR4-2400 MHz memory, expandable to 64 GB
256GB M.2 solid state drive for local storage
One HDMI output with UHD capability
Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 5
Operating range 0°C to 40°C; discontinued, replaced by ECMG4 E228087

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

29 specifications · Source: manufacturer · checked Oct 2026

Technical29

Part Number(s): i5-7500 ECMG4 - Windows 10 (SAC) with DisplayNote Montage & Launcher Software & Qwizdom Whiteboard Software - Elo P/N: E405488 Compatible with 3203L TouchPro 4303L TouchPro and IR 5553L TouchPro and IR 6553L TouchPro and IR
Enclosure Color: Black
Processor: Intel Core i5-7500T Processor (6M Cache, up to 3.30 GHz) 6 MB Intel Smart Cache 8 GT/s Direct Media Interface 3 (DMI3)
Chipset: Intel H110 Chipset
Graphics: Intel HD Graphics 630
BIOS: AMI
Memory (RAM): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots 16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only) *Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V
Storage: 256GB m.2 Solid State Drive (SSD) GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Wireless: IEEE 802.11 a/b/g/n/ac (downlink MU-MIMO)
Bluetooth: Bluetooth 5
USB Ports: 2 x USB 2.0 Type A 2 x USB 3.0 Type A
Ethernet Port: 1 x LAN RJ45
Audio Ports: 1 x 3.5 mm Line out 1 x 3.5 mm MIC in
Video Out: 1 x HDMI (UHD capable)
OS: Windows 10 64-bit (SAC)
Power Supply: Power provided by IDS display
Dimensions: 11.07” x 8.2” x 1.7” / 281.1 mm x 208.2 mm x 43 mm
Shipping Box Dimensions: 28.74” x 20.47” x 13.78” / 730 mm x 520 mm x 350 mm
Weight (Unpackaged): 4.6 lbs / 2.1 kg
Weight (Packaged): 7.3 lbs / 3.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -30°C to 60°C / -22°F to 140°F
Humidity: Operating: 20% to 80% Storage: 10% to 90%
Real-Time Clock: lithium-ion battery
MTBF: 50,000 hours demonstrated
Regulatory approvals and declarations: UL/cUL, CB, FCC, CE, AS, NZS, VCCI
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E896120 5 year warranty coverage - Elo P/N: E896322 3 year warranty coverage + AUR - Elo P/N: E896699 4 year warranty coverage + AUR - Elo P/N: E896903 5 year warranty coverage + AUR - Elo P/N: E897104
What's in the Box: QIG 2x WiFi/BT Antenna 4x M6x50 screws 4x M8x50 screws 4x Spacers

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about ECMG4 E405488

Is the Elo ECMG4 E405488 still available to order in Qatar?

Elo has discontinued this model and replaced it with the ECMG4 E228087. Request a quote for that current equivalent or another compatible replacement for your Elo display. Send the display model, the number of units and your delivery location, and the team will reply with a quotation, usually within one working day.

What is the Elo ECMG4 E405488 used for?

It is a computer module that installs inside the back of a compatible Elo touch display, so the screen works as an all-in-one touch computer. Typical uses include digital signage playback, self-service touch points and interactive presentations in meeting rooms. It suits organisations that want one tidy unit at a reception desk or boardroom instead of a separate PC and its cabling.

Which Elo displays is this module compatible with?

The manufacturer data lists compatibility with the 3203L TouchPro, 4303L TouchPro and IR, 5553L TouchPro and IR and 6553L TouchPro and IR. The module slides into the display and connects through an internal docking connector, so confirm your exact panel model before ordering. Our team can check this during a site survey.

What processor and memory does the ECMG4 E405488 have?

It uses an Intel Core i5-7500T processor, rated up to 3.30 GHz, with Intel HD Graphics 630. The data lists 8 GB of DDR4-2400 MHz SO-DIMM memory on one of two slots, expandable to 64 GB across both slots. The data also shows a 16 GB option for this part number, so specify the memory you need in your quote request.

Does it include an operating system and software?

The manufacturer lists Windows 10 64-bit (SAC) for this part number, bundled with DisplayNote Montage and Launcher software and Qwizdom whiteboard software. The module is also available with no operating system. State your preference in the quote request so the configuration matches your IT policy and any licences you already hold.

What ports and connections are available?

The module has one HDMI output, which is UHD capable, one RJ45 LAN port, two USB 3.0 and two USB 2.0 Type A ports, a 3.5 mm line out and a 3.5 mm microphone input. Wireless is IEEE 802.11 a/b/g/n/ac with Bluetooth 5. In a boardroom, the microphone input and USB ports cover most presenter needs, while the wired LAN port suits networks that prefer cable.

Can it be installed in an outdoor, lobby or non-air-conditioned area?

No, not without a conditioned indoor environment. The operating range is 0°C to 40°C at 20% to 80% humidity, and summer temperatures in Qatar can go above 45°C. Lobbies with glass entrances and areas near windows can heat up quickly, so choose an air-conditioned spot away from direct sunlight and confirm the room conditions during the site survey.

How much space and clearance does the module need?

The module measures 281.1 mm x 208.2 mm x 43 mm and weighs 2.1 kg unpackaged. The shipping box is 730 mm x 520 mm x 350 mm. Plan for clearance behind the display for the module and its two antennas, and check cable routing before drilling the wall. A free SmartRooms Qatar site survey helps confirm this before installation.

What warranty comes with the Elo ECMG4 E405488?

The manufacturer lists a 3-year standard warranty, with optional 4-year and 5-year extensions. Products are covered by the manufacturer's warranty, and the extension you choose will be confirmed on your quotation before any purchase order is raised.

We are fitting out several classrooms at a private school in Al Wakrah. Is this module a good fit?

It suits classrooms where each teaching space needs one touch display with built-in computing and no separate PC. Each room must use a compatible TouchPro panel and stay within the 0°C to 40°C operating range. For several classrooms, one quotation can cover all units, and the school can issue an LPO for the order. Check the existing panels during a site survey before ordering.

What should a corporate lobby in West Bay plan for before installing this module?

Decide the display position first, keeping it away from direct sun and entrance doors where dust and heat are heaviest, and confirm the wall or stand can carry the panel. Connect the module to the network through the Ethernet port or Wi-Fi, review the HDMI and USB access points, and agree the software bundle with IT. Include the panel model in your quote request.

What should we do if we already own this module and need a replacement?

Elo replaced the E405488 with the ECMG4 E228087. Send us your current display model, the module part number you have and the number of units needed, and we will quote for the current equivalent or a compatible replacement. Confirming compatibility with your panel first avoids mismatched hardware.
