DS-D6032FN-B
Hikvision DS-D6032FN-B 32-inch Wall-Mounted Digital Signage Display
- Screen size
- 32 inch
- Resolution
- 1920 × 1080
- Brightness
- 350 cd/m²
- Contrast
- 4000:1
The Hikvision DS-D6032FN-B is a 32-inch wall-mounted digital signage display with 1920 × 1080 resolution, 350 cd/m² brightness and a built-in Android 8.1 system. It plays scheduled playlists of images, video, PDFs and web pages, and several screens can be managed remotely. Its rated operating range is 0 °C to 40 °C, so it suits air-conditioned lobbies, reception areas and corridors in Qatari offices, clinics and schools.
What this wall-mounted display is built for
The Hikvision DS-D6032FN-B is a 32-inch display designed to show information and promotional content in shared indoor spaces. Its built-in Android 8.1 system, quad-core processor and 16 GB of storage let it run scheduled content from the panel itself. The unit mounts on the included wall backboard, either horizontally or vertically.
Display specifications that matter on a wall
At 1920 × 1080, the panel is sized for close viewing at a counter, desk or corridor wall, where text and simple graphics must stay readable. The key figures for procurement teams are:
- Brightness: 350 cd/m²
- Contrast ratio: 4000:1
- Viewing angle: 178° horizontal and vertical
- Colour: 8-bit, 16.7M colours, 72% NTSC gamut
- Response time and refresh: 6.5 ms and 60 Hz
- Rated operation: 7 × 24 h
Brightness at 350 cd/m² suits indoor lobbies and corridors with controlled daylight. For a position facing a bright courtyard or large window, review the ambient light with the SmartRooms Qatar team before ordering.
Where it fits in Qatar
Three realistic settings show how the panel is typically planned:
- A private clinic in Al Sadd: a waiting-area display showing health tips, opening messages and queue numbers, with different content scheduled for morning and afternoon sessions.
- A school in Al Rayyan: corridor panels that rotate timetables, events and announcements, with timed startup and shutdown so screens are ready before the school day and switch off afterwards.
- A hotel lobby in West Bay: a portrait-mounted screen beside the lift showing event schedules, welcome messages and directions, updated remotely without a site visit.
Planning the installation and the environment

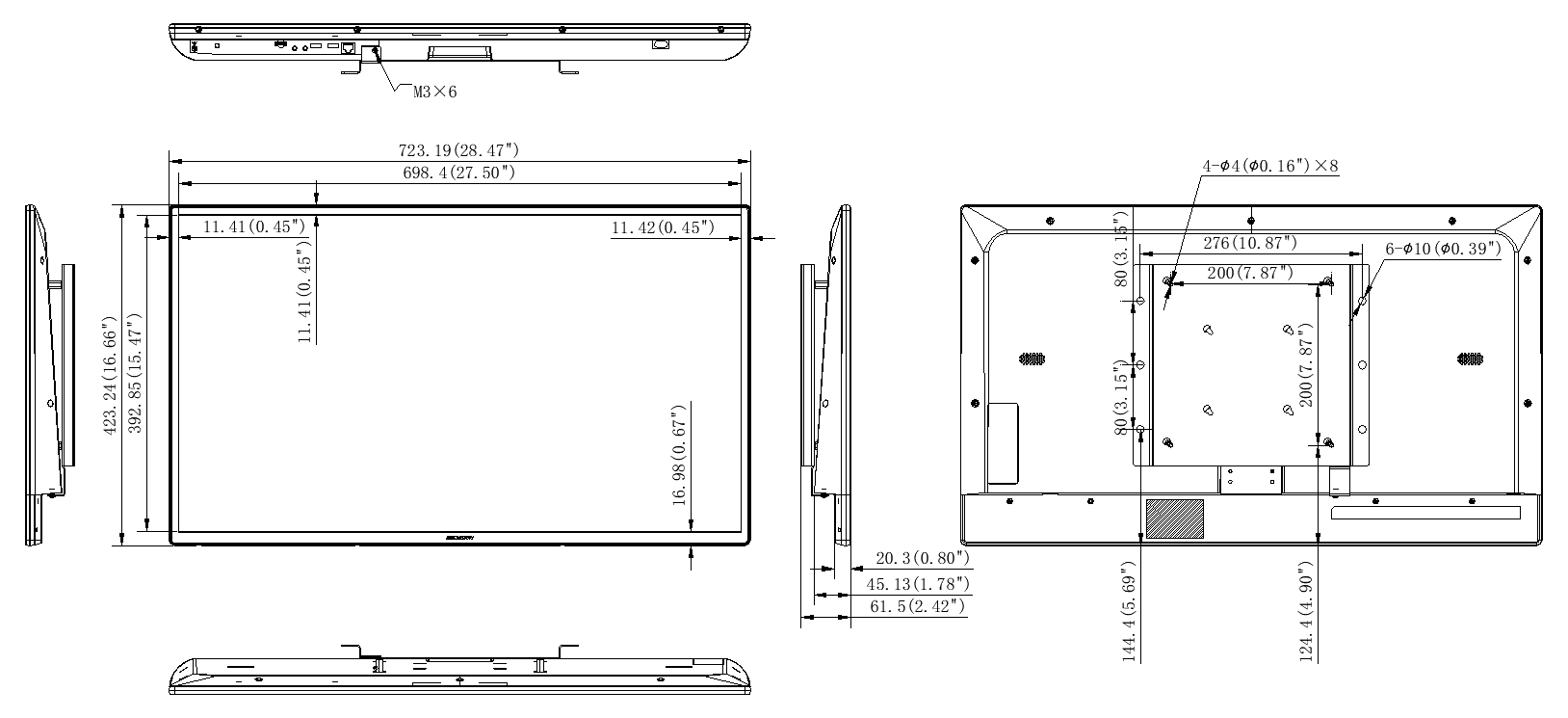

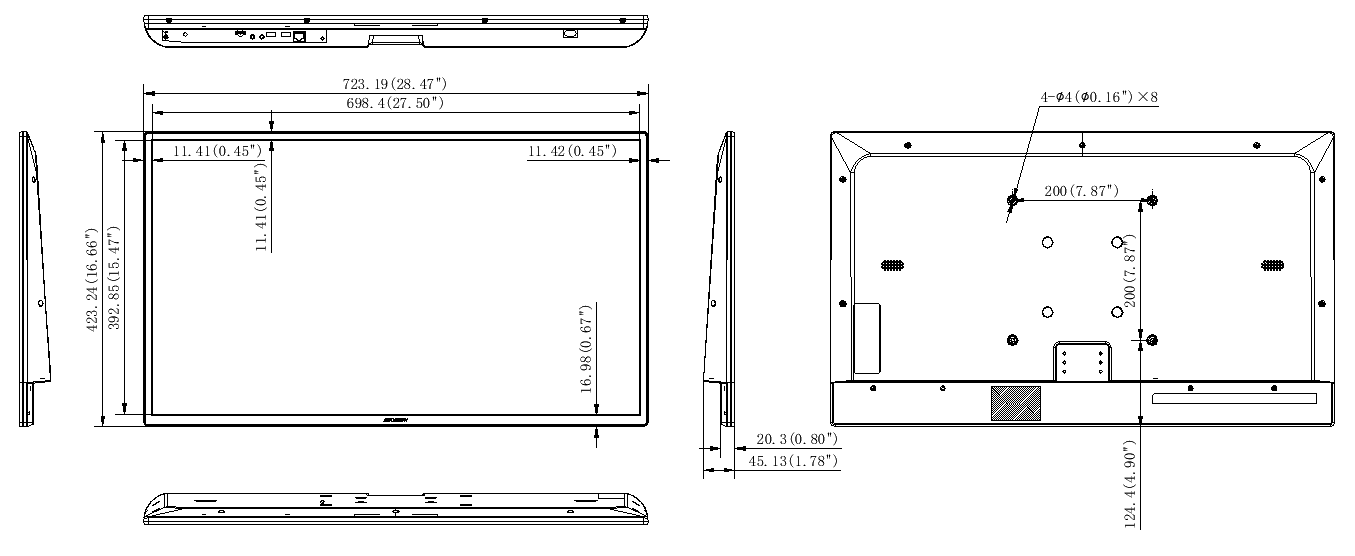

The unit weighs 5.930 kg net (9.180 kg gross) and measures 723.24 × 423.25 mm. Depth is 45.13 mm without the backboard and 61.5 mm with it, so check cable routing and wall finish before drilling. A free site survey lets our team confirm fixing points, power position and sightlines.
Power consumption is up to 75 W, with standby at 0.5 W or less, and the input is 100 to 240 VAC at 50/60 Hz. The rated operating range is 0 °C to 40 °C at 10% to 80% relative humidity. Qatar summer temperatures can exceed 45 °C, so install it in air-conditioned indoor areas and confirm the environment before the quotation is issued.
Management and security for multi-screen sites
Several screens can be managed from one place. Operators can set timed startup and shutdown, adjust brightness and volume on a timetable, preview screenshots, and release programmes or updates remotely. Five levels of organisation permission let administrators grant access by role, while a three-level check on materials, programmes and schedules reduces the risk of publishing the wrong message. Data is encrypted in storage and transmission, and there is no default password: you activate the unit and set your own.
The DS-D6032FN-B ships with a remote control, power cord, wall backboard, mounting bolts, four wall screws and a quick start guide. Multiple units can be ordered under a purchase order (LPO), and SmartRooms Qatar handles government tenders. Send your room plan and content list and request a quote; the quotation will confirm configuration and estimated lead time.
Highlights
- 32-inch wall-mounted panel with 1920 × 1080 resolution
- 350 cd/m² brightness and 4000:1 contrast ratio
- Built-in Android 8.1, quad-core 1.6 GHz, 2 GB memory, 16 GB storage
- HDMI × 2, VGA × 1, LAN, Wi-Fi and USB 2.0 × 2
- Scheduled playback and remote management for one or more screens
- Rated 0 °C to 40 °C; input 100 to 240 VAC, 50/60 Hz
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display13
- Screen Size
- 32 inch
- Resolution
- 1920 × 1080
- Active Display Area
- 698.4 (H) mm × 392.85 (V) mm
- Pixel Pitch
- 0.12125 (H) mm × 0.36375(V) mm
- Backlight
- E-LED
- Viewing Angle
- 178°(H)/178°(V)
- Brightness
- 350 cd/m²
- Contrast Ratio
- 4000:1
- Color Depth
- 8 bit, 16.7M
- Response Time
- 6.5 ms
- Color Gamut
- 72% NTSC
- Reliability
- 7 × 24 h
- Refresh Rate
- 60 Hz
Built-in System4
- Operation System
- Android 8.1
- Processor
- Cortex-A17, 4-core, main frequency 1.6 GHz
- Memory
- 2 GB
- Built-in Storage
- 16 GB EMMC
Interface4
- Video & Audio Input
- AUDIO IN × 1, HDMI × 2, VGA × 1
- Video & Audio Output
- AUDIO OUT × 1, speaker (8 Ω 2 W) × 2
- Network Interface
- LAN × 1, Wi-Fi × 1
- Data Transmission Interface
- USB 2.0 × 2, TF Card × 1, BT 4.0 × 1
Power3
- Standby Consumption
- ≤ 0.5 W
- Input Voltage
- 100 to 240 VAC, 50/60 Hz
- Power Consumption
- ≤ 75 W
Working Environment4
- Working Temperature
- 0 ℃ to 40 ℃ (32 °F to 104 °F)
- Working Humidity
- 10% to 80% RH
- Storage Temperature
- -20 °C to 60 °C (-4 °F to 140 °F)
- Storage Humidity
- 10% to 80% RH
General7
- Material Type
- DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
- Mounting Type
- Wall mounting (horizontally or vertically)
- Product Dimensions (W × H × D)
- 723.24 mm × 423.25 mm × 61.5 mm (with wall-mounted backboard) (28.47'' × 16.66'' × 2.42'') 723.24 mm × 423.25 mm × 45.13 mm (without wall-mounted backboard) (28.47'' × 16.66'' × 1.78'')
- Package Dimensions (W × H × D)
- 898 mm × 152 mm × 544 mm (35.35'' × 5.98'' × 21.42'')
- Net Weight
- 5.930 kg (13.01 lb.)
- Gross Weight
- 9.180kg (20.13 lb.)
- Packing List
- Digital signage × 1, power cord × 1, remote control × 1, wall-mounted backboard × 1, package of mounting bolts × 1, wall-mounted screw × 4, desiccative × 1, quick start guide × 1
