Hikvision Digital Signage Current

DS-D6050UN-DP

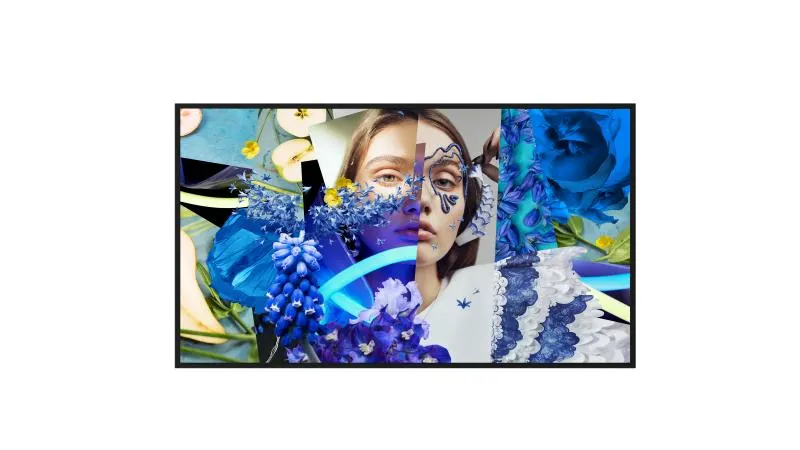

Hikvision DS-D6050UN-DP 50-inch 4K Wall-Mounted Digital Signage Display

Screen size: 50 inch
Resolution: 3840 × 2160
Brightness: 500 cd/m²
Contrast: 1200:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Hikvision DS-D6050UN-DP is a non-touch, 50-inch wall-mounted 4K display for reception areas, corridors, clinics and schools in Qatar. It has a 3840 × 2160 panel rated at 500 cd/m², a built-in Android 13 player with 32 GB storage, and remote scheduling from a central system. Its 41 mm depth without the backboard suits narrow walls. Request a quote for supply and installation, with a free site survey.

A 50-inch 4K wall display built for scheduled content

The Hikvision DS-D6050UN-DP is a non-touch, wall-mounted display with a 50-inch 4K panel at 3840 × 2160 resolution. It runs its own Android 13 player, so most content can play without a separate media PC. At 1,125.8 mm wide and 41 mm deep without the backboard, it sits flat in corridors, lobbies and waiting areas where a bulky screen would look out of place.

The specifications that matter in daily use

The panel is rated at 500 cd/m² with a 1,200:1 contrast ratio and a 178° viewing angle both horizontally and vertically, so messages remain readable from the side of a busy corridor. It refreshes at 60 Hz with an 8 ms response time. The 10-bit colour depth (8-bit plus FRC) and 85% NTSC colour gamut suit text, logos and video. The built-in 4 GB memory and 32 GB eMMC storage hold local media files.

Inputs: three HDMI ports and one DisplayPort, plus USB 2.0 and USB 3.0 for local playback.
Network: one RJ45 port, Wi-Fi on 2.4 GHz and 5 GHz supporting 802.11 a/b/g/n/ac/ax, and Bluetooth 5.0.
Control: RS232 in and RS232 out for integration with a control system.
Audio: two 6Ω 10 W speakers and a line output.

Content management and security

The display can show video, images, PDF files, web pages, scrolling subtitles and live video. Schedules can run by day, by week, on a loop, or on a custom pattern. From the central management system, administrators can release programmes remotely, set startup and shutdown times, adjust brightness and volume on a timetable, and preview screenshots. Five levels of organisation permissions control who manages materials, programmes, terminals and users. Three-level checks on content and schedules help prevent wrong material going live, and stored and transmitted data is encrypted. The unit has no default password, so the first user sets one during activation.

Where it fits in Qatar

A private school in Al Wakrah fitting out a reception corridor with timetable and announcement slides.
A clinic in Msheireb showing waiting-room information, number calling and health messages.
A serviced apartment building in Lusail using a lobby screen for building notices and local guides.

What to plan for before ordering

The display weighs 12.6 kg net and 17.3 kg packed, and the wall-mounted backboard and mounting bolts are included. It can be mounted horizontally or vertically, so confirm the wall can carry the load and choose the orientation before installation. The operating range is 0 °C to 40 °C with 10% to 80% RH. Qatar summer temperatures often exceed 45 °C, so install it in an air-conditioned indoor space away from direct sunlight and dust. The power input is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The packing list includes a European power cord, so confirm the plug arrangement for BS 1363 (Type G) sockets with the SmartRooms Qatar team before ordering. Typical power use is 90 W, with a maximum of 150 W.

Request a quote

SmartRooms Qatar supplies the DS-D6050UN-DP across all eight municipalities of Qatar, with professional installation and a free site survey before wall-mounting. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat. Request a quote for a single screen or a multi-site rollout.

Highlights

3840 × 2160 4K panel rated at 500 cd/m² brightness
Built-in Android 13 player with 4 GB memory and 32 GB storage
Three HDMI inputs and one DisplayPort input
Remote scheduling, timed startup and shutdown, screenshot preview
Wall-mounted, 1,125.8 mm wide, 41 mm deep without backboard
Operating range 0 °C to 40 °C; air-conditioned indoor use advised

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D6050UN-DP

Display15

Screen Size: 50 inch
Color Temperature: 10000K
Resolution: 3840 × 2160
Active Display Area: 1095.84 (H) mm × 616.411 (V) mm
Pixel Pitch: 0.28539 (H) mm × 0.28539 (V) mm
Backlight: E-LED
Viewing Angle: 178°(H)/178°(V)
Brightness: 500 cd/m²
Contrast Ratio: 1200:1
Color Depth: 10 bit (8 bit + FRC)
Response Time: 8 ms
Color Gamut: 85% NTSC
Reliability: 7 × 24h
Refresh Rate: 60 Hz
Haze: 25%

Built-in System6

Operation System: Android 13
Processor: Cortex-A55, 4-core, main frequency 1.92 GHz
Memory: 4 GB
Built-in Storage: 32 GB EMMC
Video Format: AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG, H263
Audio Format: MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC

Interface4

Video & Audio Input: HDMI × 3, DP × 1
Video & Audio Output: LINE OUT × 1, speaker (6Ω 10 W) × 2
Network Interface: RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in× 1, RS232 out× 1
Data Transmission Interface: USB 2.0 × 1, USB 3.0 × 1, BT 5.0 × 1

Power3

Input Voltage: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Power Consumption: 90W(typ), 150W(max)

Working Environment4

Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 80% RH (Condensation)
Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity: 10% to 90% RH (Condensation)

General7

Material Type: DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
Mounting Type: Wall mounting (horizontally or vertically)

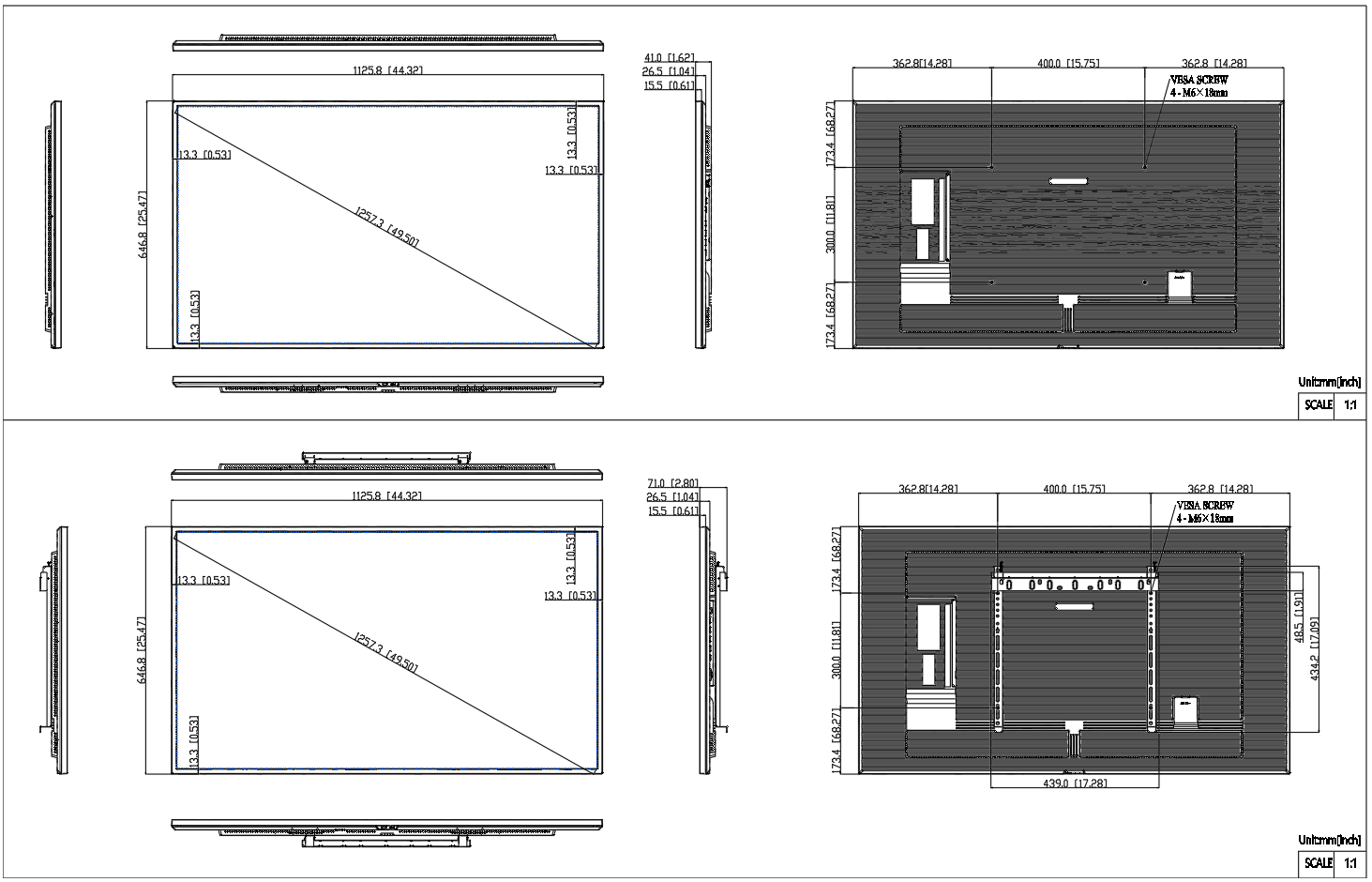

Product Dimensions (W × H × D): 1125.8mm × 646.8mm × 41 mm (without wall-mounted backboard) 1125.8mm × 646.8mm × 71 mm (with wall-mounted backboard)
Package Dimensions (W × H × D): 1250 mm × 760 mm × 128 mm
Net Weight: 12.6 kg
Gross Weight: 17.3 kg
Packing List: Digital signage × 1, wall-mounted backboard (including package of mounting bolts) × 1, power cord for europe × 1, RS232 cable × 1, remote control × 1, user manual × 1, quick start guide × 1, Regulatory Compliance and Safety Information × 1, logo stickers × 1, energy efficiency label × 1

Downloads

9 files from the manufacturer

PDF Datasheets Leaflet_DP-series-wall-mounted_20241125.pdf 3.5 MB PDF Datasheets · Opens on manufacturer site DS-D6050UN-DP_Datasheet_20260128.pdf PDF Manuals & guides Quick Start Guide_65b5430c.pdf 807 KB PDF Manuals & guides User Manual_1c097110.pdf 2.1 MB PDF Brochures Digital-Signage-Solution-Infographic.pdf 696 KB PNG Drawings & CAD DS-D6050UN-DP_02.png 194 KB PDF Certificates & compliance · Opens on manufacturer site DS-D6050UN-DP.pdf 0000 Software & firmware · Opens on manufacturer site Firmware_V3.2.0000_260117 1000 Software & firmware · Opens on manufacturer site Firmware_V3.4.1000_260828

Questions about DS-D6050UN-DP

What is the Hikvision DS-D6050UN-DP used for?

It is a 50-inch 4K wall-mounted display for showing signage, announcements, schedules and video in indoor spaces. Its built-in Android 13 player means most content can run without a separate media PC. It suits reception areas, corridors, clinics, schools and serviced apartment lobbies where information needs to change through the day.

Does this model have a touchscreen?

No. The DS-D6050UN-DP is a non-touch display, so it is designed for viewing content rather than interacting with it. If your project needs visitors to tap, select or search on the screen, ask the SmartRooms Qatar team for an interactive model. Non-touch units are typically chosen for passive information displays.

How bright is the screen for a lobby with windows?

The panel is rated at 500 cd/m² with a 1,200:1 contrast ratio and a 178° viewing angle horizontally and vertically. In a lobby facing a bright window in Doha, position the screen away from direct sunlight to keep content readable. A free site survey helps you check glare and sightlines before the wall is prepared.

Can it play content without a computer?

Yes. It has a 4-core Cortex-A55 processor at 1.92 GHz, 4 GB memory and 32 GB eMMC storage running Android 13. It plays video, images, PDF files, web pages, scrolling subtitles and live video. It decodes H.265 and H.264/AVC among other video formats, and it can also play content from a USB drive.

How do I update content on several screens from one office?

Centralised management lets you remotely control one screen or several, release programmes, and update content from a central system. You can also set timed brightness and volume changes. A private school group with campuses in Al Rayyan and Education City could update announcements on every screen from one office without visiting each site.

Which ports and connections are available?

It has three HDMI inputs, one DisplayPort input, USB 2.0 and USB 3.0 ports, one RJ45 network port, Wi-Fi on 2.4 GHz and 5 GHz, Bluetooth 5.0, RS232 in and RS232 out, and a line output. The RS232 connections allow integration with an external control system. Confirm your source devices and cabling with the SmartRooms Qatar team before ordering.

Can it be mounted vertically as well as horizontally?

Yes, the mounting type is wall mounting, either horizontally or vertically. The package includes the wall-mounted backboard and a set of mounting bolts. Choose the orientation before installation, because a portrait layout suits menu boards and wayfinding in corridors while landscape suits video and wide information panels.

How much space and wall load does it need?

The product measures 1,125.8 mm by 646.8 mm and is 41 mm deep without the backboard, or 71 mm with it. It weighs 12.6 kg net and 17.3 kg packed. Check the wall structure and the clearance for cables before installation. SmartRooms Qatar offers a free site survey to confirm the fixing position.

Will it work with Qatar's power supply and sockets?

The power input is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. The packing list includes a European power cord, and Qatar uses BS 1363 (Type G) sockets. Confirm the plug arrangement with the SmartRooms Qatar team before ordering. Typical consumption is 90 W, with a maximum of 150 W.

Can I install it outdoors, in a car park or in a majlis?

Not outdoors or in unconditioned spaces. The working temperature range is 0 °C to 40 °C, while Qatar summer temperatures often exceed 45 °C. Install it in an air-conditioned indoor area, away from direct sunlight and dust. If you are unsure about a specific location, ask the SmartRooms Qatar team to review it during the site survey.

How is the content protected against errors and misuse?

Three-level checks on materials, programmes and schedules help prevent incorrect releases. Data in storage and during transmission is encrypted to prevent tampering. Five levels of organisation permissions let you set what each user can manage, using custom users or permission templates. The unit has no default password, and the first user sets one during activation.

Can a government ministry or school buy this through a tender or LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and can supply and install the DS-D6050UN-DP across all eight municipalities of Qatar. Quotations are usually issued within one working day. Payment can be made by bank transfer, cheque or purchase order. Request a quote with the quantity and sites.
