Hikvision DS-D6055UN-DL · Price in Qatar

Name: Hikvision DS-D6055UN-DL 55-inch 4K Wall-Mounted Digital Signage Display
Brand: Hikvision
SKU: hikvision-ds-d6055un-dl
Availability: InStock

Overview

The Hikvision DS-D6055UN-DL is a 55-inch 4K wall-mounted digital signage display built for lobbies, corridors and waiting areas. It pairs a 500 cd/m² panel with Android 13, 32 GB of storage and built-in scheduling, so content can be updated remotely. With three HDMI inputs and Wi-Fi, it suits offices, clinics and retail sites across Doha that need a single indoor screen managed centrally. Keep it in air-conditioned spaces, as its operating range tops out at 40 °C.

What the DS-D6055UN-DL is built to do

The Hikvision DS-D6055UN-DL is a 55-inch wall-mounted digital signage display with a 3840 × 2160 (4K) panel. It is a non-touch screen, so it suits messages, schedules and promotions rather than visitor interaction. Each playlist can combine pictures, video, audio, PDF files, web pages, scrolling subtitles, live video and number calling, so one screen can handle wayfinding, announcements and offers together.

Picture and brightness details that matter on site

The panel is rated at 500 cd/m² with a 4000:1 contrast ratio and a D-LED backlight. Its 178° horizontal and vertical viewing angles keep content readable for people standing to the side of the screen. The display has a 25% haze rating, a 60 Hz refresh rate and an 8 ms response time. It shows 10-bit colour (8-bit plus FRC) with an 85% NTSC colour gamut. If the screen faces a window, position it away from direct sunlight so the 500 cd/m² output looks its best.

Playback, control and security

The player runs Android 13 on a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB of memory and 32 GB of eMMC storage. Playback can run by day, by week, in a loop or in a custom plan, and timed startup and shutdown help switch the screen off outside opening hours. Central management lets administrators push programs and updates remotely, adjust brightness and volume on a timer and preview screenshots. A five-level organisation structure controls who can manage materials, programs, terminals and users, while three-stage checks of content and schedules reduce the risk of publishing a wrong message. Data is encrypted in storage and in transit, and the device has no default password: the first user sets one at activation.

Where it fits in Qatar

Three examples show where a screen of this size works well:

Clinic waiting rooms: a private clinic in Al Sadd can show queue numbers, departmental directions and health awareness messages throughout the Sunday to Thursday working week.
Hotel and serviced apartment lobbies: a property in Msheireb or West Bay can rotate event listings, transport times and welcome content from schedules set in advance.
School and training corridors: a school in Al Wakrah or a training centre in Education City can post timetables, notices and bilingual announcements on a single wall screen.

What to plan before you order

The screen weighs 13 kg net and 19.5 kg gross, and the wall-mounted backboard increases total depth from 70 mm to 99.8 mm. Its listed power draw is 134 W typical and 195 W maximum, with standby at 0.5 W or less. The input range of 100 to 240 VAC, 50/60 Hz covers Qatar's 240 V supply, but the package includes a power cord listed for Europe, so confirm the plug arrangement for BS 1363 sockets when you request a quote. The operating range is 0 to 40 °C, which is below the temperatures Qatar reaches in summer, so install the screen in air-conditioned indoor spaces and keep its rear ventilated. Because of its weight, a site survey before wall mounting is advisable. SmartRooms Qatar offers free site surveys, and purchase orders (LPOs) are accepted for multi-unit projects.

To check whether the DS-D6055UN-DL fits your lobby, corridor or clinic, request a quote from SmartRooms Qatar. Send your wall measurements, the number of units and the content you plan to show, and the team will return a quotation, usually within one working day.

Highlights

55-inch 4K (3840 × 2160) wall-mounted panel
500 cd/m² brightness and 4000:1 contrast ratio
Android 13 with 4 GB memory and 32 GB storage
Three HDMI 2.0 inputs and one DisplayPort 1.2
Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.4 and RJ45
Non-touch, with scheduled playback and remote management

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D6055UN-DL

Display15

Screen Size: 55 inch
Color Temperature: 10000K
Resolution: 3840 × 2160
Active Display Area: 1219.70 (H) mm × 691.89 (V) mm
Pixel Pitch: 0.105 (H) mm × 0.315 (V) mm
Backlight: D-LED
Viewing Angle: 178°(H)/178°(V)
Brightness: 500 cd/m²
Contrast Ratio: 4000:1
Color Depth: 10 bit (8 bit + FRC)
Response Time: 8 ms
Color Gamut: 85% NTSC
Reliability: 7 × 24h
Refresh Rate: 60 Hz
Haze: 25%

Built-in System6

Operation System: Android 13
Processor: Cortex-A55, 4-core, main frequency 1.92 GHz
Memory: 4 GB
Built-in Storage: 32 GB EMMC
Video Format: AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG, H263
Audio Format: MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC

Interface4

Video & Audio Input: HDMI 2.0 (HDCP 2.2) × 3, DP 1.2 × 1
Video & Audio Output: LINE OUT × 1, Speaker (6Ω 10 W) × 2
Network Interface: RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, ,RS232 in× 1, RS232 out× 1
Data Transmission Interface: USB 2.0 × 1, USB 3.0 × 1, BT 5.4 × 1

Power3

Input Voltage: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Power Consumption: 134 W(typ), 195 W(max)

Working Environment4

Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 80% RH (Condensation)
Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity: 10% to 90% RH (Condensation)

General6

Mounting Type: Wall mounting (horizontally or vertically)

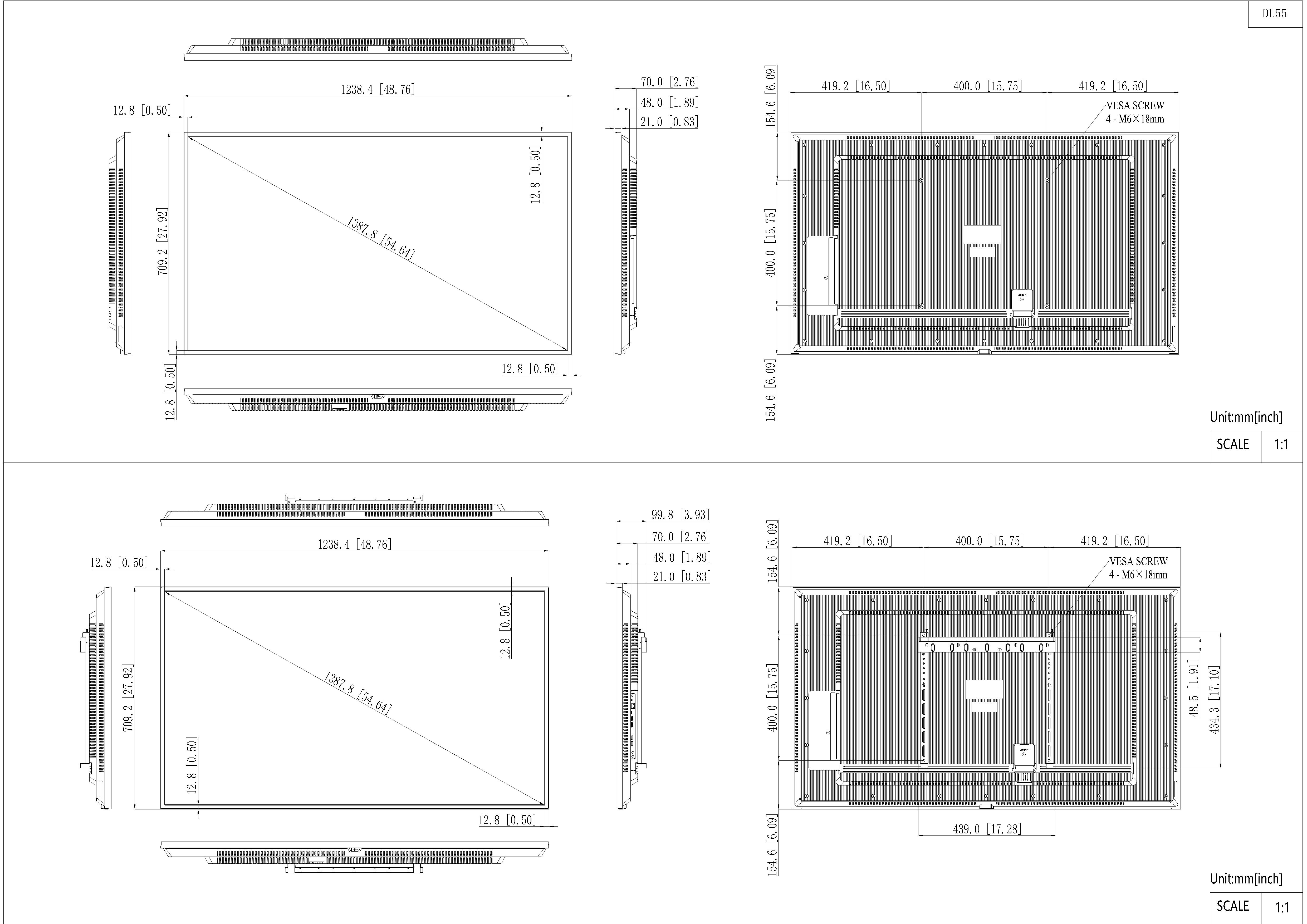

Product Dimensions (W × H × D): 1238.4 mm × 709.2 mm × 70 mm (without wall-mounted backboard) 1238.4 mm × 709.2 mm × 99.8 mm (with wall-mounted backboard)
Package Dimensions (W × H × D): 1390 mm × 830 mm × 144 mm
Net Weight: 13 kg
Gross Weight: 19.5 kg
Packing List: Digital signage × 1, wall-mounted backboard (including package of mounting bolts) × 1, power cord for europe × 1, RS232 cable × 1, remote control × 1, user manual × 1, quick start guide × 1, Regulatory Compliance and Safety Information × 1, logo stickers × 1, energy efficiency label × 1

Downloads

8 files from the manufacturer

PDF Datasheets Leaflet-Preview_DL-Series-Wall-Mounted_20250331.pdf 1.4 MB PDF Datasheets Leaflet_DL-Series-Wall-Mounted_20250331.pdf 2.9 MB PDF Datasheets · Opens on manufacturer site DS-D6055UN-DL_Datasheet_20260128.pdf PDF Manuals & guides Quick Start Guide_65b5430c.pdf 807 KB PDF Manuals & guides User Manual_1c097110.pdf 2.1 MB PDF Brochures Digital-Signage-Solution-Infographic.pdf 696 KB PNG Drawings & CAD DS-D6055UN-DL_02.png 1.4 MB 1000 Software & firmware · Opens on manufacturer site Firmware_V3.4.1000_260828

Questions about DS-D6055UN-DL

What is the DS-D6055UN-DL designed for, and who should buy it?

It is a 55-inch wall-mounted signage display for scheduled messages, not visitor input. Its 3840 × 2160 panel and 500 cd/m² brightness suit a clinic waiting room in Al Sadd, a corporate reception in West Bay or a corridor where people read notices from a few metres away. Buyers include clinics, offices, hotels and schools that want one screen managed centrally from a single point.

Is the DS-D6055UN-DL a touch screen?

No. This model is non-touch, so visitors cannot tap through menus or check in on the screen. It shows content from its playlists, a USB drive or remote management. If your project needs visitors to interact with the screen, you need an interactive model instead, and the SmartRooms Qatar team can advise on a suitable option when you request a quote.

Can it cope with Qatar summer heat?

Its listed working temperature is 0 to 40 °C, while summer temperatures in Qatar can exceed 45 °C. Install it in an air-conditioned indoor space such as a lobby or corridor, not in a sun-exposed or poorly ventilated position. The storage range of -20 to 60 °C covers transport and storage but does not extend the operating range. Keep the rear of the panel ventilated and confirm the location with your installer during the site survey.

What video inputs and ports does it have?

It has three HDMI 2.0 inputs with HDCP 2.2 support and one DisplayPort 1.2 input for video and audio. Other connections include one RJ45 network port, RS232 in and out, one USB 2.0 port, one USB 3.0 port and a LINE OUT. Two 6Ω 10 W speakers are built in, and Bluetooth 5.4 is included. The RS232 ports allow an external control system to manage the screen.

Does it support Wi-Fi and wired networking?

Yes. It has one RJ45 Ethernet port and Wi-Fi on 2.4 GHz and 5 GHz, supporting 802.11 a/b/g/n/ac/ax. Bluetooth 5.4 is also included. For a fixed installation in a corridor or lobby, the wired RJ45 connection gives a stable link for remote management, while Wi-Fi helps where cabling is difficult. Confirm your network plan and access points with your IT team before installation.

How are schedules and remote management handled?

Playlists can run by day, by week, in a loop or in a custom plan, and several materials can be combined in one schedule. Administrators can remotely release programs and updates, set timed startup and shutdown, adjust brightness and volume on a timetable and preview screenshots. This suits a hotel or clinic that changes messages across several screens from one office.

What security features are included?

The organisation structure has five levels for managing materials, programs, terminals and users, and you can create custom users with permission templates. Materials, programs and schedules pass a three-level check before release to prevent mistakes. Data is encrypted in storage and in transmission to prevent tampering. There is no default password, so the first user sets their own during activation.

Would it work in a hotel lobby in Msheireb?

Yes, a 55-inch screen is a practical size for a lobby wall or the approach to the lifts. The 178° viewing angles let guests read it from different points, and scheduled playlists can rotate event listings, transport times and welcome messages. Timed startup and shutdown can match check-in hours. Place it away from direct sunlight coming through glazed entrances, and request a site survey to confirm the wall and cable route.

How would a school in Al Wakrah use this model in a corridor?

A school corridor suits a 55-inch screen placed at eye level near classroom doors or the main hall entrance. Timetables, event notices and bilingual announcements can be prepared as pictures, PDF files or video, which the player supports, and scheduled to change between lessons. Staff can update notices within their permissions, while school management keeps control over what is published.

Can a government office buy this under an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. When a ministry or authority buys several units, list the wall positions, number of screens and content plan in your request so the quotation covers the mounting and cabling needs. The quotation is usually issued within one working day.

What wall space and weight should I plan for?

The panel weighs 13 kg net and 19.5 kg gross. The wall-mounted backboard is included, and with it the total depth is 99.8 mm, compared with 70 mm for the screen alone. The overall size is 1238.4 mm wide by 709.2 mm high, and the screen can be mounted in landscape or portrait orientation. Because of its weight, a site survey to check the wall structure is recommended before installation.

What are the power requirements, and is the cord suitable for Qatar?

The input range is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V supply. Typical consumption is 134 W and maximum is 195 W, with standby at 0.5 W or less. The package includes a power cord listed for Europe, so ask SmartRooms Qatar to confirm the plug arrangement for BS 1363 sockets before ordering. Plan a dedicated outlet near the mounting point.
