Hikvision Digital Signage Current

DS-D6065UN-DP

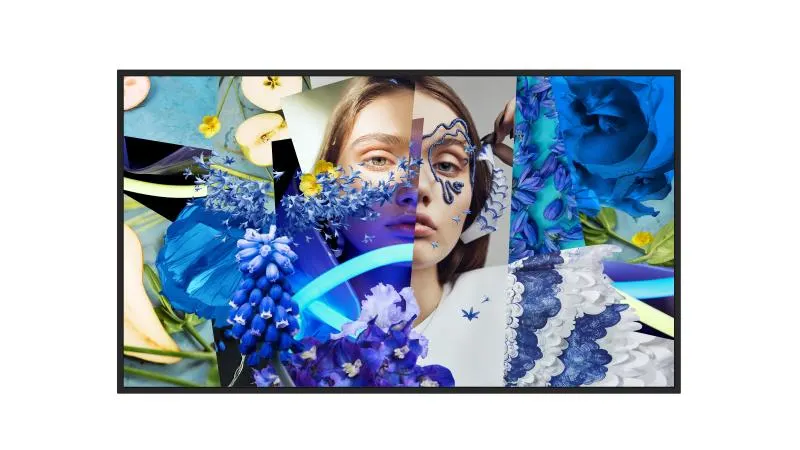

Hikvision DS-D6065UN-DP 65-inch Slim Wall-Mounted Digital Signage Display

Screen size: 65 inch
Resolution: 3840 × 2160
Brightness: 500 cd/m²
Contrast: 5000:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Hikvision DS-D6065UN-DP is a 65-inch wall-mounted digital signage display with 3840 × 2160 resolution, 500 cd/m² brightness and Android 13 built in. It plays scheduled images, video, PDFs and web pages directly from its internal storage, and several screens can be managed centrally. Its body is 38.9 mm deep without the wall backboard, which suits lobbies, corridors and waiting areas in offices, schools and clinics across Qatar. Request a quote for supply and installation.

A 65-inch 4K display built for wall-mounted signage

The Hikvision DS-D6065UN-DP pairs a 65-inch panel with a 3840 × 2160 resolution and a built-in Android 13 player, so content runs on the screen itself without a separate media box. It is a non-touch model, which makes it better suited to information boards, wayfinding, menus and promotional loops than to interactive use. The body measures 38.9 mm deep without its wall backboard, and the unit can be mounted horizontally or vertically.

Panel figures that matter for public viewing

The screen delivers 500 cd/m² of brightness with a 5000:1 contrast ratio. Its E-LED backlight and 178° horizontal and vertical viewing angles keep messages readable from the side of a corridor or from a seated audience. The panel offers 10-bit colour depth (8-bit plus FRC) and an 85% NTSC colour gamut, with a 60 Hz refresh rate and an 8 ms response time. The active display area measures 1428.48 mm by 803.52 mm. The 25% haze rating is worth checking against the glare conditions at your site, particularly near windows. The manufacturer rates the display for continuous 7 × 24 h operation.

Content, scheduling and remote control

The display can show images, video, audio, scrolling subtitles, PDF files, web pages, live video and number calling. Playback follows day, week or loop schedules, or custom patterns, and several materials can sit in one playlist. From a central console you can manage one screen or many, setting timed power on and off, timed brightness and volume changes, screenshot previews and remote release of programs and updates. Local USB content can also be played. A five-level organisation structure lets administrators assign permissions by user level and create permission templates, while a three-stage check of materials, programs and schedules helps prevent the wrong content from going live. Data is encrypted in storage and during transmission, and the unit requires users to set their own password on activation.

Where it fits in Qatar

Hospital and clinic waiting areas in Doha or Al Khor, showing queue numbers, health information and wayfinding in Arabic and English.
University and training centre corridors in Education City or Lusail, displaying timetables, events and announcements from a scheduled playlist.
Retail and mall entrances on West Bay or in Al Rayyan, running promotional loops with brightness adjusted to opening hours.

Planning the installation

At 25.3 kg net, the display needs a solid wall and suitable fixings. The packing includes a wall-mounted backboard and a set of mounting bolts. Overall size is 1459.2 mm wide by 837.1 mm high, and depth rises from 38.9 mm to 68.9 mm with the backboard fitted. Mains input is 100 to 240 VAC at 50/60 Hz, with typical consumption of 90 W, a maximum of 150 W and standby draw of 0.5 W or less. The stated working temperature is 0 to 40°C, so install the screen in an air-conditioned space where summer heat does not push conditions beyond that range, and avoid external or sun-facing frontages. The packing list includes a European power cord, so confirm the plug type with the SmartRooms Qatar team before installation. Free site surveys are available before a unit of this weight is wall mounted.

Request a quote from SmartRooms Qatar for supply, delivery to all eight municipalities of Qatar and professional installation. Quotations are usually issued within one working day, and we accept purchase orders and government tenders.

Highlights

65-inch panel with 3840 × 2160 4K resolution
500 cd/m² brightness and 5000:1 contrast ratio
Android 13 with 4-core 1.92 GHz processor and 4 GB RAM
32 GB built-in storage for scheduled content
HDMI × 3, DP × 1, RJ45 and dual-band Wi-Fi
Wall-mountable horizontally or vertically, 38.9 mm deep

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D6065UN-DP

Display15

Screen Size: 65 inch
Color Temperature: 10000K
Resolution: 3840 × 2160
Active Display Area: 1428.48 (H) mm × 803.52 (V) mm
Pixel Pitch: 0.124(H) mm × 0.372 (V) mm
Backlight: E-LED
Viewing Angle: 178°(H)/178°(V)
Brightness: 500 cd/m²
Contrast Ratio: 5000:1
Color Depth: 10 bit (8 bit + FRC)
Response Time: 8 ms
Color Gamut: 85% NTSC
Reliability: 7 × 24 h
Refresh Rate: 60 Hz
Haze: 25%

Built-in System6

Operation System: Android 13
Processor: Cortex-A55, 4-core, main frequency 1.92 GHz
Memory: 4 GB
Built-in Storage: 32 GB EMMC
Video Format: AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG, H263
Audio Format: MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC

Interface4

Video & Audio Input: HDMI × 3, DP × 1
Video & Audio Output: LINE OUT × 1, speaker (6Ω 10 W) × 2
Network Interface: RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in × 1, RS232 out × 1
Data Transmission Interface: USB 2.0 × 1, USB 3.0 × 1, BT 5.0 × 1

Power3

Input Voltage: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Power Consumption: 90W(typ), 150W(max)

Working Environment4

Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 80% RH (Condensation)
Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity: 10% to 90% RH (Condensation)

General7

Material Type: DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
Mounting Type: Wall mounting (horizontally or vertically)

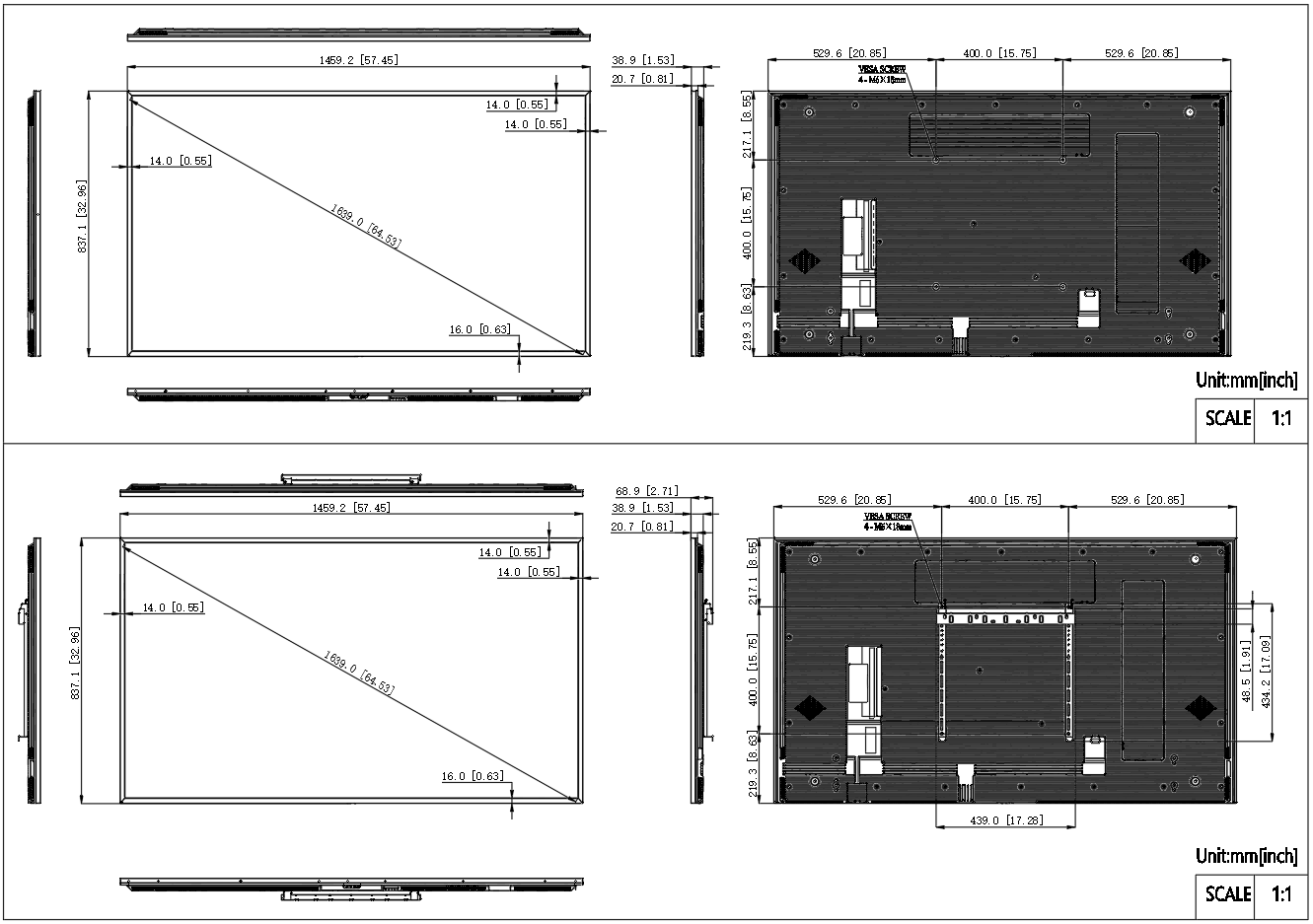

Product Dimensions (W × H × D): 1459.2mm × 837.1mm × 38.9 mm (without wall-mounted backboard) 1459.2mm × 837.1mm × 68.9 mm (with wall-mounted backboard)
Package Dimensions (W × H × D): 1640 mm × 990 mm × 164 mm
Net Weight: 25.3 kg
Gross Weight: 35.2 kg
Packing List: Digital signage × 1, wall-mounted backboard (including package of mounting bolts) × 1, power cord for europe × 1, RS232 cable × 1, remote control × 1, user manual × 1 , quick start guide × 1, Regulatory Compliance and Safety Information × 1, logo stickers × 1, energy efficiency label × 1

Downloads

9 files from the manufacturer

PDF Datasheets Leaflet_DP-series-wall-mounted_20241125.pdf 3.5 MB PDF Datasheets · Opens on manufacturer site DS-D6065UN-DP_Datasheet_20260128.pdf PDF Manuals & guides Quick Start Guide_65b5430c.pdf 807 KB PDF Manuals & guides User Manual_1c097110.pdf 2.1 MB PDF Brochures Digital-Signage-Solution-Infographic.pdf 696 KB PNG Drawings & CAD DS-D6065UN-DP_02.png 166 KB PDF Certificates & compliance · Opens on manufacturer site DS-D6065UN-DP.pdf 0000 Software & firmware · Opens on manufacturer site Firmware_V3.2.0000_260117 1000 Software & firmware · Opens on manufacturer site Firmware_V3.4.1000_260828

Questions about DS-D6065UN-DP

What is the Hikvision DS-D6065UN-DP used for?

It is a 65-inch non-touch display for wall-mounted signage, such as information boards, wayfinding, menus and promotional loops. Its built-in Android 13 system and 4K panel let organisations run scheduled content directly on the screen without manual updates. It suits lobbies, corridors and waiting areas in offices, schools and clinics across Qatar where messages must change throughout the day.

Is this display touch-enabled?

No. The DS-D6065UN-DP is a non-touch model, so it is intended for viewing and scheduled playback rather than interactive use. If you need touch input for a service kiosk or an interactive session, compare interactive panels designed for that purpose. The SmartRooms Qatar team can help you choose the right model for the task before you request a quote.

What resolution and brightness does the panel offer?

The panel has 3840 × 2160 resolution and 500 cd/m² brightness, with a 5000:1 contrast ratio and 178° viewing angles both horizontally and vertically. The active display area measures 1428.48 mm by 803.52 mm. In a lobby or corridor where people view the screen from the side, the wide viewing angle keeps text legible, but test glare near windows because the panel is rated at 25% haze.

What content formats can the screen play?

The display plays images, video, audio, scrolling subtitles, PDF files, web pages, live video and number calling. Supported video formats include H.265, H.264/AVC and AV1, and supported files include AVI, MKV, MOV, JPG, PNG and MP3. Pop-up picture layouts are also available, so a clinic can overlay a notice on a rotating health message without stopping the main playlist.

How do I schedule content for a school or hospital that updates often?

Playback can follow day, week, loop or custom schedules, and several materials can be placed in one playlist. A school in Doha could show timetables in the morning and event announcements at lunchtime, while a clinic in Al Rayyan could rotate health messages with queue information. The three-stage check of materials, programs and schedules helps staff catch errors before content is released.

Can one administrator manage several screens across different sites?

Yes. The central management function controls one or more screens remotely, including timed startup and shutdown, timed brightness and volume changes, screenshot previews, and remote release of programs and updates. A five-level organisation structure lets each user receive permissions based on their role, which suits a retailer with branches in Doha and Al Wakrah or a ministry with offices in several locations.

What network and connection options does it have?

The unit has one RJ45 port and one Wi-Fi module supporting 2.4G and 5G bands with 802.11 a/b/g/n/ac/ax, plus Bluetooth 5.0. Wired connections include HDMI × 3, DP × 1, RS232 in and out, USB 2.0, USB 3.0 and LINE OUT. The RJ45 port gives a wired link for remote management, while Wi-Fi helps where cable runs to a wall are difficult or costly to install.

Can it connect to an existing video wall controller or AV system?

It includes RS232 in and RS232 out ports, so it can be placed in a control chain with other equipment, alongside HDMI and DisplayPort inputs for video sources. The source data does not list the control commands it supports, so confirm compatibility and cable routing with the SmartRooms Qatar team before ordering. The packing list includes one RS232 cable and one remote control.

What power supply does it need and how much does it draw?

The input is 100 to 240 VAC at 50/60 Hz, with typical consumption of 90 W and a maximum of 150 W. Standby draw is 0.5 W or less. The packing list includes a European power cord, and the data does not state a plug type, so confirm that the plug suits Qatar's 240 V, 50 Hz BS 1363 sockets before installation.

Where can it be installed in Qatar without overheating?

The stated working temperature range is 0 to 40°C, with working humidity of 10% to 80% RH. Summer temperatures in Qatar can exceed 45°C, so install the display inside air-conditioned spaces rather than on external walls or in front of sun-exposed glazing. If the planned position is close to a large window, book a free site survey before mounting.

How much does it weigh and what does mounting require?

The net weight is 25.3 kg and the gross weight is 35.2 kg. The packing includes the wall-mounted backboard and a set of mounting bolts. Overall size is 1459.2 mm wide by 837.1 mm high, with depth of 38.9 mm without the backboard and 68.9 mm with it. A free site survey can check wall strength and fixing points before installation, which is especially useful in older buildings in Msheireb or Al Sadd.

Is this model current, and is it covered by a warranty?

Yes, this model is listed as current. It is covered by the manufacturer's warranty. SmartRooms Qatar supplies it with delivery to all eight municipalities of Qatar and professional installation, and accepts purchase orders and government tenders. Quotations are usually issued within one working day, so request a quote to confirm stock and the full scope.
