43BM66AE

What the 43BM66AE is and why it runs 24/7

This model is discontinued. Hisense has discontinued the 43BM66AE and lists it among its end-of-life products. Organisations that already run it, and buyers comparing it with newer options, can ask SmartRooms Qatar for a quote on a current equivalent or a compatible replacement.

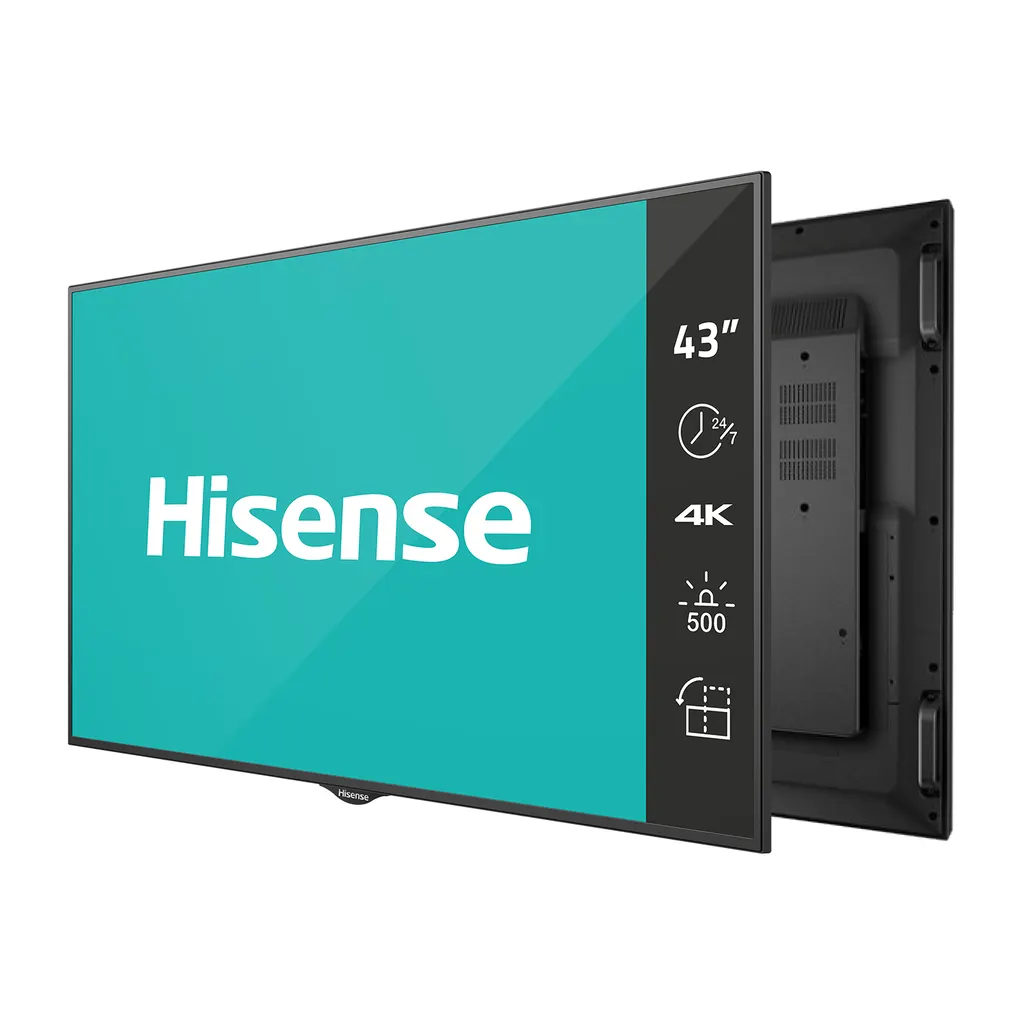

The 43BM66AE is a 43-inch commercial display from Hisense's BM66AE series, built for digital signage that must stay on around the clock. Its IPS panel with ELED backlight runs at 3840 x 2160 resolution and a 60Hz refresh rate. The manufacturer rates the panel lifetime at 50,000 hours and specifies the unit for seven days a week, 24 hours a day operation.

Brightness, viewing angle and orientation

Typical brightness is 500 nits with a typical contrast ratio of 1,200:1, which helps content stay legible in lit shop fronts and lobbies with daylight coming through glass. An auto brightness sensor adjusts output to the surroundings, keeping energy use in check as lighting changes through the day. The 178° viewing angle suits people walking past from the side, and the panel can be mounted in landscape or portrait, so one unit can show a promotional loop or a tall directory.

Content management and connections

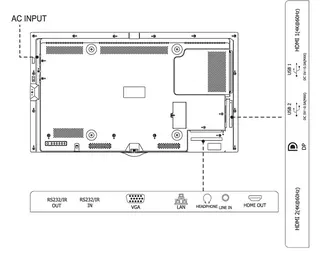

The display uses a dual-core system-on-chip and runs Android 9.0. It can play content from its internal memory, so media can be loaded directly for immediate broadcast, or it can work with cloud-based content. You can use the content management system of your choice, and Hisense's own CMS lets you edit playlists and monitor status in real time. Inputs are HDMI, DVI, VGA and DisplayPort. If the primary source fails, fail-over switches to a predetermined alternative input. Connectivity includes 2.4G/5G Wi-Fi, a 10/100Mbps LAN port and RS232 control over RJ45, with an IR remote in the box.

Planning a Qatar installation

• Heat: the operating range is 0 to 40°C at 10 to 80% humidity. Qatar summers regularly exceed 45°C, so place it indoors in air-conditioned space rather than in sun-exposed or unventilated areas.
• Power: input is AC 100V to 240V at 50 to 60Hz, which covers Qatar's 240 V, 50 Hz mains. Maximum consumption is 120W and standby is below 0.5W.

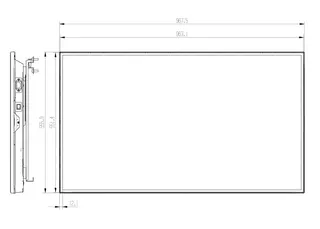

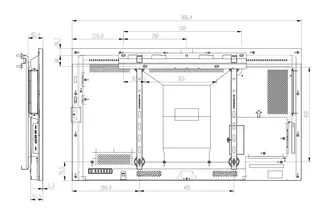

• Mounting: the set measures 968 x 556 x 58.5mm, weighs 13.5kg net and supports VESA 400 x 400mm mounting. The packed weight is 17kg, so a two-person lift and a site survey before fixing to walls are sensible.
• Protection: the main and power boards are coated against dust and water vapour. Internal temperature control reduces backlight brightness at 75°C and switches to standby at 100°C.

Where it fits in Qatar

In a retail unit in West Bay, a 43-inch screen near the entrance can carry offers to passing shoppers, and the wide viewing angle helps people approaching from the side. In a corporate reception in Lusail or the Industrial Area, a portrait-mounted unit can show visitor directions and meeting schedules. In a clinic waiting area in Al Sadd, fail-over switching keeps information on screen if one content source drops. Several units can also be tiled into a video wall, since the bezel is 12.1mm and the logo is detachable; confirm the controller and layout with the SmartRooms Qatar team first.

Request a quote

Tell us how many units you need, the wall or stand layout and whether each screen will be portrait or landscape. SmartRooms Qatar supplies the display, delivers to all eight municipalities of Qatar, installs it professionally and offers a free site survey. Quotations are usually issued within one working day, and lead times are confirmed with the quotation. We accept purchase orders, LPOs and government tenders including Monaqasat, with payment by bank transfer, cheque or purchase order. Request a quote today for this model or a current replacement.
