Hisense 55BM66AE (Discontinued) · Replacements in Qatar

Name: Hisense 55BM66AE 55-inch 4K Digital Signage Display, 24/7 Operation
Brand: Hisense
SKU: hisense-55bm66ae
Availability: Discontinued

Overview

The Hisense 55BM66AE is a 55-inch 4K signage display built for continuous operation with a 3840 x 2160 IPS panel and 500 nits typical brightness. It supports landscape and portrait mounting, runs Android 9.0 with internal memory for offline playback, and has dust and humidity-protected boards for public spaces. Hisense has discontinued this model, so request a quote for a current equivalent. Suited to Doha retail floors and corporate lobbies.

What the Hisense 55BM66AE is built to do

The Hisense 55BM66AE is a 55-inch 4K UHD digital signage display for organisations that need content running all day, every day. Hisense has discontinued this model, so this page is for buyers who already own one, are comparing it with newer displays, or need a like-for-like replacement. SmartRooms Qatar can quote a current equivalent that suits your installation.

The specifications that matter for signage

The panel is an IPS type with ELED backlighting and a native 3840 x 2160 resolution. Typical brightness is 500 nits and typical contrast is 1,100:1, while the 60Hz refresh rate suits static menus, promotions and looped video. The manufacturer rates the lifetime at 50,000 hours and the operation schedule at seven days a week, twenty-four hours a day. The 178 degree viewing angle means people approaching from the side can still read the content.

Inside, the display runs Android 9.0 and keeps media in internal memory, so a playlist can start without an external player. It can also play cloud or offline content, and its built-in content management platform allows playlist editing and central status monitoring. Automatic time zone synchronisation keeps scheduled broadcasts aligned once the display connects to the internet.

Where it fits in Qatar

Retail floors: a shop in a West Bay or Lusail mall where promotions change through the day and the screen must stay bright under interior lighting.
Corporate reception: a head office in Msheireb or the Industrial Area showing visitor information, meeting room status and company news on a landscape screen.
Lift lobbies and wayfinding: a hospital or clinic in Al Sadd or Al Rayyan using portrait orientation for directories and queue information.

Connectivity, power and mounting planning

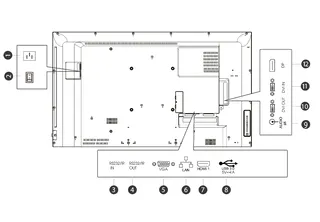

Connections include HDMI, DVI, VGA and DisplayPort inputs, an RS232 control port on RJ45, 10/100Mbps LAN and dual-band 2.4G/5G Wi-Fi. The fail over feature switches to a predetermined backup input if the primary source stops. The power input range of 100 to 240 V at 50 to 60 Hz covers Qatar's 240 V, 50 Hz supply, with a maximum draw of 120 W and standby below 0.5 W.

Plan the environment carefully. The operating temperature range is 0 to 40 degrees Celsius with 20 to 80 percent humidity. Summer temperatures in Qatar regularly rise above 45 degrees Celsius, so the display should sit in an air-conditioned space with clear airflow around the cabinet. Its temperature protection reduces backlight brightness at 75 degrees Celsius and switches to standby at 100 degrees Celsius.

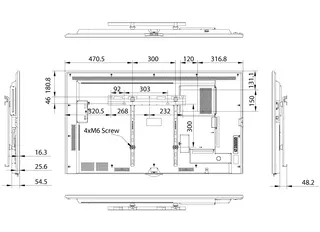

Mounting uses a 300 x 300 mm VESA pattern. The unit measures 1241 x 714.5 x 66 mm and weighs 20.5 kg without packaging, so the wall or bracket must be rated for that load. A free site survey before installation confirms the wall type, cable routing and sightlines.

Buying for several sites or a tender

If you are equipping several floors or branches, a single purchase order can cover the whole order, and government tenders including Monaqasat are handled through our team. Payment by bank transfer, cheque or purchase order is accepted, and products are covered by the manufacturer's warranty. Request a quote and our team will usually respond with a quotation within one working day, recommending a current replacement that matches your screen count, mounting and power needs.

Highlights

3840 x 2160 IPS panel with 500 nits typical brightness
Rated for 24/7 operation with a 50,000-hour lifetime
Landscape and portrait orientation supported
Android 9.0 with internal memory for offline playback
Dual-band 2.4G/5G Wi-Fi and 10/100Mbps LAN
Discontinued by Hisense; request a quote for a current equivalent

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

29 specifications · Source: manufacturer · checked Oct 2026

Panel10

Backlight: ELED
Panel Type: IPS
Size: 55’’
Resolution: 3840 x 2160
Refresh rate: 60HZ
Brightness: 500 nits (typ)
Contrast(typ): 1100:1 (typ)
Orientation: Landscape & Portrait
Lifetime: 50,000hrs
Operation Hours: 7Day x 24Hour

Control Method2

Remote: IR
RS232: RS232*1 (RJ45)

Speaker3

Built in speaker: 9W x2 Power
Input: AC 100V-240V@50-60HZ
Power Consumption: 120W(Max)

Environment2

Operation Temperature: 0 - 40°
Operation Humidity: 20% - 80%

Connectivity2

WIFI: 2.4G/5G
LAN: 10/100Mbps

Operating System1

OS: Android 9.0

Physical7

Bezel Color: Black
Set Dimension(WxHxD): 1241×714.5×66mm / 48.86x28.13x2.6inch
Bezel width (T/L/R/B): 11.7mm(T),14.8mm(B),12.2mm(L/R)
Net Weight: 20.5kg / 45.2lbs
Packing Dimension(WxHxD): 1374×143×847mm / 54.09x5.63x33.35inch
Packed Weight: 23kg / 50.7lbs
VESA: 300*300mm

Certification1

Standard Certification: CB/CE/ErP/cTUVus/CEC/FCC/RCM

What’s in the box1

Value: User manual Remote controller Power cord Logo accessory

Downloads

5 files from the manufacturer

PDF Datasheets 55BM66AE_Datasheet_2023_v2.pdf 625 KB PDF Manuals & guides HCD_IP_Control_Guide_v1.1.pdf 1.2 MB PDF Manuals & guides Hisense User Manual 49-55M Series.pdf 1.4 MB PDF Manuals & guides Hisense_RS232_DOC_V1.5.pdf 1.5 MB PDF Brochures HiSense-Brochure-M-series-2023_v2.pdf 9.3 MB

Questions about 55BM66AE

Is the Hisense 55BM66AE still available from the manufacturer?

Hisense has discontinued the 55BM66AE, so new units may not be obtainable directly from the manufacturer. SmartRooms Qatar can quote a current equivalent or a compatible replacement that matches your mounting, power and content needs. Send us the number of screens, the locations and whether existing brackets must be reused, and our team will respond with a quotation, usually within one working day.

What is this display best suited to in Qatar?

It suits indoor, air-conditioned spaces where content runs all day, such as a retail unit in a West Bay mall, a corporate reception in Msheireb or a clinic waiting area in Al Sadd. Its 500 nits typical brightness keeps promotions readable under interior lighting, and its 178 degree viewing angle helps people passing from the side. Confirm the screen position before installing it near windows.

How bright is the panel, and will it work near windows?

The panel is rated at 500 nits typical brightness with 1,100:1 typical contrast, which suits well-lit shops and offices. For a unit beside a window that receives direct sun in Doha, glare can wash out content even at this brightness. Check the position during a free site survey, and consider moving the screen or adjusting its placement before fixing the bracket.

Can it show portrait content for a lift lobby or menu display?

Yes. The display supports both landscape and portrait orientation, so the same 55-inch panel can show vertical menus, directories or wayfinding content. Set the orientation in the display settings and confirm the bracket allows the panel to be rotated safely. The VESA pattern is 300 x 300 mm and the unit weighs 20.5 kg without packaging.

Can it run 24/7 in a busy hospital or shopping mall?

The manufacturer rates it for seven days a week, twenty-four hours a day operation, with a 50,000-hour lifetime. Its temperature protection lowers backlight brightness at 75 degrees Celsius and switches to standby at 100 degrees Celsius. Because the operating range is 0 to 40 degrees Celsius and Qatar summers exceed 45 degrees, plan for air-conditioned space and clear airflow around the cabinet.

What content management options does it support?

The manufacturer states that you can choose your own content management system for cloud or offline content. It also offers a platform for editing playlists and monitoring status from a central point. Internal memory lets media be loaded for playback without external hardware. Tell us which system you plan to use when requesting a quote so the setup can be planned accordingly.

Will it keep playing if the main video source fails?

Yes. The fail over function switches automatically to a predetermined alternative input when the primary source stops. The display accepts HDMI, DVI, VGA and DisplayPort inputs, and all of them support auto detect. A university lobby or training centre can therefore keep information running during a fault by using a standby player connected to a backup input.

What connectivity and control options does it have?

It offers dual-band 2.4G/5G Wi-Fi, 10/100Mbps LAN, an RS232 control port on RJ45, and an infrared remote. Video inputs are HDMI, DVI, VGA and DisplayPort, and there are two 9 W built-in speakers. The LAN port runs at 10/100Mbps rather than gigabit, so large media files should be loaded over Wi-Fi or local storage where transfer time matters.

What power does it need, and does it suit Qatar mains supply?

The stated input range is AC 100 to 240 V at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Maximum consumption is 120 W and standby consumption is below 0.5 W. A power cord is included in the box, but check that its plug matches your socket type during the quotation, especially for multi-screen installations.

What wall space and mounting do I need?

The set dimensions are 1241 x 714.5 x 66 mm, with bezels of 11.7 mm at the top, 14.8 mm at the bottom and 12.2 mm on each side. The VESA mounting pattern is 300 x 300 mm. Plan for a wall or bracket that carries 20.5 kg, and book a free site survey before drilling, especially for glass walls or lobby columns.

Can I build a video wall with several of these displays?

Yes. The Hisense logo is detachable, which the manufacturer notes is useful when several BM66AE displays form a video wall. Bezels range from 11.7 mm to 14.8 mm, so the gaps between panels will be visible on a large wall. A multi-screen layout also needs matched mounting, cable routing and a plan for consistent content across every screen.

Can a government department or school buy this through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and handles government tenders, including those on Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. For a school ordering several units for corridors or classrooms, one purchase order can cover the full quantity, and the quotation will confirm current equivalent models.
