Name: iiyama ProLite LH10552UWS-B1AG 105-inch 5K Ultra-Wide Display
Brand: iiyama
SKU: iiyama-lh10552uws-b1ag
Availability: InStock

Overview

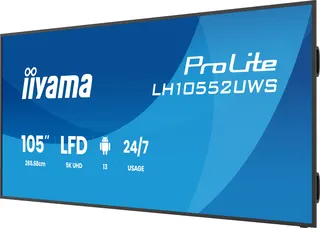

The iiyama LH10552UWS-B1AG is a 104.6-inch IPS display with a 21:9 format and 5120 x 2160 resolution, built for control rooms, hybrid meetings and wide signage. It runs Android 13 on an internal processor with 8GB RAM and 128GB storage, accepts an optional OPS slot PC, and has built-in speakers with a subwoofer. Organisations in Doha and Lusail planning a wide display can request a quote.

A 105-inch 5K ultra-wide panel for control rooms and shared workspaces

The iiyama LH10552UWS-B1AG is a 104.6-inch IPS display with a 21:9 format and 5120 x 2160 resolution, giving a single canvas about 2.49 metres wide. Its matte anti-glare surface, rated at 25% haze, reduces reflections from windows and ceiling lights, which matters in rooms with large glazing. The panel is rated at 500 cd/m² brightness, with 1200:1 static contrast and an 8ms grey-to-grey response time.

That width suits work that needs several sources side by side: an operations room tracking dashboards, a boardroom showing a document beside a live video call, or a lobby displaying wayfinding and event information. The 21:9 format lets content run as one wide image instead of being cropped onto a standard widescreen.

Connectivity for meetings, signage and operator consoles

Inputs include one HDMI port handling 5120 x 2160 at 60Hz, one DisplayPort at the same resolution, and a USB-C port at 3840 x 2160 at 60Hz. The manufacturer describes the USB-C input with 100W power delivery, which can simplify cabling to a compatible laptop. There are also three USB 2.0 ports, an RS-232C port for control, two 1000Mbps RJ45 ports, and an HDMI output that passes video onward at up to 3840 x 2160 at 60Hz.

Android 13 and the optional OPS slot PC

The display runs Android 13 on a built-in RK3588 processor with 8GB RAM and 128GB storage. iiyama DMS and iiyama share are integrated, and kiosk mode is available, so it can show a fixed playlist or an always-on dashboard without a separate media player. Wi-Fi 6E and Bluetooth 5.2 are built in. For organisations that need Windows applications, the Intel OPS 80-pin slot accepts an optional OPS PC.

Planning the installation in Qatar

At 53.5kg without its box and 79.5kg packed, with product dimensions of 2489.9 x 1081.4 x 77mm, this is a wall-structure decision as much as a display decision. It uses a 1000 x 600 VESA pattern with M8 x 25 fixings, and a wall mount bracket is included. SmartRooms Qatar offers free site surveys, which are worth booking before mounting so the wall, bracket position and cable route are checked against the room.

The operating range is 0°C to 40°C, so this display belongs in air-conditioned rooms. Keep it away from glazing that takes direct afternoon sun, and confirm room conditions with the SmartRooms Qatar team where cooling is limited. The internal power supply accepts 100 to 240V at 50/60Hz and draws 248W typical, with 0.5W standby. Confirm that the supplied plug suits BS 1363 sockets before installation.

Where it fits in Qatar

Operations rooms in the Industrial Area or Ras Laffan, where a 24/7 wide display can show status boards without a separate PC.
Boardrooms in West Bay or Msheireb, combining a document, a video call and a presentation on one screen.
Lobbies and atriums in Lusail or Doha, showing wayfinding, event schedules and safety messages in landscape or portrait.

SmartRooms Qatar supplies the LH10552UWS-B1AG across Qatar, including all 8 municipalities, and accepts purchase orders and government tenders. Request a quote and the team will usually respond within one working day, with a site survey arranged before the unit is installed.

Highlights

104.6-inch IPS panel with 5120 x 2160 (5KUW) resolution
500 cd/m² brightness with matte anti-glare coating, 25% haze

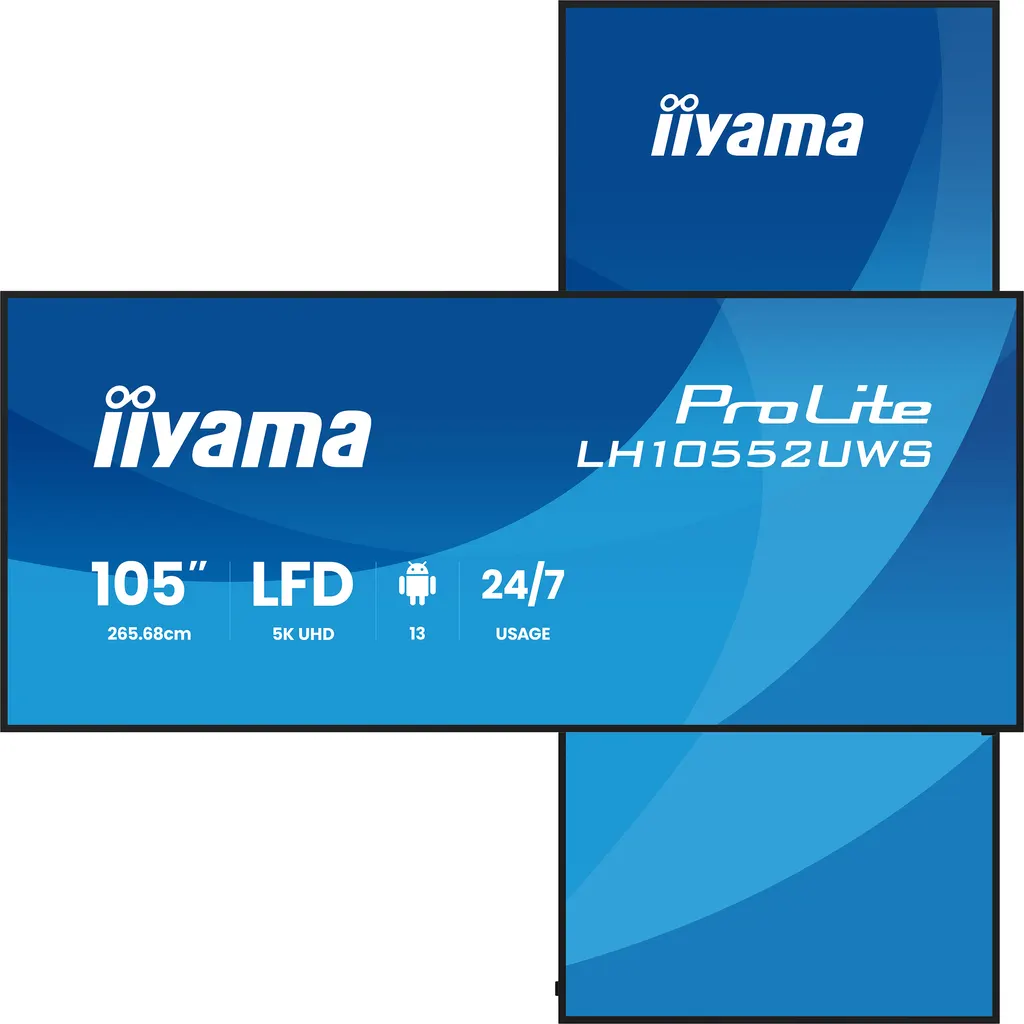

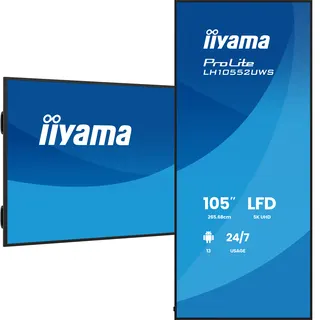

Landscape and portrait orientation supported
Android 13, RK3588 processor, 8GB RAM, 128GB storage
Optional OPS slot for a Windows-capable PC
Two 20W speakers with 20W subwoofer, rated for 24/7 operation

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

56 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS14

Diagonal: 104.6", 265.68cm
Panel: IPS, AG coated glass, matte finish, haze 25%
Native resolution: 5120 x 2160 @60Hz (5KUW)
Aspect ratio: 21:9
Panel brightness: 500 cd/m²
Static contrast: 1200:1
Dynamic contrast: 5000:1
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07G (8 Bits+FRC) (NTSC 85%)
Horizontal Sync: 30 - 135kHz
Viewable area W x H: 2449.92 x 1033.56mm, 96.5 x 40.7"
Bezel width (sides, top, bottom): 14.9mm, 14.9mm, 14.9mm
Pixel pitch: 0.14355 x 0.14355mm

INTERFACES / CONNECTORS / CONTROLS8

Digital signal input: HDMI x1 (5120 x 2160 60Hz, HDMI 2/3/4 x3: 3840 x 2160 60Hz) DisplayPort x1 (5120 x 2160 60Hz) USB-C x1 (3840 x 2160 60Hz)
Audio input: Mini jack x1 (3.5mm)
Monitor control input: RS-232c x1 RJ45 (LAN) x2 (1000Mbps)
Digital signal output: HDMI x1 (Max. resolution 3840 x 2160 @60Hz HDMI2,0 HDCP 1.4)
Audio output: Mini jack x1 (3.5mm) Speakers 2 x 20W (20W subwoofer)
Monitor control output: OPS Slot x1 (65%(max) is plug in OPS)
USB ports: x3 (2.0)
RJ45 (LAN): x2 ((IN/OUT) 1000Mbps)

FEATURES7

Integrated software: Android 13 OS, iiyama DMS, iiyama share
WiFi: yes (WiFi 6E + BT 5.2)
Hardware: SOC: RK3588 Octo-core A76x4 + A55x4, GPU Mali G640 MP4, RAM: 8GB, ROM: 128 GB
Extra: 1x Intel OPS 80pin
Kiosk mode: yes
Max. non-stop operating time: 24/7
Housing (bezel): metal

GENERAL6

OSD languages: EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, CAT, FI, DA, ET, LV, LT, HU
Control buttons: Power key (1key with On: LED Off: , Long push(power off (LED :Red) Turn off/on backlight(Short click) Standby modus (LED :Red Flashing fast)
User controls: Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number)
Blue light reducer: yes
Flicker free: yes
Plug&Play: DDC2B

MECHANICAL4

Orientation: landscape, portrait
VESA mounting: 1000 x 600 m8 x 25
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C

ACCESSORIES INCLUDED4

Cables: power (3m), HDMI (3m), DP (3m), RS-232c (3m)
Guides: quick start guide, safety guide
Other: Guides, cable management cover, remote control, cable ties (5 units), webcam bracket, wall mount bracket, wall mount bracket set
Remote control: yes (batteries included)

POWER MANAGEMENT3

Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 248W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY3

Regulations: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369): G
REACH SVHC: above 0.1%: Lead

DIMENSIONS / WEIGHT7

Product dimensions W x H x D: 2489.9 x 1081.4 x 77mm
Box dimensions W x H x D: 2668 x 1233 x 280mm
Pallet volume: 32pcs
Pallet dimensions W x H x D: 2380 x 1140 x 129mm
Weight (without box): 53.5kg
Weight (with box): 79.5kg
EAN code: 4948570128020

Downloads

8 files from the manufacturer

PDF Datasheets LH10552UWS-B1AG-drawing.pdf 1.6 MB XLSX Datasheets LH10552UWS-B1AG_Specifications.xlsx 9 KB PDF Datasheets LH10552UWS-B1AG_datasheet.pdf 2.0 MB PDF Manuals & guides LH92_10552UWS-B1AG-usermanual-e.pdf 8.0 MB PDF Certificates & compliance LH10552UWS-B1AG EU Energy Label (2607910).pdf 71 KB PDF Certificates & compliance LH10552UWS-B1AG UK Energy Label (2607910).pdf 30 KB PDF Other documents LH10552UWS-B1AG.pdf 318 KB ZIP Other documents · Opens on manufacturer site LH10552UWS-B1AG.zip

Questions about LH10552UWS-B1AG

Who is this 105-inch display best suited to?

The LH10552UWS-B1AG suits organisations that need one very wide screen rather than several panels, such as control rooms, executive boardrooms, lobbies and hybrid meeting spaces. Its 104.6-inch 21:9 panel at 5120 x 2160 resolution gives room for several sources at once. It is heavy and wide, so it fits best where the wall can carry 53.5kg and the 2.49-metre width is available.

What panel and picture quality does it offer?

It uses an IPS panel with 5120 x 2160 resolution, 500 cd/m² brightness, 1200:1 static contrast and a matte anti-glare coating with 25% haze. Horizontal and vertical viewing angles are rated at 178 degrees. The 8ms response time and 8-bit plus FRC colour, quoted at 85% NTSC, suit dashboards, presentations and video. The matte finish helps in rooms with bright ceiling lights or windows.

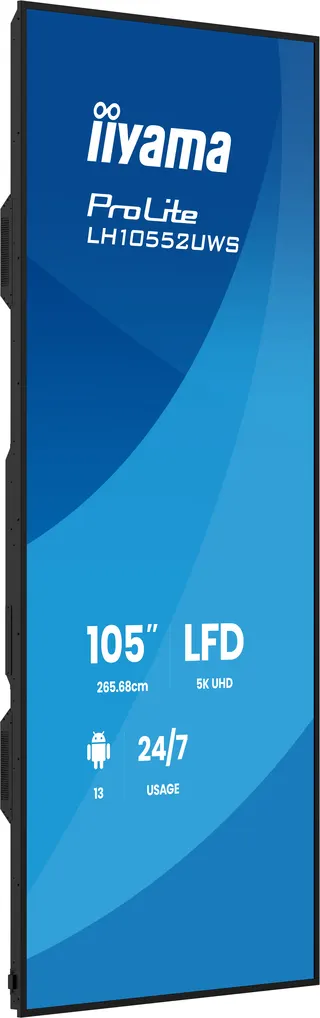

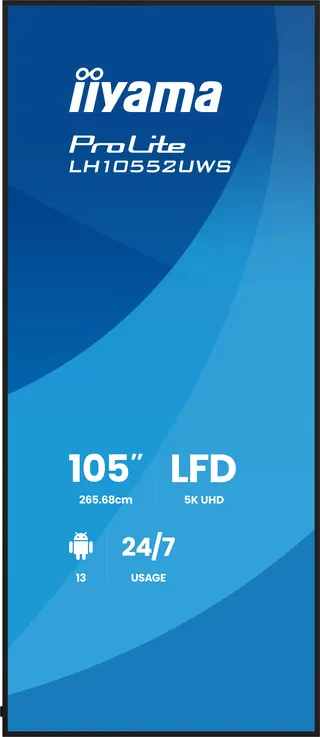

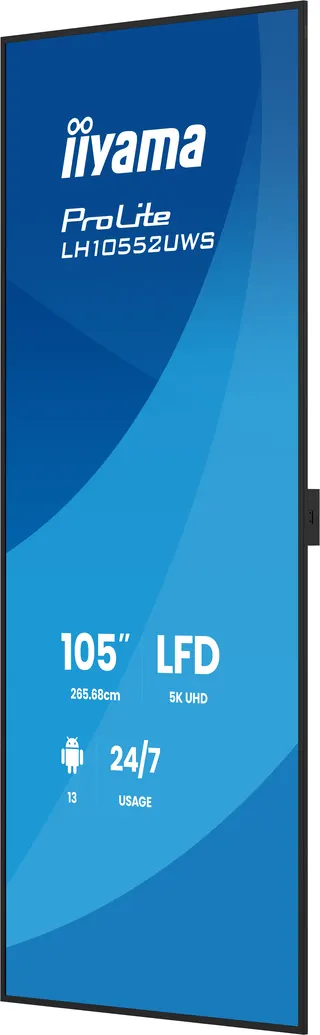

Can it be used in portrait orientation for signage?

Yes. The manufacturer lists both landscape and portrait orientation, so the same unit can show a wide operations dashboard or a tall information layout in a lobby. In portrait, the 2489.9 mm product height becomes the vertical span, so confirm the wall height and bracket layout during the site survey before choosing that orientation for a permanent installation.

Does it need a separate PC to show content?

Not necessarily. It runs Android 13 on an internal RK3588 processor with 8GB RAM and 128GB storage, with iiyama DMS and iiyama share integrated and a kiosk mode available. For Windows applications, the Intel OPS 80-pin slot accepts an optional OPS PC. Check your software requirements with your IT team before ordering, so you know whether the built-in system or an OPS PC is needed.

Is it rated for continuous operation in a control room?

The manufacturer lists a maximum non-stop operating time of 24/7, which suits operations centres that run around the clock. Typical power use is 248W, with 0.5W standby, so the room's cooling load should be considered for continuous use. Operating temperature is 0°C to 40°C, so it belongs in an air-conditioned room. Ask SmartRooms Qatar to review ventilation and mounting before you order.

Will it cope with Qatar's summer heat?

Only within its rated range. The operating temperature is 0°C to 40°C, and the storage range is -20°C to 60°C. In Doha summers, the room must stay under 40°C, so place the display in an air-conditioned space away from direct sun through glass. Avoid covered entrances or unconditioned areas. Confirm room conditions with the SmartRooms Qatar team before installation.

Does it work with Qatar's 240V mains power?

The internal power supply is rated for AC 100 to 240V at 50/60Hz, which covers Qatar's 240V, 50Hz mains. It draws 248W typical, and the package includes a 3-metre power cable. Qatar uses BS 1363 (Type G) sockets, so confirm that the supplied plug fits before installation and that the circuit can carry the display along with any media players or conferencing equipment.

How heavy is it and how should it be mounted?

It weighs 53.5kg without packaging and 79.5kg in its box. It uses a 1000 x 600 mm VESA pattern with M8 x 25 fixings, and a wall mount bracket and bracket set are included. Because the panel is 2489.9 mm wide, plan a structural wall check and a free SmartRooms Qatar site survey before installation, including the cable route to power and signal points.

What connections are available for a boardroom laptop and video conference system?

Inputs include HDMI at 5120 x 2160 at 60Hz, DisplayPort at 5120 x 2160 at 60Hz, and USB-C at 3840 x 2160 at 60Hz. A 3.5mm audio input and an RS-232C port are also fitted. HDMI and DisplayPort cables of 3 metres are included. A webcam bracket is supplied, but the camera itself is not listed, so select a conferencing camera separately.

How good are the built-in speakers?

The display has two 20W speakers and a 20W subwoofer, plus a 3.5mm audio output for external sound. This is useful for presentations, video conferences and multimedia in a room without a separate sound system. The data does not give a speaker coverage figure, so test the room acoustics before deciding whether external speakers are needed for a large hall or a noisy space.

Can it connect to the network and wireless devices?

Yes. It has Wi-Fi 6E and Bluetooth 5.2 built in, plus two 1000Mbps RJ45 ports labelled IN and OUT. Network settings cover Ethernet, Wi-Fi, hotspot and VPN. Ethernet suits content management in an operations room, while Wi-Fi can serve a lobby where cable runs are difficult. Confirm network policy and any VPN requirements with your IT team before connecting to a corporate network.

How does ordering through an LPO or government tender work with SmartRooms Qatar?

SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A ministry or school ordering several units can request a single quotation covering all of them, and delivery is available to all 8 municipalities of Qatar. Quotations are usually provided within one working day, and the manufacturer's warranty applies to the product.
