LH3241S-B2

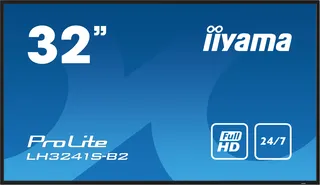

iiyama ProLite LH3241S-B2 32-inch Full HD Digital Signage Display
- Screen size
- 31.5" / 80cm
- Resolution
- 1920 x 1080 (2.1 megapixel Full…
- Brightness
- 350 cd/m²
- Contrast
- 1200:1
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

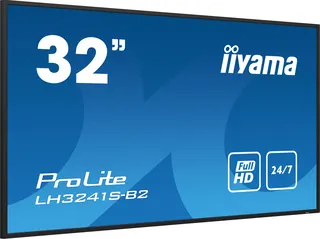

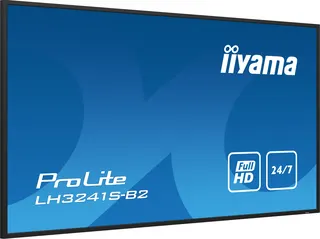

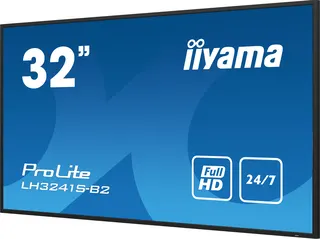

The iiyama LH3241S-B2 is a 32-inch Full HD IPS large format display built for digital signage. It is rated for around-the-clock operation, runs in landscape or portrait, and plays video, photo and music files directly on screen from a USB flash drive or internal memory. Its 178-degree viewing zone and 350 cd/m² brightness suit reception areas, corridors and waiting rooms in Doha, Lusail and Al Wakrah. Request a quote.
A 32-inch IPS display rated for constant signage use
The iiyama LH3241S-B2 is a 32-inch professional display with a 31.5-inch viewable diagonal, a 1920 x 1080 IPS panel and a 14.75 mm side bezel. Its 8 ms grey-to-grey response and 24/7 maximum non-stop rating make it a practical choice for screens that stay lit from opening to closing time, mounted either landscape or portrait.
Image quality and viewing angles that matter
IPS technology keeps colour and brightness consistent when people approach a screen from the side, with a 178-degree zone both horizontally and vertically. The panel delivers 350 cd/m² brightness and a 1,200:1 static contrast ratio, and it displays 16.7 million colours at 8-bit depth with 72% NTSC colour support. A pixel pitch of 0.364 mm keeps text crisp at normal reading distance. The Full HD resolution fits about 60% more information on screen than a 1280 x 1024 monitor, which helps with menus, timetables and wayfinding maps.
Playback, connections and remote control
- Media player: shows video, photos, images and music from a USB flash drive or internal memory. Built-in media playback does not run in portrait orientation.

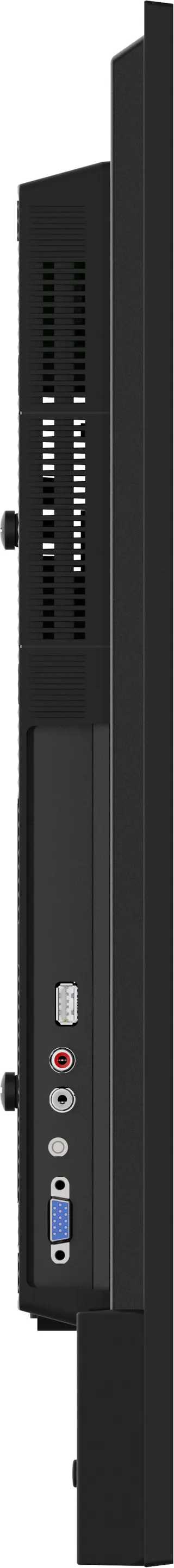

- Inputs: three HDMI inputs, one VGA input, one mini-jack audio input and an RCA audio output.
- Control: RS-232c input and output, an RJ45 LAN port and IR input and loop-through, so the on-screen menu can be adjusted over your network. Network control software is not included.
- Protection and updates: HDCP 2.2 support for protected HDMI sources, plus a USB 2.0 port that supports firmware updates.
Where it fits in Qatar
In a clinic in Al Sadd, a screen in the waiting room can display queue numbers and health awareness messages through the working day, in an air-conditioned space where the 0 to 40 degree operating range is comfortably met. A retail unit in Al Wakrah might mount the panel in portrait to show wayfinding or opening-hours information, remembering that portrait use needs an external source connected by HDMI because built-in media playback is not supported in that orientation. In a lobby on the West Bay side, the panel's brightness and wide viewing zone help it stay readable for visitors approaching from the side, but direct sunlight through glass must be planned for.
What to plan before ordering
- Temperature: the operating range is 0 to 40 degrees Celsius and storage is -20 to 60 degrees. Qatar summer temperatures can exceed 45 degrees, so install the display indoors in air-conditioned space, away from windows and direct sun. Confirm the location with the SmartRooms Qatar team before quotation.

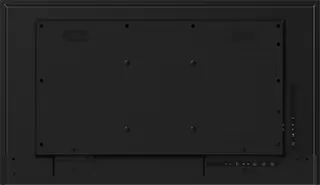

- Mounting: the rear VESA pattern is 200 x 200 mm. The product measures 725.5 x 422 x 54 mm and weighs 5.1 kg without its box. A wall bracket is not listed among the included accessories, so it is confirmed in the quotation. A free site survey helps check wall construction and cable routes.
- Power: the supply range is AC 100 to 240 V at 50/60 Hz, with 39 W typical consumption, 0.5 W standby and 0.3 W in off mode.
- Included in the box: power, HDMI and RS-232c cables, a remote control with batteries, cable management, a quick start guide and a safety guide. A VGA cable and media player are not listed.
Request a quote
Tell us how many screens you need, the room or corridor where they will sit and whether you prefer landscape or portrait mounting. The SmartRooms Qatar team will prepare a quotation, usually within one working day, covering supply, delivery to all eight municipalities of Qatar and professional installation. Request a quote for the iiyama LH3241S-B2 today.
Highlights
- 32-inch Full HD IPS panel at 1920 x 1080 resolution

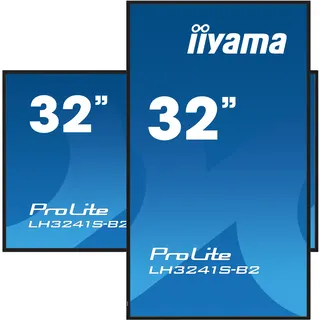

- Rated for 24/7 operation in landscape and portrait
- 350 cd/m² brightness and 1,200:1 static contrast
- Built-in media player with USB flash drive playback
- LAN control and RS-232c for remote menu adjustment
- Fanless design with 0 to 40 degree operating range
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
49 specifications · Source: manufacturer · checked Oct 2026
DISPLAY CHARACTERISTICS15
- Design
- Thin bezel
- Diagonal
- 31.5", 80cm
- Panel
- IPS, haze 1%
- Native resolution
- 1920 x 1080 (2.1 megapixel Full HD)
- Aspect ratio
- 16:9
- Panel brightness
- 350 cd/m²
- Static contrast
- 1200:1
- Response time (GTG)
- 8ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Colour support
- 16.7mln 8bit (NTSC 72%)
- Horizontal Sync
- 30 - 80kHz
- Viewable area W x H
- 698.4 x 392.9mm, 27.5 x 15.5"
- Bezel width (sides, top, bottom)
- 14.75mm, 14,75mm, 15mm
- Pixel pitch
- 0.364mm
- Bezel colour and finish
- black, glossy
INTERFACES / CONNECTORS / CONTROLS8
- Analog signal input
- VGA x1
- Digital signal input
- HDMI x3
- Audio input
- Mini jack x1
- Monitor control input
- RS-232c x1 RJ45 (LAN) x1 IR x1
- Audio output
- RCA (L/R) x1 Speakers 2 x 10W
- Monitor control output
- RS-232c x1 IR loop through x1
- HDCP
- 2.2
- USB ports
- x1 (2.0, FW update support)
FEATURES3
- Max. non-stop operating time
- 24/7
- Media playback
- Yes (in pivot not supported)
- Housing (bezel)
- plastic
GENERAL3
- OSD languages
- EN, DE, FR, ES, IT, RU, JP, NL
- Control buttons
- Power
- User controls
- picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
MECHANICAL6
- Orientation
- landscape, portrait
- Fanless design
- yes
- VESA mounting
- 200 x 200mm
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - 60°C
- MTBF
- 50000 hours (excluding backlight)
ACCESSORIES INCLUDED4
- Cables
- power, HDMI, RS-232c
- Guides
- quick start guide, safety guide
- Other
- Cable Management
- Remote control
- yes (batteries included)
POWER MANAGEMENT3
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Power usage
- 39W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY3
- Regulations
- CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- REACH SVHC
- above 0.1%: Lead, Lead monoxide
DIMENSIONS / WEIGHT4
- Product dimensions W x H x D
- 725.5 x 422 x 54mm
- Box dimensions W x H x D
- 824 x 554 x 119mm
- Weight (without box)
- 5.1kg
- EAN code
- 4948570123506
Downloads
9 files from the manufacturer
PDF
iiyama LH3241S-B2 datasheets (PDF, 2.9 MB)
XLSX
iiyama LH3241S-B2 datasheets (XLSX, 8 KB)
PDF
iiyama LH3241S-B2 datasheets (PDF, 891 KB)
PDF
iiyama LH3241S-B2 manuals & guides (PDF, 6.7 MB)
PDF
iiyama LH3241S-B2 drawings & cad (PDF, 318 KB)
PDF
iiyama LH3241S-B2 certificates & compliance (PDF, 669 KB)
PDF
iiyama LH3241S-B2 certificates & compliance (PDF, 71 KB)
PDF
iiyama LH3241S-B2 certificates & compliance (PDF, 29 KB)
PDF
iiyama LH3241S-B2 other documents (PDF, 318 KB)
Questions about LH3241S-B2
What is the iiyama LH3241S-B2 designed for?
It is a professional large format display for digital signage, meant for screens that show menus, announcements, wayfinding or promotional loops in public-facing spaces. Its 24/7 rating and built-in media player suit venues that run all day with preloaded content. Clinics, school corridors, small retail units and hotel lobbies are typical fits for a 32-inch panel.
Is it rated to run 24 hours a day?
Yes, the manufacturer rates it for a maximum non-stop operating time of 24/7, and lists an MTBF of 50,000 hours excluding the backlight. To keep it within its specification, use it inside a room where the temperature stays between 0 and 40 degrees Celsius. In Qatar that means air-conditioned indoor space rather than a veranda, loading bay or unventilated booth.
Can I show content in portrait orientation?

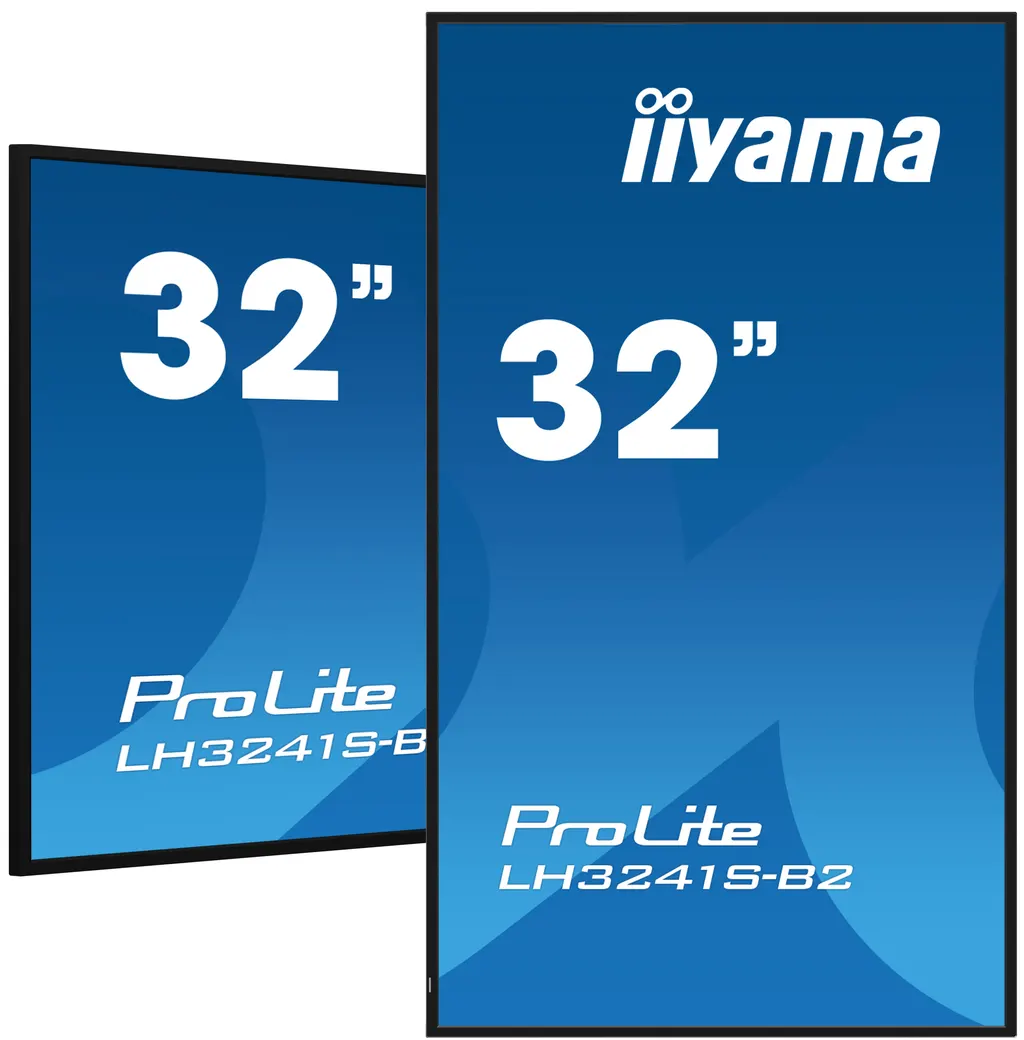

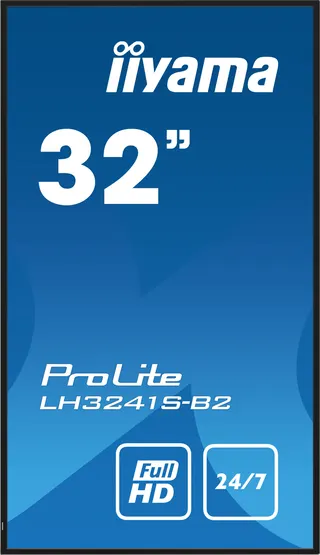

The panel can be mounted in landscape or portrait, but built-in media playback does not work in portrait. For a portrait wayfinding or queue screen, such as one in a retail store in Al Wakrah, feed the display from an external source connected by HDMI. Ask the SmartRooms Qatar team to confirm your player and content setup before quotation.
How do I load videos, photos and music onto the screen?
Copy your files to a USB flash drive and plug it into the display's USB 2.0 port, or store them in the internal memory. The built-in media player then shows videos, photos, images and music directly on screen. The same USB port also supports firmware updates. Confirm which file formats you need with the SmartRooms Qatar team before ordering.
Can the display be controlled over a network?
Yes. The RJ45 LAN port lets you adjust the on-screen menu through your network. Network control software is not included, so your IT team will need to plan how commands are sent. RS-232c and IR inputs are also available for control from a separate system or remote, which helps facilities teams manage several screens from one place.
Will it stay readable in a West Bay lobby with glass facing the street?
The 350 cd/m² brightness and 178-degree viewing zone help content stay readable for visitors approaching from the side. Direct sunlight through large glass windows, however, can wash out any screen and heat the room. Position the panel out of direct sun, consider blinds, and confirm the room's air conditioning capacity during the free site survey before the quotation is issued.
Can I mount it on a wall in a clinic corridor in Al Sadd?
Yes, the rear VESA pattern is 200 x 200 mm and the unit weighs 5.1 kg without its box, measuring 725.5 x 422 x 54 mm. A wall bracket is not listed among the included accessories, so it will be specified in the quotation. A free site survey lets the installer check wall construction, cable routes and the corridor's ambient temperature before mounting.
Does it have built-in speakers for a classroom in Education City?
It has two 10 W speakers and an RCA audio output for connecting external audio equipment. For a small classroom or breakout room, the built-in speakers may be enough for announcements or short clips. For a larger lecture room or a hall, use the RCA output to connect a separate amplifier and speakers, and confirm the layout with the SmartRooms Qatar team.
Which inputs and cables are included?
The panel has three HDMI inputs, one VGA input, a mini-jack audio input and HDCP 2.2 support for protected HDMI sources. The box includes a power cable, an HDMI cable, an RS-232c cable, a remote control with batteries, cable management and two guides. A VGA cable and a media player are not listed as included, so add them to your order if needed.
What power does it use and is it suitable for Qatar mains?
The power supply is listed at AC 100 to 240 V, 50/60 Hz, which covers the 240 V, 50 Hz mains supply used in Qatar. Typical consumption is 39 W, with 0.5 W in standby and 0.3 W in off mode. The product carries an energy efficiency class G rating under EU regulation 2017/1369, which is useful when a facilities team reviews running costs.
Can a school or ministry order several units through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. For a school fitting out several corridors, list the number of units, the mounting method and delivery to the relevant municipality in your request, so the quotation covers the full set.
What should I ask before choosing this model over a larger screen?
Consider the viewing distance, the room size and the content. A 32-inch panel suits corridors, reception desks and waiting areas where people stand close, while larger screens suit bigger rooms. Check the 1920 x 1080 resolution against your content, the 0 to 40 degree operating range against your room conditions, and the portrait playback limit. Request a quote and the team will advise on alternatives.
