iiyama Digital Signage Current

LH5064UHS-B1AG

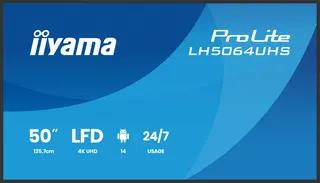

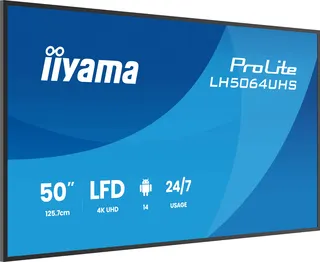

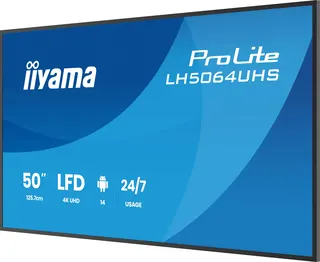

iiyama ProLite LH5064UHS-B1AG 50-inch 4K UHD Digital Signage Display

Screen size: 50" / 125.8cm
Resolution: 3840 x 2160 @60Hz (8.3…
Brightness: 500 cd/m²
Contrast: 1200:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The iiyama LH5064UHS-B1AG is a 50-inch 4K UHD professional display built for signage playback. It runs Android 14 with iiSignage² content management, supports landscape and portrait use, and has built-in dual-band Wi-Fi. Its 500 cd/m² IPS panel and matte anti-glare glass suit lobbies, retail floors and restaurants in Doha, Lusail and West Bay. Request a quote from SmartRooms Qatar.

What the LH5064UHS-B1AG is built to do

The iiyama LH5064UHS-B1AG is a 50-inch large-format display for signage playback in public and commercial spaces. It pairs a 3840 x 2160 IPS panel with a matte, anti-glare glass face and runs Android 14 on its own processor, so apps, content and remote management sit on the screen rather than on a separate media player. The 500 cd/m² panel brightness and 1200:1 static contrast keep text and images readable on shop floors and lobbies where daylight changes through the day.

The specifications that matter for signage

Resolution: 3840 x 2160 at 60Hz with a 0.285 mm pixel pitch, so small text on menus and directories stays crisp at close viewing distance.
Inputs: two HDMI 2.0 ports, one USB-C port with DisplayPort Alt mode and 15W power delivery, and two USB 2.0 ports.
Control and network: RJ45 LAN, built-in Wi-Fi on 2.4G and 5G, RS-232c and IR control, plus a control output and IR loop-through for passing commands along a row of displays.
Software: Android 14 with iiSignage² content management, iiControl device management, iiShare wireless presentation and FailOver input switching.
Build: fanless design, 24/7 rated operation, 0°C to 40°C operating range and VESA 400 x 300 mm mounting.

Where it fits across Qatar

A retailer in The Pearl can run promotional loops and wayfinding on a panel near the entrance, with content updated remotely through iiSignage² from head office in Doha. A hotel lobby in West Bay can mount the screen in portrait orientation beside the lifts for a vertical welcome panel, and FailOver will switch to a backup playlist if the main source stops sending a signal. A clinic waiting area in Al Sadd or a corporate reception in Msheireb can show queue information and safety notices, with Wi-Fi or LAN used wherever cabling is difficult.

Planning the site before you order

Summer heat is the main planning point. The 40°C upper operating limit is well below the outdoor air temperatures Qatar reaches in summer, so position the display in an air-conditioned room, keep it out of direct sunlight from windows, and leave the ventilation around the enclosure unobstructed. The panel weighs 10.4 kg without packaging and mounts on a 400 x 300 mm VESA pattern with a bracket included, so check wall construction and fixing points first. SmartRooms Qatar offers free site surveys to confirm wall type, cable routes and mounting height before the order is placed.

Power draw is 123W typical and 0.5W on standby, and the power supply accepts 100-240V at 50/60Hz. Plan a socket at the mounting point and a route for the LAN or Wi-Fi setup. A school or government office buying several units can issue a purchase order or LPO, and SmartRooms Qatar supplies government tenders, including those on Monaqasat, so procurement paperwork can be matched to the quotation.

Requesting a quote for this model

Tell SmartRooms Qatar how many displays you need, the room or site, and whether you need landscape or portrait mounting. We supply and deliver to all eight municipalities of Qatar, arrange professional installation, and usually send a quotation within one working day. Request a quote for the iiyama LH5064UHS-B1AG today and we will confirm the configuration and the accessories supplied with the display.

Highlights

50-inch 4K UHD IPS panel at 3840 x 2160 resolution
500 cd/m² brightness with matte anti-glare glass
Android 14 with iiSignage² content management
Built-in Wi-Fi on 2.4G and 5G bands
Landscape and portrait orientation with 24/7 rating
Fanless design with 0°C to 40°C operating range

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

55 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS15

Design: Thin bezel
Diagonal: 50", 125.8cm
Panel: IPS, Anti-Glare coated glass, matte finish, haze 25%
Native resolution: 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Static contrast: 1200:1
Response time (GTG): 6.5ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync: 57 - 62kHz
Viewable area W x H: 1096 x 616.4mm, 43.2 x 24.3"
Bezel width (sides, top, bottom): 12.8mm, 12.8mm, 12.8mm
Pixel pitch: 0.285mm
Bezel colour and finish: black, matte

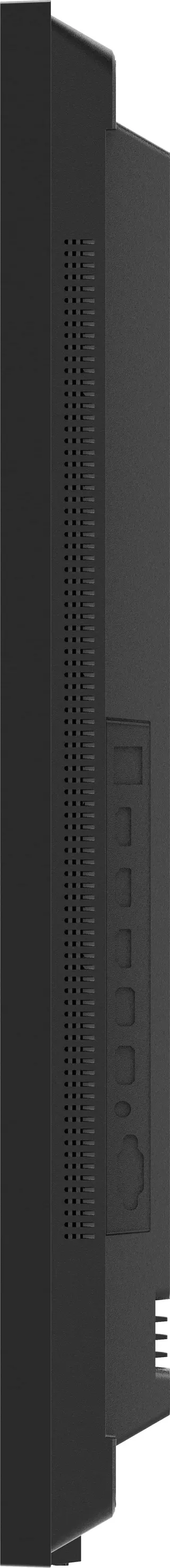

INTERFACES / CONNECTORS / CONTROLS6

Digital signal input: HDMI x2 (v.2.0, max. 3840x2160 @60Hz) USB-C x1 (DP Alt, 15W PD)
Monitor control input: RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
Audio output: Mini jack x1 (3.5mm) Speakers 2 x 10W
Monitor control output: RS-232c x1 (2.5mm) IR loop through x1 (3.5mm)
HDCP: v.1.4 & 2.0
USB ports: x2 (v.2.0)

FEATURES8

Integrated software: Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager
WiFi: yes (Built-in, 2.4G/ 5G)
Hardware: CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB
Extra: Wall mounting kit included (VESA 400x300mm)
Max. non-stop operating time: 24/7
Anti image retention: yes
Media playback: yes
Housing (bezel): plastic

GENERAL4

OSD languages: EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons: Power Indicator, Power button, Remote Sensor
User controls: network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR
Plug&Play: DDC2B

MECHANICAL6

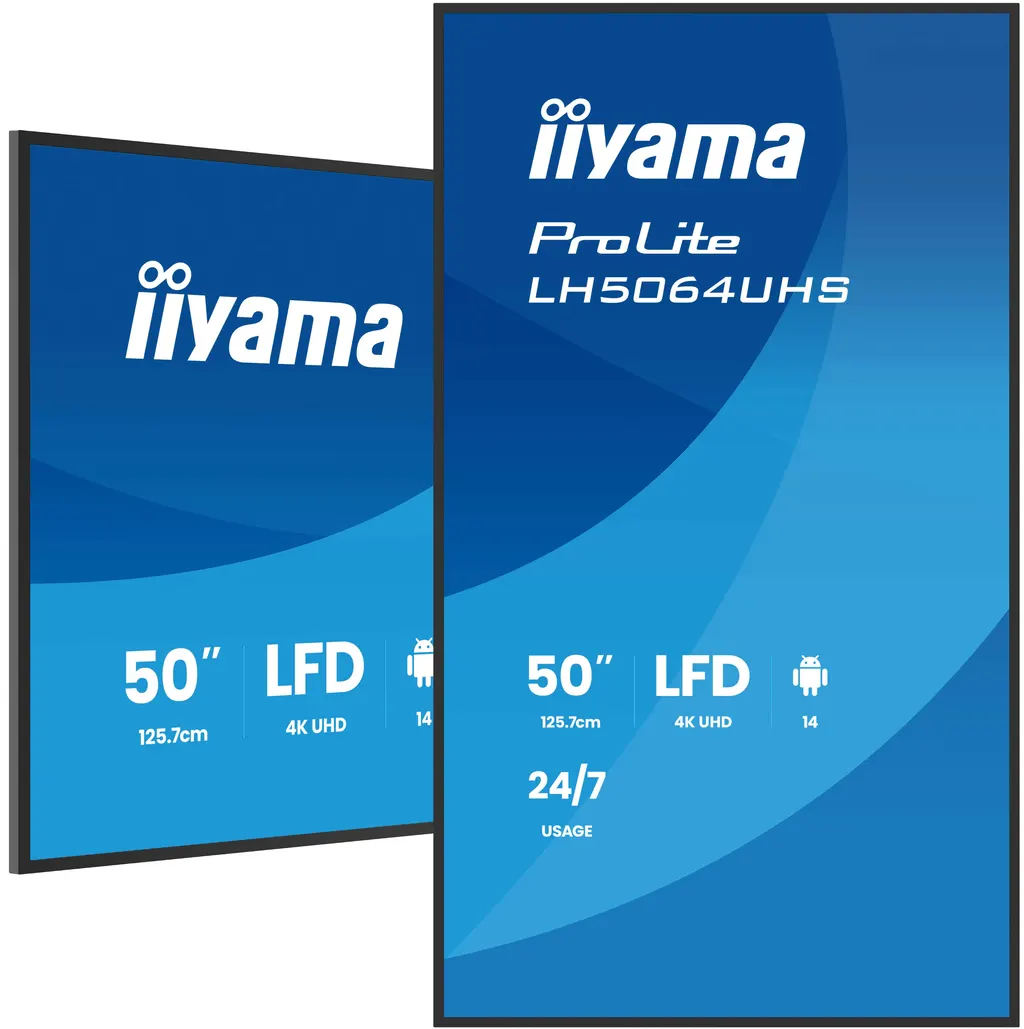

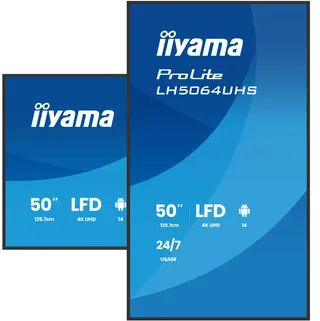

Orientation: landscape, portrait
Fanless design: yes

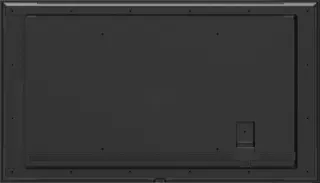

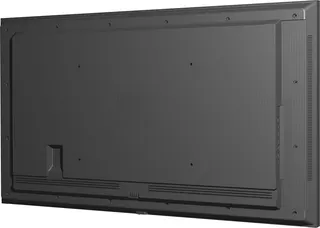

VESA mounting: 400 x 300mm
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
MTBF: 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED4

Cables: power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides: quick start guide, safety guide
Other: Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control: yes (batteries included)

POWER MANAGEMENT4

Energy Star 8.0 (POn at 230V): 69.5W
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 123W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY3

Regulations: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS)
Energy efficiency class (Regulation (EU) 2017/1369): G
REACH SVHC: above 0.1%: Lead, Lead monoxide

DIMENSIONS / WEIGHT5

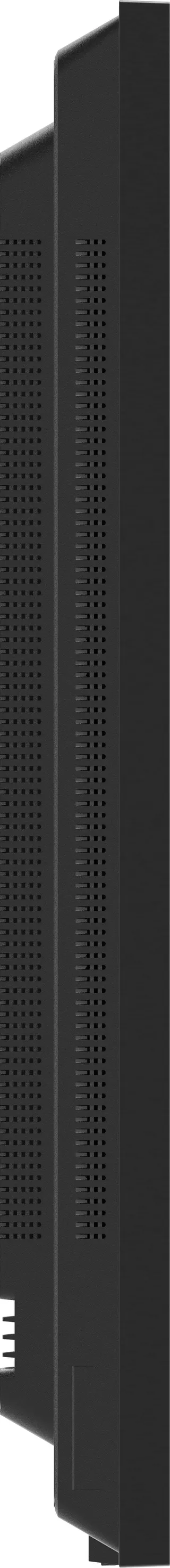

Product dimensions W x H x D: 1124.6 x 644.8 x 68.5mm
Box dimensions W x H x D: 1250 x 760 x 144mm
Weight (without box): 10.4kg
Weight (with box): 14.8kg
EAN code: 4948570125340

Downloads

13 files from the manufacturer

XLSX Datasheets LH5064UHS-B1AG_Specifications.xlsx 9 KB PDF Datasheets LH5064UHS-B1AG_datasheet.pdf 1.2 MB PDF Manuals & guides LH_43_50_55_65_75_E9864UHS-usermanual-e-revE.pdf 10.8 MB PDF Drawings & CAD LH5064UHS-B1AG_Drawing.pdf 919 KB ZIP Drawings & CAD · Opens on manufacturer site LH5064UHS.zip PDF Certificates & compliance LH5064UHS-B1AG EU Energy Label (2223718).pdf 72 KB PDF Certificates & compliance LH5064UHS-B1AG UK Energy Label (2223718).pdf 30 KB PDF Other documents LH5064UHS CE DoC.pdf 353 KB PDF Other documents LH5064UHS-B1AG-A.pdf 318 KB PDF Other documents LH5064UHS-B1AG.pdf 345 KB PDF Other documents RS232-LAN_commands_2026_08_Txx29AS_LHxx64_LHxx66_LHxx81.pdf 3.1 MB PDF Other documents ii_iisignage2_whitepaper_A4_EN (09.23).pdf 4.2 MB ZIP Other documents · Opens on manufacturer site LHxx60_RS232-LAN_commands_improved_2023_08.zip

Questions about LH5064UHS-B1AG

What is this display best used for?

It is a 50-inch 4K UHD screen designed to play signage content such as promotions, menus, wayfinding and safety messages in public-facing spaces. Its 500 cd/m² brightness and matte anti-glare surface suit shop floors, hotel lobbies and restaurants in Doha, where daylight and reflections from glass frontages can wash out a screen. A quote will confirm the right setup for your site.

How does iiSignage² help a company with several sites in Qatar?

iiSignage² is the content management platform that lets you schedule playlists and send them to each display over the network. A retail group with branches in Doha, Al Wakrah and Al Khor can update every screen from one central point, and the built-in Wi-Fi and RJ45 LAN port give you two ways to connect each unit. Confirm the network arrangements with SmartRooms Qatar before installation.

Can it be mounted in portrait orientation?

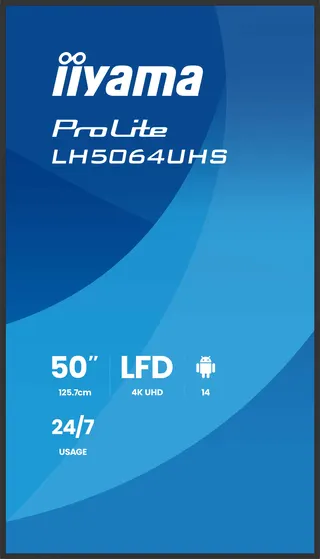

Yes. The panel works in landscape or portrait orientation, which suits a vertical menu board at a café counter or a wayfinding column in a mall corridor. The product measures 1124.6 x 644.8 mm, so in portrait it stands taller than it is wide. Check the available height and width against these dimensions and your mounting position before ordering.

What happens if the main input loses its signal?

FailOver detects when the default input has no signal and switches automatically to the next input in the priority order you set. Prioritised sources can include the browser, media player and custom inputs, so a hotel lobby screen can fall back to a backup playlist instead of going blank. Content stays on screen during a cable fault or source restart without anyone needing to attend the display.

Will it cope with Qatar's summer heat?

Only within its rated range. The operating temperature is 0°C to 40°C, while summer temperatures in Qatar can exceed 45°C. Install it indoors in an air-conditioned area, away from direct sun through windows, and keep the ventilation around the enclosure clear. The storage range is -20°C to 60°C. Ask the SmartRooms Qatar team to review the location before you order.

Does it need a wired network connection?

No, but it can use one. Built-in Wi-Fi supports the 2.4G and 5G bands, and an RJ45 LAN port is available for a wired connection. A wired link is usually more reliable for large content files and a permanent reception or lobby installation, while Wi-Fi suits locations where running cable is difficult. Ask SmartRooms Qatar which option fits your building.

Which devices can I connect to it?

The display has two HDMI 2.0 inputs supporting up to 3840 x 2160 at 60Hz, plus a USB-C input with DisplayPort Alt mode and 15W power delivery. Two USB 2.0 ports, a 3.5 mm audio output and two 10W speakers cover most playback setups. RS-232c and IR control let a building management system or a remote handle the screen. Confirm your source devices with the team before ordering.

What is included in the box, and how is it mounted?

The package includes a wall mount bracket, mounting guide, screws, screw anchors, a remote control with batteries, a 1.8 m power cable, a 1.8 m HDMI cable, a 1.8 m RS-232c cable and a quick start guide. The mount pattern is 400 x 300 mm VESA. Because the panel weighs 10.4 kg without packaging, a free site survey helps confirm wall construction before installation.

How much power does it use, and is it suited to 24/7 operation?

Typical consumption is 123W, with 0.5W on standby and 0.3W in off mode. The display is rated for 24/7 operation, has a fanless design and an MTBF of 50,000 hours excluding the backlight. The power supply accepts 100-240V at 50/60Hz, a range that includes the 240V mains used in Qatar. A clinic waiting area in Al Sadd, for example, can run it through long opening hours.

Can I buy it through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those on Monaqasat, and payment by bank transfer, cheque or purchase order. A school or ministry ordering several displays can raise one LPO for the full quantity. Products are covered by the manufacturer's warranty. Send your quantity and tender reference with a quote request and the team will prepare the quotation.

Can I install other apps on it?

Yes. Android 14 lets you install applications directly on the display, so you can run them alongside the signage platform. The unit has 4GB RAM and 32GB ROM, with a quad-core A73 CPU and a G52 MC1 GPU. Check that the apps you need fit within this storage and processing budget, especially if you play video-heavy content. Ask the team for advice before planning any custom software.
