iiyama Digital Signage Current

LH6564UHS-B1AG

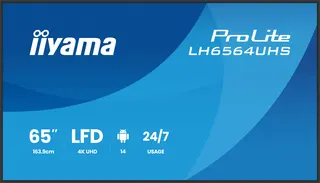

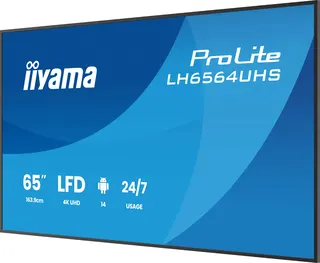

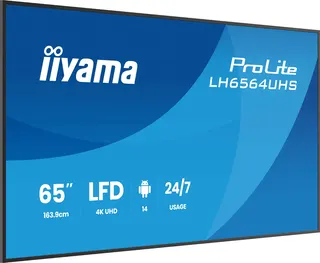

iiyama ProLite LH6564UHS-B1AG 65-inch 4K UHD Digital Signage Display

Screen size: 65" / 164cm
Resolution: 3840 x 2160 @60Hz (8.3…
Brightness: 500 cd/m²
Contrast: 5000:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The iiyama LH6564UHS-B1AG is a 65-inch 4K UHD professional display built for digital signage. It runs Android 14 with built-in Wi-Fi, 500 cd/m² brightness, a 0.372 mm pixel pitch and FailOver input switching, and is specified for 24/7 non-stop operation. It suits retail, hospitality and corporate reception areas across Qatar. Request a quote from SmartRooms Qatar.

A 65-inch 4K panel built for continuous signage

The iiyama LH6564UHS-B1AG is a 65-inch professional display with a 3840 x 2160 native resolution, 500 cd/m² panel brightness and a 5000:1 static contrast ratio. Its VA panel has a matte, anti-glare surface with 25% haze, which helps content stay readable under ceiling lights and near shop windows or lobby glazing. The bezels measure 12.8 mm on the sides, top and bottom, so several units can be placed side by side with a slim frame between screens.

Software and content control

The display runs Android 14 and includes iiSignage² content management, iiControl for device management and iiShare for wireless presentation. Content can be scheduled and pushed from the iiSignage² platform over the network or over built-in Wi-Fi on the 2.4 GHz and 5 GHz bands. Preinstalled tools include a media player, a PDF viewer, a browser for web content, a file manager and TeamViewer. The hardware pairs a quad-core A73 CPU and G52 GPU with 4 GB RAM and 32 GB storage.

Keeping content on air

FailOver monitors the active input and, when the signal drops, switches to the next input in your priority list. That list can include the browser, the media player or a custom source, so a screen keeps showing approved content. The panel is specified for 24/7 non-stop operation, has a fanless design and includes anti image retention. Connections are two HDMI 2.0 inputs, one USB-C input with DisplayPort Alt mode and 15W power delivery, two USB 2.0 ports, RJ45 LAN, RS-232c and IR control, and a 3.5 mm audio output feeding 2 x 10W speakers.

Where it fits in Qatar

Retail: a shop front in a Doha mall or a street-facing unit in Msheireb, where portrait orientation suits vertical promotional screens.
Hospitality: a hotel lobby in West Bay or a serviced apartment reception in Lusail, showing wayfinding, events and guest information.
Corporate: an office reception in The Pearl or a bank branch in Al Sadd, displaying announcements and service information in bilingual content.

Planning the installation

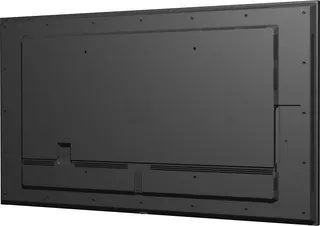

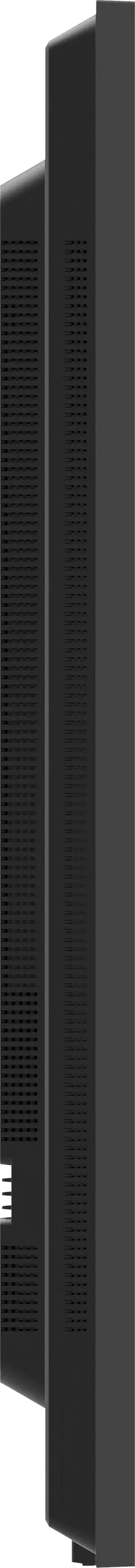

The panel weighs 17.7 kg without its box and measures 1457.7 x 832.4 x 68.8 mm. It is supplied with a wall mount bracket, screws and anchors, and it uses a 500 x 500 mm VESA pattern. The operating range is 0 to 40°C, so install it indoors in air-conditioned rooms, away from direct sunlight through windows. Qatar summer temperatures outside can exceed 45°C, so confirm the room conditions with the SmartRooms Qatar team before fixing the panel. The power supply accepts 100 to 240 V at 50/60 Hz, with typical consumption of 184 W. A free site survey helps confirm wall construction, cable routes and sightlines before installation.

Ready to plan your display? Request a quote from SmartRooms Qatar and we will confirm the mounting kit, cabling and number of units for your site. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders.

Highlights

65-inch 4K UHD panel at 3840 x 2160 resolution
500 cd/m² brightness with matte anti-glare surface
Android 14 with iiSignage² content management
FailOver automatically switches to the next input
Specified for 24/7 non-stop operation, fanless design
Operating range 0°C to 40°C; wall mount kit included

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

55 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS15

Design: Thin bezel
Diagonal: 65", 164cm
Panel: VA, Anti-Glare coated glass, matte finish, haze 25%
Native resolution: 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Static contrast: 5000:1
Response time (GTG): 6.5ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync: 57 - 62kHz
Viewable area W x H: 1428.5 x 803.5mm, 56.2 x 31.6"
Bezel width (sides, top, bottom): 12.8mm, 12.8mm, 12.8mm
Pixel pitch: 0.372mm
Bezel colour and finish: black, matte

INTERFACES / CONNECTORS / CONTROLS6

Digital signal input: HDMI x2 (v.2.0, max. 3840x2160 @60Hz) USB-C x1 (DP Alt, 15W PD)
Monitor control input: RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
Audio output: Mini jack x1 (3.5mm) Speakers 2 x 10W
Monitor control output: RS-232c x1 (2.5mm) IR loop through x1 (3.5mm)
HDCP: v.1.4 & 2.0
USB ports: x2 (v.2.0)

FEATURES8

Integrated software: Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager
WiFi: yes (Built-in, 2.4G/ 5G)
Hardware: CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB
Extra: Wall mounting kit included (VESA 500x500mm)
Max. non-stop operating time: 24/7
Anti image retention: yes
Media playback: yes
Housing (bezel): plastic

GENERAL4

OSD languages: EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons: Power Indicator, Power button, Remote Sensor
User controls: network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR
Plug&Play: DDC2B

MECHANICAL6

Orientation: landscape, portrait
Fanless design: yes
VESA mounting: 500 x 500mm
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
MTBF: 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED4

Cables: power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides: quick start guide, safety guide
Other: Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control: yes (batteries included)

POWER MANAGEMENT4

Energy Star 8.0 (POn at 230V): 104.5W
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 184W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY3

Regulations: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS)
Energy efficiency class (Regulation (EU) 2017/1369): G
REACH SVHC: above 0.1%: Lead, Lead monoxide

DIMENSIONS / WEIGHT5

Product dimensions W x H x D: 1457.7 x 832.4 x 68.8mm
Box dimensions W x H x D: 1640 x 990 x 164mm
Weight (without box): 17.7kg
Weight (with box): 27.5kg
EAN code: 4948570125326

Downloads

11 files from the manufacturer

XLSX Datasheets LH6564UHS-B1AG_Specifications.xlsx 9 KB PDF Datasheets LH6564UHS-B1AG_datasheet.pdf 1.1 MB PDF Manuals & guides LH_43_50_55_65_75_E9864UHS-usermanual-e-revE.pdf 10.8 MB PDF Drawings & CAD LH6564UHS-B1AG_Drawing.pdf 4.3 MB ZIP Drawings & CAD · Opens on manufacturer site LH6564UHS.zip PDF Certificates & compliance LH6564UHS-B1AG EU Energy Label (2225787).pdf 72 KB PDF Certificates & compliance LH6564UHS-B1AG UK Energy Label (2225787).pdf 30 KB PDF Other documents LH6564UHS CE DoC.pdf 342 KB PDF Other documents LH6564UHS-B1AG-A.pdf 318 KB PDF Other documents RS232-LAN_commands_2026_08_Txx29AS_LHxx64_LHxx66_LHxx81.pdf 3.1 MB PDF Other documents ii_iisignage2_whitepaper_A4_EN (09.23).pdf 4.2 MB

Questions about LH6564UHS-B1AG

What is the iiyama LH6564UHS-B1AG designed for?

It is a 65-inch 4K UHD professional display made for digital signage rather than desktop use. Its 500 cd/m² panel brightness, matte anti-glare surface and 24/7 rating suit retail windows, hotel lobbies, restaurants and corporate reception areas. Android 14 and the iiSignage² platform let you manage what each screen shows from a central location.

Can it operate in Qatar's summer heat?

Its specified operating range is 0°C to 40°C, and storage is -20°C to 60°C. Outdoor temperatures in Qatar's summer can exceed 45°C, so install it only in air-conditioned indoor spaces, away from sunlit windows and external doors. Confirm the room conditions with the SmartRooms Qatar team during the site survey before fixing the panel.

Is it rated for continuous operation in a busy mall or lobby?

Yes. The manufacturer lists 24/7 non-stop operating time, and the panel has a fanless design and anti image retention. A fanless design avoids a fan intake that collects dust, which is useful in busy indoor retail areas. Confirm the ventilation and room temperature for the exact location when you request your quotation.

How do I update content on several screens at once?

Use iiSignage² content management software to schedule and push content over the network. iiControl handles device management, and iiShare allows wireless presentation from a connected device. The panel supports built-in Wi-Fi on 2.4 GHz and 5 GHz, so a unit can connect where running a network cable is difficult. Your deployment plan is confirmed with the quotation.

What happens if the main input loses its signal?

FailOver detects when there is no signal on the default input and automatically switches to the next available input. You can rank several inputs, including the browser, media player and custom sources, so a hotel lobby or shop window keeps showing active content. The priority order is set during commissioning with your installer.

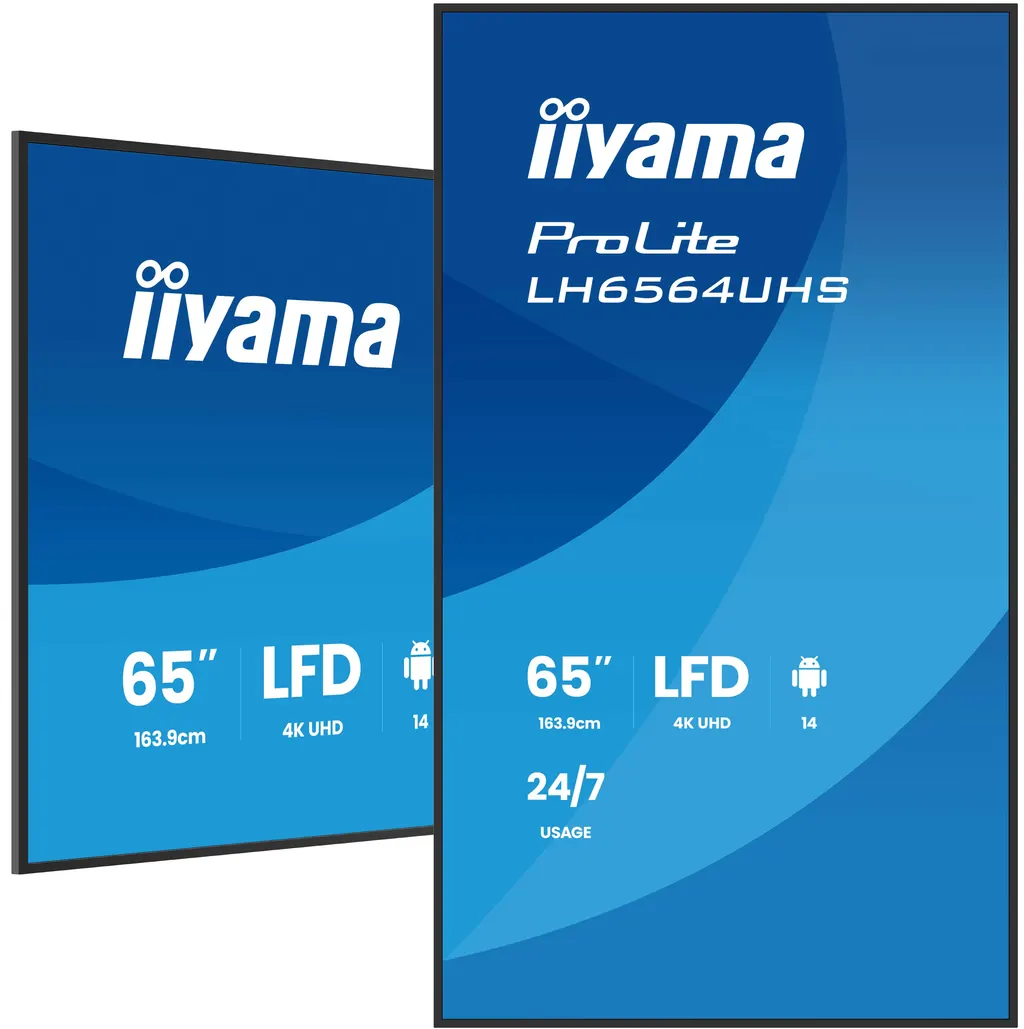

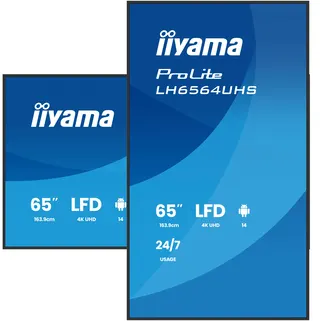

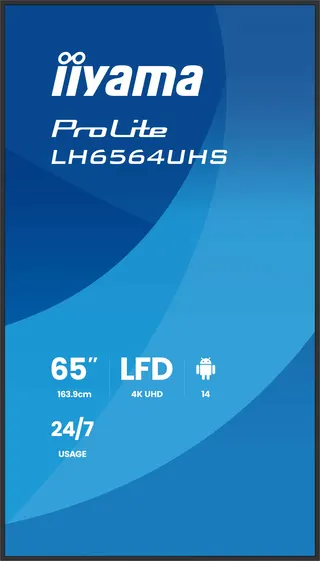

Can it be mounted in portrait orientation?

Yes. The panel supports landscape and portrait orientation and uses a 500 x 500 mm VESA pattern. A wall mount bracket, screws and anchors are included. At 17.7 kg without its box, lifting should be done by at least two people, and a free site survey will confirm wall construction and fixing points before installation.

Which ports are available for players and laptops?

It has two HDMI 2.0 inputs supporting up to 3840 x 2160 at 60 Hz, one USB-C input with DisplayPort Alt mode and 15W power delivery, and two USB 2.0 ports. Network connection is by RJ45 LAN, with RS-232c and IR for control, plus a 3.5 mm audio output. HDCP 1.4 and 2.0 are supported.

Does it support Arabic on-screen menus?

The listed on-screen display languages are English, German, French, Spanish, Italian, Chinese, Russian, Japanese, Czech, Dutch, Polish, Swedish, Finnish, Danish and Norwegian. Arabic is not in that list, so do not assume Arabic menus. Arabic or bilingual content can still be shown on the screen, and the SmartRooms Qatar team can confirm the setup before you order.

How much power does it draw, and is it suitable for Qatar's supply?

The power supply accepts AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 184 W, with 0.5 W standby and 0.3 W in off mode. Its energy efficiency class is G under EU Regulation 2017/1369. Plan circuits and any UPS sizing around the typical figure when several units are installed together.

A school in Al Wakrah wants several panels. Can we order by LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, with payment by bank transfer, cheque or purchase order. For several panels across classrooms or corridors, send the quantity and a room list so the quotation can cover mounting kits, cabling and the site survey. Quotations are usually issued within one working day.

Does it have built-in speakers, and how loud can the sound be?

It has two 10W speakers and a 3.5 mm mini audio output for external sound systems. The on-screen menu includes volume, balance, bass, treble, maximum and minimum volume settings. Whether the built-in speakers are sufficient depends on the room size and background noise, so for a large lobby or hall, plan an external audio feed.

How long does delivery take, and what does the warranty cover?

SmartRooms Qatar delivers to all eight municipalities of Qatar. Lead times are estimates confirmed in the quotation based on stock. The product is covered by the manufacturer's warranty. The source data does not state the warranty duration or terms, so please ask the SmartRooms Qatar team to confirm them with your quotation before ordering.
