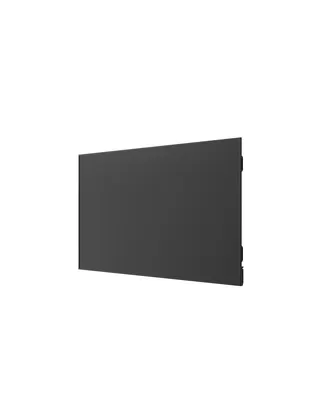

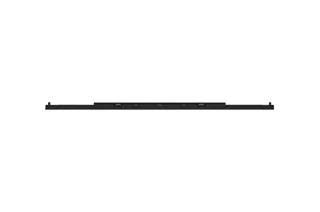

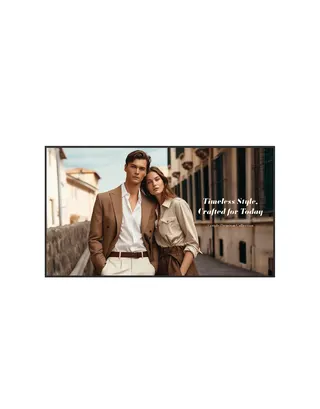

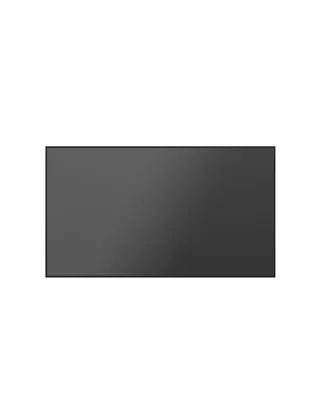

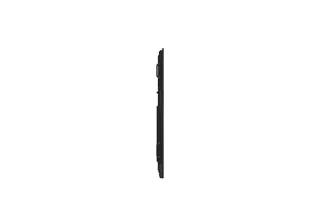

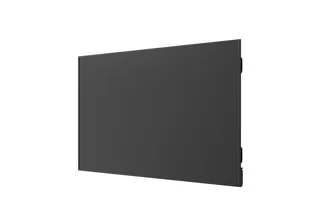

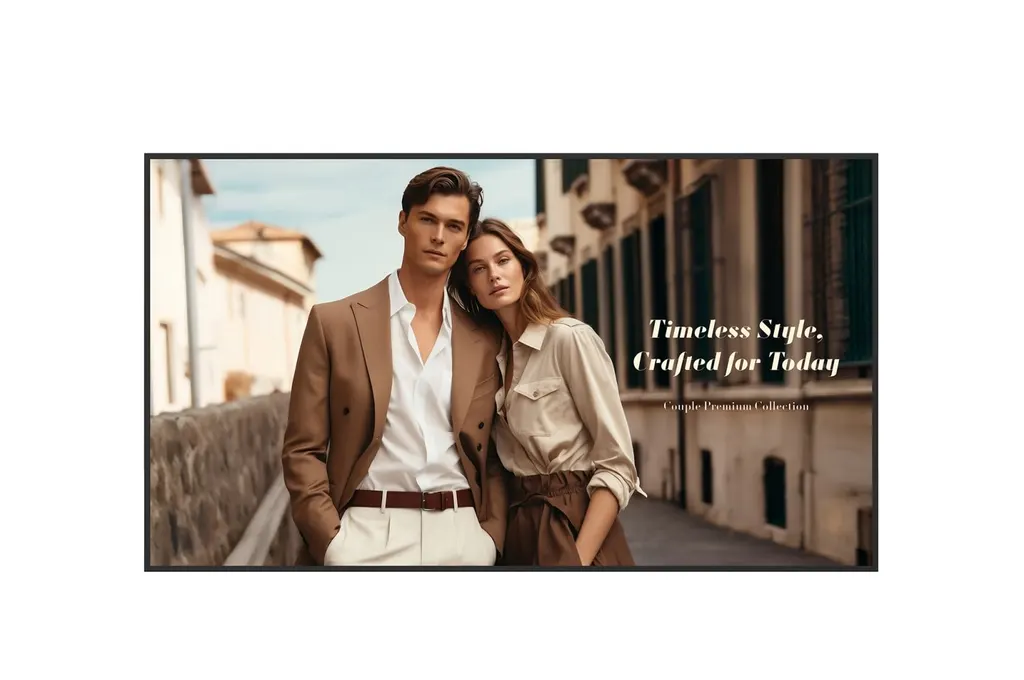

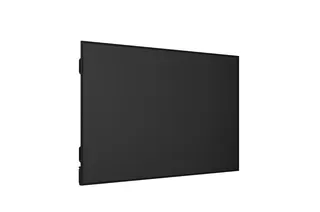

LG 110UH5Q-H 110-inch UHD Signage Display

Overview

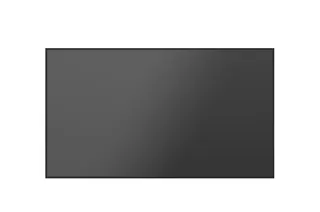

The LG 110UH5Q-H is a 110-inch UHD signage display with a 3840 x 2160 panel, 500 nit typical brightness, an anti-glare surface and webOS 6.1 built in. It rates for 24/7 operation and suits hotel lobbies, corporate reception walls, malls and campus atriums in Qatar where a large, always-on screen must stay readable through the working day. It is a non-touch display, and SuperSign content management is sold separately.

A 110-inch UHD display rated for continuous signage use

The LG 110UH5Q-H is a 110-inch screen from the UH5Q series with a 3840 x 2160 native panel, 500 nit typical brightness and an anti-glare surface with 25% haze. The panel carries a stated life of at least 50,000 hours and is rated for 24/7 operation, which makes it a practical choice for lobbies, atriums and corridors where screens run from opening to closing time.

Specifications that shape the decision

Image: 1,200:1 contrast, 1,000,000:1 dynamic contrast, BT709 95% colour gamut, 120Hz refresh rate and 8ms (G to G) response time.
Playback: webOS 6.1 with 8GB eMMC storage, built-in Wi-Fi and Bluetooth, local content scheduling and a fail-over function for networked installations.
Inputs and control: three HDMI inputs with HDCP 2.2/1.4 support, one RJ45 LAN input, two USB 2.0 Type A ports, and RS232C in and out for control.
Audio: built-in 10W x 2 speakers plus an audio output.

Where it fits in Qatar

A hotel in West Bay might use a unit like this in its lobby to show event listings and wayfinding, with the USB ports available for a presenter's file during a welcome briefing. A corporate headquarters in Lusail could mount one at reception to carry the company's messages in Arabic and English. A shopping mall or a university atrium could run the display in portrait orientation, which the data lists as supported, for directory and queue information. Portrait use carries a lower operating ceiling of 35 °C, so the planning should reflect that.

Planning the installation

The head weighs 64.45 kg and ships packed at 103.05 kg, so the wall, bracket and lifting method need to be checked before delivery. The VESA interface is 800 x 600 mm and the monitor measures 2481.7 x 1410.8 x 68.6 mm with an 18 mm even bezel. The manufacturer advises mounting the screen close to the wall. Operating temperature is 0 °C to 40 °C and humidity 10% to 80%, so the unit belongs in an air-conditioned space. Summer temperatures in Qatar regularly pass 45 °C, so the room's cooling and airflow should be confirmed during the site survey. Power is listed as AC 100-240V, 50/60Hz with a built-in power supply, drawing 369W typical and 502W maximum. Note that SuperSign content management is sold separately, and the wall mount is optional. The unit has no OPS slot, so an external media player is needed if you want a PC source.

Request a quote for your site

SmartRooms Qatar supplies the LG 110UH5Q-H across all eight municipalities of Qatar, provides professional installation and free site surveys, and accepts purchase orders and government tenders, including Monaqasat. Products are covered by the manufacturer's warranty. Send your room dimensions, mounting wall and intended content, and request a quote for a configuration that fits your installation.

Highlights

110-inch 3840 x 2160 UHD panel with 120Hz refresh rate
500 nit typical brightness with anti-glare surface, 25% haze
Built-in webOS 6.1, 8GB eMMC and Wi-Fi/Bluetooth
Three HDMI inputs, two USB 2.0 ports and RS232C control
Rated 24/7 operation with 50,000-hour panel life minimum
Operating range 0 °C to 40 °C, 10% to 80% humidity

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

135 specifications · Source: manufacturer · checked Oct 2026

PANEL19

Screen Size (Inch): 110
Panel Technology: ADS
Back Light Type: Direct
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 120Hz
Brightness: 500nit (Typ.)
Contrast Ratio: 1,200:1
Dynamic CR: 1,000,000:1
Color Gamut: BT709 95%
Viewing Angle (H x V): 178º x 178º
Color Depth (Number of Colors): 1.07 Billion colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): Haze 25%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: YES / YES
Transparency: N/A
QWP (Quarter Wave Plate): N/A

CONNECTIVITY19

HDMI In: YES (3ea)
HDMI In (HDCP Ver.): 2.2/1.4
DP In: NO
DVI-D In: NO
RGB In: NO
Audio In: NO
RS232C In: YES
RJ45(LAN) In: YES (1ea)
IR In: NO
USB In: USB2.0 Type A (2ea)
HDMI Out: NO
DP Out: NO
Audio Out: YES
Touch USB: NO
External Speaker Out: NO
RS232C Out: YES
RJ45(LAN) Out: NO
IR Out: NO
Daisy Chain: NO

MECHANICAL SPECIFICATION10

Bezel Color: Black
Bezel Width: Even bezel : 18mm
Weight (Head): 64.45kg
Weight (Head+Stand): N/A
Packed Weight: 103.05kg

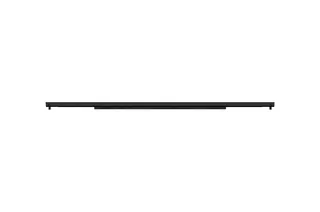

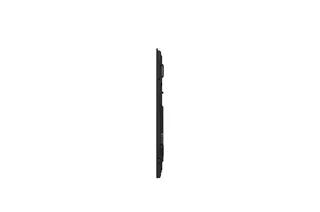

Monitor Dimensions (W x H x D): 2481.7×1410.8×68.6mm
Monitor Dimension with Stand (W x H x D): N/A
Carton Dimensions (W x H x D): 2660×1600(H)×280mm
Handle: YES

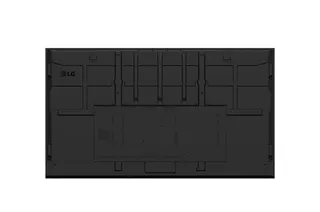

VESA Standard Mount Interface: 800 x 600 mm

FEATURE - HARDWARE13

Internal Memory (eMMC): 8GB
Wi-Fi/BT (Built-in): YES
Temperature Sensor: YES
Auto Brightness Sensor: YES
Pixel Sensor: NO
Proximity Sensor: NO
Current Sensor: NO
BLU Sensor: NO
Humidity Sensor: NO
Acceleration(Gyro) Sensor: YES
Power Indicator: NO
Local Key Operation: YES
FAN (Built-in): NO

FEATURE - SOFTWARE39

OS Ver. (webOS): webOS 6.1
Local Contents Scheduling: YES
Group Manager: YES
USB Plug & Play: YES
Fail over: YES
Booting Logo Image: YES
No Signal Image: YES
RS232C Sync: YES
Local Network Sync: YES
Backlight Sync: NO
PIP: YES
PBP: YES (4PBP)
Screen Share: YES
Video Tag: YES (4 Video Tag)
Play via URL: YES
Screen Rotation: YES
External Input Rotation: YES
Gapless Playback: YES
Tile Mode Setting: YES
Setting Data Cloning: YES
SNMP: YES
ISM Method: YES
Auto Set ID: YES
Status Mailing: YES
Control Manager: YES
Cisco Certification: YES
Crestron Connected: YES
Smart Energy Saving: YES
PM mode: YES
Wake on LAN: YES
Network Ready: YES
Beacon: YES
HDMI-CEC: YES
SI Server Setting: YES
webRTC: YES
Pro:Idiom: YES
Brightness Compensation: NO
W/B Setting by Grey scale: NO
Scan Inversion: NO

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C(Portrait Scene: 0°C~35°C)
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

POWER CONSUMPTION6

Typ.: 369W
Max.: 502W
BTU (British Thermal Unit): 1259.1BTU/Hr(Typ.), 1712.9BTU/Hr(Max.)
Smart Energy Saving (70%): 259W
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker (Built-in): YES (10W x 2)

CERTIFICATION4

Safety: IEC 62368-1:2018; UL 62368-1:2019
EMC: FCC Class "B" / CE / RCM
ERP / Energy Star: X / X
ePEAT(US only): NO

OPS COMPATIBILITY2

OPS Type compatible: NO
OPS Power Built-in: NO

SOFTWARE COMPATIBILITY7

SuperSign CMS: YES
SuperSign Control+: YES
SuperSign WB: YES
SuperSign Cloud: YES
Promota: NO
Mobile CMS: YES
Connected Care: YES

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polish

SPECIAL FEATURE8

Overlay Touch Compatibility: N/A
Smart Calibration: N/A
Tilt (Face up): N/A
Tilt (Face down): N/A
IP Rating: N/A
Conformal Coating (Power Board): YES
Power Protection: N/A
Direct Sunlight: N/A

ACCESSORY2

Basic: Remote Controller(include battery 2ea, Power Cord, Regulation Book, Phone to D-Sub9 Gender
Optional: wall-mount

Downloads

5 files from the manufacturer

PDF Datasheets 110-98UH5Q_Datasheet(low)_LG UHD Signage_20260505_122505_.pdf 1.5 MB PDF Manuals & guides MFL05862803_00_Q_260330.pdf 1.2 MB PDF Manuals & guides MFL05880101_00_B_260327.pdf 1.6 MB PDF Manuals & guides OM_ARA.pdf 1.3 MB PDF Manuals & guides WebOS 6.0. 6.1_ENG.pdf 4.9 MB

Questions about 110UH5Q-H

What is the LG 110UH5Q-H designed for?

It is a 110-inch UHD signage display for places where a large screen must run most of the day. Typical sites are hotel lobbies, corporate reception areas, shopping malls and university atriums. The panel is rated for 24/7 operation with a stated life of at least 50,000 hours, and its 500 nit typical brightness with an anti-glare surface helps content stay readable in bright reception areas.

Does the 110UH5Q-H need an external media player?

Not necessarily. The display runs webOS 6.1 and has 8GB of internal eMMC storage, with built-in Wi-Fi and Bluetooth. Local content scheduling and play via URL are included. For centrally managed playlists across several screens, SuperSign content management is needed, and the source data states it must be purchased separately. SuperSign Cloud, SuperSign CMS and SuperSign Control+ are listed as compatible.

Is the 110UH5Q-H a touch screen?

No. The source data lists no touch USB connection and no overlay touch compatibility, so the display should be specified as a non-touch signage screen. Operators can control it with the supplied remote, local keys, RS232C or a network connection. If your project needs touch interaction, discuss the requirement with the SmartRooms Qatar team before requesting a quote.

Can I fit an OPS computer module in this display?

No. The data lists the 110UH5Q-H as not compatible with OPS-type modules and without a built-in OPS power connection. If your content comes from a PC, connect it through one of the three HDMI inputs or use a networked media player. Planning this before ordering avoids a rework of the cabling and the wall-mount position.

How heavy is the display and what should the wall be able to carry?

The head weighs 64.45 kg, and the packed weight is 103.05 kg. The VESA interface is 800 x 600 mm, and the monitor measures 2481.7 x 1410.8 x 68.6 mm. Before delivery, have the wall structure and bracket checked by a qualified installer. SmartRooms Qatar offers free site surveys, and this is the right time to confirm lifting access and wall load for a 110-inch unit.

Can the 110UH5Q-H run in a hot, unconditioned space in Qatar?

No. The operating temperature range is 0 °C to 40 °C, and in portrait orientation the limit drops to 35 °C. Humidity must stay between 10% and 80%. Qatar summer temperatures often exceed 45 °C, so the display should be placed in an air-conditioned room, and the cooling capacity should be confirmed during the site survey before installation.

Can this display be used in portrait orientation for queue or directory screens?

Yes. The data lists portrait and landscape operation as supported. A mall entrance, clinic waiting area or government service hall might use portrait mode for directories or queue information. Because the portrait operating limit is 35 °C, the room should be kept within that range. Ask the SmartRooms Qatar team to confirm the mounting orientation and cooling before you request a quote.

What is the power consumption and what supply does it need?

The power supply is listed as AC 100-240V, 50/60Hz, with a built-in power supply. Typical consumption is 369W and maximum is 502W, with 259W in smart energy saving mode and 0.5W in power-off. Qatar mains supply is 240V at 50 Hz, which falls within the stated input range. The data does not specify the plug type, so confirm the socket arrangement with the team.

Can several 110UH5Q-H units form a video wall?

They can be arranged in a tiled layout. The bezel is 18 mm even, and tile mode setting is supported. However, daisy chaining is not supported, so each display needs its own source connection. A video wall with several units needs a matching layout plan and a wall structure designed for the combined weight. A site survey before ordering confirms the bracket and cabling layout.

Can a government department or school buy this display through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A ministry or school ordering several units can issue one LPO covering all screens, and the quotation should list the SuperSign licences and wall mounts separately, since those are not included in the base unit.

What is included in the box and what is optional?

The basic accessories include a remote controller with two batteries, a power cord, a regulation booklet and a phone-to-D-Sub9 adapter. A wall mount is listed as optional. SuperSign content management must be purchased separately. Products are covered by the manufacturer's warranty. Ask for a quote that lists the mount and software alongside the display so your procurement file is complete.
