43UH5F

A discontinued 43-inch UHD display for indoor sites

The LG 43UH5F is a 43-inch UHD signage display from the UH5F series, built for indoor locations where a screen runs for many hours with little attention. LG has discontinued this model, so this page serves organisations that already run it, buyers comparing options, and anyone looking for a replacement. SmartRooms Qatar can quote a current equivalent or a compatible replacement that fits your wall space and connections.

Panel performance and what it means on site

The IPS panel has a native resolution of 3,840 x 2,160, four times Full HD, so small text and fine imagery stay sharp. Typical brightness is 500 cd/m² with a 1,100:1 contrast ratio and 178-degree viewing angles, which keeps the picture readable from the side of a corridor. The 8ms grey-to-grey response suits moving promotional video, and the panel carries a 3% haze surface treatment. The manufacturer rates panel life at 50,000 hours typical.

Connectivity, control and built-in software

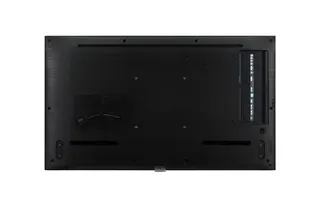

• Video inputs: three HDMI ports, one DisplayPort, one DVI-D, an audio input and a USB 2.0 port.
• Outputs and control: a DisplayPort output, an audio output, RS232C in and out, an RJ45 LAN input and an IR input.
• Software: SuperSign CMS for content management, SuperSign Control and Control+ for monitoring, and Signage365Care support.

A built-in quad-core processor runs the webOS platform, so simple content can play without a separate media player, while the OPS slot allows an OPS media player to be fitted. The OPS Kit (KT-OPSF) and media player are optional extras. The display can email an alert when a fault occurs, such as the screen being knocked out of level by an external impact. It is certified Crestron Connected and certified for compatibility with Cisco systems, which helps when it sits inside a managed AV room.

Mounting, size and environment in Qatar

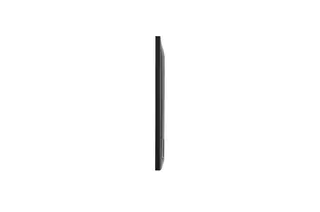

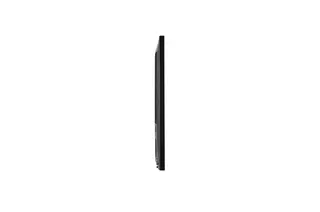

The head measures 962.5 mm wide, 568 mm high and 39.9 mm deep, weighs 11.2 kg and ships at 13.7 kg. The black bezel is 8.4 mm on the top, left and right and 14.4 mm at the bottom. The VESA mount pattern is 200 x 200, and tilt up to 30 degrees is supported within 30°C and 50% humidity. The operating range is 0°C to 40°C with 10% to 80% humidity. Summer temperatures in Qatar regularly pass 45°C, so install it only in air-conditioned rooms away from direct sun. The IP5x rating protects against dust but does not replace climate control.

The built-in power supply accepts 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 75W and maximum 110W, with 52.5W in smart energy saving mode. Listed certifications include CB/NRTL, FCC Class A, CE, KC and Energy Star 8.0, while ErP applies to the EU only.

Where it fits and what to plan before ordering

A private school in Al Wakrah fitting out a corridor could use a 43-inch screen for timetables and announcements, mounted in portrait or landscape. A clinic reception in Msheireb could show queue information and health messages from a spot the air conditioning reaches well. A hotel in West Bay could connect the screen to a central controller through RS232C or the LAN port to manage content remotely.

Before ordering, confirm the wall can carry 13.7 kg packed weight and that a VESA 200 x 200 bracket or the optional LSW240B wall bracket suits the location. Check the source cables your players use, whether HDMI, DisplayPort or DVI-D. For several units, such as a row of classrooms, a purchase order (LPO) can cover the order. SmartRooms Qatar offers free site surveys to check the wall, power and cooling before installation.

Request a quote for this model or a current equivalent. Tell us the number of units, the room type and the connections you need. Our team usually replies within one working day, and the quotation can include delivery to all eight municipalities of Qatar and professional installation.
