LG 43UH5N-E (Discontinued) · Replacements in Qatar

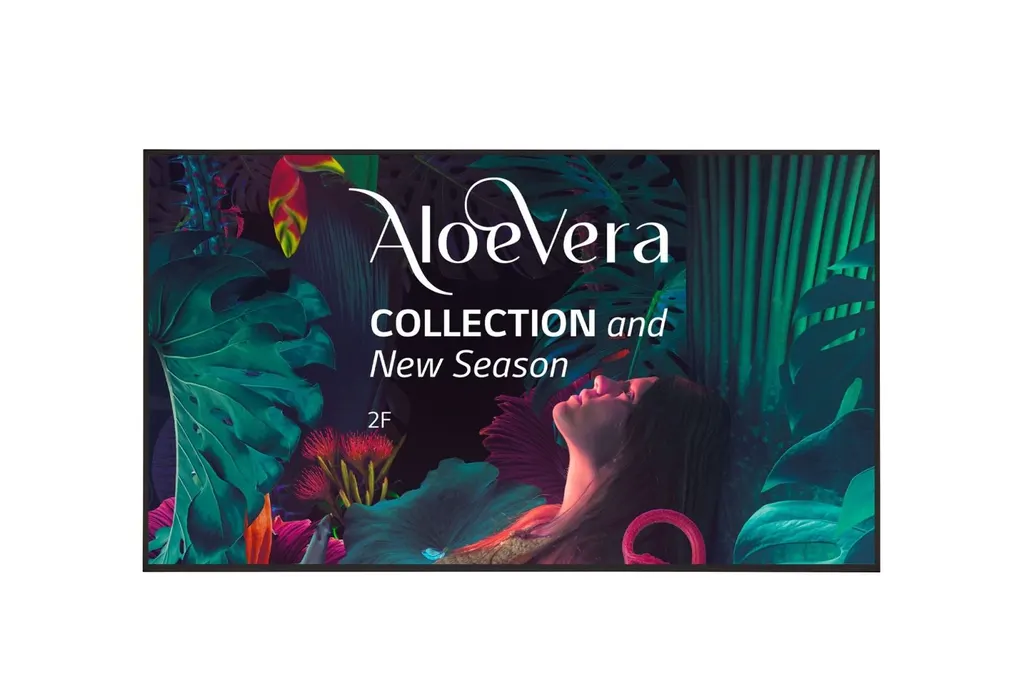

Name: LG 43UH5N-E 43-inch UHD Digital Signage Display
Brand: LG
SKU: lg-43uh5n-e
Availability: Discontinued

Overview

The LG 43UH5N-E is a 43-inch UHD signage display with a 3840 x 2160 IPS panel and built-in webOS 6.0, so it can run content without a separate media player. It is specified for 24/7 operation, carries an IP5X dust rating and suits lobbies, corridors and meeting areas in Qatar. LG has discontinued this model, so SmartRooms Qatar can quote a current equivalent or compatible replacement.

What the LG 43UH5N-E is built to do

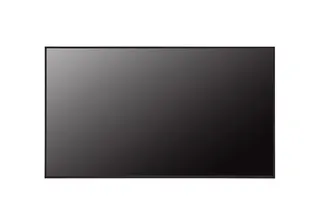

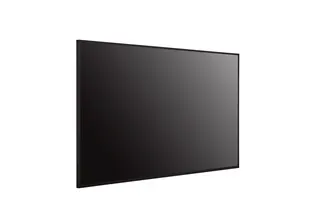

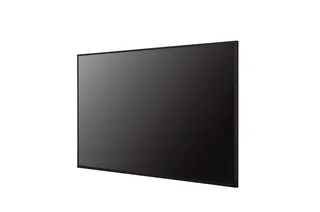

The LG 43UH5N-E is a 43-inch UHD signage display for businesses that need sharp, always-on screens in reception areas, corridors and waiting spaces. Its 3840 x 2160 IPS panel offers four times the pixel count of a Full HD screen, and the anti-glare surface helps keep content readable near windows and in bright lobbies.

Inside the frame, a webOS 6.0 platform with 16GB of internal memory and built-in Wi-Fi lets the screen play content on its own. Playlists can be scheduled locally, content can be pulled from a URL, and multi-screen schedules can be managed through SuperSign CMS, SuperSign Control or SuperSign Cloud.

Panel and connection figures that matter

Brightness: 500 nit typical, with a 1,000:1 contrast ratio and 95% BT709 colour gamut.
Inputs: three HDMI inputs and one DisplayPort input, each supporting 3840 x 2160 at 60Hz.
Daisy chain: an HDMI output at 3840 x 2160 at 30Hz lets one screen pass its signal to the next.

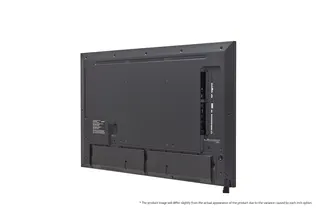

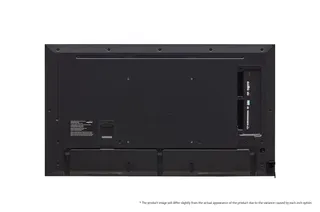

Control: RS232C in and out, IR in and an RJ45 LAN port for network management.
Orientation: supports both portrait and landscape mounting.

Durability and power for business sites

The display carries an IP5X dust rating and a conformal coating on its power board, which protects against salt, dust, iron powder and humidity. The panel tilts up to 30 degrees for face-down mounting. The operating range is 0 to 40 degrees C with 10 to 80 percent humidity, so it belongs in air-conditioned rooms. Qatar summers can exceed 45 degrees C, which makes outdoor or unventilated positions unsuitable. Power is listed as AC 100-240 V, 50/60 Hz, with 80 W typical and 120 W maximum draw, and 56 W in Smart Energy Saving mode.

Where it fits in Qatar

A government service centre in Doha could place the screen beside a counter to show queue numbers and announcements, with local scheduling keeping messages current without a PC at every desk. A private school in Al Wakrah could mount several units in portrait orientation along a corridor for room numbers and event notices. A hotel in West Bay could run a welcome loop in its lift lobby, updated remotely from head office.

Planning the installation

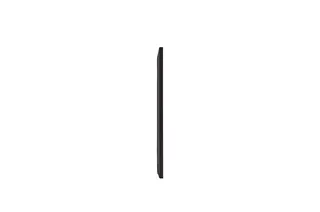

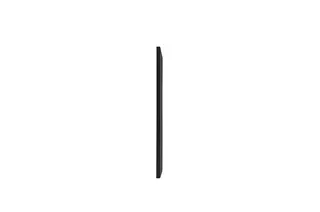

The bezels measure 8.9 mm on the sides and top and 12.9 mm at the bottom. Hidden power inlets and the slim bracket allow the panel to sit about 13 mm from the wall. The head weighs 11.1 kg and the packed unit 12.8 kg, and the dimensions are 963.0 x 556.2 x 29.7 mm without IR. The VESA pattern is 200 x 200. Optional mounts include the slim wall mount WB21LMA/B, the wall mount OLW480A/B and the adapter AM-B330S. A free site survey helps confirm the bracket, wall load and cable route before installation.

LG has discontinued this model. If your organisation already runs one or more units, SmartRooms Qatar can advise on accessories that fit them. If you are planning a new purchase, request a quote for a current equivalent or a compatible replacement. Send your location, the number of screens and your mounting plan, and our team will return a quotation, usually within one working day.

Highlights

43-inch IPS panel at 3840 x 2160 UHD resolution
webOS 6.0, 16GB internal memory and built-in Wi-Fi
24/7 operation with IP5X dust protection
Portrait and landscape orientation with 200 x 200 VESA mount
Three HDMI inputs and one DisplayPort input
Listed as ISO/IEC 15408 Common Criteria EAL2 certified

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

108 specifications · Source: manufacturer · checked Oct 2026

INFO3

Product: Standard (UHD)
Year: Y23
Month: M06(TBD)

PANEL17

Screen Size (Inch): 43"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness (Typ.): 500nit (Typ.)
Contrast Ratio: 1,000:1
Dynamic CR: 1,000,000:1
Color Gamut: BT709 95%
Viewing Angle(H x V): 178 x 178
Color Depth: 10bit(D), 1.07Billion colors
Response Time: Tr : 8ms / Tf :10ms
Surface Treatment(Haze): 28%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portrait / Landscape: Yes / Yes

Connectivity (Jack Interface)11

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(1)
HDMI Out: Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
IR Out: No (Support IR daisy chain via RS232C IN/OUT)
Daisy Chain: Yes(Input HDMI, DP / Output HDMI)

MECHANICAL7

Bezel Color: Black
Bezel Width: T/R/L: 8.9mm, B: 12.9mm
Weight (Head): 11.1 kg
Packed Weight: 12.8 kg
Monitor Dimensions (W x H x D): 963.0 x 556.2 x 29.7mm (without IR)
Carton Dimensions (W x H x D): 1055.0 x 660.0 x 142.0mm
VESA™ Standard Mount Interface: 200 x 200

HW FEATURE7

Internal Memory: 16GB
Wi-Fi (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes
Speaker (Built-in): Yes

SW FEATURE35

OS ver.: webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certi.: Yes
Crestron Inside: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Beacon: Yes
Network Ready: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

ENVIRONMENT CONDITIONS2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

POWER8

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power
Power Consumption (Typ.): 80W
Power Consumption (Max.): 120W
Power Consumption (British Thermal Unit): 273 BTU/Hr(Typ.), 409 BTU/Hr(Max)
Power Consumption (Smart Energy Saving, ~70%): 56W
Power Consumption (DPM): 0.5W
Power Consumption (Power Off): 0.5W

CERTIFICATION6

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: Yes(NewErP)/Yes
ePEAT(US only): Yes
ISTA6: Yes(~'23.9, US Suffix Only)
Carbon Trust: Yes(TBD, Reducing CO2)

SOFTWARE COMPATIBILITY6

SuperSign CMS: Yes
SuperSign Control / Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE3

Tilt (Face Down): Yes(Max 30º degree, 40ºC temperature)
IP Rating: IP5X
Conformal Coating (Power Board): Yes

Downloads

5 files from the manufacturer

PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-EP_ARA.pdf 2.1 MB PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-EP_E.pdf 1.9 MB PDF Manuals & guides · Opens on manufacturer site MFL72000301_02_Q.pdf 1.3 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 5.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 43UH5N-E

Has LG discontinued the 43UH5N-E?

Yes. LG has discontinued this model, so it is no longer in the current range. If your organisation already runs one or more units, SmartRooms Qatar can advise on mounting and accessories that fit them. If you are planning a new purchase or comparing options, request a quote for a current equivalent or a compatible replacement, and our team will recommend the closest match for your screen size, mounting and content needs.

Would this 43-inch screen suit a government service centre reception in Doha?

Yes, for a counter-side or waiting-area screen. The 3840 x 2160 panel with 500 nit typical brightness shows queue numbers and announcements clearly at a normal viewing distance. Local scheduling lets staff update content on a timetable, and the built-in speaker is available for audio announcements. Ask us to confirm placement and lighting during a site survey before mounting.

Do I need a separate media player to run content on it?

Not for standard playback. The webOS 6.0 platform, 16GB of internal memory and built-in Wi-Fi allow the display to run content itself. It can also play content from a URL or from a USB device plugged into the USB 2.0 Type A port. For multi-screen schedules, SuperSign CMS, SuperSign Control or SuperSign Cloud can manage content centrally across your sites.

What inputs and outputs does the LG 43UH5N-E offer?

It has three HDMI inputs and one DisplayPort input, each supporting 3840 x 2160 at 60Hz. An HDMI output at 3840 x 2160 at 30Hz allows a daisy chain to a second display. Control options include RS232C in and out, IR in and an RJ45 LAN port. There is also one audio out and one USB 2.0 Type A port. Confirm that your source device's output matches these ports before ordering.

Can a school in Al Wakrah use it in portrait orientation for corridor wayfinding?

Yes. The panel supports both portrait and landscape orientation, so a tall, narrow screen can show room numbers, timetables or event notices on a corridor wall. The 8.9 mm side bezels suit a row of screens with small gaps. With the slim bracket the panel sits about 13 mm from the wall, so plan cable routes before the installer arrives.

Can it be placed near a window or in an unconditioned area in the Industrial Area?

No, not in unconditioned spaces. The operating range is 0 to 40 degrees C with 10 to 80 percent humidity, and Qatar summers can exceed 45 degrees C. Keep it in an air-conditioned room. The anti-glare coating helps near windows and the IP5X rating covers dust, but neither makes it suitable for outdoor or hot, unventilated sites. Confirm your environment with our team first.

How much power does it draw, and will it work on Qatar mains?

The power supply is listed as AC 100-240 V, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical draw is 80 W and maximum draw is 120 W. In Smart Energy Saving mode the draw falls to 56 W, and power-off draw is 0.5 W. Confirm with your installer that the supplied power cord fits BS 1363 sockets before installation.

What mounting options and space does it need?

It uses a 200 x 200 VESA pattern and has 8.9 mm side and top bezels with a 12.9 mm bottom bezel. The head weighs 11.1 kg and measures 963.0 x 556.2 x 29.7 mm without IR. Optional mounts are the slim wall mount WB21LMA/B, the wall mount OLW480A/B and the adapter AM-B330S. Request a free site survey so we can confirm the bracket and wall load.

Does it include security features suitable for a bank or ministry?

It includes LG's Enhanced Kernel Protection technology, designed to protect data from external access or attacks. The product data lists this model as ISO/IEC 15408 Common Criteria EAL2 certified. It also supports SNMP and Wake on LAN for network management. Before connecting the display to the LAN, have your IT team review your network policy, as a bank or ministry network will have its own access rules.

Can a bank with branches across Doha and Lusail manage screens from one place?

Yes. The display supports SuperSign CMS, SuperSign Control and SuperSign Cloud, along with Group Manager, Local Network Sync and status mailing. Branch staff can receive status alerts while head office schedules campaigns. Built-in Wi-Fi supports wireless connection, and Wake on LAN helps power units on remotely. Confirm which SuperSign version fits your rollout with our team.

Would it suit a West Bay hotel lobby welcome loop?

It can, for a lobby or lift-area screen. The 1,000:1 contrast ratio, 95% BT709 colour gamut and 10-bit colour depth suit imagery and promotional loops, and the 24/7 operation rating covers continuous playback. Keep the screen indoors, away from direct sunlight, and set the loop schedule locally so updates do not need a PC. A site survey can confirm mounting height and cable routing.
