LG 43UL3J-N (Discontinued) · Replacements in Qatar

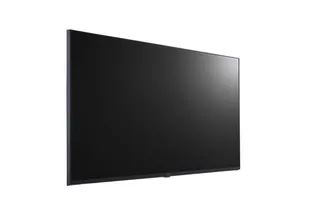

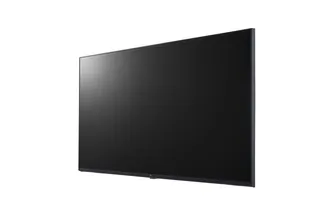

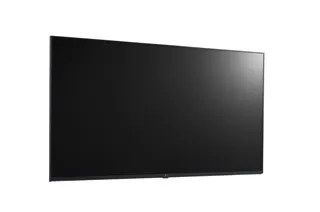

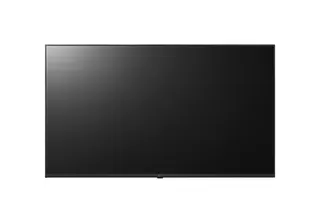

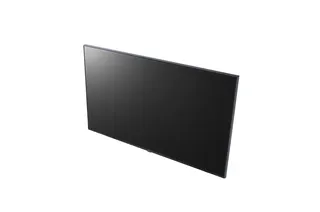

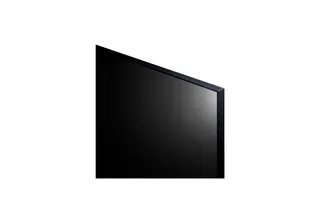

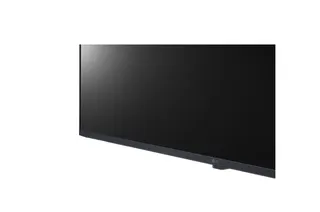

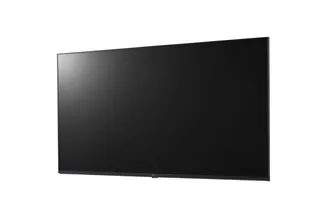

Name: LG 43UL3J-N 43-inch UHD Signage Display with webOS 6.0
Brand: LG
SKU: lg-43ul3j-n
Availability: Discontinued

Overview

The LG 43UL3J-N is a 43-inch IPS signage display with 3840x2160 UHD resolution, 300 nit typical brightness and built-in webOS 6.0 with 8GB memory. It includes Wi-Fi, a built-in speaker, three HDMI inputs and Crestron Connected compatibility. The manufacturer has discontinued this model, so SmartRooms Qatar can quote a current equivalent for lobbies, corridors and meeting areas across Qatar.

What the LG 43UL3J-N is built for

The LG 43UL3J-N is a 43-inch digital signage display for organisations that need one screen to run content for long daily hours. It uses an IPS panel with a native 3840x2160 UHD resolution, which keeps text and images sharp at close viewing distances in reception areas, waiting rooms and corridors. It belongs to the UL3J series and ships with a remote controller, power cord, regulation book, a phone-to-D-Sub9 adapter and a cable holder.

Panel, brightness and running hours

The panel is rated at 300 nit typical brightness, with a 1,300:1 contrast ratio and a 178 x 178 viewing angle, so content stays readable when people view the screen from the side. The stated colour gamut is DCI 80% with 10-bit colour depth. The display is rated for 16 hours a day, seven days a week, with a minimum lifetime of 30,000 hours, which matters more than peak brightness for a lobby that runs all day. Its operating temperature is 0 °C to 40 °C, or 0 °C to 35 °C in portrait orientation. Summer temperatures in Qatar regularly pass 45 °C, so this unit belongs in an air-conditioned room, away from windows that receive direct sun and out of unconditioned atriums or outdoor canopies.

Ports, webOS 6.0 and remote control

Three HDMI inputs support HDCP 2.2 and 1.4, two USB 2.0 Type A ports accept media or plug-in sensors, and a LAN port connects the display to your network. RS232C input and output provide control links to an external system. Built-in Wi-Fi lets staff share a laptop screen to the display, and the manufacturer lists compatibility with LG One:Quick Share. The webOS 6.0 platform, with 8GB internal memory, handles local content scheduling, group management and screen rotation. Monitoring and control are possible from a phone or PC over the network, and the on-screen menu includes Arabic alongside English.

Where it fits in Qatar

A private school in Al Wakrah could place this display at the main entrance to show timetables, event notices and bilingual announcements. A clinic in Msheireb could use it in a waiting area to show queue information and health messages, while its temperature and auto brightness sensors help it adjust to the room. A hotel lobby in West Bay could rotate promotions and directions through the day. The built-in speaker lets the display play sound without external speakers, although large halls usually still need a separate audio system.

What to plan before ordering

Environment: confirm an air-conditioned location and keep the unit out of direct sun.
Mounting: the VESA interface is 200 x 200, so check the bracket and the wall before fixing.
Orientation: if the screen runs in portrait, keep the room within the 35 °C portrait limit.
Network: plan the LAN or Wi-Fi route for content updates and remote monitoring.

The manufacturer has discontinued the LG 43UL3J-N. If your project needs a current equivalent or a compatible replacement, SmartRooms Qatar can quote one. A free site survey before mounting confirms the wall, power point and cable route. We accept purchase orders and government tenders, and quotations are usually issued within one working day. Request a quote and the SmartRooms Qatar team will confirm availability and the right option for your site.

Highlights

43-inch IPS panel with 3840x2160 UHD native resolution
300 nit typical brightness and 1,300:1 contrast ratio
Rated for 16 hours a day, seven days a week
Built-in webOS 6.0, 8GB internal memory and Wi-Fi
Three HDMI inputs supporting HDCP 2.2 and 1.4
Operating temperature 0 °C to 40 °C; discontinued model

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

113 specifications · Source: manufacturer · checked Oct 2026

PANEL17

Screen Size: 43"
Panel Technology: IPS
Back Light Type: Direct
Aspect Ratio: 16 : 9
Native Resolution: 3840x2160 (UHD)
Refresh Rate: 60Hz
Brightness: 300nit (Typ.)
Contrast Ratio: 1,300:1
Dynamic CR: 1,000,000:1
Color Gamut: DCI 80%
Viewing Angle(H x V): 178 x 178
Color Depth: 10-bit(D), 1.07Billon colors
Response Time: 8ms (G to G)
Surface Treatment(Haze): 3%
Life time: 30,000Hrs (Min)
Operation Hours (Hours/Day): 16/7
Portrait / Landscape: Yes / Yes

CONNECTIVITY14

Input - Digital - HDMI: Yes(3), HDCP2.2/1.4
Input - Digital - DP: No
Input - Digital - DVI-D: No
Input - Analog - RGB: No
Input - Audio In: No
Input - RS232C IN: Yes(1), 4pin Phone-jack
Input - RJ45(LAN): Yes(1)
Input - IR IN: No
Input - USB: USB2.0 Type A(2)
Output - DP Out: No
Output - Audio Out: Yes(1)
Output - Externel Speaker Out: No
Output - External Control - RS232C OUT: Yes(1), 4pin Phone-jack
Output - Externel Speaker Out - RJ45(LAN): No

MECHANICAL SPECIFICATION10

Bezel Color: Ashed Blue
Bezel Width: Off : 6.9/6.9/6.9/18.4 On : 12.8/12.8/12.8/19.9
Weight(Head): 8.8
Weight(Head+Stand): -
Packed Weight: 10.9
Monitor Dimension(W x H x D): 967 x 564 x 57.1
Monitor Dimensions with Stand(W x H x D): -
Carton Dimensions(W x H x D) (Box outer size): 1055 x 660 x 142
Handle: No
VESA™ Standard Mount Interface: 200 x 200

KEY FEATURE45

HW - Internal Memory: 8GB
HW - Wi-Fi - Built-in: Yes
HW - Sensor - Temperature Sensor: Yes
HW - Sensor - Auto Brightness sensor: Yes
HW - Sensor - Pixel sensor: No
HW - Sensor - Proximity Sensor: No
HW - Sensor - Current Sensor: No
HW - Power Indicator: No
HW - Local Key Operation: Yes (Power On/Off only)
HW - FAN: No
SW - webOS ver.: webOS6.0
SW - Embedded CMS - Local Contents Scheduling: Yes
SW - Embedded CMS - Group Manager: Yes
SW - USB Plug & Play: Yes
SW - Fail over: Yes
SW - Background Image - Booting Logo Image: Yes
SW - Background Image - No Signal Image: Yes
SW - Sync Mode - RS-232C Sync: Yes
SW - Sync Mode - Local Network Sync: Yes
SW - Multi-screen - PIP: No
SW - Multi-screen - PBP: No
SW - Screen Share: Yes
SW - Video Tag: Yes(4, Max One HDMI input)
SW - Play via URL: Yes
SW - Rotation - Screen Rotation: Yes
SW - Rotation - External Input Rotation: Yes
SW - Gapless Playback: Yes
SW - Tile Mode Setting: No
SW - Setting Data Cloning: Yes
SW - SNMP: Yes
SW - ISM Method: Yes
SW - Auto Set ID: Yes
SW - Status Mailing: Yes
SW - Control Manager: Yes
SW - 3rd Party Compatibility - Cisco certi: TBD (Jun~)
SW - 3rd Party Compatibility - Crestron Connected: Yes
SW - Power - Smart Energy Saving: Yes
SW - Power - PM mode: Yes
SW - Power - Wake on LAN: Yes
SW - Power - Network Ready: Yes
SW - Beacon: Yes
SW - HDMI-CEC: Yes
SW - SI Server Setting: Yes
SW - webRTC: Yes
SW - Pro:Idiom: Yes

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION6

Typ.: 80 W
Max.: 120 W
BTU (British Thermal Unit): 273 BTU/Hr(Typ.), 409 BTU/Hr(Max.)
Smart Enegy Saving(70%): 56W
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker: Yes

CERTIFICATION4

Safety: CB
EMC: FCC Class "A" / CE
ErP / Energy Star: TBD/No
ePEAT(US only): No

OPS Compatibility2

OPS type compatible: No
OPS Power built in: No

SOFTWARE COMPATIBILITY7

SuperSign CMS: Yes
SuperSign Control / Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Media Editor: Yes
Promota: Yes (Not available for EU/CIS)
Mobile CMS: No
Signage 365 Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski

ACCESSORY1

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

SPECIAL FEATURE1

Overlay Touch Compatibility: No

Downloads

4 files from the manufacturer

PDF Manuals & guides · Opens on manufacturer site 43505586UL3J-NP-BP_ARA.pdf 2.3 MB PDF Manuals & guides · Opens on manufacturer site MFL71830201_43_50_55_65UL3J_QSG.pdf 2.8 MB PDF Manuals & guides · Opens on manufacturer site SAC38517203_ENG_250428.pdf 1.7 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 43UL3J-N

Is the LG 43UL3J-N still available from LG?

No. The manufacturer has discontinued the LG 43UL3J-N. Organisations that already own this display can still request support quotes, and buyers looking for a replacement can ask SmartRooms Qatar for a current equivalent or a compatible model. Tell the team your screen size, orientation and existing HDMI or network setup so the quotation matches your site.

Is this display suitable for a Doha office lobby that runs all day?

Yes, it suits a lobby that runs most of the day. The manufacturer rates it for 16 hours a day, seven days a week, with a minimum lifetime of 30,000 hours. Its 300 nit typical brightness and 178 x 178 viewing angle keep content readable for visitors standing to the side, provided the lobby is air-conditioned and the screen is not in direct sunlight.

Can the LG 43UL3J-N be installed outdoors or near windows in Qatar?

No, not outdoors. Its operating temperature is 0 °C to 40 °C, or 0 °C to 35 °C in portrait mode, with humidity between 10 and 80 percent. Qatar summer temperatures often exceed 45 °C, so the display should sit in an air-conditioned room, away from windows that receive direct sun and out of open canopies or unconditioned atriums.

Can the display run in portrait orientation for a school corridor?

Yes. The data lists portrait and landscape as supported. Portrait use has a lower operating limit of 35 °C, compared with 40 °C in landscape, so confirm that the corridor is air-conditioned. A private school in Al Wakrah could use a portrait screen to show class timetables and announcements in a narrow corridor where a landscape panel would waste space.

What inputs and ports does the LG 43UL3J-N provide?

It has three HDMI inputs supporting HDCP 2.2 and 1.4, two USB 2.0 Type A ports, one LAN port, one RS232C input and one RS232C output, plus an audio output. It has no DisplayPort, DVI-D, analog RGB or audio input. Plan your cabling around the HDMI and LAN ports, and use the USB ports for media or plug-in sensors.

Does it have built-in Wi-Fi, and can staff share a laptop screen to it?

Yes, it has built-in Wi-Fi and the data lists screen sharing as supported. The manufacturer also lists compatibility with LG One:Quick Share. Staff can share a PC screen to the display, and basic settings such as volume and picture mode can be adjusted without a remote. Wireless content distribution and firmware updates over the same network are also supported.

How is content managed and monitored remotely?

The webOS 6.0 platform includes local content scheduling, group management, fail over, Wake on LAN and SNMP. Managers can monitor and control the display over the network from a phone or PC. A clinic in Msheireb, for example, could update queue messages across several waiting areas from one office. The data also lists a Signage 365 Care service and SuperSign CMS compatibility.

Is it compatible with Crestron or Cisco video conferencing systems?

It is compatible with Crestron Connected, which the data lists as supported for professional AV control. Cisco compatibility is listed in the manufacturer data as to be determined, so do not specify it for a Cisco video conference room without confirmation. Ask SmartRooms Qatar to check the exact control and integration requirements before ordering for a boardroom in Lusail or Doha.

What wall mount and space planning do I need before installing?

The VESA mount interface is 200 x 200. The manufacturer lists monitor dimensions of 967 x 564 x 57.1 and a head weight of 8.8, with a packed weight of 10.9, without stating the units in the data. Check these figures against your bracket and wall structure. SmartRooms Qatar offers a free site survey to confirm the wall, power point and cable route before installation.

Can a school or government body order several units under one purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and quotations are usually issued within one working day. A school in Education City ordering several units for entrances and corridors can send one LPO covering all units, with installation planned per site. Request a quote listing the quantity, screen orientation and mounting locations for an accurate proposal.
