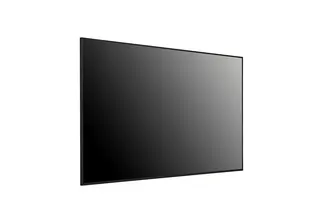

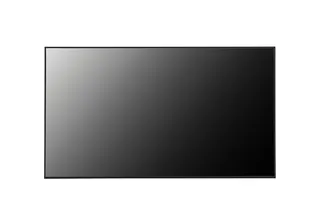

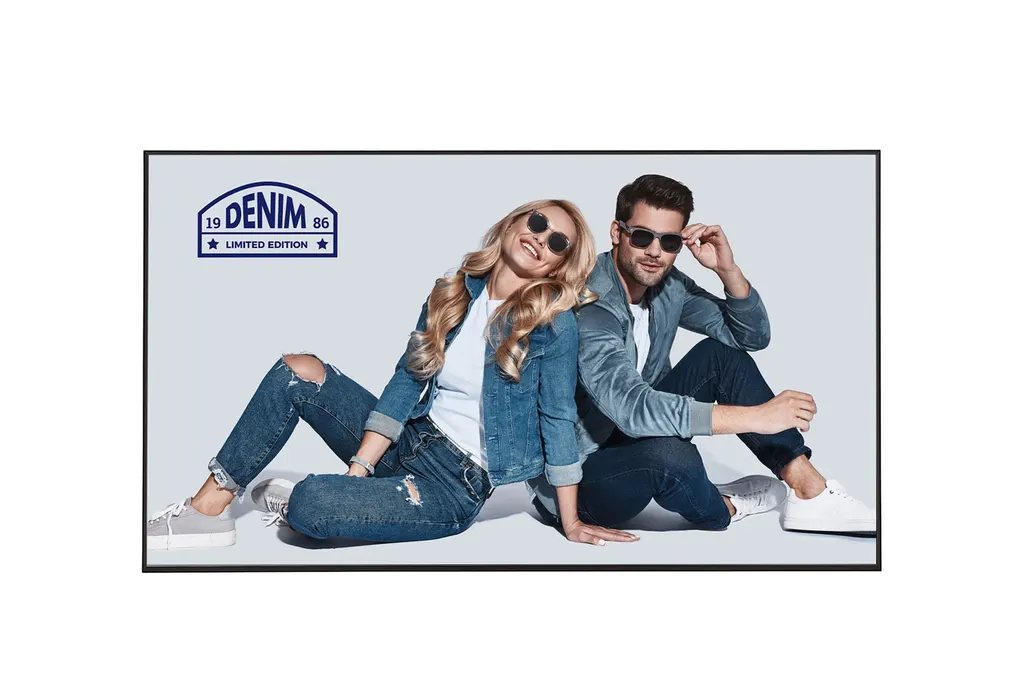

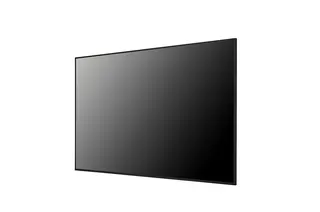

LG 65UH5N-M 65-inch UHD Signage Display for Business

Overview

The LG 65UH5N-M is a 65-inch UHD signage display built for continuous business use. It offers a 3840 x 2160 IPS panel at 500 nit typical brightness, webOS 6.0 with built-in Wi-Fi, and 24/7 operation. Its 29.7 mm depth and 8.9 mm side bezels suit lobbies, corridors and meeting areas across Qatar where wall space is limited.

What the LG 65UH5N-M is built to do

The LG 65UH5N-M is a 65-inch standard UHD signage display from the UH5N series, made for businesses that need content on screen for long hours. Its IPS panel runs at 3840 x 2160, four times the resolution of Full HD, with 500 nit typical brightness and a 1,100:1 contrast ratio. The panel is rated for 24/7 operation with a minimum lifetime of 50,000 hours.

Playback, connectivity and control

A high-performance processor and 16GB of internal memory let the display handle several content tasks without a separate media player in many installations. The webOS 6.0 platform supports local content scheduling and connection to external sensors, and the unit includes built-in Wi-Fi and Bluetooth. Two 10 W speakers are built in, and a separate audio output is provided. Planning the content schedule and remote status alerts before installation saves time once the screen is live.

Inputs: three HDMI and one DisplayPort, each at 3840 x 2160 and 60 Hz
Network and USB: one RJ45 LAN port and two USB 2.0 Type A ports
Control: RS232C in and out, IR input, and IR daisy chaining through RS232C
Management: SNMP, Wake on LAN, Crestron Connected, and Tile Mode up to 15 x 15

Wall planning for a 65-inch panel

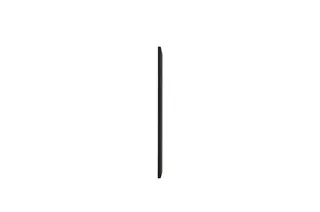

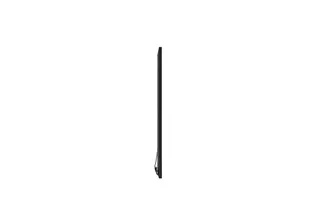

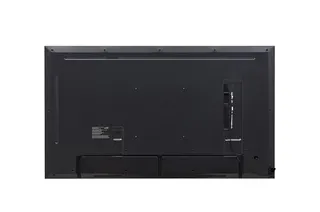

The head weighs 24.2 kg and measures 1450.3 x 830.3 x 29.7 mm without the IR module, so wall loading and fixings should be checked before installation day. The VESA mount pattern is 300 x 300. Hidden power inlets let the panel sit close to the wall, and with the optional slim bracket (WB21LMA/B) the gap is about 13 mm. Side bezels measure 8.9 mm and the bottom bezel 12.9 mm, which matters when panels are tiled into a video wall. Cable holders included with the basic accessories help keep cabling tidy.

Where it fits in Qatar

Three scenarios show how buyers in Qatar might use this model:

A hotel lobby in West Bay showing event schedules and wayfinding through the day, mounted away from direct sunlight.
A private school in Al Wakrah placing displays in corridors for announcements in English and Arabic, with the on-screen menu set to Arabic where staff prefer it.
A clinic in Lusail using a display in the waiting area for service information and directions.

Environment limits and next steps

The operating range is 0°C to 40°C with 10% to 80% humidity. In Qatar, summer temperatures can exceed 45°C, so install the display in an air-conditioned indoor space, away from direct sun and strong window glare, and confirm site conditions with the SmartRooms Qatar team before ordering. The power board has conformal coating that protects against salt, dust, iron powder and humidity, and the unit carries an IP5X rating. Face-down tilt is supported up to 30 degrees at 40°C.

SmartRooms Qatar supplies the LG 65UH5N-M across Qatar, with delivery to all eight municipalities, professional installation and a free site survey. Send us the quantity, mounting wall and room use, and we will issue a quotation, usually within one working day. Request a quote today.

Highlights

65-inch 3840 x 2160 UHD IPS panel with 500 nit typical brightness
Anti-glare coating with 28% haze rating for bright indoor spaces
webOS 6.0 with 16GB internal memory and built-in Wi-Fi
Three HDMI and one DisplayPort input, all at 3840 x 2160 60Hz
24/7 operation with a 0°C to 40°C operating range
Bezels 8.9 mm at sides; about 13 mm wall gap with slim bracket

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

106 specifications · Source: manufacturer · checked Oct 2026

Info3

Product: Standard (UHD)
Year: Y24
Month: M10

Panel17

Screen Size (Inch): 65"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness (Typ.): 500nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 1,000,000:1
Color gamut: BT709 95%
Viewing Angle(H x V): 178 X 178
Color Depth (Number of Colors): 10bit(D), 1.07Billion colors
Response Time: Tr : 8ms / Tf :10ms
Surface Treatment(Haze): 28%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: Yes / Yes

Connectivity (Jack Interface)9

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(2)
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
IR Out: No (Support IR daisy chain via RS232C IN/OUT)

Mechanical7

Bezel Color: Black
Bezel Width: T/R/L: 8.9mm, B: 12.9mm
Weight (Head): 24.2 kg
Packed Weight: 30.4 kg
Monitor Dimensions (W x H x D): 1450.3 x 830.3 x 29.7mm (Without IR)
Carton Dimensions (W x H x D): 1600.0 x 970.0 x 172.0mm
VESATM Standard Mount Interface: 300 x 300

HW Feature6

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes

SW Feature35

OS Ver. (webOS): webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: (TBD)
Crestron Connected: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

Power2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

Power Consumption6

Typ.: 130W
Max.: 205 W
BTU (British Thermal Unit): 444 BTU/Hr(Typ.), 699 BTU/Hr(Max)
Smart Enegy Saving (70%): 91W
DPM: 0.5W
Power off: 0.5W

Sound1

Speaker (Built-in): Yes (10W X 2)

Certification6

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: Yes / Yes
ePEAT(US only): Yes / Carbon "Reduced CO2" (TBD)
BS476 Part7: Class 1 (case top / back cover)
EN13501-1: Class A1 (case top) / Class A2 (back cover)

Software Compatibility6

SuperSign CMS: Yes
SuperSign Control+: Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic

Accessory2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

Special Feature3

Tilt (Face Down): Yes(Max 30º degree, 40ºC temperature)
IP Rating: IP5X
Conformal Coating (Power Board): Yes (Partial space coating)

Downloads

6 files from the manufacturer

PDF Datasheets · Opens on manufacturer site UH5N-M_Datasheet(low)_LG UHD Signage_250618_20250618_140744_.pdf 1.4 MB PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-MP_ARA.pdf 2.1 MB PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-MP_EN.pdf 2.6 MB PDF Manuals & guides · Opens on manufacturer site MFL05737701_03_QSG.pdf 1.2 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 5.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 65UH5N-M

What is the LG 65UH5N-M designed for?

It is a 65-inch UHD display for business signage, built to run content for long hours. It suits hotel lobbies, school corridors, clinic waiting areas and office reception points where information must stay readable all day. The 500 nit typical brightness and anti-glare coating with 28% haze help visibility in brightly lit rooms.

Do I need a separate media player with this display?

In many installations you do not. The unit runs webOS 6.0 with 16GB of internal memory and supports local content scheduling, so it can handle playback itself. Built-in Wi-Fi and an RJ45 LAN port also connect it to the network, which keeps cabling and equipment simple for a small site.

Which SuperSign software works with the 65UH5N-M?

The specification lists compatibility with SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care. A facilities team managing screens across several Qatar sites may prefer SuperSign Cloud, while a single-site school may choose a local setup. Confirm the right version for your network with the SmartRooms Qatar team when you request a quote.

Can this display be placed near a window or outdoors in Doha?

The listed operating range is 0 to 40 °C with 10 to 80% humidity, and the specification does not list an outdoor rating; the protection rating given is IP5X. In Doha, where summer temperatures can exceed 45°C, install it in an air-conditioned indoor space away from direct sun and window glare, and confirm the site with the SmartRooms Qatar team before ordering.

Will the display run on Qatar's power supply?

The built-in power supply is rated AC 100-240 V at 50/60 Hz, a range that covers the 240 V, 50 Hz mains used in Qatar. Typical consumption is 130 W and maximum is 205 W, with 0.5 W in power-off mode. Check that the circuit and socket are ready before installation, and the team can review this during the site survey.

How much wall space and support does a 65-inch panel need?

The head weighs 24.2 kg and measures 1450.3 x 830.3 x 29.7 mm without the IR module. The VESA pattern is 300 x 300. With the optional slim bracket WB21LMA/B, the panel sits about 13 mm off the wall. Check that the wall can carry the weight before mounting; SmartRooms Qatar offers a free site survey to check this.

Can several units form a video wall?

Yes. The specification lists Tile Mode up to 15 x 15, and the unit supports portrait and landscape orientation. Bezels are 8.9 mm on the top, right and left, and 12.9 mm at the bottom, so the bottom gap is wider than the sides. For a mall atrium or an office lobby in Doha, plan the grid before ordering so the team can size the layout accurately.

Can the on-screen menus be set to Arabic for a bilingual office?

Yes, the on-screen display language list includes Arabic alongside English, French, German and many other languages. This suits Qatari offices and schools that work in Arabic and English side by side. The language of the content itself depends on your material, so plan bilingual layouts with your design team in advance.

Is the display secure enough for a corporate network?

The specification lists LG's Enhanced Kernel Protection technology, which protects important data from external access or attacks, and states that this model is ISO/IEC 15408 Common Criteria EAL2 certified. Network security also depends on how the display is configured, so involve your IT team when connecting it over LAN, Wi-Fi or cloud management.

Which certifications are listed for this model?

The specification lists CB/NRTL safety, FCC Class B, CE and KC EMC, ErP and Energy Star, BS 476 Part 7 Class 1 for the case top and back cover, and EN 13501-1 Class A1 for the case top and Class A2 for the back cover. Ask SmartRooms Qatar for documentation when you request a quote if your procurement team needs it.

Can we buy this display on an LPO or through a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the product is covered by the manufacturer's warranty. When ordering several units for a school or government office, send the quantity, mounting locations and tender reference so the quote covers every unit.
