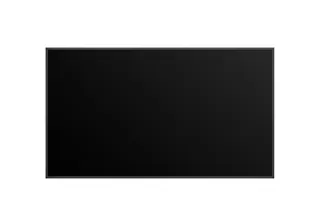

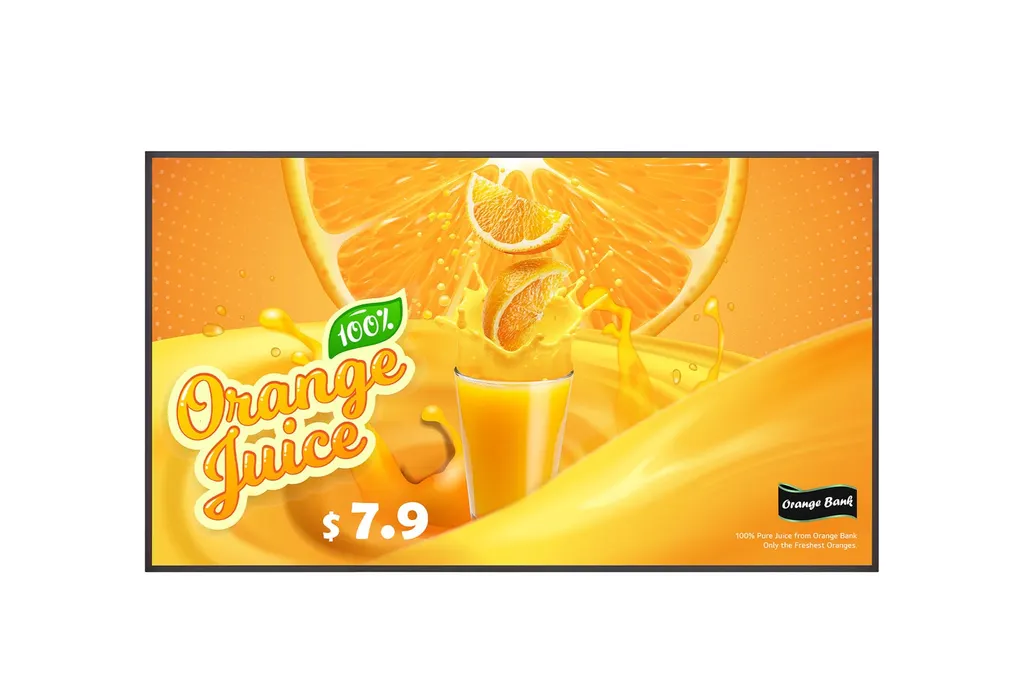

LG 65UH5Q-E 65-inch UHD Signage Display

Overview

The LG 65UH5Q-E is a 65-inch UHD signage display with 3,840 x 2,160 resolution, 500 nit typical brightness and webOS 8.0 built in, so it can play content without a separate media player. Its 11.4 mm even bezels suit multi-screen video walls, while IP5X dust protection and a partially coated power board support busy indoor business sites. It suits retailers, banks and schools in Qatar that need reliable indoor signage. Request a quote.

What the 65UH5Q-E is built to do

The LG 65UH5Q-E is a 65-inch UHD signage display for indoor business environments. Its 3,840 x 2,160 panel shows fine detail in menus, floor plans and product imagery, and the 16:9 format works in landscape or portrait orientation. Typical brightness is 500 nits with a 1,200:1 typical contrast ratio and a 178 x 178 degree viewing angle, so content stays readable for people standing beside a corridor or waiting in a lounge.

Playback without an extra media player

Many signage projects add a separate media box to every screen. The 65UH5Q-E runs webOS 8.0 on a high-performance SoC and keeps content in 16GB of internal memory, so it can run scheduled loops, play content from a URL or a USB drive, and manage local scheduling on its own. Built-in Wi-Fi and Bluetooth provide connection options where cabling is difficult. Central management through SuperSign is sold separately; the display is compatible with SuperSign CMS, Control+, WB and Cloud.

Bezels, mounting and wall space

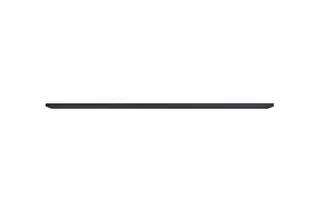

The even bezel measures 11.4 mm on every side, which keeps joins consistent when several panels sit in a grid. The chassis measures 1459.0 x 835.0 x 29.7 mm and weighs 21.1 kg without packaging, or 27.0 kg packed. It uses a 300 x 300 VESA interface. The optional Slim Wall Mount WB21LMA/B holds the screen close to the wall, leaving about 13.5 mm of space, while the Normal Wall Mount OLW480A/B suits a standard bracket. Hidden power inlets and simple cable management help the panel sit neatly against the wall.

Where it fits in Qatar

Hotel and serviced apartment lobbies in West Bay: check-in notices, dining times and event information, shown clearly to guests arriving at the desk.
Clinics and government service halls in Doha: queue numbers, wayfinding and service announcements in Arabic and English, with the on-screen menu switched to match the audience.
Schools in Al Wakrah or Lusail: timetables, notices and student achievements in corridors and reception areas, updated from one central schedule.

What to plan before ordering

Choose an air-conditioned indoor location. The rated operating range is 0 °C to 40 °C with 10 to 80 percent humidity, and Qatar summer temperatures can exceed 45 °C outside, so keep the screen out of direct sun and window glare and make sure the room has airflow. The built-in power supply accepts 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Because each unit weighs 21.1 kg, SmartRooms Qatar offers a free site survey to check wall loading and mounting positions before installation. Multiple units can be ordered under one purchase order (LPO).

Request a quote

Send us the number of 65UH5Q-E units you need, where they will be mounted and whether they will form a video wall. SmartRooms Qatar usually returns a quotation within one working day, covering supply, delivery to all eight municipalities of Qatar and professional installation. Request a quote today and our team will confirm the configuration with you.

Highlights

65-inch UHD panel with 3,840 x 2,160 native resolution
500 nit typical brightness and 1,200:1 typical contrast
webOS 8.0, 16GB internal memory and built-in Wi-Fi
11.4 mm even bezels for video wall installations
Rated 0 to 40 °C operating range for 24/7 operation
IP5X dust protection and conformal coated power board

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

103 specifications · Source: manufacturer · checked Oct 2026

INFO3

Product: Standard (UHD)
Year: Y25
Month: M07

PANEL17

Screen Size (Inch): 65"
Panel Technology: ADS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness: 500nit (Typ.)
Contrast Ratio: 1,200:1 (Typ)
Dynamic CR: 1,000,000:1
Color Gamut: BT709 95%
Viewing Angle (H x V): 178 x 178
Color Depth (Number of Colors): 10bit(D), 1.07Billion colors
Response Time: 8m (G to G)
Surface Treatment (Haze): 25%(Typ)
Life time: 50,000 Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: Yes / Yes

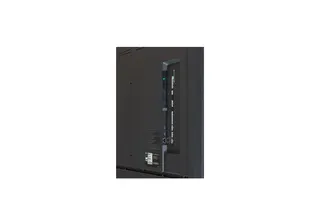

Connectivity (Jack Interface)8

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C In: Yes(1), 4pin Phone-jack
RJ45(LAN) IN: Yes(1)
IR In: Yes(1)
USB In: USB2.0 Type A(2)
Audio Out: Yes(1)
RS232C Out: Yes (1), 4pin Phone-jack

MECHANICAL7

Bezel Color: Black
Bezel Width: Even bezel : 11.4mm
Weight (Head): 21.1 kg
Packed Weight: 27.0 kg
Monitor Dimensions (W x H x D): 1459.0 x 835.0 x 29.7mm
Carton Dimensions (W x H x D): 1580.0 x 950.0 x 172.0mm

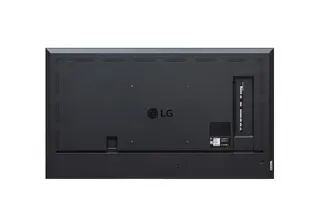

VESATM Standard Mount Interface: 300 x 300

HW FEATURE7

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(Built-in for Europe only, sold separately in other regions)
Pixel sensor: Yes
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes

SW FEATURE34

OS Ver. (webOS): webOS8.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: Yes(TBD)
Crestron Connected: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions2

Operation Temperature: 0 °C to 40 °C
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION6

Typ.: 130W (TBD)
Max.: 184W (TBD)
BTU (British Thermal Unit): 444 BTU/Hr(Typ.), 699 BTU/Hr(Max) (TBD)
Smart Enegy Saving (70%): 91W (TBD)
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker (Built-in): Yes (10W X 2)

CERTIFICATION4

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: Yes / Yes
ePEAT(US only): Yes / Carbon "Reducing CO2"(TBD)

SOFTWARE COMPATIBILITY6

SuperSign CMS: Yes
SuperSign Control+: Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polish

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light sensor receiver(EU/EK Only), Magnetic sheet(2EA, EU/EK Only)
Optional: Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light sensor receiver (ACC-L)

SPECIAL FEATURE3

Tilt (Face Down): Yes(Max 15˚ degree, 40℃ temperature) (TBD)
IP Rating: IP5X
Conformal Coating (Power Board): Yes(Partial space coating)

Downloads

6 files from the manufacturer

PDF Datasheets · Opens on manufacturer site UH5Q_Datasheet(low)_LG UHD Signage_250716_20260316_152441_.pdf 1.2 MB PDF Manuals & guides OM_ENG.pdf 3.6 MB PDF Manuals & guides · Opens on manufacturer site MFL05791001_05_QSG.pdf 4.6 MB URL Manuals & guides · Opens on manufacturer site Owner's Manual PDF Manuals & guides · Opens on manufacturer site webOS 24(8.0)_UG_ENG.pdf 2.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 65UH5Q-E

What is the LG 65UH5Q-E used for?

It is a 65-inch UHD display built for indoor digital signage, such as menus, wayfinding, service queues and promotional loops in offices, shops and public buildings. Its 24/7 operation rating and built-in webOS player suit reception areas in Doha that need screens running all day without a separate media box.

Does it need a separate media player?

No. The 65UH5Q-E runs webOS 8.0 on a high-performance SoC and stores content in 16GB of internal memory, so it can play scheduled loops and content from a URL or USB drive on its own. Central management through SuperSign is sold separately and must be purchased as an add-on.

Can it be installed in a sunny lobby or outdoors in Qatar?

Not outdoors. The rated operating temperature is 0 °C to 40 °C with 10 to 80 percent humidity, and Qatar summers can exceed 45 °C. Install it in an air-conditioned indoor space with airflow, away from direct sunlight and window glare. If the site is hot or dusty, confirm the environment with the SmartRooms Qatar team before ordering.

How well does it cope with dust and humidity?

It carries an IP5X rating, which protects against dust ingress, and its power board has partial conformal coating that helps against salt, dust, iron powder and humidity. These features suit busy indoor sites such as Industrial Area offices or workshop reception halls, but they do not make it suitable for outdoor installation.

How many units can form a video wall?

Tile mode supports layouts up to 15 by 15 displays, and the 11.4 mm even bezel keeps seams visually consistent. For a lobby wall in a Lusail office tower, plan the grid, brackets and cable routes first. SmartRooms Qatar provides free site surveys to check wall loading, sightlines and mounting positions before installation.

What inputs and connections does it have?

It has three HDMI inputs supporting 3840 x 2160 at 60Hz with HDCP 2.2 and 1.4, one DisplayPort input at the same resolution, one RJ45 LAN port, two USB 2.0 Type A ports, RS232C in and out, an IR input and an audio output. Check that your media player's output matches these specifications before ordering.

What are the physical size and mounting requirements?

The chassis measures 1459.0 x 835.0 x 29.7 mm, with a head weight of 21.1 kg and 27.0 kg packed. It uses a 300 x 300 VESA interface. The optional Slim Wall Mount WB21LMA/B leaves about 13.5 mm between screen and wall, and the Normal Wall Mount OLW480A/B is also available. Given the weight, a site survey before mounting is recommended.

Does it work with SuperSign and other software?

The source data lists compatibility with SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care, and also lists Crestron Connected, SNMP and Wake on LAN. SuperSign itself must be purchased separately, so include it in your quotation if you plan central content management across several sites.

Does it have speakers, and can it show Arabic menus?

It has two built-in 10W speakers and an audio output for connecting external sound. The on-screen display supports Arabic alongside English, French, Spanish and many other languages, which suits bilingual offices and schools that need menus in both Arabic and English.

Will the power supply work with Qatar's electricity?

The power supply is built in and rated for AC 100-240V at 50/60Hz, which covers the 240 V, 50 Hz mains used in Qatar. A power cord and a cord holder are included. Confirm the plug type with the SmartRooms Qatar team when you request a quote, so the cord or any adapter matches the sockets in your building.

How do schools and government buyers order it?

Schools, ministries and other public bodies can order the 65UH5Q-E against a purchase order (LPO) or a government tender, including tenders published through Monaqasat. Payment by bank transfer, cheque or purchase order is accepted. Send the quantity and delivery location, and the SmartRooms Qatar team will usually return a quotation within one working day.
