LG 65UH7F-H (Discontinued) · Replacements in Qatar

Name: LG 65UH7F-H 65-inch High Haze UHD Signage Display
Brand: LG
SKU: lg-65uh7f-h
Availability: Discontinued

Overview

The LG 65UH7F-H is a 65-inch UHD signage display with an IPS panel, 700 nit typical brightness and a 28% haze surface that reduces glare in bright lobbies and corridors. It offers built-in Wi-Fi, webOS 4.1 with 8 GB memory, IP5x dust protection and OPS compatibility. LG has discontinued this model, so Doha organisations that already run one, or need a comparable panel for reception and meeting areas, should request a quote for a current equivalent or compatible replacement.

What the 65UH7F-H is and who it suits

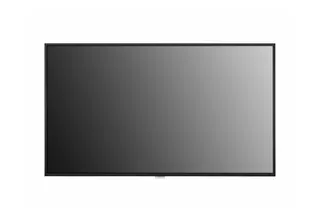

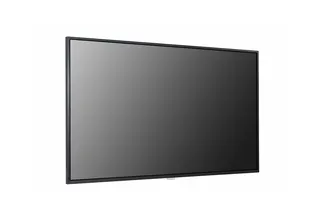

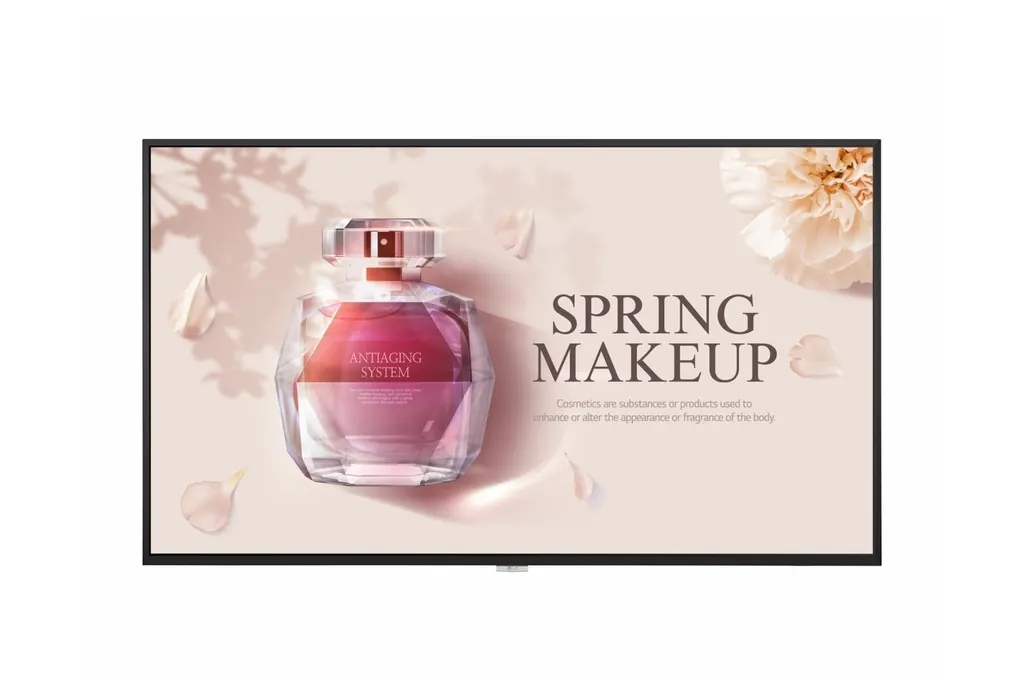

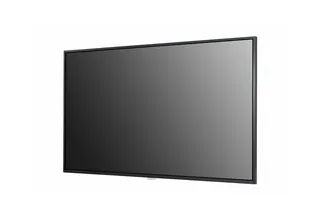

The LG 65UH7F-H is a 65-inch standard-type signage display built around a 3840 x 2160 IPS panel. It suits indoor information points where content must stay readable under ceiling lights or daylight, such as reception areas, corridors, retail frontages and meeting-room doors. LG has discontinued this model, so this page serves organisations that already run one, buyers comparing it with newer panels, and anyone looking for a replacement.

Brightness, haze and colour that matter on site

The panel is listed at 700 nit typical brightness, a 1,100:1 contrast ratio and a 500,000:1 dynamic contrast figure. It covers 95% of the BT.709 colour gamut and supports 10-bit colour, or 1.07 billion colours. The surface carries a 28% haze treatment, which softens reflections from lights and glazing so menus, directories and timetables remain legible. The 8 ms grey-to-grey response time handles moving video and animated content, and the listed operation is 24/7.

Connectivity, control and software

Inputs: two HDMI (HDCP 2.2/1.4), one HDMI (HDCP 1.4), one DisplayPort (HDCP 2.2/1.3), one DVI-D, audio and a USB 2.0 Type A port.
Outputs and control: DisplayPort and audio outputs, RS232C in and out, RJ45 LAN and IR input.
Built-in software: webOS 4.1 with 8 GB internal memory, embedded content scheduling and group management, and built-in Wi-Fi.
Compatibility: listed with SuperSign CMS, SuperSign Control, SuperSign Media Editor, LG ConnectedCare, Crestron Connected and Cisco video conferencing control.

The embedded tools let a site schedule playlists locally or across a group of screens, so a simple installation may not need a separate media player, depending on the content plan.

Where it fits in Qatar

In Msheireb, a government office might place one beside a service counter to show queue numbers and departmental directions in Arabic and English. A bank branch in West Bay could use one in a lobby where ceiling lights and glass frontage create glare, relying on the haze coating. A private school in Al Rayyan can run timetables and announcements in a corridor, while a company in Lusail uses a meeting-room screen with Cisco or Crestron-based control to switch sources for calls with teams abroad.

The narrow bezel, 9.9 mm on the left, right and top and 14.4 mm at the bottom, keeps gaps small when several units form a video wall, with tile mode settings listed up to 15 x 15.

Planning the installation and environment

The listed operating range is 0 to 40 °C and 10% to 80% humidity. Qatar summers regularly pass 45 °C, so this model belongs in air-conditioned indoor spaces, not an outdoor kiosk, an unconditioned atrium or a sun-facing glass wall. The 30 degree tilt is a listed maximum under conditions within 30 °C and 50% humidity, so plan it as a high-mount option only after checking the room temperature.

Head weight 28.2 kg; monitor dimensions 1453.3 x 844.0 x 39.9 mm without stand
VESA pattern 300 x 300; optional wall bracket LSW350B and VESA adapter AM-B330S
AC 100-240 V, 50/60 Hz built-in power; typical 130 W and maximum 180 W, marked TBD in the data
OPS compatible, but built-in OPS power is not listed, so confirm the OPS kit power arrangement

A free site survey before wall-mounting checks wall loading, cable routes and the sightline from the main approach. Quotations are usually issued within one working day.

Requesting a quote for a replacement

Because this model is discontinued, the practical next step is a quote for a current equivalent or a compatible replacement. Send SmartRooms Qatar the room size, mounting height, daily running hours and the number of units, and request a quote. Orders can be placed by purchase order or LPO, and the products carry the manufacturer's warranty.

Highlights

65-inch UHD IPS panel with 3840 x 2160 native resolution
700 nit typical brightness with 28% haze surface treatment
webOS 4.1 with 8 GB internal memory and built-in Wi-Fi
IP5x dust protection and 0 to 40 °C operating range
Portrait and landscape orientation, 30° tilt under listed conditions
Discontinued model: request a quote for a replacement

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

47 specifications · Source: manufacturer · checked Oct 2026

TYPE1

Type: Standard

PANEL13

Screen Size: 65"
Panel Technology: IPS
Native Resolution: 3840 x 2160 (UHD)
Brightness: 700nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 500,000:1
Color Gamut: BT709 95%
Viewing Angle(H x V): 178 x 178
Color Depth: 10bit, 1.07Billion colors
Response Time: 8 ms (G to G)
Surface Treatment(Haze): 28%
Operation Hours (Hours/Day): 24/7
Portrait / Landscape: Yes / Yes

CONNECTIVITY3

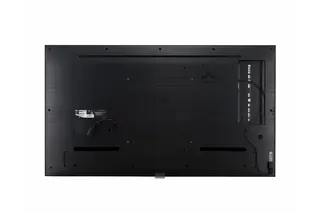

Input: HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
Output: DP, Audio
External Control: RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION7

Bezel Color: Black
Bezel Width: T/R/L: 9.9mm, B: 14.4mm
Weight(Head): 28.2Kg

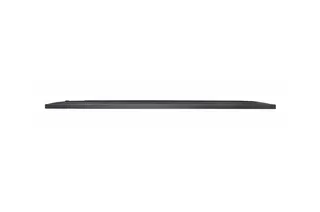

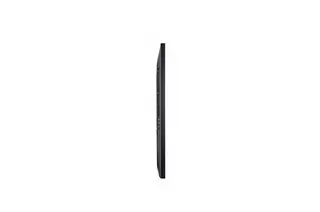

Monitor Dimension(W x H x D): 1453.3 x 844.0 x 39.9mm

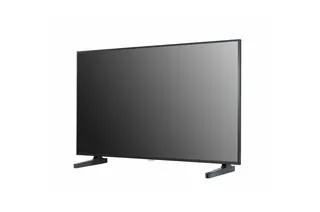

Monitor Dimensions with Stand(W x H x D): 1453.3 x 893.1 x 290.0mm
Handle: No
VESA™ Standard Mount Interface: 300 x 300

KEY FEATURE1

Key features: Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor, Local Key Operation, webOS 4.1,Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image),Sync Mode (RS232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Co

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C
Operation Humidity: 10% to 80%

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION3

Typ.: 130W(TBD)
Max.: 180W(TBD)
BTU (British Thermal Unit): 0 BTU/Hr(Typ.), 0 BTU/Hr(Max)

SOUND1

Speaker: Yes

CERTIFICATION3

Safety: CB / NRTL
EMC: FCC Class "A" / CE / KC
ErP / Energy Star: Yes / Energy Star 8.0

OPS Compatibility2

OPS type compatible: Yes
OPS Power built in: No

SOFTWARE COMPATIBILITY5

SuperSign CMS: Yes
SuperSign Control / Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Media Editor: Yes
LG ConnectedCare: Yes

ACCESSORY2

Basic: Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional: Stand(ST-653T), Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

SPECIAL FEATURE2

Tilt(Facedown): Yes (Max 30º degree) *In conditions within 30ºC temperature, 50% humidity
IP Rating: IP5x

Downloads

5 files from the manufacturer

PDF Manuals & guides 43495565UH5F_495565UH7F_Arabic.pdf 3.5 MB PDF Manuals & guides MFL71435701_04_200420_1.pdf 5.3 MB PDF Manuals & guides OM_ENG.pdf 3.3 MB PDF Manuals & guides webOS4.1_ENG.pdf 6.8 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 65UH7F-H

Is the LG 65UH7F-H still sold by LG?

No. LG has discontinued the 65UH7F-H, so new units may not be available from the manufacturer. SmartRooms Qatar can still assess your requirement and quote for a current equivalent or a compatible replacement. Send us your screen size, daily running hours and the content you play, and request a quote. Quotations are usually issued within one working day.

What is this 65-inch model designed for?

It is a standard-type 65-inch signage display for indoor information, such as wayfinding, menus, schedules and promotional loops. A Doha office might use it at a reception desk, while a school in Al Rayyan could place one in a corridor. Its listed 24/7 operation suits displays that run through the working day without a break.

Will the screen stay readable in a bright lobby?

The panel is listed at 700 nit typical brightness with a 28% haze surface treatment. That haze reduces reflections from ceiling lights and glazing, so text on menus and directories stays easier to read than on a glossy screen. In a sunlit West Bay lobby, test the placement before committing, since direct sun on the screen face reduces contrast regardless of coating.

Can it be installed near windows or outdoors in Qatar's summer heat?

No, not outdoors. The listed operating temperature is 0 to 40 °C and humidity 10% to 80%, while Qatar summers often pass 45 °C. Keep it in an air-conditioned indoor space and avoid a glazed atrium or a position where afternoon sun heats the enclosure. Confirm the exact environment with the SmartRooms Qatar team before the quotation is finalised.

Can I use it in a video wall, and how thin are the bezels?

The bezel is 9.9 mm on the left, right and top and 14.4 mm at the bottom, which keeps gaps small when panels are tiled. The data lists tile mode settings up to 15 by 15. Plan the wall with a site survey, because the head weighs 28.2 kg and the mounting structure must suit both the array size and the wall.

Which inputs and outputs does it provide?

It has two HDMI inputs with HDCP 2.2/1.4, one HDMI input with HDCP 1.4, one DisplayPort input with HDCP 2.2/1.3, one DVI-D input, an audio input and a USB 2.0 Type A port. Outputs are DisplayPort and audio. Control is handled through RS232C in and out, RJ45 LAN and IR, so a laptop or media player can connect directly and be managed over the network.

Does it work with video conferencing and AV control systems?

Yes. The manufacturer lists compatibility with Crestron Connected for professional AV control and with Cisco systems for video conferencing, which helps with source switching on incoming calls. For a boardroom in Lusail linking to teams abroad, confirm your exact conferencing platform and control system when requesting a quote.

How do I mount it at height, and can it tilt?

It uses a 300 x 300 VESA pattern, and the listed options include wall bracket LSW350B, stand ST-653T and VESA adapter AM-B330S. The data lists a 30 degree tilt for installation at high places, but this is a maximum under conditions within 30 °C and 50% humidity, so it is not a default in a hot space. A site survey checks wall loading for the 28.2 kg head before mounting.

Can it run content without a computer?

Yes. It runs webOS 4.1 with 8 GB internal memory and built-in Wi-Fi, and includes embedded content scheduling with group management. Compatibility with SuperSign CMS, SuperSign Control, SuperSign Media Editor and LG ConnectedCare is also listed. A school or clinic can load playlists locally and schedule them across a group of screens.

Will it run on Qatar's 240 V supply?

Its listed power input is AC 100 to 240 V at 50/60 Hz with built-in power, which covers Qatar's 240 V, 50 Hz mains. The listed typical consumption is 130 W, with a 180 W maximum. The data marks these power figures as TBD, so ask SmartRooms Qatar to confirm them against the final manufacturer documents before you size circuits for a multi-screen installation.

What comes in the box, and what must I buy separately?

The basic package lists a remote controller, power cord, quick setup guide, HDMI cable, regulation book and a phone-to-RS232C adapter. The stand ST-653T, wall bracket LSW350B, VESA adapter AM-B330S and OPS kit KT-OPSF are optional. Ask for them in the same quotation so your order matches your mounting plan and the accessories are quoted together.

Can a ministry, school or company buy several units through an LPO or tender?

Yes. SmartRooms Qatar supplies organisations by purchase order, and government buyers can work through Monaqasat tender procedures. For a school in Al Wakrah fitting out several corridors with screens, send the quantity, mounting list and delivery location in one request. Payment can be by bank transfer, cheque or purchase order, and the products are covered by the manufacturer's warranty.
