LG 65UH7F (Discontinued) · Replacements in Qatar

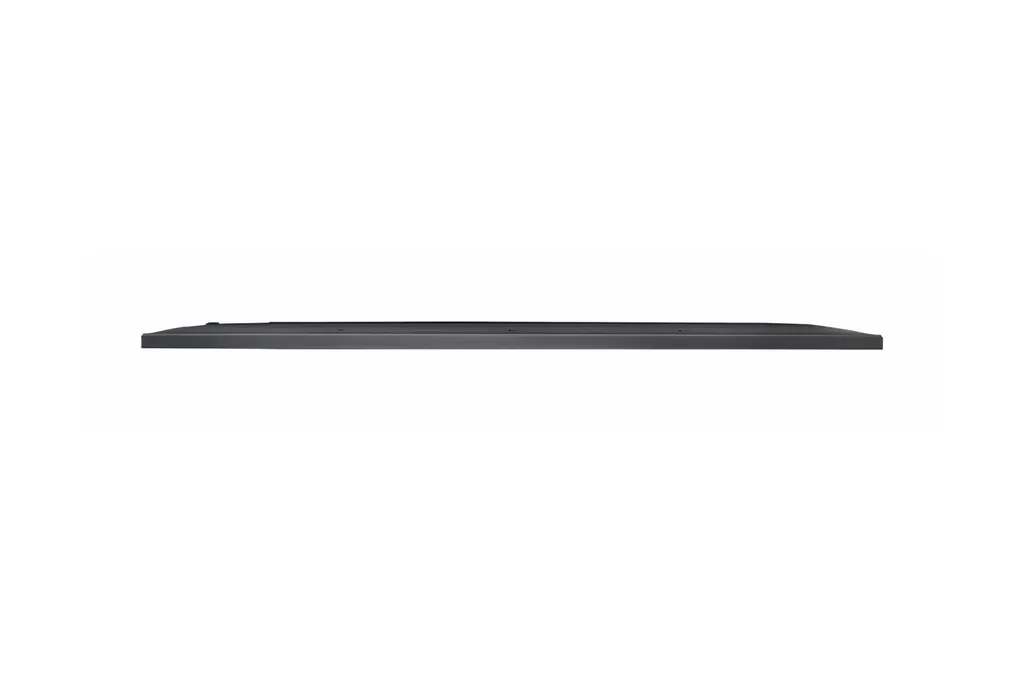

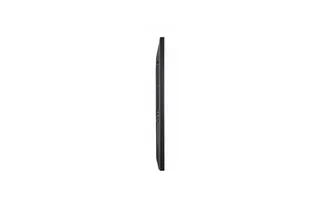

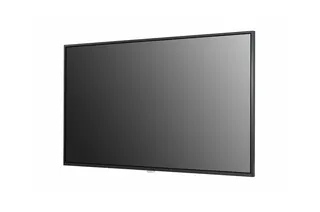

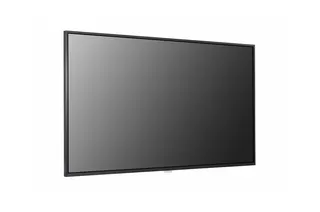

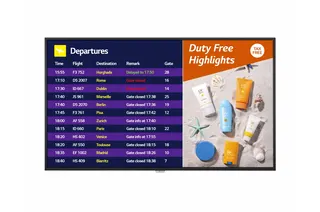

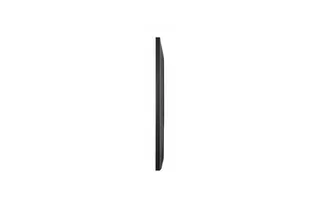

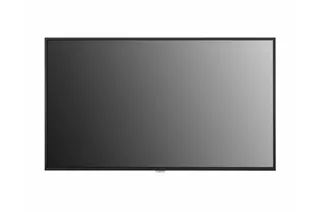

Name: LG 65UH7F 65-inch High-Brightness 4K Signage Display (Discontinued)
Brand: LG
SKU: lg-65uh7f
Availability: Discontinued

Overview

The LG 65UH7F is a 65-inch 4K signage display with a 700 nit IPS panel, rated for 24/7 operation, and it can be used in portrait or landscape. It has three HDMI inputs, built-in Wi-Fi, a LAN port and 10 W speakers. LG has discontinued this model, so SmartRooms Qatar can quote a current equivalent for lobbies, schools and corridors across Qatar.

A 65-inch 4K display for bright, always-on signage

The LG 65UH7F is a 65-inch signage display with a 3840 x 2160 native resolution and an IPS panel with a typical brightness of 700 nits. It is rated for 24/7 operation and has a panel lifetime of at least 50,000 hours. Its 16:9 panel can be turned to portrait orientation, which suits menus, wayfinding and directory screens.

Specifications that matter on a Qatari site

Brightness: 700 nits typical, useful where daylight reaches the screen from a window or entrance.
Viewing angle: 178 degrees horizontal and vertical, so visitors standing to the side still see the same picture.
Bezels: 9.9 mm on the top, right and left, and 14.4 mm at the bottom, which keeps the image area large when screens sit side by side.

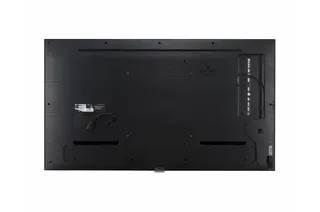

Inputs: three HDMI inputs, DisplayPort in and out, DVI-D in, one RJ45 LAN input, RS232C in and out, and one USB 2.0 Type A port.
Power: 130 W typical and 185 W maximum, with 0.5 W in power-off mode and an input rated 100-240 V, 50/60 Hz.

Where it fits in Qatar

A private school in Al Wakrah could place one in a corridor to show timetables and announcements. Built-in Wi-Fi and a LAN port let staff update content from the office without visiting the screen. A bank branch in Msheireb might use one near the entrance to show rates and promotions, where the wide viewing angle helps customers see the content from several positions. A clinic in Lusail could run a portrait directory screen beside its reception desk.

Planning the installation

The head weighs 28.2 kg, or 28.8 kg with the optional ST-653T stand, and the packed weight is 35.0 kg. It uses a 300 x 300 mm VESA mount, so the wall or stand must carry that load. SmartRooms Qatar offers a free site survey to confirm wall type and mounting height. The operating range is 0 to 40 degrees C and 10 to 80% humidity, with an IP5X dust rating. In Qatar, where summer temperatures can exceed 45 degrees C, install it in an air-conditioned space and not in a sunlit atrium or outdoor enclosure. The optional OPS Kit KT-OPSF connects in piggyback form, because OPS is not built in.

A discontinued model: what to consider

LG has discontinued the 65UH7F. Organisations that already own it can still rely on its specifications for planning, and buyers comparing options should check the connectivity and software support listed above. SuperSign CMS, Control+, WB, Mobile CMS, Promota and Connected Care are supported, but SuperSign Cloud is not. Request a quote for a current equivalent or a compatible replacement, and SmartRooms Qatar will check it against your existing mounts and cabling. Supply, delivery to all eight municipalities of Qatar, installation and purchase orders are available, and lead times are confirmed with each quotation based on stock.

Highlights

65-inch 3840 x 2160 UHD IPS panel
700 nits typical brightness, rated for 24/7 operation
Portrait and landscape orientation supported
Three HDMI inputs, DisplayPort in and out, RJ45 LAN
Built-in Wi-Fi/Bluetooth and 8GB internal memory
Discontinued by LG; request a quote for a current equivalent

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

135 specifications · Source: manufacturer · checked Oct 2026

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional: Stand(ST-653T), OPS Kit(KT-OPSF)

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

SOUND1

Speaker (Built-in): YES (10W x 2)

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic

OPS COMPATIBILITY2

OPS Power Built-in: NO
OPS Type compatible: YES (Piggyback)

CERTIFICATION4

EMC: FCC Class "A" / CE / KC
ePEAT(US only): NO
ERP / Energy Star: YES(NewErP) / YES
Safety: CB / NRTL

ENVIRONMENT CONDITIONS2

Operation Humidity: 10 % to 80 %
Operation Temperature: 0 °C to 40 °C

MECHANICAL SPECIFICATION10

Weight (Head): 28.2Kg
Bezel Color: Black
Bezel Width: T/R/L: 9.9mm, B: 14.4mm
Carton Dimensions (W x H x D): 1600.0 x 1095.0 x 175.0mm
Handle: NO
Monitor Dimensions (W x H x D): 1453.3 x 844.0 x 39.9mm (with LG Logo)
Monitor Dimension with Stand (W x H x D): 1453.3 x 893.1 x 290.0mm
Packed Weight: 35.0Kg
VESA Standard Mount Interface: 300 x 300 mm
Weight (Head+Stand): 28.8Kg

POWER CONSUMPTION6

BTU (British Thermal Unit): 444 BTU/Hr(Typ.), 614 BTU/Hr(Max.)
DPM: 0.5W
Max.: 185W
Power off: 0.5W
Smart Energy Saving (70%): 100W
Typ.: 130W

PANEL19

Aspect Ratio: 16:9
Back Light Type: Edge
Brightness: 700nit (Typ.)
Color Depth (Number of Colors): 1.07 Billion colors
Color Gamut: BT709 95%
Contrast Ratio: 1,100:1
Dynamic CR: 500,000:1
Life time: 50,000Hrs (Min.)
Native Resolution: 3840 x 2160 (UHD)
Operation Hours (Hours/Day): 24/7
Panel Technology: IPS
Portait / Landscape: YES / YES
QWP (Quarter Wave Plate): N/A
Refresh Rate: 60Hz
Response Time: 8ms (G to G)
Screen Size (Inch): 65
Surface Treatment (Haze): Haze 3%
Transparency: N/A
Viewing Angle (H x V): 178º x 178º

CONNECTIVITY19

Audio In: YES
Audio Out: YES
Daisy Chain: NO
DP In: YES (HDCP 2.2/1.3)
DP Out: YES
DVI-D In: YES (HDCP 1.4)
External Speaker Out: NO
HDMI In: YES (3ea)
HDMI In (HDCP Ver.): 2.2/1.4
HDMI Out: NO
IR In: YES
IR Out: NO
RGB In: NO
RJ45(LAN) In: YES (1ea)
RJ45(LAN) Out: NO
RS232C In: YES
RS232C Out: YES
Touch USB: NO
USB In: USB2.0 Type A (1ea)

SPECIAL FEATURE8

Conformal Coating (Power Board): YES
Direct Sunlight: N/A
IP Rating: IP5X
Overlay Touch Compatibility: N/A
Power Protection: N/A
Smart Calibration: N/A
Tilt (Face down): Max. 30 degree
Tilt (Face up): N/A

SOFTWARE COMPATIBILITY7

Connected Care: YES
Mobile CMS: YES
Promota: YES
SuperSign Cloud: NO
SuperSign CMS: YES
SuperSign Control+: YES
SuperSign WB: YES

FEATURE - HARDWARE13

Acceleration(Gyro) Sensor: YES
Auto Brightness Sensor: YES
BLU Sensor: NO
Current Sensor: NO
FAN (Built-in): NO
Humidity Sensor: NO
Internal Memory (eMMC): 8GB
Local Key Operation: YES
Pixel Sensor: NO
Power Indicator: NO
Proximity Sensor: NO
Temperature Sensor: YES
Wi-Fi/BT (Built-in): YES

FEATURE - SOFTWARE39

Auto Set ID: YES
Backlight Sync: NO
Beacon: YES
Booting Logo Image: YES
Brightness Compensation: NO
Cisco Certification: YES
Control Manager: YES
Crestron Connected: YES
External Input Rotation: YES
Fail over: YES
Gapless Playback: YES
Group Manager: YES
HDMI-CEC: YES
ISM Method: YES
Local Contents Scheduling: YES
Local Network Sync: YES
Network Ready: YES
No Signal Image: YES
OS Ver. (webOS): webOS 4.1
PBP: YES (4PBP)
PIP: YES
Play via URL: YES
PM mode: YES
Pro:Idiom: YES
RS232C Sync: YES
Scan Inversion: NO
Screen Rotation: YES
Screen Share: YES
Setting Data Cloning: YES
SI Server Setting: YES
Smart Energy Saving: YES
SNMP: YES
Status Mailing: YES
Tile Mode Setting: YES
USB Plug & Play: YES
Video Tag: YES (4 Video Tag)
Wake on LAN: YES
webRTC: YES
W/B Setting by Grey scale: NO

Downloads

3 files from the manufacturer

PDF Manuals & guides · Opens on manufacturer site MFL71435702_05_240513.pdf 4.5 MB PDF Manuals & guides · Opens on manufacturer site OM_ENG.pdf 3.3 MB PDF Manuals & guides · Opens on manufacturer site webOS4.1_ENG.pdf 6.8 MB

Questions about 65UH7F

What is the LG 65UH7F designed for?

The LG 65UH7F is a 65-inch signage display for content that runs continuously. Its 700 nit IPS panel and 24/7 rating suit lobbies, corridors, retail entrances and information points. Typical users in Qatar include schools, hotels, banks and government reception areas that need a bright, reliable screen for announcements, menus or directions.

Is the LG 65UH7F still available from LG?

No. LG has discontinued the 65UH7F. If you already own one, SmartRooms Qatar can help with planning and compatible accessories. If you are buying new, request a quote and we will propose a current equivalent or a compatible replacement that matches your required size, brightness and connectivity.

Can the LG 65UH7F be installed in a sunny or outdoor area in Qatar?

The operating temperature range is 0 to 40 degrees C with 10 to 80% humidity, and the IP5X rating covers dust protection only. Summer temperatures in Qatar can exceed 45 degrees C, so install it in an air-conditioned indoor space. Outdoor or sunlit positions need a different environment check before any decision.

Does the LG 65UH7F have a built-in OPS slot?

No. The OPS power is not built in, but the display is compatible with an OPS Type in piggyback form. The optional OPS Kit KT-OPSF is the listed accessory for this. A media player or PC module can be added this way, which helps a school or hotel run its own content software without a separate computer near the screen.

What inputs and connections does the LG 65UH7F offer?

It offers three HDMI inputs with HDCP 2.2 and 1.4 support, DisplayPort in and out, one DVI-D input, one RJ45 LAN input, RS232C in and out, audio in and out, IR in and one USB 2.0 Type A port. It has no HDMI out and no daisy chain, so plan the signal path before ordering several units.

Can the LG 65UH7F be used in portrait orientation?

Yes. The panel supports both portrait and landscape orientation. Portrait mode suits directory boards, menus and wayfinding screens in clinics, malls and office buildings. Check the mounting bracket and cable routing before installation, because a portrait mount changes the load point and the space needed behind the screen.

Will the LG 65UH7F work with Qatar mains power?

The power supply is rated for AC 100 to 240 V at 50/60 Hz, which includes Qatar's 240 V, 50 Hz mains. Typical consumption is 130 W and maximum is 185 W, with 0.5 W in power-off mode. SmartRooms Qatar will confirm the socket and cable arrangement with your electrician when we issue the quotation.

How heavy is the display and what wall mount does it need?

The head weighs 28.2 kg and 28.8 kg with the optional ST-653T stand. The packed weight is 35.0 kg. It uses a 300 x 300 mm VESA interface. Book a free site survey so that the wall type, fixings and mounting height are checked before delivery, especially for a boardroom or lobby wall.

A school in Al Wakrah wants to update corridor screens from the office. Can it do that?

Yes, if the network allows it. The display includes built-in Wi-Fi and Bluetooth and a RJ45 LAN port, and it supports SuperSign CMS, SuperSign Control+ and Mobile CMS. Staff can schedule timetables and announcements remotely. SmartRooms Qatar can advise on the network setup as part of the quotation.

Which software platforms does the LG 65UH7F support?

It supports SuperSign CMS, SuperSign Control+, SuperSign WB, Mobile CMS, Promota and Connected Care. SuperSign Cloud is not supported. It runs webOS 4.1, has 8GB of internal memory, and offers split-screen modes including four picture-by-picture windows. Confirm your content platform before ordering so that the chosen software matches the display.

Can a government ministry or authority in Doha buy this display through a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. For a reception area in a ministry building, request a quote listing the number of units and the mounting plan, and we will include installation and delivery to the relevant municipality.
