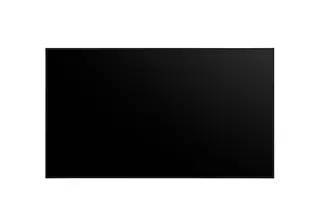

LG 65UL5Q-E 65-inch UHD Signage Display

Overview

The LG 65UL5Q-E is a 65-inch UHD signage display with 3840 x 2160 resolution, 500 nit typical brightness and a panel rated for 24/7 operation. It runs webOS 6.1, has built-in Wi-Fi and three HDMI inputs, and its even 10.8mm bezel suits tiled layouts. Organisations in Doha, Lusail and West Bay planning lobby, corridor or reception screens can request a quote from SmartRooms Qatar.

What the 65UL5Q-E gives an indoor signage screen

The LG 65UL5Q-E is a 65-inch UHD signage display designed to show wayfinding, information and promotional content through long opening hours. Its 3840 x 2160 native resolution and 500 nit typical brightness keep text and imagery readable in lobbies, corridors and reception areas. The specification rates the panel for 24/7 operation with a minimum lifetime of 30,000 hours, which suits screens that stay on from morning until closing.

Specifications that matter when you compare screens

Panel: 16:9 ADS panel with direct backlight, 60Hz refresh rate and 8ms (G to G) response time.
Viewing: 178 degree horizontal and vertical viewing angles, in portrait or landscape orientation.
Contrast and colour: 1,200:1 contrast ratio, 1,000,000:1 dynamic contrast, DCI 80% colour gamut and 1.07 billion colours.
Physical: Black 10.8mm even bezel, 1452.9 x 829.2 x 59.7 mm body, 16.5 kg head weight and 300 x 300 mm VESA mounting.
Power: AC 100-240V 50/60Hz with built-in power, 155W typical and 228W maximum draw.

Software, connections and remote control

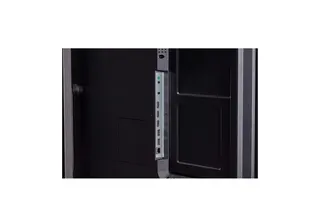

The display runs LG webOS 6.1 with 8GB of internal eMMC storage, and includes built-in Wi-Fi and Bluetooth. Inputs cover three HDMI ports supporting HDCP 2.2 and 1.4, one LAN port and two USB 2.0 Type A ports, with RS232C control and audio out. Scheduling, group management, fail-over playback and up to four-way picture-by-picture layouts help one screen run several messages. Remote monitoring from a phone or PC gives status data and real-time adjustment over the network.

Where it fits across Qatar

A private school in Al Wakrah refitting a corridor could use the 65-inch size for timetables, event notices and announcements, where an 86-inch screen would overwhelm the wall. A serviced apartment building in The Pearl could place one in its lobby for wayfinding and building notices. A bank branch in Al Sadd is better served by positioning the screen inside the entrance rather than against sunlit glass, since the data does not rate the panel for direct sunlight. A training centre in Education City might use one in a meeting room to show session schedules.

Planning the installation

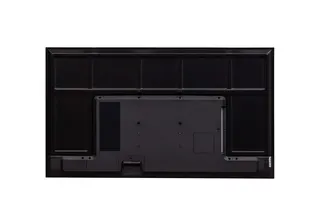

Confirm the wall can carry a 16.5 kg head and match the 300 x 300 mm VESA pattern.
Keep the room between 0 and 40 degrees, and between 0 and 35 degrees for portrait use.
Respect the 15 degree maximum tilt up or down, which the manufacturer says must not be exceeded.
Choose the optional Slim Wall Mount (WB21LMA/B) or Wall Mount (WB24GCA/B), or a bracket of your own.
Plan cable routes for HDMI, LAN and RS232C control before the panel is fixed.

The standard warranty applies, and an optional extended warranty covers up to five years in total, ending at 30,000 hours of use or five years, whichever comes first. SmartRooms Qatar offers a free site survey to check wall loading, sightlines and climate before installation, and our professional installation team can handle the mounting. Share your room size, mounting height and content plan, and request a quote for the LG 65UL5Q-E. Quotations are usually issued within one working day, and we accept purchase orders and government tender submissions.

Highlights

65-inch UHD panel at 3840 x 2160 native resolution
500 nit typical brightness with auto brightness sensor
Rated for 24/7 operation with 30,000-hour minimum lifetime
webOS 6.1 with built-in Wi-Fi and Bluetooth
Three HDMI inputs, LAN, RS232C control and remote monitoring
Even 10.8mm black bezel with portrait and landscape support

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

135 specifications · Source: manufacturer · checked Oct 2026

PANEL19

Screen Size (Inch): 65
Panel Technology: ADS
Back Light Type: Direct
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness: 500nit (Typ.)
Contrast Ratio: 1,200:1
Dynamic CR: 1,000,000:1
Color Gamut: DCI 80%
Viewing Angle (H x V): 178º x 178º
Color Depth (Number of Colors): 1.07 Billion colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): 1%
Life time: 30,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: YES / YES
Transparency: NO
QWP (Quarter Wave Plate): N/A

CONNECTIVITY19

HDMI In: YES (3ea)
HDMI In (HDCP Ver.): 2.2/1.4
DP In: NO
DVI-D In: NO
RGB In: NO
Audio In: NO
RS232C In: YES
RJ45(LAN) In: YES (1ea)
IR In: NO
USB In: USB2.0 Type A (2ea)
HDMI Out: NO
DP Out: NO
Audio Out: YES
Touch USB: NO
External Speaker Out: NO
RS232C Out: YES
RJ45(LAN) Out: NO
IR Out: NO
Daisy Chain: NO

MECHANICAL SPECIFICATION10

Bezel Color: Black
Bezel Width: 10.8mm Even
Weight (Head): 16.5 kg
Weight (Head+Stand): N/A
Packed Weight: 21.7 kg
Monitor Dimensions (W x H x D): 1452.9 x 829.2 x 59.7mm
Monitor Dimension with Stand (W x H x D): N/A
Carton Dimensions (W x H x D): 1635 x 976 x 141mm
Handle: NO
VESA Standard Mount Interface: 300 x 300 mm

FEATURE - HARDWARE13

Internal Memory (eMMC): 8GB
Wi-Fi/BT (Built-in): YES
Temperature Sensor: YES
Auto Brightness Sensor: YES
Pixel Sensor: NO
Proximity Sensor: NO
Current Sensor: NO
BLU Sensor: NO
Humidity Sensor: NO
Acceleration(Gyro) Sensor: YES
Power Indicator: NO
Local Key Operation: YES
FAN (Built-in): NO

FEATURE - SOFTWARE39

OS Ver. (webOS): webOS 6.1
Local Contents Scheduling: YES
Group Manager: YES
USB Plug & Play: YES
Fail over: YES
Booting Logo Image: YES
No Signal Image: YES
RS232C Sync: YES
Local Network Sync: YES
Backlight Sync: NO
PIP: YES
PBP: YES (4PBP)
Screen Share: YES
Video Tag: YES (4 Video Tag)
Play via URL: YES
Screen Rotation: YES
External Input Rotation: YES
Gapless Playback: YES
Tile Mode Setting: YES
Setting Data Cloning: YES
SNMP: YES
ISM Method: YES
Auto Set ID: YES
Status Mailing: YES
Control Manager: YES
Cisco Certification: NO
Crestron Connected: YES
Smart Energy Saving: YES
PM mode: YES
Wake on LAN: YES
Network Ready: YES
Beacon: YES
HDMI-CEC: YES
SI Server Setting: YES
webRTC: YES
Pro:Idiom: YES
Brightness Compensation: NO
W/B Setting by Grey scale: NO
Scan Inversion: NO

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

POWER CONSUMPTION6

Typ.: 155W
Max.: 228W
BTU (British Thermal Unit): 528.882BTU/Hr(Typ.), 777.968BTU/Hr(Max.)
Smart Energy Saving (70%): 108.5W
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker (Built-in): YES (10W x 2)

CERTIFICATION4

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ERP / Energy Star: O / O
ePEAT(US only): YES

OPS COMPATIBILITY2

OPS Type compatible: N/A
OPS Power Built-in: N/A

SOFTWARE COMPATIBILITY7

SuperSign CMS: YES
SuperSign Control+: YES
SuperSign WB: YES
SuperSign Cloud: YES
Promota: NO
Mobile CMS: YES
Connected Care: YES

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polish

SPECIAL FEATURE8

Overlay Touch Compatibility: N/A
Smart Calibration: N/A
Tilt (Face up): 15 degree
Tilt (Face down): 15 degree
IP Rating: N/A
Conformal Coating (Power Board): YES
Power Protection: N/A
Direct Sunlight: N/A

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (WB24GCA/B)

Downloads

7 files from the manufacturer

PDF Datasheets UL5Q-E_Datasheet(low)_LG UHD Signage_250828__20250916_162745_.pdf 1.6 MB PDF Manuals & guides MFL05801001_03_Q_251216.pdf 932 KB PDF Manuals & guides MFL05821104_02_B_FP.GS_260414.pdf 3.5 MB PDF Manuals & guides OM_ARA.pdf 1.3 MB PDF Manuals & guides WebOS 6.0. 6.1_ENG.pdf 4.9 MB URL Manuals & guides · Opens on manufacturer site User Guide URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 65UL5Q-E

What is the LG 65UL5Q-E best used for?

The LG 65UL5Q-E is a 65-inch UHD signage display for indoor screens that show information, wayfinding or promotional content for long hours. Its 500 nit typical brightness and 178 degree viewing angles suit lobbies, corridors and reception areas where people view the screen from several positions. It fits offices, schools and hotels in Doha that need a mid-sized screen rather than a large feature display.

Which UL5Q-E sizes are available, and how does the 65-inch model differ?

The UL5Q-E series is listed in 86, 75, 65, 55, 50 and 43-inch sizes. This page covers the 65-inch model, which supports tilt, while the data states that the 75-inch and 86-inch models do not. A separate variant, 65UL5Q-EP, is also listed, so confirm the exact model code with the SmartRooms Qatar team before issuing a purchase order.

Can I place it near a window that receives sunlight?

The specification lists 500 nit typical brightness and a front-mounted brightness sensor that adjusts output to room lighting, but it does not rate the panel for direct sunlight. Avoid placing it facing a glazed frontage where sun falls on the screen. In Qatar, a bank branch in Al Sadd or a shop in West Bay should position it inside the entrance, and the team can confirm the location during a free site survey.

What operating temperature does it need in a Qatari building?

The operating range is 0 to 40 degrees Celsius, or 0 to 35 degrees in portrait scenes, with operating humidity of 10 to 80 percent. Outdoor temperatures in Qatar can exceed 45 degrees in summer, so the room housing the display must be kept within this range, especially in enclosed areas with limited cooling. The specification does not list an outdoor or sunlight rating, so confirm the environment before ordering.

Can it be mounted in portrait orientation?

Yes, the specification lists both portrait and landscape orientation. The portrait operating limit is lower, at 35 degrees Celsius compared with 40 degrees in landscape, so check the room climate before mounting it vertically in a corridor or beside a lift. The head weighs 16.5 kg, and the mounting bracket must match the 300 x 300 mm VESA pattern.

How much tilt does the 65UL5Q-E allow, and why does it matter?

The 65-inch model tilts up to 15 degrees up or down, which helps angle the screen toward viewers when it is mounted above or below eye level. The manufacturer warns against exceeding this range to prevent damage. This matters most for a reception desk in a Doha office tower where the screen is fixed high on a wall above a waiting area.

Which inputs and ports does it have, and will it connect to my current devices?

It has three HDMI inputs with HDCP 2.2 and 1.4 support, one RJ45 LAN input, two USB 2.0 Type A ports, RS232C control and audio out. It has no DisplayPort, DVI or RGB input, so a laptop or media player that outputs only DisplayPort will need a suitable adapter. Check the output ports of your source devices before you request a quote.

Can it play content from a network without a dedicated PC?

The display has 8GB of internal eMMC storage and supports local contents scheduling, play via URL, USB plug and play and gapless playback. The specification also lists compatibility with SuperSign CMS, SuperSign Cloud and Mobile CMS. Schools and government offices updating several screens from one central office can benefit from network-based management, and the team can recommend the setup that suits your network.

Can I monitor the screen remotely from my phone?

Yes, the web-based remote monitoring feature lets authorised users check status, make adjustments and control the unit in real time from a phone or PC in a network-accessible environment. Access includes current and past data. The optional LG ConnectedCare cloud service is sold separately, and its availability varies by region, so ask about it when you request a quote.

What warranty applies to this model?

The UL5Q-E series includes the standard warranty period used for LG signage models, and an optional extended warranty is available that provides cover for up to five years in total. Extended cover ends when 30,000 hours of usage is reached or the five-year period expires, whichever comes first. Products are covered by the manufacturer's warranty, and the SmartRooms Qatar team will confirm the terms that apply to your quotation.

Does it support Arabic menus for bilingual offices?

The on-screen display language list includes Arabic and English among many others, so staff in bilingual offices can set the menu language they prefer. Content design is handled by your own designers or agency. The screen supports picture-by-picture layouts, so Arabic and English content can run side by side in one display, and the 178 degree viewing angles help text stay readable from several positions.

What should I plan before installation, and how much power does it use?

Typical consumption is 155W and maximum is 228W, and the listed draw in Smart Energy Saving mode is 108.5W, with 0.5W in standby. The input range of 100-240V at 50/60Hz covers the 240V, 50Hz mains supply in Qatar. Before installation, request a free site survey and check the wall loading, distance to the power outlet and cable routes, then request a quote.
