LG 86BH5F Ultra Stretch Signage 86-inch 58:9 Display

Overview

The LG 86BH5F is an 86-inch stretched signage display with a 58:9 widescreen panel and 3840 x 600 native resolution. It suits corridors, lobbies and above-counter spaces where a standard 16:9 screen wastes wall width. Its 500 nit IPS panel runs 24/7, and built-in Wi-Fi, LAN daisy chaining and up to 15 x 15 tiling support multi-screen layouts. Request a quote for supply and installation across Qatar.

What the 86BH5F is built for

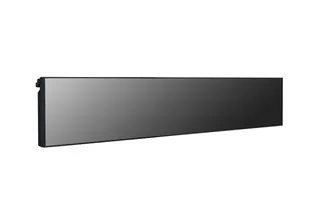

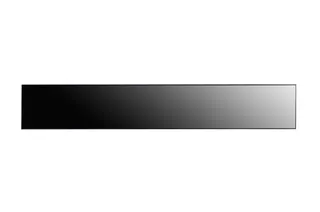

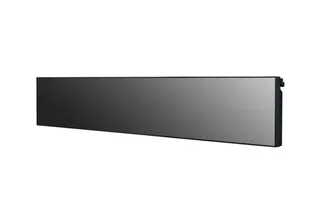

The LG 86BH5F is a stretched signage display: an 86-inch panel with a 58:9 aspect ratio, so the screen is a long, low band rather than a box. It is designed for spaces where height is limited but length is available, such as the top of a corridor, a band above a reception desk or a strip along a retail frontage. The native resolution is 3840 x 600, and the IPS panel offers 178 x 178 degree viewing angles, so people approaching from the side can still read content.

Specifications that affect your project

Brightness is rated at 500 nit typical, with a 1,100:1 contrast ratio and 10-bit colour depth (1.07 billion colours). The panel is rated for 24/7 operation, and it can be mounted in portrait or landscape orientation. Bezels measure 5.9 mm at the top and bottom and 4.4 mm at the sides, which keeps joins between units less visible in multi-panel layouts.

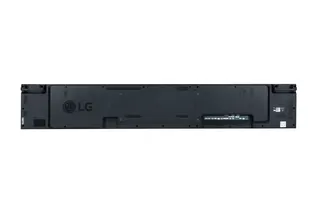

Connectivity includes three HDMI inputs with HDCP 2.2, one DisplayPort input, one DVI-D input, one DisplayPort output for passing video to the next display, RS-232C in and out, RJ45 LAN in and out, IR input, audio in and out and two USB 2.0 Type A ports. The unit has 8GB of internal memory and built-in Wi-Fi. An optional OPS Kit (KT-OPSF) can be fitted in the piggyback slot.

Where it fits in Qatar

Hotel and serviced apartment corridors: a long, narrow lobby or lift-lobby wall in West Bay or The Pearl, showing wayfinding and property information in one band.
Airport-area and transport offices: a stretched screen above a counter or waiting area, displaying schedules and notices without taking floor space.
Shopping and retail frontages: a horizontal promotion strip above a store entrance in Doha or Al Sadd, with content tiled across several units.

What to plan before ordering

At 2158.3 mm wide, 348.5 mm high and 81.7 mm deep, with a head weight of 20.5 kg, the 86BH5F needs a wall or ceiling structure rated for the load. The VESA interface is 600 x 200, and the unit includes a handle to help during installation. Confirm the mounting method and the cabling route for power, HDMI and LAN before installation day.

The stated operating range is 0°C to 40°C, with 10% to 80% humidity. Qatar summer temperatures can exceed 45°C, so the unit should sit in an air-conditioned, controlled space, and the SmartRooms Qatar team can confirm the conditions at your site during a free site survey. The power input is rated AC 100-240V at 50/60 Hz, with typical consumption of 220W and a maximum of 240W.

Managing a network of displays

The 86BH5F supports LAN daisy chaining, so commands for control, monitoring and firmware updates can pass from one display to the next. Built-in SNMP, Wake on LAN and a temperature sensor help facilities teams keep an eye on a group of screens. For remote fault diagnosis across several sites, the optional ConnectedCare cloud service can be added. Software compatibility includes SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor, and the on-screen menu offers Arabic.

If your project involves a long wall, a multi-screen layout or several units, request a quote from SmartRooms Qatar. We will confirm the configuration, provide the mounting and cabling details you need, and arrange supply, delivery and professional installation across Qatar. Quotations are usually issued within one working day.

Highlights

58:9 stretched panel with 3840 x 600 native resolution
Picture-by-picture mode shows up to four sources on one screen
Tile mode up to 15 x 15 for larger layouts
IP5x dust-protection certification
Built-in Wi-Fi and 8GB internal memory
Rated for 24/7 operation at 500 nit typical brightness

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

81 specifications · Source: manufacturer · checked Oct 2026

PANEL15

Screen Size: 86"
Panel Technology: IPS
Aspect Ratio: 58:9
Native Resolution: 3840 x 600
Refresh Rate: 60Hz
Brightness(Typ.,cd/m²): 500nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 500,000:1
Color Gamut: NTSC 72%
Viewing Angle (H x V): 178 x 178
Color Depth: 10bit, 1.07Billion colors
Response Time: 8ms (G to G)
Surface Treatment(Haze): 10%
Operation Hours (Hours/Day): 24/7
Portrait / Landscape: Yes / Yes

CONNECTIVITY (JACK INTERFACE)-INPUT8

Digital-HDMI: Yes(3), HDCP2.2 / 1.4
Digital-DP: Yes(1), HDCP2.2 / 1.3
Digital-DVI-D: Yes (1), HDCP1.4
Audio In: Yes(1)
RS232C IN: Yes(1)
RJ45(LAN): Yes(1)
IR IN: Yes(1)
USB: USB2.0 Type A(2)

CONNECTIVITY (JACK INTERFACE)-OUTPUT4

DP Out: Yes (1), Input : HDMI / DVI / DP
Audio Out: Yes(1)
RS232C OUT: Yes(1)
RJ45(LAN): Yes(1)

MECHANICAL SPECIFICATION6

Bezel Color: Black
Bezel Width: T/R/L/B : 5.9/4.4/4.4/5.9mm
Weight (Head): 20.5 kg

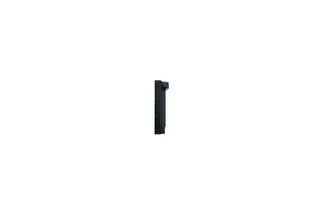

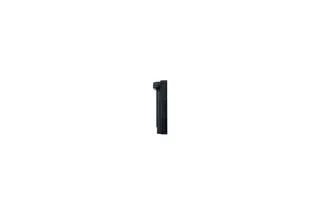

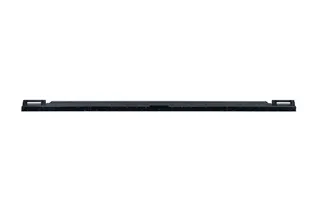

Monitor Dimensions (W x H x D): 2158.3 x 348.5 x 81.7mm
Handle: Yes
VESA™ Standard Mount Interface: 600 x 200

KEY FEATURE31

HW - Internal Memory: 8GB
HW - Wi-Fi - Built-in: Yes
HW - Sensor - Temperature Sensor: Yes
HW - Sensor - Auto Brightness sensor: Yes
HW - Sensor - Current Sensor: Yes
HW - Local Key Operation: Yes
SW - webOS ver.: webOS 4.0 (SCAP : not support)
SW - Embedded CMS - Local Contents Scheduling: Yes
SW - Embedded CMS - Group Manager: Yes
SW - USB Plug & Play: Yes
SW - Fail over: Yes
SW - Background Image - Booting Logo Image: Yes
SW - Background Image - No Signal Image: Yes
SW - Sync Mode - RS-232C Sync: Yes
SW - Sync Mode - Local Network Sync: Yes
SW - Multi-screen - PBP: Yes(4)
SW - Rotation - Screen Rotation: Yes
SW - Rotation - External Input Rotation: Yes
SW - Tile Mode Setting: Yes(Max. 15x15)
SW - Setting Data Cloning: Yes
SW - SNMP: Yes
SW - ISM Method: Yes
SW - Auto Set ID: Yes
SW - Status Mailing: Yes
SW - Control Manager: Yes
SW - 3rd Party Compatibility - Crestron Inside: Yes
SW - Smart Energy Saving: Yes
SW - PM mode: Yes
SW - Wake on LAN: Yes
SW - Beacon: Yes
SW - HDMI-CEC: Yes

ENVIRONMENT CONDITIONS2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10% to 80%

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION3

Typ.: 220W
Max.: 240W
BTU (British Thermal Unit): 751 BTU/Hr(Typ.), 819 BTU/Hr(Max)

CERTIFICATION2

Safety: CB / NRTL
EMC: FCC Class “A” / CE / KC

OPS COMPATIBILITY1

OPS type compatible: O(Piggyback)

SOFTWARE COMPATIBILITY4

SuperSign Control / Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Media Editor: Yes
LG ConnectedCare: Yes

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY2

Basic: Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable,IR/Light sensor receiver, Manual
Optional: OPS Kit(KT-OPSF)

Downloads

6 files from the manufacturer

PDF Manuals & guides MFL71453302_02_240514.pdf 5.1 MB PDF Manuals & guides MFL71453306_02_B_250902.pdf 2.9 MB PDF Manuals & guides OM_ARA.pdf 3.7 MB PDF Manuals & guides webOS4.0_UG_ENG.pdf 4.4 MB URL Manuals & guides · Opens on manufacturer site User Guide URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 86BH5F

What is the LG 86BH5F used for?

The 86BH5F is a stretched signage display that fits long, low spaces where a standard 16:9 screen would not work well. Typical uses include hotel corridors, lift lobbies, the band above a reception desk and retail frontages. Its 58:9 panel shows wayfinding, promotions or information feeds in one continuous band. It is best suited to organisations that want to use leftover wall width rather than add height.

Which resolution and aspect ratio does it use?

The panel has a 58:9 aspect ratio and a native resolution of 3840 x 600, giving a wide, short canvas. Content designed for 16:9 will need reformatting, so ask your content provider to build artwork at 3840 x 600 before installation. The IPS panel has 178 x 178 degree viewing angles, which helps people reading from the side.

How bright is the screen for a lobby with daylight?

The panel is rated at 500 nit typical brightness with a 1,100:1 contrast ratio, and its dynamic contrast is rated at 500,000:1. An auto brightness sensor adjusts output to the surrounding light, which helps in lobbies with changing daylight. For a window-facing lobby in Doha, avoid placing the unit directly opposite strong glare, and check the position during the site survey.

Can it run in a hot environment such as a Qatar summer?

The stated operating range is 0°C to 40°C with 10% to 80% humidity. Qatar summer temperatures can exceed 45°C, so the display should be installed in an air-conditioned, controlled space, not in an outdoor canopy or a sun-exposed area without cooling. Ask the SmartRooms Qatar team to confirm your site conditions during the free site survey before you choose a location.

Does the 86BH5F need a special power supply in Qatar?

The built-in power supply is rated AC 100-240V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical power draw is 220W, with a maximum of 240W, and heat output is listed at 751 BTU/hr typical. The unit comes with a power cord, so confirm with the SmartRooms Qatar team that the plug matches your socket type before ordering.

What connections does it offer for video sources?

Inputs include three HDMI ports with HDCP 2.2 and 1.4, one DisplayPort input, one DVI-D input, audio in, RS-232C in, RJ45 LAN, IR and two USB 2.0 Type A ports. A DisplayPort output can pass the signal on to another display. The basic package includes a DP cable, an RS-232C cable and a remote controller with two batteries.

Can I control several displays over one network?

Yes. LAN daisy chaining lets one control connection pass commands for control, monitoring and firmware updates along a row of displays. Local content scheduling, group management, fail-over and Wake on LAN support multi-screen operation. For managing units across several locations, the optional ConnectedCare cloud service can check status remotely and assist with fault diagnosis.

How many pieces of content can it show at once?

Picture-by-picture mode shows up to four separate content sources on one display, useful for showing several messages at the same time. Tile mode can spread a larger layout across up to 15 x 15 connected displays. For example, a hotel in Msheireb could run four short information feeds side by side on one unit, or a Doha venue could tile a wide graphic across several units.

How heavy is it and what does the wall need?

The head weighs 20.5 kg and the monitor measures 2158.3 x 348.5 x 81.7 mm. The VESA mount interface is 600 x 200, so mounting hardware must match that pattern and be rated for the weight. Check the wall structure before installation; a free site survey from SmartRooms Qatar is a sensible point to confirm wall type, mounting height and cable routing.

Does it support Arabic on-screen menus?

Yes. The on-screen language list includes Arabic alongside English, French, German, Spanish and many others. This suits offices and schools in Qatar that work in Arabic and English side by side, since the menu language can be set to suit the team. The language of the content shown on screen depends on the artwork your team produces.

Can I add an OPS computer?

Yes, using the optional OPS Kit (KT-OPSF). The display is listed as OPS compatible in piggyback form, meaning the OPS unit mounts on the back of the screen. When you request your quote, specify the media player you plan to use so the full configuration can be quoted together.

Is it covered by a warranty and how do I order?

Products are covered by the manufacturer's warranty. You can order by LPO, purchase order, bank transfer or cheque, and quotations are usually issued within one working day. Request a quote and state the number of units and the mounting location so the response is specific to your site.
