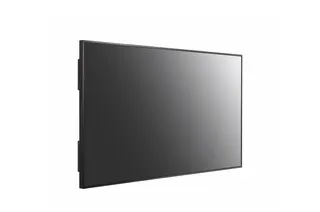

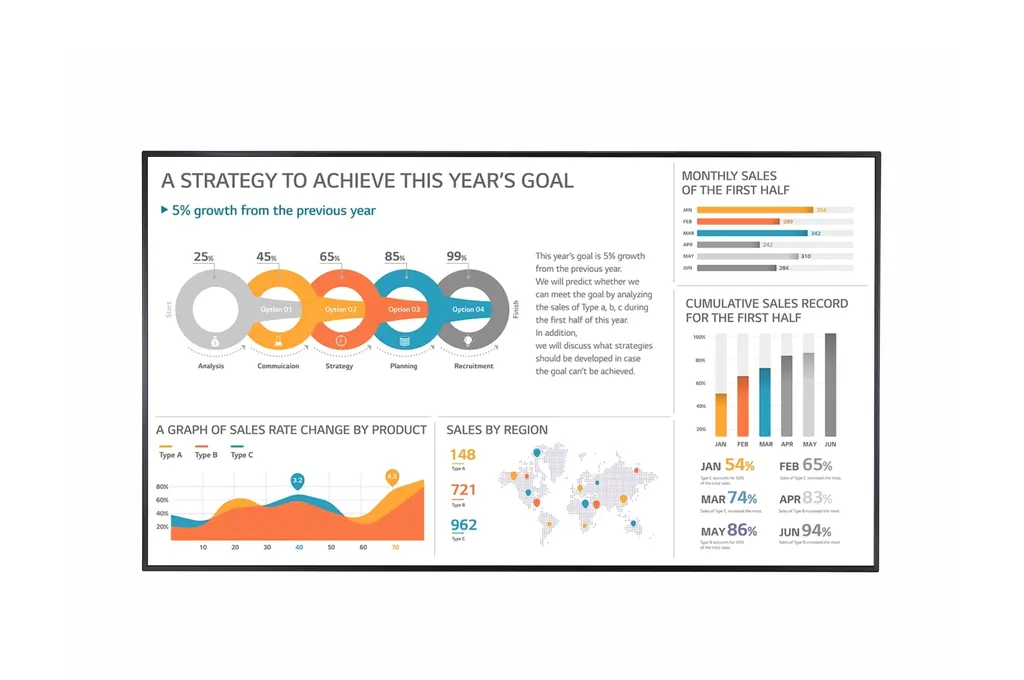

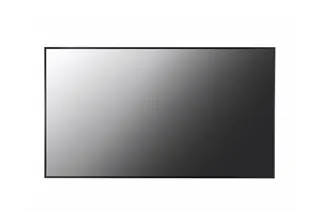

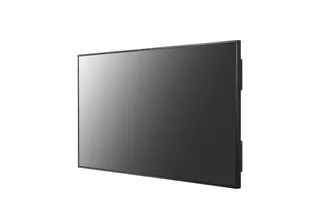

LG 86UH5F-H 86-inch UHD Standard Signage Display

Overview

The LG 86UH5F-H is an 86-inch 4K UHD signage display with an IPS panel, 500 nit typical brightness and a 28% haze surface that cuts glare under bright lighting. It runs webOS 4.0 on a built-in quad-core processor, so content plays without an external media player. Three HDMI inputs, DisplayPort in and out, and OPS compatibility suit lobbies, reception areas and meeting rooms in Doha and Lusail. Request a quote.

What the LG 86UH5F-H is built for

The LG 86UH5F-H is an 86-inch standard signage display from LG's UH5F series, designed for organisations that want one large, sharp screen for information, wayfinding and internal communication without a separate media player. It offers a 3840 x 2160 UHD resolution, four times the pixel count of Full HD, on an IPS panel that keeps colours and text consistent when viewed from the side, with 178 degree horizontal and vertical viewing angles.

Readability in bright rooms

Glare is the usual complaint with large screens placed near windows or under strong ceiling lights. This model uses a surface with 28% haze, which softens reflections and helps small text stay readable. The panel is rated at 500 nit typical brightness with a 1,100:1 contrast ratio. In rooms with strong daylight, check the sightlines and light levels during a site visit before fixing the location.

Playback, control and connectivity

Playback: webOS 4.0 on a built-in quad-core processor, 8GB internal memory, and Video Tag support for four video tags.
Inputs: three HDMI inputs (HDCP 2.2 and 1.4), DisplayPort in and out, DVI-D in, two USB 2.0 Type A ports, one RJ45 LAN input, and audio in and out.
Control: RS232C in and out, IR in, and built-in Wi-Fi and Bluetooth.
Sound: built-in 10W x 2 speakers.
Expansion: OPS compatible in piggyback form with built-in OPS power. The KT-OPSF OPS kit is listed as an optional accessory.

Where it fits in Qatar

This display suits air-conditioned indoor areas that need continuous, legible information:

A corporate reception in West Bay or The Pearl showing visitor information and wayfinding. The display is certified as Crestron Connected, which supports integration with professional AV controls.
A meeting room in Msheireb or Lusail where the screen shows secondary content or several sources at once using 4-way PBP, with Cisco certification supporting video conference setups.
A school or training centre in Education City using it in corridors and halls to display timetables and announcements, with the on-screen menu available in Arabic.

What to plan before you order

The head weighs 49.0 kg and the packed weight with pallet is 72.5 kg, so installation needs a suitable team and handling equipment. The display measures 1926.2 x 1097.2 x 60.6 mm and uses a 600 x 400 mm VESA mounting pattern. The LSW640A/B wall mount is listed as optional. The operating range is 0 to 40 degrees C with 10% to 80% humidity, so it should sit in a cooled indoor space. Typical power draw is 215W and maximum is 280W on an input of 100-240V, 50/60Hz, which covers the 240V supply used in Qatar. SmartRooms Qatar offers free site surveys before wall-mounting a panel of this size.

Request a quote

Send the number of units, room sizes and content sources you plan to use. SmartRooms Qatar will prepare a quotation for the LG 86UH5F-H, usually within one working day, and can accept a purchase order (LPO) for your project.

Highlights

86-inch UHD (3840 x 2160) IPS panel
500 nit typical brightness and 28% haze surface
Built-in webOS 4.0 with 8GB internal memory
Three HDMI inputs plus DisplayPort in and out
Built-in 10W x 2 speakers
OPS compatible; operating range 0 to 40 degrees C

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

135 specifications · Source: manufacturer · checked Oct 2026

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender
Optional: OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

SOUND1

Speaker (Built-in): YES (10W x 2)

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ENVIRONMENT CONDITIONS2

Operation Humidity: 10 % to 80 %
Operation Temperature: 0 °C to 40 °C

OPS COMPATIBILITY2

OPS Power Built-in: YES
OPS Type compatible: YES (Piggyback)

CERTIFICATION4

EMC: FCC Class "A" / CE / KC
ePEAT(US only): NO
ERP / Energy Star: YES(Old ErP for Jordan) / NO
Safety: CB / NRTL

MECHANICAL SPECIFICATION10

Weight (Head): 49.0Kg
Bezel Color: Black
Bezel Width: Even bezel : 14.3mm
Carton Dimensions (W x H x D): 2073 x 1250 x 285mm
Handle: YES

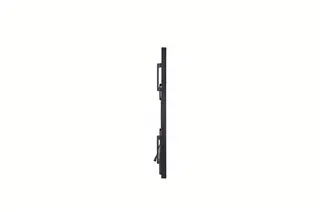

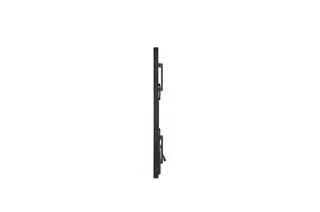

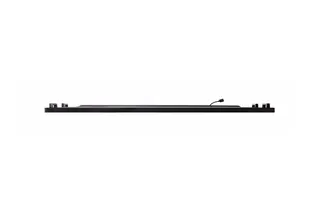

Monitor Dimensions (W x H x D): 1926.2 x 1097.2 x 60.6mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D): N/A
Packed Weight: 72.5Kg (With Pallet)
VESA Standard Mount Interface: 600 x 400 mm
Weight (Head+Stand): N/A

POWER CONSUMPTION6

BTU (British Thermal Unit): 733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max.)
DPM: 0.5W
Max.: 280W
Power off: 0.5W
Smart Energy Saving (70%): 150.5W
Typ.: 215W

PANEL19

Aspect Ratio: 16:9
Back Light Type: Edge
Brightness: 500nit (Typ.)
Color Depth (Number of Colors): 1.07 Billion colors
Color Gamut: NTSC 72%
Contrast Ratio: 1,100:1
Dynamic CR: 1,000,000:1
Life time: 50,000Hrs (Typ.)
Native Resolution: 3840 x 2160 (UHD)
Operation Hours (Hours/Day): 24/7
Panel Technology: IPS
Portait / Landscape: YES / YES
QWP (Quarter Wave Plate): N/A
Refresh Rate: 120Hz
Response Time: 8ms (G to G)
Screen Size (Inch): 86
Surface Treatment (Haze): Haze 28%
Transparency: N/A
Viewing Angle (H x V): 178º x 178º

CONNECTIVITY19

Audio In: YES
Audio Out: YES
Daisy Chain: NO
DP In: YES (HDCP 2.2/1.3)
DP Out: YES
DVI-D In: YES (HDCP 1.4)
External Speaker Out: NO
HDMI In: YES (3ea)
HDMI In (HDCP Ver.): 2.2/1.4
HDMI Out: NO
IR In: YES
IR Out: NO
RGB In: NO
RJ45(LAN) In: YES (1ea)
RJ45(LAN) Out: NO
RS232C In: YES
RS232C Out: YES
Touch USB: NO
USB In: USB2.0 Type A (2ea)

SPECIAL FEATURE8

Conformal Coating (Power Board): YES
Direct Sunlight: N/A
IP Rating: N/A
Overlay Touch Compatibility: N/A
Power Protection: N/A
Smart Calibration: N/A
Tilt (Face down): N/A
Tilt (Face up): N/A

SOFTWARE COMPATIBILITY7

Connected Care: YES
Mobile CMS: YES
Promota: YES
SuperSign Cloud: NO
SuperSign CMS: YES
SuperSign Control+: YES
SuperSign WB: YES

FEATURE - HARDWARE13

Acceleration(Gyro) Sensor: NO
Auto Brightness Sensor: YES
BLU Sensor: NO
Current Sensor: NO
FAN (Built-in): NO
Humidity Sensor: NO
Internal Memory (eMMC): 8GB
Local Key Operation: YES
Pixel Sensor: NO
Power Indicator: NO
Proximity Sensor: NO
Temperature Sensor: YES
Wi-Fi/BT (Built-in): YES

FEATURE - SOFTWARE39

Auto Set ID: YES
Backlight Sync: NO
Beacon: YES
Booting Logo Image: YES
Brightness Compensation: NO
Cisco Certification: YES
Control Manager: YES
Crestron Connected: YES
External Input Rotation: YES
Fail over: YES
Gapless Playback: YES
Group Manager: YES
HDMI-CEC: YES
ISM Method: YES
Local Contents Scheduling: YES
Local Network Sync: YES
Network Ready: NO
No Signal Image: YES
OS Ver. (webOS): webOS 4.0
PBP: YES (4PBP)
PIP: YES
Play via URL: YES
PM mode: YES
Pro:Idiom: YES
RS232C Sync: YES
Scan Inversion: NO
Screen Rotation: YES
Screen Share: YES
Setting Data Cloning: YES
SI Server Setting: YES
Smart Energy Saving: YES
SNMP: YES
Status Mailing: YES
Tile Mode Setting: YES
USB Plug & Play: YES
Video Tag: YES (4 Video Tag)
Wake on LAN: YES
webRTC: YES
W/B Setting by Grey scale: NO

Downloads

6 files from the manufacturer

PDF Manuals & guides ENG.pdf 1.3 MB PDF Manuals & guides · Opens on manufacturer site MFL71717801_0_QSG.pdf 2.0 MB URL Manuals & guides · Opens on manufacturer site Owner's Manual (global) URL Manuals & guides · Opens on manufacturer site User Guide PDF Manuals & guides · Opens on manufacturer site webOS4.0_UG_ENG.pdf 4.4 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 86UH5F-H

What is the LG 86UH5F-H and who is it for?

The LG 86UH5F-H is an 86-inch UHD standard signage display built for information screens, wayfinding and internal communication in lobbies, classrooms and meeting areas. It suits organisations that want one large screen showing schedules, messages or video without a separate media player. Its 24/7 operation rating and 50,000-hour typical lifetime suit continuous use in busy indoor buildings.

Do I need a separate media player to show content?

No separate media player is needed for basic playback. The display runs webOS 4.0 on a built-in quad-core processor with 8GB of internal memory, so content can be scheduled and played from the screen itself using local content scheduling. For managing several screens, the SuperSign CMS software is listed as compatible. Ask SmartRooms Qatar to confirm the setup that fits your project.

Does the screen reduce glare in brightly lit rooms?

Yes. The panel has a surface with 28% haze that softens reflections and keeps small text readable, which is useful for reception areas under strong ceiling lights or near windows. The resolution is 3840 x 2160 pixels, with 500 nit typical brightness and a 1,100:1 contrast ratio. In a lobby in The Pearl or West Bay, check light levels during the free site survey before choosing the position.

What viewing angle does it offer for a lobby where visitors approach from several directions?

The panel offers 178 degree horizontal and 178 degree vertical viewing angles, so people standing to the side can still see the picture clearly. That makes it practical for a corporate reception or hotel lobby where visitors approach from several directions. The wide angle comes from the IPS panel type. For best results, position the screen so the main sightline faces the entrance.

Can it be installed in an outdoor area or an unair-conditioned corridor in Qatar?

No. The operating range is 0 to 40 degrees C with 10% to 80% humidity, so it should be installed in an air-conditioned indoor space. Summer temperatures in Qatar often exceed 45 degrees C, so confirm that the room cooling can keep ambient temperature within this range. If the location is near a glass facade, ask the SmartRooms Qatar team to review it during the free site survey.

Which inputs and ports are available for laptops and media players?

The display has three HDMI inputs with HDCP 2.2 and 1.4 support, DisplayPort in and out, one DVI-D input, two USB 2.0 Type A ports, one RJ45 LAN input, RS232C in and out, IR in, and audio in and out. It has no HDMI output and no daisy-chain function, so each unit needs its own source. Confirm your source list when requesting a quote.

Can I add an OPS computer to this display?

Yes. The display is OPS compatible in piggyback form and includes built-in OPS power. The KT-OPSF OPS kit is listed as an optional accessory. An OPS module lets you run a slot-in computer for applications that the built-in webOS platform does not run. Confirm the module and software you need with SmartRooms Qatar before ordering.

How does it work with video conferencing in a meeting room?

The display carries Cisco certification for compatibility with Cisco video conferencing systems and is certified as Crestron Connected for integration with professional AV controls. In a boardroom in Msheireb or Lusail, it can show a schedule, a second source or room information while the conferencing system handles the call. Confirm your conferencing platform with the SmartRooms Qatar team before ordering.

Can several displays across different sites be monitored from one place?

Yes. Control Manager is an embedded web monitoring tool that lets you check and control the status of multiple displays in different locations in real time from internet-connected devices. An optional cloud service, Signage365Care, adds remote fault diagnosis for displays at client sites. Request a quote to confirm which option fits the number of sites you manage.

What should I plan for before mounting an 86-inch panel on a wall?

The head weighs 49.0 kg and the packed weight with pallet is 72.5 kg, so you need a trained installation team and suitable handling equipment. It uses a 600 x 400 mm VESA pattern, and the LSW640A/B wall mount is listed as optional. A free site survey from SmartRooms Qatar helps check wall structure, cable routes and sightlines before delivery.

Does the on-screen menu support Arabic?

Yes. Arabic is one of the on-screen menu languages, alongside English, French, Spanish and many others. This suits schools and government offices where staff work in Arabic and English side by side, allowing administrators to set the display in the language they prefer. When requesting a quote, specify the menu language you need so it can be confirmed in the quotation.

How quickly can a school or government body get a quote for several units?

SmartRooms Qatar usually issues quotations within one working day. Schools and government bodies can order by purchase order (LPO) and can take part in government tenders, including Monaqasat. Delivery covers all eight municipalities of Qatar, and delivery timelines are estimates confirmed with the quotation based on stock. Send the number of units, room locations and mounting type to start.
