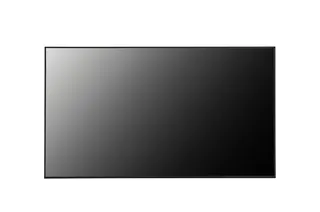

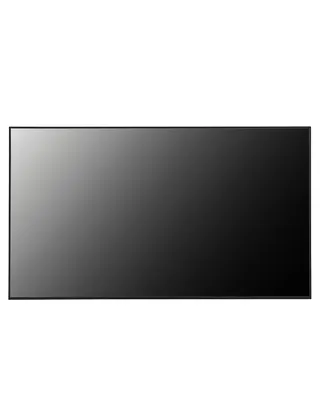

LG 86UH5N-M 86-inch UHD Digital Signage Display

Overview

The LG 86UH5N-M is an 86-inch 4K UHD signage display for lobbies, corridors and boardrooms that run around the clock. Its IPS panel delivers 500 nit typical brightness and a 120Hz refresh rate, and built-in webOS 6.0 plays content without an external media player. Two USB ports and portrait or landscape mounting suit varied layouts across Qatar's offices, schools and retail spaces. Request a quote from SmartRooms Qatar.

What the LG 86UH5N-M is designed for

The LG 86UH5N-M is an 86-inch UHD signage display from the UH5N series, made for organisations that need a large screen running content for long hours. Its 3840 x 2160 IPS panel offers four times the pixels of Full HD, so menus, floor plans and timetables stay legible from several metres away.

Picture, motion and mechanical facts that matter

Check these figures against your site brief:

Brightness: 500 nit typical with a 1,200:1 contrast ratio
Motion: 120Hz refresh rate and 8 ms grey-to-grey response
Colour: 95% BT.709 gamut and 8-bit colour depth
Viewing angle: 178 degrees horizontal and vertical
Surface: 25% haze anti-glare treatment
Bezel: 13.4 mm, even on all four sides

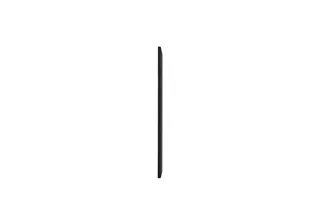

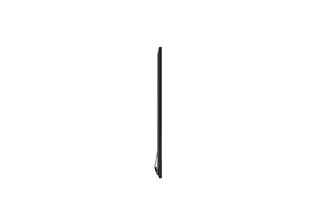

Because the bezel width is identical top, bottom, left and right, the panel looks balanced in portrait as well as landscape orientation. The depth of 29.7 mm without the IR module and handle keeps it close to the wall, and the 86-inch size fills a lobby or boardroom wall without extra screens. Tile mode can split content across up to 15 by 15 units when you need a larger video wall.

Connectivity and playback without an external media player

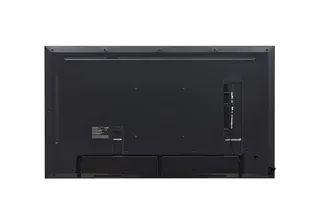

The screen has three HDMI inputs that accept 3840 x 2160 at 60Hz, one DisplayPort input, an RJ45 LAN port, RS232C input and output, IR input, audio output and two USB 2.0 Type A ports. Its built-in webOS 6.0 platform, backed by 16GB of internal memory, can schedule and play local content, so a laptop does not have to stay connected. Two USB ports let staff load presentation files from a drive while a keyboard or mouse stays connected. Built-in Wi-Fi, Bluetooth and two 10 W speakers add flexibility. SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud cover centrally managed deployments.

Durability, safety and environment limits

An IP5X rating and conformal coating on the power board help guard against dust and corrosion. The listed certifications include CB/NRTL, FCC Class B, CE, KC and Energy Star, with fire ratings of BS 476 Part 7 Class 1 and EN 13501-1 Class A1 for the case top. The operating range is 0°C to 40°C at 10 to 80 percent humidity. Qatar summer temperatures can exceed 45°C, so keep the display inside an air-conditioned space and confirm the exact location with the SmartRooms Qatar team before it goes near glazing or an open entrance. Power draw is listed at 197 W typical and 297 W maximum.

Where it fits across Qatar

Corporate lobbies in West Bay

A reception screen showing visitor information, floor directories and live news suits the main entrance of an office tower, where the 178-degree viewing angle lets people read it from the side.

Corridors in a school in Al Rayyan

Schools can use portrait orientation for wayfinding and timetable panels along corridors, and the USB ports let staff play announcement files without a separate PC.

Reception and service halls in Msheireb

A training centre or public service hall can run queue information and bilingual notices, with on-screen menus available in Arabic and English, and manage the content remotely through SuperSign Cloud.

Planning the installation

The head unit weighs 52.7 kg and packs at 65.5 kg according to the listed figures, so the wall structure and bracket must be checked before mounting. The VESA interface is 600 x 400, and the optional LSW640A/B wall mount is listed for this model. SmartRooms Qatar offers a free site survey to confirm wall loading, viewing distance, cable routing and room temperature. We deliver to all 8 municipalities, install professionally, and accept purchase orders and Monaqasat tenders. Request a quote today and our team will usually respond within one working day.

Highlights

86-inch 3840 x 2160 UHD IPS panel with 178-degree viewing angles
120Hz refresh rate and 500 nit typical brightness
Built-in webOS 6.0 with 16GB internal memory
Three HDMI inputs, one DisplayPort, two USB 2.0 ports
Operating range 0°C to 40°C for 24/7 operation
IP5X rating with conformal-coated power board

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

104 specifications · Source: manufacturer · checked Oct 2026

Info3

Product: Standard (UHD)
Year: Y23
Month: M08

Panel17

Screen Size (Inch): 86"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 120Hz
Brightness (Typ.): 500nit (Typ.)
Contrast Ratio: 1,200:1
Dynamic CR: 1,000,000:1
Color gamut: BT709 95%
Viewing Angle (H x V): 178 x 178
Color Depth (Number of Colors): 8bit(D), 1.07Billion colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): 25%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: Yes / Yes

Connectivity (Jack Interface)9

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP 2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(2)
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
IR Out: No (Support IR daisy chain via RS232C IN/OUT)

Mechanical8

Bezel Color: Black
Bezel Width: 13.4mm
Weight (Head): 52.7kg(TBD)
Packed Weight: 65.5kg(TBD)
Monitor Dimensions (W x H x D): 1928.8 x 1099.8 x 29.7 (without IR, Handle)
Carton Dimensions (W x H x D): 2100 x 1250 x 253(TBD)
Handle: Yes
VESA<sup>TM</sup> Standard Mount Interface: 600 x 400

HW Feature6

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes

SW Feature35

OS Ver. (webOS): webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: Yes (TBD)
Crestron Connected: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

Power Consumption6

Typ.: 197W (TBD)
Max.: 297W (TBD)
BTU (British Thermal Unit): 672 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD)
Smart Enegy Saving (70%): 138W (TBD)
DPM: 0.5W
Power off: 0.5W

Sound1

Speaker (Built-in): Yes (10W X 2)

Certification6

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: N/A / Yes
ePEAT(US only): Yes / Carbon "Reducing CO2"
BS476 Part7: Class 1 (case top / back cover)
EN13501-1: Class A1 (case top) / Class A2 (back cover)

Software Compatibility6

SuperSign CMS: Yes
SuperSign Control+: Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic

Accessory2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA)
Optional: Wall Mount (LSW640A/B)

Special Feature2

IP Rating: IP5X
Conformal Coating (Power Board): Yes

Downloads

5 files from the manufacturer

PDF Datasheets 86UH5N-M_Datasheet(low)_LG UHD Signage_250210_20250213_102030_.pdf 1.8 MB PDF Manuals & guides · Opens on manufacturer site 7586UH5N-MP_ARA.pdf 1.5 MB PDF Manuals & guides · Opens on manufacturer site 7586UH5N-MP_EN.pdf 1.9 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 5.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 86UH5N-M

What is the LG 86UH5N-M best suited for?

The LG 86UH5N-M suits spaces that need a large, always-on screen for information, directions or promotions. Its 86-inch 3840 x 2160 IPS panel, 500 nit typical brightness and 178-degree viewing angles keep content readable from the side of a lobby or across a boardroom. It is a good fit for corporate reception areas, school corridors, clinic waiting areas and retail entrances in Qatar.

Does it need a separate media player?

No. The webOS 6.0 platform with 16GB of internal memory plays and schedules local content, and it supports Local Contents Scheduling, Play via URL and USB Plug & Play. Staff can load files from a USB drive without connecting a PC. SuperSign CMS, Control+, WB and Cloud manage playlists across multiple screens from one place.

Can it display in portrait mode?

Yes. The panel supports portrait and landscape orientation, and its 13.4 mm bezel is the same width on all four sides, so portrait layouts look balanced. Portrait suits wayfinding columns, menu boards and corridor signs where vertical text is easier to read. Confirm that the mounting bracket supports rotation before installation.

Can several units be combined into a video wall?

Tile mode supports up to 15 by 15 units, and the 13.4 mm bezel keeps seams relatively narrow. A wall of this kind needs matched units, a structure rated for the combined load and a survey of viewing distances. SmartRooms Qatar can quote a set of units for a lobby or control room, based on the layout you need.

How does the display cope with Qatar's summer heat?

The operating range is 0°C to 40°C at 10 to 80 percent humidity. Summer temperatures in Qatar can exceed 45°C, so the display must sit in an air-conditioned room, away from direct sunlight and unconditioned areas. Confirm the exact location with the SmartRooms Qatar team before installation so the cooling plan matches the screen's rating.

Is it suitable for a dusty entrance?

The 86UH5N-M carries an IP5X rating and conformal coating on its power board, which helps guard against dust and corrosion. IP5X is a dust protection rating, not a rating for wet or exposed use, so a dusty entrance still needs a protected position or enclosure. Ask for a site survey before choosing the position.

What connections does it offer for laptops and media players?

It has three HDMI inputs for 3840 x 2160 at 60Hz, one DisplayPort input, an RJ45 LAN port, two USB 2.0 Type A ports, and built-in Wi-Fi and Bluetooth. Audio output and two 10 W speakers are also included. HDCP 2.2 is listed on both the HDMI and DisplayPort inputs, which matters for protected content from common sources.

How can a facilities team control many units from one place?

Use the RS232C input and output, the IR input and the RJ45 LAN port. Group Manager, Control Manager, SNMP, Wake on LAN, Status Mailing and Crestron Connected support monitoring and control across units. The unit has no IR output, but IR can be daisy-chained through RS232C, which helps when several screens must respond to one remote.

Does the on-screen menu support Arabic?

Yes. The on-screen display language list includes Arabic alongside English, French, German, Spanish and many other languages, so menus can be set to Arabic for Arabic-speaking staff. The setting only changes the menus. Any content shown on the screen must be prepared in Arabic separately, so plan bilingual signage files in advance.

What should we plan for before wall mounting it?

The head unit weighs 52.7 kg and packs at 65.5 kg according to the listed figures. Use the 600 x 400 VESA pattern and check wall loading, cable routing and nearby power points. The optional LSW640A/B wall mount is listed for this model. The monitor measures 1928.8 x 1099.8 x 29.7 mm without the IR module and handle, and the SmartRooms Qatar site survey covers these checks.

Which security features suit government or enterprise use?

The display includes LG's EKP technology, which protects against external access and attacks, and LG UHD Signage holds ISO/IEC 15408 Common Criteria EAL2 certification for this model. Network settings should still follow your own security policy. Check the certification details in the manufacturer's documentation before adding them to a procurement file or tender response.

How do schools and government bodies order it?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Delivery covers all 8 municipalities of Qatar, and professional installation is available. Quotations usually arrive within one working day, and lead times are confirmed with the quote based on stock. Payment is by bank transfer, cheque or purchase order.
