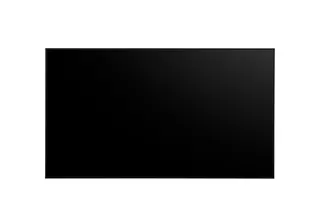

LG 86UL5Q-M 86-inch UHD Signage Display

Overview

The LG 86UL5Q-M is an 86-inch UHD signage display with a 3840 x 2160 panel, 500-nit typical brightness and a panel rated for 24/7 operation. It runs webOS 6.1, includes built-in Wi-Fi and Bluetooth, and supports web-based remote monitoring across a network. Its 10.7 mm even bezels suit lobbies and video walls in Doha, Lusail and Education City. Request a quote for supply, installation and delivery across Qatar.

What the LG 86UL5Q-M is built to do

The LG 86UL5Q-M is an 86-inch signage display for indoor venues that need a large, always-on screen. Its native 3840 x 2160 resolution gives crisp text and imagery at close viewing distance, and the panel is rated at 500 nits typical brightness, enough for well-lit reception areas and corridors. The panel is rated for 24/7 operation with a minimum lifetime of 30,000 hours, which matters for displays that run through the full opening day.

Specifications that shape the installation

Connectivity includes three HDMI inputs with HDCP 2.2 and 1.4 support, one RJ45 LAN port, two USB 2.0 Type A ports, RS232C input and output, and audio output. Built-in Wi-Fi and Bluetooth, 8GB of internal eMMC memory and built-in speakers rated 10W x 2 complete the feature set. The head weighs 8.8 kg and 10.9 kg packed, measures 965 x 554.9 x 59.1 mm, and uses a 200 x 200 mm VESA mounting interface. The bezels are 10.7 mm and even, so the screen can join a video wall with consistent frame spacing.

Software, control and remote management

The display runs webOS 6.1 with local content scheduling, group management, playback from a URL, screen rotation, video tags and tile mode settings. Remote monitoring is web-based and works from a phone or PC on the network. Administrators can check status, change settings and control the unit in real time, reviewing both live and historical data. The source data also lists compatibility with SuperSign CMS, SuperSign Control+, Mobile CMS and Crestron Connected, along with Cisco certification. The on-screen menu includes Arabic, which helps teams that work in Arabic and English side by side.

Where it fits across Qatar

In a hotel lobby in West Bay, an 86-inch landscape screen can carry wayfinding, event schedules and welcome messages, with content updated remotely by the front desk team. In a clinic waiting area in Al Sadd, the same display can run patient information in portrait mode, provided the room stays within the portrait temperature range. In a private school in Al Wakrah fitting out a new corridor, several units with one shared content schedule can present announcements and timetables across floors. Each scenario depends on the room environment and the mounting plan.

Planning the room, power and mounting

Operating temperature is 0 to 40 °C, or 0 to 35 °C in portrait orientation, with humidity from 10 to 80 percent. Summer temperatures in Qatar regularly exceed 45 °C, so install the display in an air-conditioned indoor space and confirm the room cooling holds the range, especially near windows. The power supply accepts 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V 50 Hz mains. The source notes up/down tilt of up to 15 degrees but also states that 86-inch models are not supported for that feature, so confirm the mounting approach before drilling. The head is heavy, so a free site survey is worth booking to check wall structure, bracket fixing and cable routing. The source lists CB safety, FCC Class B and CE EMC certification, EPEAT Bronze registration recorded in August 2025, and ISO/IEC 15408 EAL2 certification for the security architecture. An optional LG ConnectedCare service is available separately, depending on region.

Send SmartRooms Qatar the room size, wall type, mounting height and number of units, and the team will prepare a quotation, usually within one working day. Request a quote today to confirm delivery and installation options for your site. Products are covered by the manufacturer's warranty.

Highlights

86-inch panel with 3840 x 2160 native resolution
500-nit typical brightness with auto brightness sensor
Rated for 24/7 operation, 30,000-hour minimum lifetime
webOS 6.1 with web-based remote monitoring
10.7 mm even bezels and 200 x 200 mm VESA mount
Operating range 0 to 40 °C, or 0 to 35 °C in portrait

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

96 specifications · Source: manufacturer · checked Oct 2026

PANEL17

Screen Size (Inch): 86
Panel Technology: ADS
Back Light Type: Direct
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness: 500nit(Typ)
Contrast Ratio: 1,200:1
Dynamic CR: 1,000,000:1
Color Gamut: DCI 80%
Viewing Angle (H x V): 178º x 178º
Color Depth (Number of Colors): 1.07 Billion colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): 1%
Life time: 30,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: YES / YES

CONNECTIVITY7

HDMI In: YES (3ea)
HDMI In (HDCP Ver.): 2.2/1.4
RS232C In: YES
RJ45(LAN) In: YES (1ea)
USB In: USB2.0 Type A (2ea)
Audio Out: YES
RS232C Out: YES

MECHANICAL SPECIFICATION7

Bezel Color: Black
Bezel Width: 10.7mm Even
Weight (Head): 8.8kg
Packed Weight: 10.9kg
Monitor Dimensions (W x H x D): 965 X 554.9 X 59.1
Carton Dimensions (W x H x D): 1075 X 132 X 695
VESA Standard Mount Interface: 200 x 200 mm

FEATURE - HARDWARE7

Internal Memory (eMMC): 8GB
Wi-Fi/BT (Built-in): YES
Temperature Sensor: YES
Auto Brightness Sensor: YES
Acceleration(Gyro) Sensor: YES
Power Indicator: YES
Local Key Operation: YES

FEATURE - SOFTWARE33

OS Ver. (webOS): webOS 6.1
Local Contents Scheduling: YES
Group Manager: YES
USB Plug & Play: YES
Fail over: YES
Booting Logo Image: YES
No Signal Image: YES
RS232C Sync: YES
Local Network Sync: YES
Screen Share: YES
Video Tag: YES (4 Video Tag)
Play via URL: YES
Screen Rotation: YES
External Input Rotation: YES
Gapless Playback: YES
Tile Mode Setting: YES
Setting Data Cloning: YES
SNMP: YES
ISM Method: YES
Auto Set ID: YES
Status Mailing: YES
Control Manager: YES
Cisco Certification: YES
Crestron Connected: YES
Smart Energy Saving: YES
PM mode: YES
Wake on LAN: YES
Network Ready: YES
Beacon: YES
HDMI-CEC: YES
SI Server Setting: YES
webRTC: YES
Pro:Idiom: YES

ENVIRONMENT CONDITIONS2

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-in Power

POWER CONSUMPTION6

Typ.: TBD
Max.: TBD
BTU (British Thermal Unit): TBD
Smart Energy Saving (70%): TBD
DPM: 0.5W
Power off: 0.5W

SOUND1

Speaker (Built-in): YES (10W x 2)

CERTIFICATION4

Safety: CB
EMC: FCC Class "B" / CE
ERP / Energy Star: O(New ERP)/O
ePEAT(US only): YES

SOFTWARE COMPATIBILITY5

SuperSign CMS: YES
SuperSign Control+: YES
SuperSign WB: YES
Mobile CMS: YES
Connected Care: YES

LANGUAGE1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polish

ACCESSORY1

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender

SPECIAL FEATURE3

Tilt (Face up): 15 degree
Tilt (Face down): 15 degree
Conformal Coating (Power Board): YES

Downloads

5 files from the manufacturer

PDF Datasheets UL5Q-M_Datasheet(low)_LG UHD Signage_20260319_181312_.pdf 1.6 MB PDF Manuals & guides MFL05801001_03_Q_251216.pdf 932 KB PDF Manuals & guides MFL05821104_02_B_FP.GS_260414.pdf 3.5 MB PDF Manuals & guides WebOS 6.0. 6.1_ENG.pdf 4.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 86UL5Q-M

Who is the LG 86UL5Q-M best suited for?

It suits organisations that need a large indoor screen running through opening hours, such as a hotel lobby in West Bay, a clinic waiting area in Al Sadd or a corporate reception in Msheireb. The 3840 x 2160 resolution and 500-nit typical brightness keep messages readable in well-lit rooms, and the panel rating for 24/7 operation supports continuous content loops without interruption.

How bright is the screen, and will it work near large windows?

The panel is rated at 500 nits typical brightness and includes a front-mounted brightness sensor that adjusts output to the ambient light automatically. That helps in lobbies with daylight, but the mounting position matters more than the sensor. Keep the screen out of direct sun reflections, and use the free site survey from SmartRooms Qatar to test the location before the final wall is chosen.

Can it be used outdoors or in a space without air conditioning in Qatar?

No. The operating temperature is 0 to 40 °C, falling to 0 to 35 °C in portrait orientation, with humidity between 10 and 80 percent. Summer temperatures in Qatar regularly exceed 45 °C, so the display should sit in an air-conditioned indoor space such as a lobby, classroom or retail floor where cooling keeps the room within range all day.

Does it support portrait orientation?

Yes. The manufacturer data lists both portrait and landscape operation. In portrait mode, however, the operating range narrows to 0 to 35 °C, so confirm the room temperature before installing it vertically. Portrait suits wayfinding panels, menu boards and information columns in hospital corridors, school halls and shopping mall walkways in Doha.

What inputs and connections does it have?

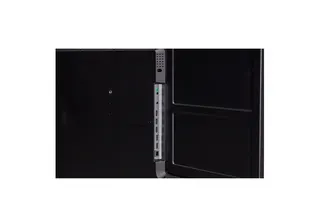

It has three HDMI inputs supporting HDCP 2.2 and 1.4, one RJ45 LAN port, two USB 2.0 Type A ports, RS232C input and output, and an audio output. Built-in Wi-Fi and Bluetooth provide wireless options. Plan the network point and cable route before installation, particularly if remote monitoring depends on a wired connection in the room.

How does remote monitoring work?

Remote monitoring is web-based and works from a phone or PC on a network-accessible environment. Administrators can check the status of each unit, adjust settings and control the display in real time, with access to live and historical data. For a school group with screens on several floors, this lets the IT team check units without walking to every room.

Which content management and control systems does it work with?

The manufacturer data lists compatibility with SuperSign CMS, SuperSign Control+, SuperSign WB, Mobile CMS, Connected Care and Crestron Connected, and states Cisco certification. Local content scheduling, group management and fail over are also listed. If you run a different content management system, ask the SmartRooms Qatar team to confirm compatibility before you order.

Can the screen be tilted to suit a high or low mounting height?

The data lists up/down tilt of up to 15 degrees, but it also states that 86-inch models are not supported for the tilt feature. Do not design a mounting plan around tilt for this size until it is confirmed. Ask the team to review mounting height and bracket options as part of the quotation so the viewing angle is settled before installation.

How heavy is it, and what wall mounting does it need?

The head weighs 8.8 kg and 10.9 kg packed, measures 965 x 554.9 x 59.1 mm, and uses a 200 x 200 mm VESA mounting interface. Because an 86-inch panel is large, book a free site survey to check the wall structure, bracket fixing points and cable access before drilling. Mounting hardware should be confirmed against these exact dimensions.

Is the power supply suitable for Qatar's mains?

The built-in power supply accepts AC 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V 50 Hz supply. A power cord is included with the accessories. When planning the position, identify a standard wall socket near the mounting point, and check with your electrician how many units will share a circuit if several screens operate together.

Which certifications and environmental registrations are listed?

The data lists CB for safety, FCC Class B and CE for EMC, and EPEAT registration as a Bronze display, recorded in August 2025. It also cites ISO/IEC 15408 Common Criteria EAL2 certification for the security architecture, including LG Enhanced Kernel Protection. If your tender or purchase file needs supporting documents, ask SmartRooms Qatar to include them with the quotation.

Can we buy it through a purchase order or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supports government tenders, including those issued through Monaqasat. Payment can be made by bank transfer, cheque or purchase order. For a ministry, university or school ordering several 86-inch units for one hall or several rooms, the quotation can list each unit, its mounting plan and the delivery and installation scope.
