Marvel MWE801 Wall Mount Advertising Display

Name: Marvel MWE801 Wall Mount Advertising Display, 32 to 65 inch
Brand: Marvel
SKU: marvel-mwe801-wall-mount-advertising-display
Availability: InStock

Overview

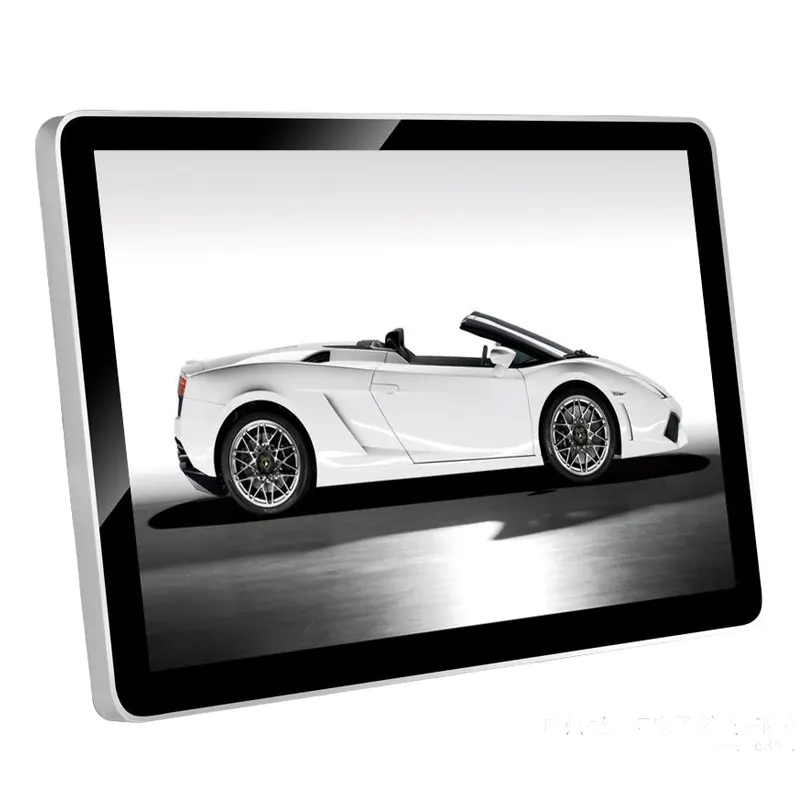

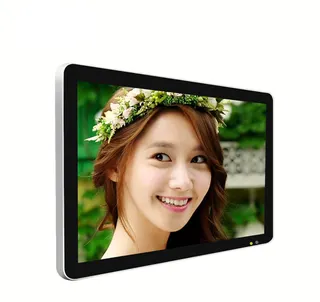

The Marvel MWE801 is an indoor wall-mounted advertising display available from 32 to 65 inches, built for commercial content that runs around the clock. It supports portrait and landscape use, has a 1080 x 1920 panel and a media player integrated with CMS, and comes in PC or Android configurations. It suits hotels, restaurants, clinics and corporate reception areas in Doha and beyond. Request a quote.

What the MWE801 wall-mount display is built for

The Marvel MWE801 is an indoor wall-mounted advertising display sized from 32 to 65 inches. It is designed to run commercial content around the clock, and it can be mounted in portrait or landscape to suit a narrow corridor wall or a wide reception area. Content is planned and scheduled through a CMS that works with the integrated media player, and the Android version also accepts an SD card. The manufacturer also states that the screen can be used as a monitor through its ports.

The panel facts that matter

Reference specifications for the 55-inch panel: an active area of 1209.6 mm by 680.4 mm, a 16:9 ratio, 1080 x 1920 resolution, an LED backlight, 16.7 million colours, and a typical viewing angle of 89 degrees in each direction. Brightness of 500 cd/m2 and contrast of 1,400:1 are listed as options, and anti-dazzle treatment is available as an option too. That treatment helps where sunlight or ceiling lights reflect off the glass.

Choosing between the PC and Android versions

The range comes in two configurations. The PC version uses an i5-3317U main board with 4 GB RAM and a 128 GB SSD, runs Windows 7, or Windows 8, 8.1 or 10 as listed options, draws up to 140 W, and offers VGA, HDMI and USB ports. The Android version uses an RK3288 main board with 2 GB RAM and 8 GB eMMC, runs Android 4.2 through 7.1.2 as listed options, draws up to 120 W, and offers HDMI, USB and SD. Both list RJ45, Wi-Fi and optional 4G connectivity. The PC version suits Windows-based software, while the Android version suits simpler content loops.

Where it fits in Qatar

Restaurant in The Pearl: a 32-inch unit at the entrance showing menus and changing promotions.
Hotel lobby in West Bay: a 55-inch portrait panel beside the lift lobby for schedules and welcome messages.
Private school in Al Wakrah: several units along corridors for announcements, with content updated over the network.

What to plan before ordering

The listed working temperature range is 0 to 50 degrees Celsius. Outdoor temperatures in Qatar often pass 45 degrees in summer, so place the unit inside air-conditioned spaces, away from direct sunlight through large windows. Confirm the site conditions with the SmartRooms Qatar team before ordering. The source data does not list the unit's dimensions or weight, so the team will need the wall type and mounting position before quoting, and a free site survey is recommended before a heavy panel is fixed. The input of AC 100 to 240 V at 50/60 Hz covers Qatar's 240 V, 50 Hz mains supply. Power cable and socket arrangements should be confirmed within the quotation.

Schools and government entities can order through a purchase order (LPO) or a government tender, including Monaqasat. Send the quantity, sizes and locations, and SmartRooms Qatar will prepare one quotation covering every site. Request a quote for the MWE801 today.

Highlights

Sizes from 32 to 65 inches for indoor wall mounting
1080 x 1920 resolution, usable in portrait or landscape
Media player integrated with CMS, optional SD and USB
PC (i5, Windows) or Android (RK3288) configurations
Input 100-240V, 50/60Hz; operating range 0-50°C
CE, FCC and RoHS certifications listed

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Key Attributes8

Model Number: MWE801
Brand Name: MWE
Certification: CE FCC ROHS
Place of Origin: Shenzhen, China
Application: Indoor
Input Voltage: AC100~240V 50 /60 HZ
Packaging: Bubble bag+packing foam+carton+wooden case
Delivery Detail: Batch order 15-30 days

Screen (optional)10

Panel Brand: Samsung & LG Full New 100% A+ Grade Brand Panel
Panel size: 55" (optional, 32 " ~ 65 " )
Display size: 1209.6(H)×680.4(V) mm
Display ratio: 16:9
Resolution: 1080*1920
Viewing angle: 89/89/89/89 (Typ.)(CR≥10)
Color: 16.7M
Backlight: LED
Brightness: 500 cd/m2 (optional)
Contrast: 1400:1 (optional)

Specifications4

Specifications: MWE801 PC Version (optional): main board:i5-3317U (optional); MWE801 Android Version (optional): main board: RK3288 (optional)
Specifications (2): MWE801 PC Version (optional): RAM:4 GB, SSD:128GB (optional); MWE801 Android Version (optional): RAM:2G, EMMC:8G(optional)
Operation: MWE801 PC Version (optional): Windows7 (optional,win8,win8.1,win10); MWE801 Android Version (optional): Android 4.2 (optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2)
Connection to network: MWE801 PC Version (optional): RJ45, 4G, WIFI (optional); MWE801 Android Version (optional): RJ45 ,4G,WIFI (optional)

Touch Screen system4

Touch screen: Infrared touch screen ( touch foil , capacitive)
Touch ways: finger,touch pen
Touch dots: MWE801 PC Version (optional): 10dots (optional,20dots,40dots); MWE801 Android Version (optional): 10 dots (optional,20dots,40dots)
Durability: More than 50 million touch

Power3

Power: MWE801 PC Version (optional): 140W; MWE801 Android Version (optional): 120W
Voltage: AC100-240V 50/60HZ
Stability: good

Instructions6

Interface: MWE801 PC Version (optional): VGA/HDMI/USB; MWE801 Android Version (optional): HDMI/USB/SD
Working temperature: MWE801 PC Version (optional): 0°C-50°C; MWE801 Android Version (optional): 0°C- 50°C
Material: Aluminum alloy,tempered glass，cold plate
Surface: Spraying,frosted aluminum
Size: Undetermined
Weight: Undetermined

Body3

Shell: Galvanized steel 、Stainless steel. Thickness:1.0-1.5mm. (optional)
Color: Black , white , silver or customized colors
Packing: By carton with foam inside & wooden

Optional Functions1

Items: Anti-dazzle; 3G/4G Capability

Downloads

2 files from the manufacturer

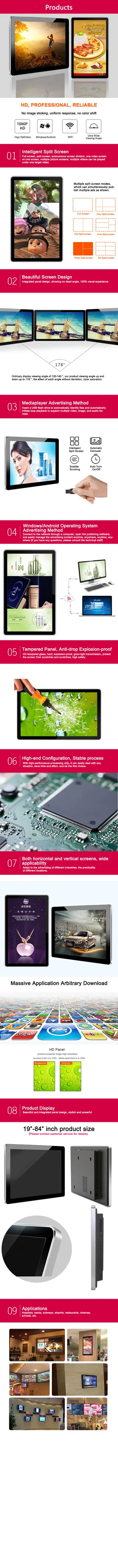

PDF Brochures Product Catalog.pdf 37.0 MB URL Other documents · Opens on manufacturer site Product video

Questions about MWE801 Wall Mount Advertising Display

What is the MWE801 designed for?

The MWE801 is an indoor, wall-mounted advertising display for digital signage. The manufacturer lists retail stores, restaurants, hospitals, corporate meeting areas, hotels and education as suitable settings. Content can be customised with text, graphics and video, then scheduled through the integrated CMS. Its listed application is indoor only, so it should not be installed outdoors.

Which sizes are available?

The range covers 32 to 65 inches. The source data gives reference panel values for a 55-inch panel: an active area of 1209.6 mm by 680.4 mm in a 16:9 ratio. Ask the SmartRooms Qatar team which size suits your wall and viewing distance, because a 65-inch panel needs a larger wall area and a more substantial fixing point.

Can it be used in portrait orientation?

Yes. The manufacturer states that the display can be used in both portrait and landscape. Its 1080 x 1920 resolution is a portrait-oriented format, which suits vertical menus, directories and poster-style promotions at a hotel lift lobby or restaurant entrance. Decide the orientation before installation so cabling and bracket position are planned correctly.

What is the difference between the PC and Android versions?

The PC version has an i5-3317U main board, 4 GB RAM, a 128 GB SSD, Windows 7 or Windows 8, 8.1 or 10 options, a 140 W power draw and VGA, HDMI and USB ports. The Android version uses an RK3288 board, 2 GB RAM, 8 GB eMMC, Android 4.2 to 7.1.2 options, a 120 W power draw and HDMI, USB and SD ports. Choose PC for Windows-based software and Android for simpler content playback.

Does it need an air-conditioned space in Qatar?

The listed working temperature is 0 to 50 degrees Celsius. Outdoor summer temperatures in Qatar often exceed 45 degrees, so a unit near a glass frontage or a loading entrance can run close to its upper limit. Install it in an air-conditioned lobby or room, away from direct sunlight, and confirm the site conditions with the SmartRooms Qatar team before ordering.

Will the screen work in a bright bank lobby or hotel reception?

Anti-dazzle treatment is listed as an option for this model, which reduces reflections from ceiling lights and windows. The panel lists 500 cd/m2 brightness as an option, and its typical viewing angle is 89 degrees in each direction, so guests can read content from the side of a reception desk. Specify anti-dazzle in your quotation if the lobby has strong glare.

What connectivity does it offer?

Both versions list RJ45 wired Ethernet and Wi-Fi, with optional 4G. The PC version has VGA, HDMI and USB ports, while the Android version has HDMI, USB and SD. A private school in Al Wakrah, for example, can update corridor content over the network from a central CMS, and fall back to a USB or SD card when the network is unavailable.

Can I use it as a normal monitor?

The manufacturer states that the screen can be used as a monitor through its available ports. Connect a laptop or media source through HDMI, or VGA on the PC version, and the display will show that input. For a dedicated signage loop, however, the built-in player and CMS are the better fit for scheduled content.

What power supply does it need?

The input is AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Power draw is 140 W for the PC version and 120 W for the Android version. Confirm the power cable and socket arrangement in your quotation, and plan a nearby outlet and cable route before the installation day.

How much wall space and mounting support is needed?

The source data does not list the unit's dimensions or weight, so the team needs the wall type, wall size and mounting position before quoting. The manufacturer states that a wall mount is included. A free site survey in Doha, Lusail or Al Khor helps confirm the fixing method for a concrete, plasterboard or glass wall before the panel is ordered.

What warranty applies to this model?

The manufacturer's data lists a warranty of 1 to 3 years. SmartRooms Qatar supplies the unit covered by the manufacturer's warranty. Confirm the warranty term that applies to your order in the written quotation before issuing a purchase order.

Can government entities and schools buy this through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. A school ordering several MWE801 units for corridors should send the quantity, screen sizes and installation locations, and the team will prepare one quotation covering all sites.
